Toshiba TEC CF3R Original Water-Cooled Recirculating Industrial Inkjet Printhead 600npi
- Write a review
$1,650.00
Genuine Toshiba TEC factory-original CF3R water-cooled recirculating piezo printhead with 1278 nozzles at 600 npi. Enhanced thermal control version of the CF3 for continuous high-duty industrial printing.

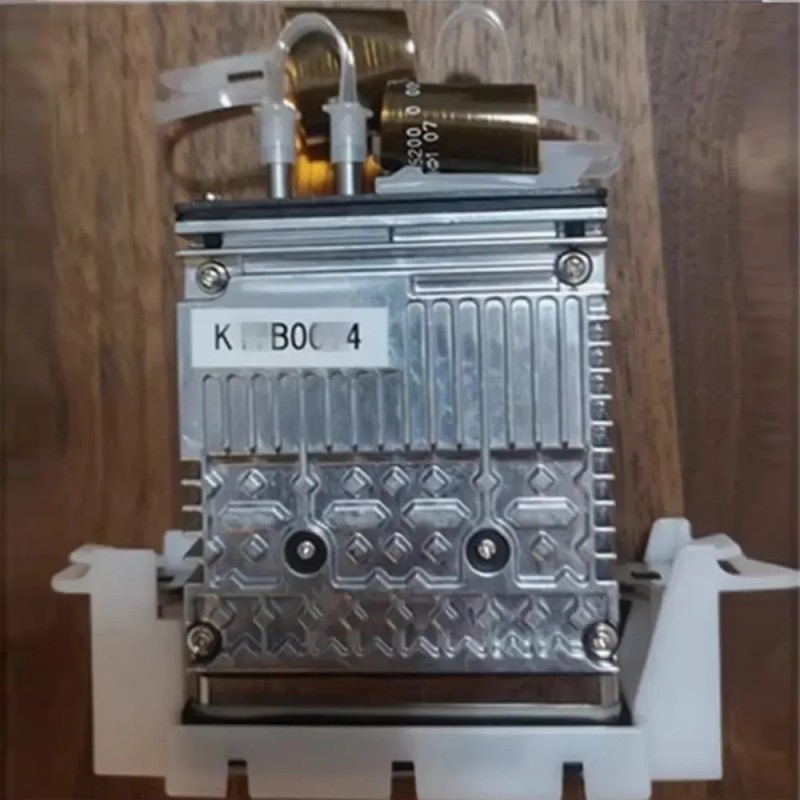

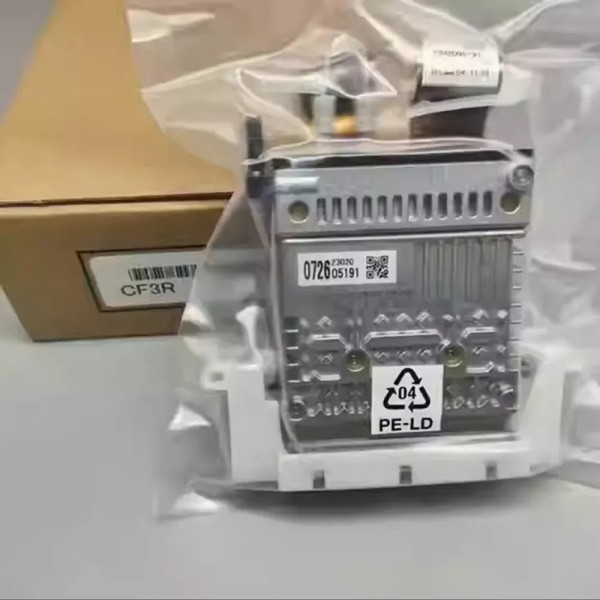

Toshiba TEC CF3R Original Water-Cooled Recirculating Industrial Inkjet Printhead 600npi
The Toshiba TEC CF3R is the water-cooled variant of the CF3 recirculating industrial inkjet printhead. It retains the full ink recirculation through all channels and native 600 npi resolution of the CF3 while adding active water cooling for improved thermal stability in high-duty or elevated-temperature environments.
In single-colour mode the CF3R delivers 1,278 nozzles at 600 npi across a 53.95 mm print width. It can also be configured for two colours at 300 npi each (639 nozzles per colour, 53.91 mm width). Multi-drop greyscale technology provides 6 levels (0–5 drops) with a minimum drop volume of 3–4 pL and a maximum of 20 pL at 5 drops. Maximum firing frequency is 9.2 kHz at 5 drops.
Full recirculation through every channel enables automatic recovery from air bubbles and particle sedimentation, supports higher-viscosity and high-gravity inks, and maintains consistent jetting reliability. The water-cooling circuit provides enhanced temperature control compared with the air-cooled CF3, making the CF3R suitable for continuous high-duty industrial operation.
The CF3R is designed for single-pass and scan-based industrial applications including labels, packaging, signs & graphics, business forms and other high-resolution industrial printing where thermal management is critical.
Part Information
| Parameter | Detail |
|---|---|
| Product Name | Toshiba TEC CF3R Original Water-Cooled Recirculating Industrial Inkjet Printhead 600npi |
| Manufacturer | Toshiba TEC |
| Exact Model | CF3R |
| Model Family | Toshiba TEC CF3 Series (CF3 / CF3R) |
| OEM Part Number | CF3R |
| Known Replacement / Related Numbers | Related air-cooled variant: CF3 |
| Known Alias | Toshiba TEC CF3R Water-Cooled 600 npi Recirculating Printhead |
| Ink Type | UV-curable, oil-based (consult for specific fluid compatibility) |
| Product Status | Available as genuine OEM / industrial supply |
| Condition | 100% Genuine OEM Factory Sealed |
| Country of Origin | Japan (Toshiba TEC) |
| Industrial Application | High-duty single-pass and scan-based industrial printing requiring enhanced thermal control: labels, packaging, signs & graphics, business forms |
Technical Specifications
| Parameter | Value |
|---|---|
| Technology | On-Demand Piezoelectric with full ink recirculation through all channels |
| Recirculation | Yes – through all channels |
| Active Nozzles (1 colour) | 1,278 |
| Active Nozzles (2 colours) | 639 × 2 |
| Nozzle Arrangement | 2 rows (laterally offset by 1/600") |
| Nozzle Resolution | 600 npi (1 colour) / 300 npi × 2 colours |
| Print Swathe Width | 53.95 mm (1 colour) / 53.91 mm (2 colours) |
| Drop Volume | 20 pL / 5 drops |
| Minimum Drop Volume | 3 – 4 pL |
| Grayscale Levels | 6 levels (0 – 5 drops) |
| Firing Frequency | 9.2 kHz (at 5 drops) |
| Cooling Method | Water cooling (includes water cooling port) |
| Ink Compatibility | UV-curable and oil-based fluids |
| Dimensions (W × D × H) | 96.7 × 31.3 × 100.7 mm |
| Weight | 285 g |
| Built-in Temperature Sensor | Yes |
Master Comparison Matrix – Toshiba TEC CF3 Series
| Model | Nozzles | Resolution | Drop Volume | Frequency | Cooling | Weight |
|---|---|---|---|---|---|---|
| CF3 | 1,278 | 600 npi | 3–20 pL | 9.2 kHz | Air | 255 g |
| CF3R (Current) | 1,278 | 600 npi | 3–20 pL | 9.2 kHz | Water | 285 g |
Technical Precision & Operational Advisory
Installation Warning
Printhead installation must be performed by a qualified technician following the official procedures of the printer and printhead manufacturers. Incorrect handling can permanently damage the nozzle plate, electronics or ink system.
- ESD Protection: Always use a grounded wrist strap and anti-static surface when opening the packaging and handling the printhead. Piezo printheads are highly sensitive to electrostatic discharge.
- Power Isolation: Completely power down and isolate the printer before removing or installing the printhead. Do not hot-swap.
- Water Cooling Circuit: The CF3R requires a properly connected and functioning water-cooling loop. Ensure coolant flow, temperature and quality meet the manufacturer’s recommendations before operation.
- Recirculation System: Full ink recirculation through all channels must be correctly configured. Verify flow rate, meniscus pressure and temperature control.
- Nozzle Fine Adjustment: The CF3R supports per-nozzle drop volume fine adjustment. Proper calibration is essential for density uniformity across the print width.
- Ink Compatibility: Use only UV-curable or oil-based fluids verified for the CF3R. The recirculation design supports higher-viscosity and high-gravity inks, but compatibility must still be confirmed.
- Handling Factory-Sealed Unit: Do not break the seal until ready for installation. Once the printhead has been exposed to ink or installed, it is considered used and cannot be returned.
- Drive Electronics: Confirm waveform and drive voltage match the printer configuration. The CF3R requires specific bipolar drive voltages; incorrect electronics will damage the head.
Compatible Models & Systems
The Toshiba TEC CF3R is the water-cooled version of the CF3 and is intended for industrial single-pass and scan-based systems that require enhanced thermal management. It is used by system integrators in labels, packaging, signs & graphics, business forms and other high-resolution industrial applications operating under higher duty cycles or elevated ambient temperatures.
Exact printer model lists vary by system integrator. Compatibility must be confirmed against the specific machine’s service documentation or the integrator’s specifications before ordering.
Recommendation: Do not assume interchangeability with the air-cooled CF3, CF1-series, CF6-series or non-recirculating heads without verification of the physical interface, electrical drive, water-cooling circuit, recirculation requirements and ink system.
