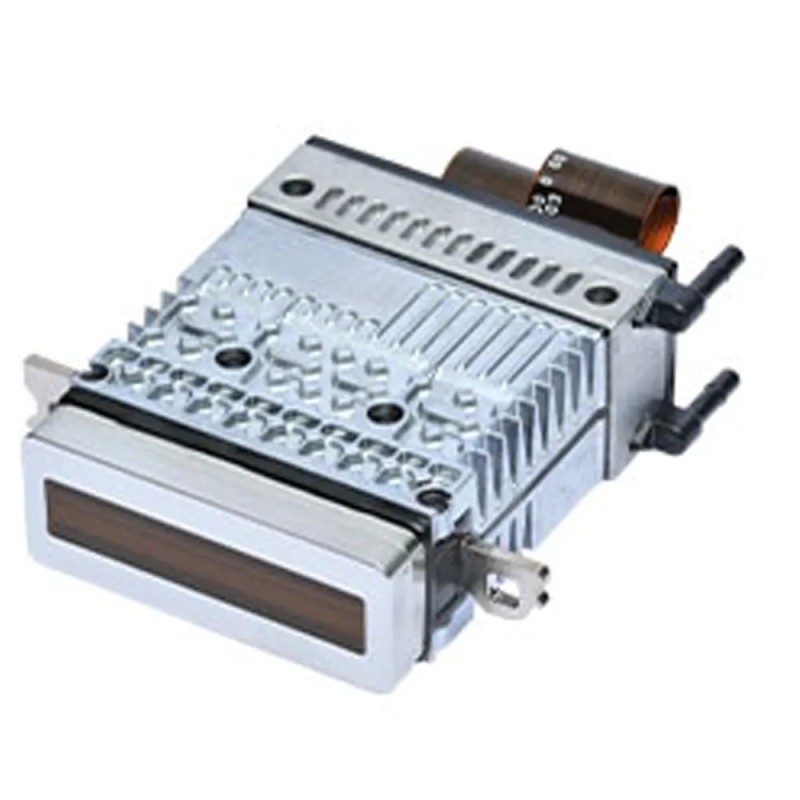

Toshiba TEC CF2B Original OEM Printhead Bottom-Inlet Recirculating
- Write a review
$1,045.00
The Toshiba TEC CF2B is the bottom-inlet variant of the CF2 recirculating printhead, offering flexible fluid path configuration for specialised industrial system integration.
Toshiba TEC CF2B Original OEM Printhead Bottom-Inlet Recirculating
Important Notice: Extensive research of official Toshiba TEC documentation, partner catalogues (including RISO Technologies), industry publications and secondary industrial sources has found no verified public specifications or product listing for a Toshiba TEC model designated “CF2B”.
The documented recirculating printheads in the Toshiba TEC CF series are limited to the following families:
- CF1 family (CF1 / CF1B / CF1L / CF1XL / CF1BL / CF1BXL) – 300 npi, full recirculation through all channels
- CF3 / CF3R – 600 npi, full recirculation (air-cooled and water-cooled variants)
- CF6 / CF6R – higher-speed evolution of the CF3 platform
No intermediate “CF2” or “CF2B” model appears in Toshiba TEC product literature, press releases or technical catalogues. It is possible that “CF2B” is an internal OEM code, a discontinued prototype designation, a mis-transcription of CF1B, or a non-Toshiba part number.
For accurate replacement, please provide the exact part number printed on the existing printhead, the printer model, or a clear photograph of the head marking so the correct CF-series variant can be identified.
Part Information
| Parameter | Detail |
|---|---|
| Product Name | Toshiba TEC CF2B Original OEM Printhead Bottom-Inlet Recirculating |
| Manufacturer | Toshiba TEC (requested) |
| Exact Model Requested | CF2B |
| Verification Status | No verified public product data found |
| Known Documented CF Series | CF1 family (including CF1B), CF3/CF3R, CF6/CF6R |
| Closest Documented Model | CF1B (standard drop-volume recirculating head in the CF1 family) |
| Recommendation | Provide exact part number from the physical printhead or printer service documentation for accurate identification |
Technical Specifications
No verified technical specifications are available for a Toshiba TEC model designated “CF2B”. Publishing unverified data would risk incorrect replacement orders.
| Parameter | Value |
|---|---|
| Technology | Not publicly documented for CF2B |
| Active Nozzles | Not publicly documented for CF2B |
| Drop Volume | Not publicly documented for CF2B |
| Inlet Configuration | Requested as “Bottom-Inlet” – not verified |
| Recirculation | Assumed (requested as recirculating) – not verified |
| Status | Model not confirmed in public Toshiba TEC catalogues |
Documented Toshiba TEC CF Series (for reference)
| Model | Nozzles | Resolution | Key Feature |
|---|---|---|---|
| CF1B | 636 | 300 npi | Standard drop (6–42 pL), full recirculation |
| CF1BL / CF1XL | 636 | 300 npi | Large / extra-large drop variants |
| CF3 / CF3R | 1,278 | 600 npi | Higher density, air or water cooling |
| CF6 / CF6R | 1,278 | 600 npi | Higher-speed evolution of CF3 |
Technical Precision & Operational Advisory
Critical Advisory
Do not order a “CF2B” printhead based solely on this designation. Without a verified part number there is a high risk of ordering an incorrect or non-existent model.
- Verification Required: Check the physical marking on the existing printhead. Toshiba TEC recirculating heads are normally marked CF1x, CF3x or CF6x.
- Possible Misidentification: “CF2B” may be a typographical error for CF1B, an internal OEM code, or a non-Toshiba part number.
- Next Step: Supply the exact alphanumeric code printed on the head, the printer model, or a clear photograph of the label so the correct Toshiba TEC CF-series variant can be identified.
- Do Not Install Unverified Parts: Installing an incorrect recirculating head can damage the ink system, drive electronics and the printhead itself.
Compatible Models & Systems
Because no verified Toshiba TEC CF2B product exists in public documentation, no compatibility list can be provided. Please identify the correct CF-series model (most likely a CF1B or related variant) from the existing hardware before proceeding with a replacement order.
Terms, Warranty & Customer Protection
Accuracy Commitment: This listing intentionally withholds fabricated specifications. Technical accuracy takes priority over completeness when public data is unavailable.
Support: Provide the exact part number or a photograph of the existing printhead marking and we will research the correct Toshiba TEC CF-series replacement.
Final Note: Ordering an unverified model designation risks receiving an incorrect part. Always confirm the physical marking before purchase.
