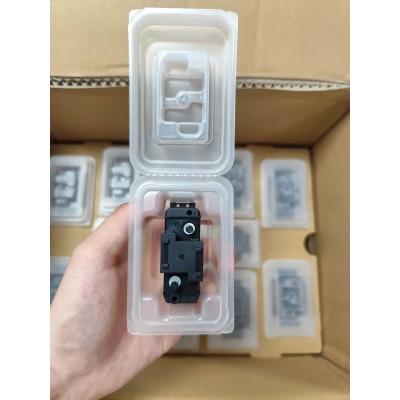

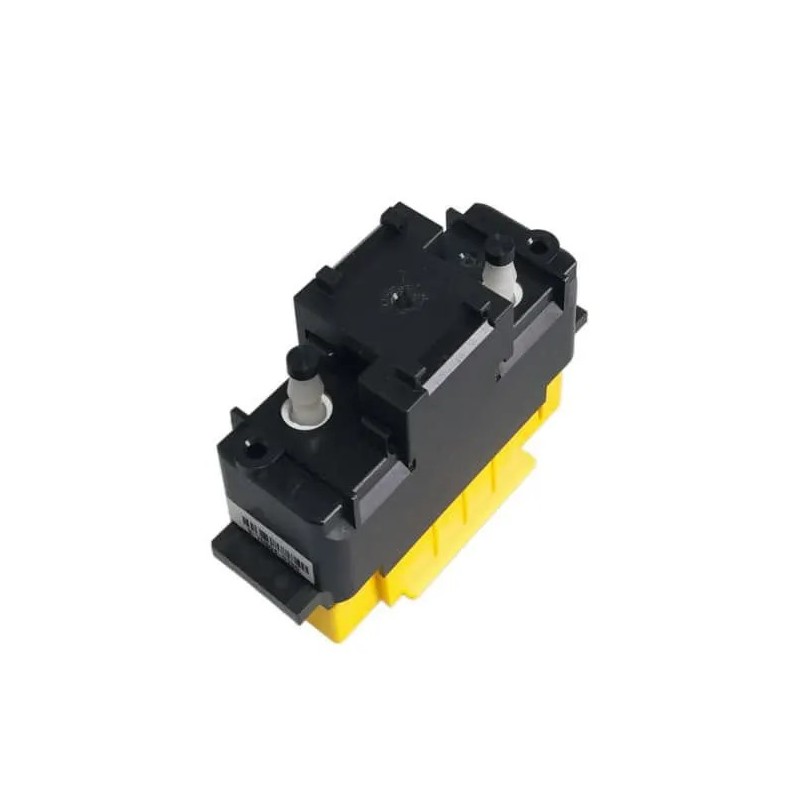

Genuine Ricoh GH2220 GH Series Aqueous/Solvent Industrial Printhead
- Write a review
$134.00
Original Ricoh GH2220 (GH Series) printhead with 384 nozzles and 300 dpi resolution. Supports aqueous and solvent inks with precise 3–21 pL variable droplets. Compact, high-speed design ideal for sign graphics, textiles and industrial applications.
Product Overview
The Genuine Ricoh GH2220 is a compact, high-performance industrial inkjet printhead from Ricoh’s GH Series, developed for cost-effective high-speed and high-image-quality printing. Featuring 384 nozzles and a 32.4 mm print width, it delivers native 300 dpi resolution. Utilizing advanced Piezo Dicing Technology and a Silicon Chamber structure, the head accurately controls droplets ranging from 3–5 pL in binary mode up to approximately 21 pL in multi-drop greyscale mode. Maximum drive frequencies of 30 kHz (binary) and 24 kHz (greyscale) support productive industrial operation. Fully compatible with aqueous and solvent inks, the GH2220 offers a simple, heater-less design that is easy to integrate into systems for sign graphics, textiles, DTG and coding applications. Lightweight (only 38 g) and compact, it provides excellent cost-performance while maintaining reliable multi-drop greyscale expression across up to 4 levels and support for up to two colors.
Part Information
- Brand: Ricoh
- Product Type: Industrial Aqueous/Solvent Inkjet Printhead (GH Series)
- Technology: Piston pusher with metallic diaphragm plate (Piezo Dicing / Silicon Chamber)
- Ink Type Compatibility: Aqueous / Solvent
- Condition: 100% Genuine Original, Brand New
- Country of Origin: Japan
Technical Specifications
| Specification | Detail |
|---|---|
| Manufacturer | Ricoh Company, Ltd., Japan |
| Native Resolution | 300 dpi |
| Nozzle Count | 384 nozzles |
| Max Drive Frequency | 30 kHz (binary) / 24 kHz (greyscale) |
| Droplet Volume | 3–5 pL (binary) / ~21 pL (multi-drop greyscale) |
| Effective Print Width | 32.4 mm |
| Greyscale Levels | Up to 4 levels |
| Max Number of Colors | 2 colors |
| Dimensions (W × D × H) | 61.8 × 23.3 × 40.5 mm |
| Weight | 38 g |
| Key Features | Piezo Dicing + Silicon Chamber technology, multi-drop greyscale, aqueous & solvent compatibility, compact heater-less design, high cost-performance |
Technical Precision & Operational Advisory
- Electrostatic Discharge (ESD) Protection: Always wear a properly grounded ESD wrist strap when handling the printhead. Piezo electronics are highly sensitive to static electricity.
- Power Isolation Warning: Completely power off the printer and disconnect the main power supply before connecting or disconnecting the FFC ribbon cable or fluid lines.
- Cable Replacement Protocol: It is strongly recommended to replace the head cable with a new genuine Ricoh cable when installing a new printhead to ensure reliable signal transmission.
- Fluid System Preparation: Thoroughly flush the ink system with the appropriate cleaning fluid for aqueous or solvent inks before first use. Only use inks within the recommended viscosity range (approx. 8 mPa·s at 25°C).
- Operating Notes: This model has no integrated heater or thermistor. Ensure proper system temperature management for stable jetting performance with the selected ink type.
Compatible Equipment & Applications
| Category | Details / Compatible Systems |
|---|---|
| Printer Compatibility | Industrial and wide-format systems designed for Ricoh GH2220 / GH Series printheads, including sign graphics, textile, DTG, coding & marking and custom OEM platforms supporting aqueous or solvent inks. |
| Primary Applications | Sign graphics, digital textile printing, direct-to-garment (DTG), coding & marking, wide-format graphics and other industrial applications requiring compact, cost-effective aqueous or solvent printheads with 300 dpi quality. |
Terms, Warranty & Customer Protection:

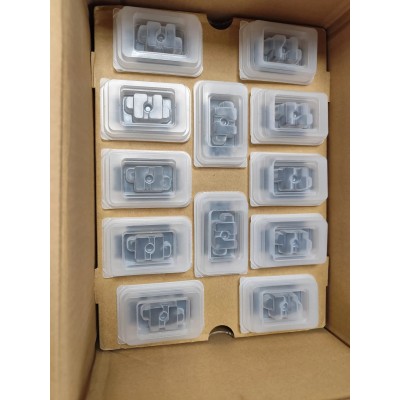

- Pre-Installation Guarantee: 100% brand-new, factory-original Ricoh product supplied in original sealed packaging with full traceability.
- Store Warranty Policy: 30 working days warranty from the date of delivery, valid only when accompanied by complete unboxing video and full technical installation video performed by an experienced technician.
- Final Sale Conditions: Once the printhead has been exposed to ink or installed into any printer, it cannot be returned or exchanged under any circumstances.
