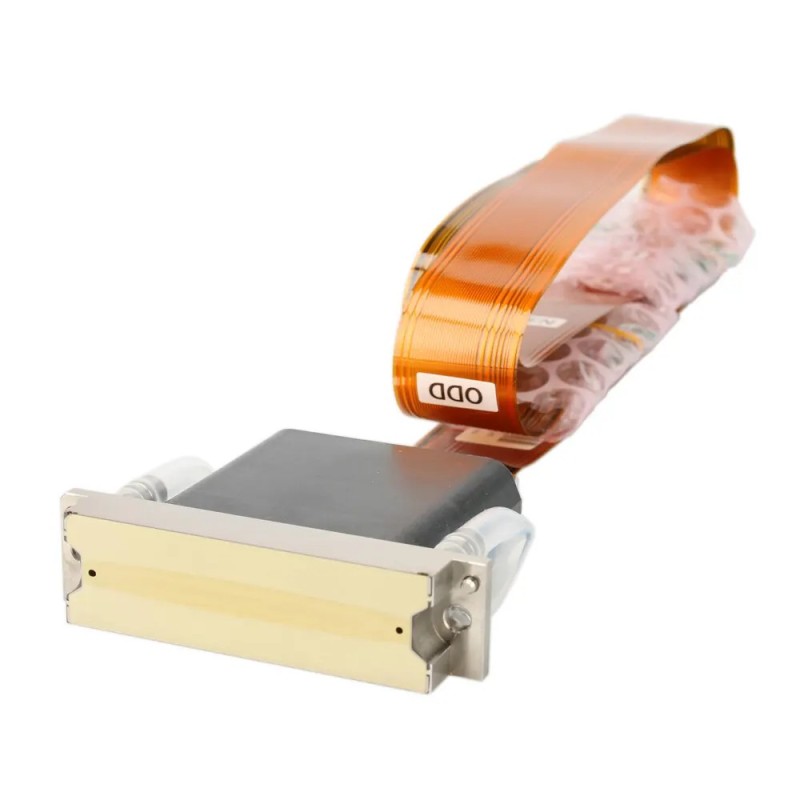

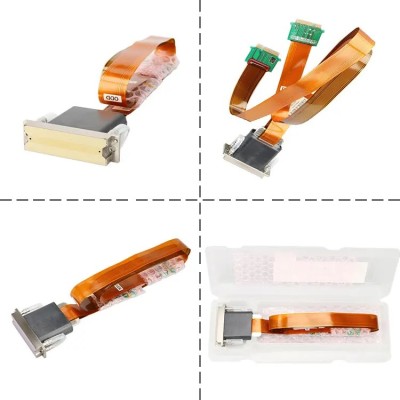

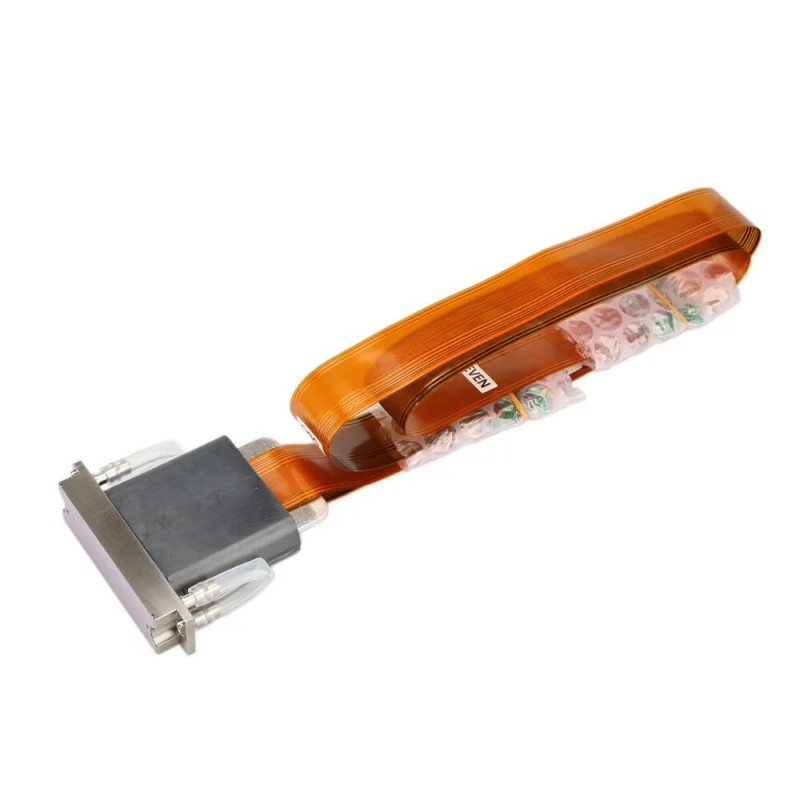

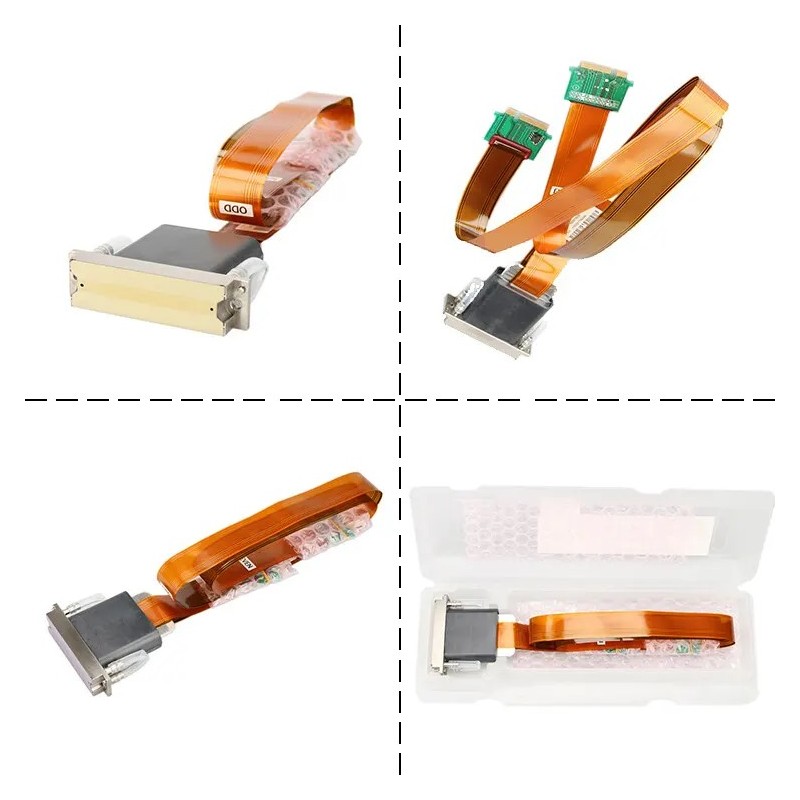

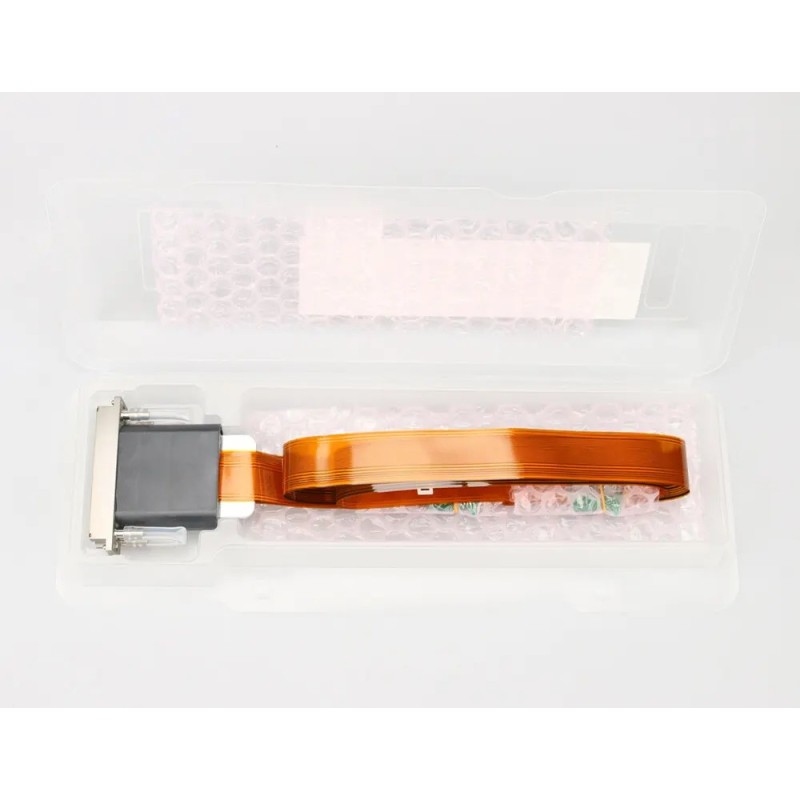

Genuine Ricoh MH2420 Gen4 Multi-Ink Industrial Printhead
- Write a review
$550.00
Original Ricoh MH2420 (Gen4) printhead with 384 nozzles and 300 dpi resolution. Supports UV, solvent and aqueous inks with variable 7–35 pL droplets. Compact, durable and reliable for coding, marking, wide-format and industrial multi-ink applications.
Product Overview
The Genuine Ricoh MH2420 (Gen4) is a compact and highly durable industrial inkjet printhead designed for multi-ink applications. Featuring 384 nozzles arranged in two staggered rows of 192 nozzles, it delivers native 300 dpi resolution with excellent reliability. Multi-drop greyscale technology enables variable droplet volumes from 7 pL (binary) up to 35 pL, supporting smooth tonal reproduction across 4 grey levels. Maximum jetting frequencies of 30 kHz in binary mode and 20 kHz in greyscale mode provide solid productivity for industrial use. Fully compatible with UV, solvent and aqueous inks, the MH2420 incorporates a robust stainless-steel construction with high corrosion resistance and an integrated heater plus thermistor for stable viscosity control of higher-viscosity fluids. Isolated ink paths support up to two colors. Its compact size (print width 32.4 mm) and proven long service life make it well-suited for coding & marking, direct-to-shape, wide-format graphics and other industrial printing systems.
Part Information
- Brand: Ricoh
- Product Type: Industrial Multi-Ink Inkjet Printhead
- Technology: Piston pusher with metallic diaphragm plate (Piezo)
- Ink Type Compatibility: UV / Solvent / Aqueous
- Condition: 100% Genuine Original, Brand New
- Country of Origin: Japan
Technical Specifications
| Specification | Detail |
|---|---|
| Manufacturer | Ricoh Company, Ltd., Japan |
| Native Resolution | 300 dpi |
| Nozzle Count | 384 nozzles (2 × 192 channels, staggered) |
| Max Drive Frequency | 30 kHz (binary) / 20 kHz (greyscale) |
| Droplet Volume | 7 pL (binary) / 7–35 pL (multi-drop greyscale) |
| Effective Print Width | 32.4 mm |
| Greyscale Levels | 4 levels |
| Max Number of Colors | 2 colors |

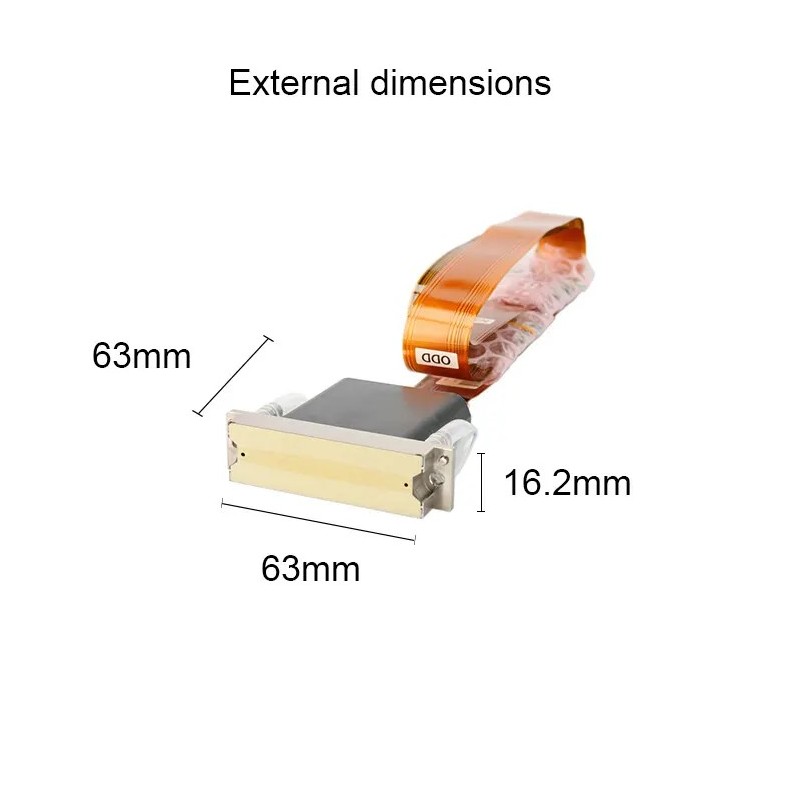

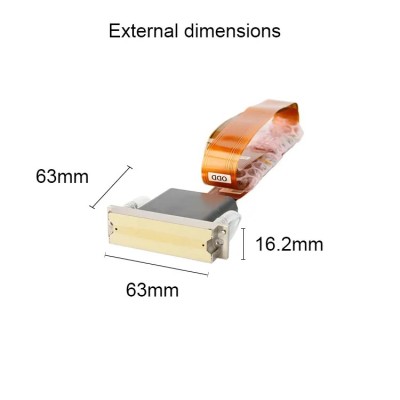

| Dimensions (W × D × H) | 63 × 62.4 × 16.2 mm (excluding cables) |
| Weight | 73 g |
| Key Features | Integrated heater + thermistor, multi-ink compatibility (UV/Solvent/Aqueous), high durability stainless-steel construction, compact design |
Technical Precision & Operational Advisory
- Electrostatic Discharge (ESD) Protection: Always wear a properly grounded ESD wrist strap when handling the printhead. Piezo electronics are highly sensitive to static electricity.

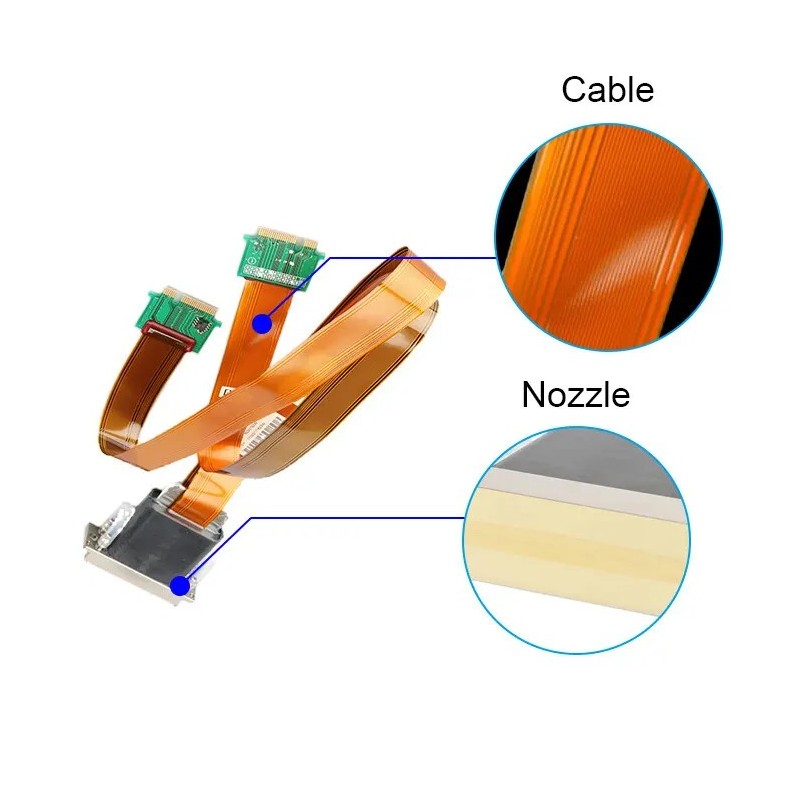

- Power Isolation Warning: Completely power off the printer and disconnect the main power supply before connecting or disconnecting the FFC ribbon cable or fluid lines.
- Cable Replacement Protocol: It is strongly recommended to replace the head cable with a new genuine Ricoh cable when installing a new printhead to ensure reliable signal transmission.
- Fluid System Preparation: Thoroughly flush the ink system with the appropriate cleaning fluid for the ink type (UV, solvent or aqueous) before first use. Only use inks within the recommended viscosity range (10–12 mPa·s).
- Temperature Control: Utilize the integrated heater and thermistor to maintain optimal ink temperature and viscosity for consistent 7–35 pL droplet formation during production.
Compatible Equipment & Applications
| Category | Details / Compatible Systems |
|---|---|
| Printer Compatibility | Wide range of industrial printers and systems designed for Ricoh MH2420 / Gen4 printheads, including coding & marking systems, direct-to-shape printers, wide-format graphics machines and custom OEM platforms supporting UV, solvent or aqueous inks. |
| Primary Applications | Coding & marking, direct-to-shape printing, wide-format graphics, industrial multi-ink production and other applications requiring a compact, durable 300 dpi multi-ink printhead. |
Terms, Warranty & Customer Protection:

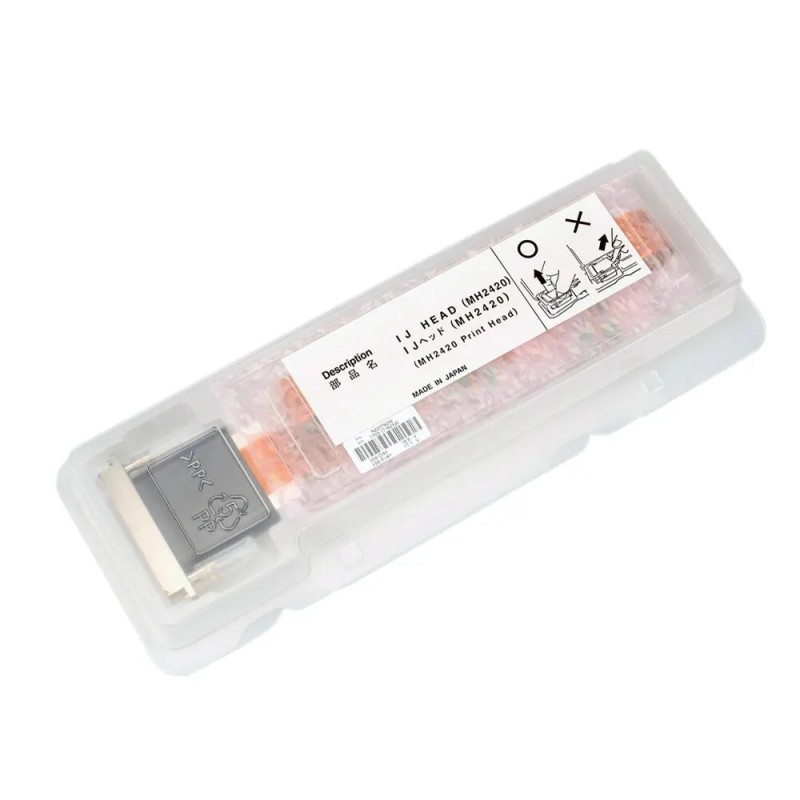

- Pre-Installation Guarantee: 100% brand-new, factory-original Ricoh product supplied in original sealed packaging with full traceability.
- Store Warranty Policy: 30 working days warranty from the date of delivery, valid only when accompanied by complete unboxing video and full technical installation video performed by an experienced technician.
- Final Sale Conditions: Once the printhead has been exposed to ink or installed into any printer, it cannot be returned or exchanged under any circumstances.
