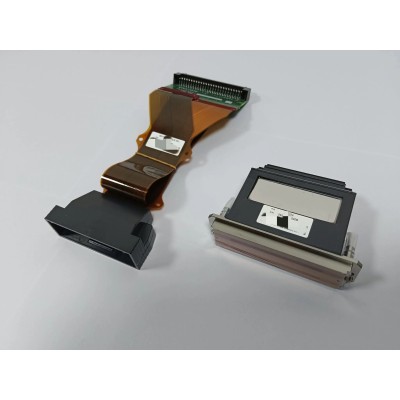

Genuine Ricoh MH5220 Gen5 UV Industrial Printhead

Genuine Ricoh MH5220 Gen5 UV Industrial Printhead

Write a review

$1,150.00

Original Ricoh MH5220 (Gen5) UV printhead with 1,280 nozzles and true 600 dpi resolution. Delivers precise 2.5–9 pL variable droplets at 30 kHz for high-definition, grain-free printing. Designed for UV inks in labels, packaging and wide-format graphics applications.

Quantity

Add to wishlist

Secure Payment

Secure bank transfer

Worldwide Delivery

Worldwide tracked shipping

Warranty & Returns

30-day warranty & returns

Guarantee safe & secure checkout

Product Overview

The Genuine Ricoh MH5220 (commonly known as Gen5) is a high-resolution industrial UV inkjet printhead engineered for outstanding image quality and long-term reliability. Featuring 1,280 nozzles arranged in four staggered rows of 320 nozzles, it achieves native 600 dpi resolution with a minimum droplet size of just 2.5 pL, producing smooth, grain-free results. Multi-drop greyscale technology allows variable drop volumes from 2.5 to 9 pL across 4 grey levels, while a maximum jetting frequency of 30 kHz supports productive industrial printing. The robust stainless-steel construction, isolated ink paths (supporting up to two colors per head) and integrated heater + thermistor ensure stable performance with UV-curable inks even under continuous high-duty conditions. With a proven life of 100 billion actuations per nozzle, the MH5220 is widely used in label, packaging, wide-format graphics and other UV industrial systems requiring precise, high-definition output.

Part Information

Brand: Ricoh
Product Type: Industrial UV Inkjet Printhead
Technology: Piston pusher with metallic diaphragm plate (Piezo)
Ink Type Compatibility: UV-Curable Inks
Condition: 100% Genuine Original, Brand New
Country of Origin: Japan

Technical Specifications

Specification	Detail
Manufacturer	Ricoh Company, Ltd., Japan
Native Resolution	600 dpi
Nozzle Count	1,280 nozzles (4 × 320 channels, staggered)
Max Drive Frequency	30 kHz
Droplet Volume	2.5 pL (binary) / 2.5–9 pL (multi-drop greyscale)
Effective Print Width	54.1 mm
Greyscale Levels	4 levels
Dimensions (W × D × H)	Approx. 89 × 24.5–66.3 mm (excluding cables)
Weight	Approx. 142–148 g
Key Features	Integrated heater + thermistor, up to 2 colors per head, stainless-steel durability, 100 billion actuations life

Technical Precision & Operational Advisory

Electrostatic Discharge (ESD) Protection: Always wear a properly grounded ESD wrist strap when handling the printhead. Piezo electronics are highly sensitive to static electricity.
Power Isolation Warning: Completely power off the printer and disconnect the main power supply before connecting or disconnecting the FFC ribbon cable or fluid lines.
Cable Replacement Protocol: It is strongly recommended to replace the head cable with a new genuine Ricoh cable when installing a new printhead to ensure reliable signal transmission.
Fluid System Preparation: Thoroughly flush the ink system with approved UV cleaning fluid before first use. Only use UV-curable inks within the recommended viscosity range (10–12 mPa·s).
Temperature Control: Utilize the integrated heater and thermistor to maintain optimal ink temperature and viscosity for consistent 2.5–9 pL droplet formation.

Compatible Equipment & Applications

Category	Details / Compatible Systems
Printer Compatibility	Wide range of industrial UV printers and systems designed for Ricoh MH5220 / Gen5 printheads, including label presses, packaging printers, wide-format graphics systems and custom OEM UV platforms.
Primary Applications	Labels & packaging, wide-format graphics, signage, industrial UV printing and other high-resolution UV-curable ink applications requiring grain-free 600 dpi quality.

Terms, Warranty & Customer Protection:

Pre-Installation Guarantee: 100% brand-new, factory-original Ricoh product supplied in original sealed packaging with full traceability.
Store Warranty Policy: 30 working days warranty from the date of delivery, valid only when accompanied by complete unboxing video and full technical installation video performed by an experienced technician.
Final Sale Conditions: Once the printhead has been exposed to ink or installed into any printer, it cannot be returned or exchanged under any circumstances.

Reference MH5220 / Gen5

In stock 451 Items
