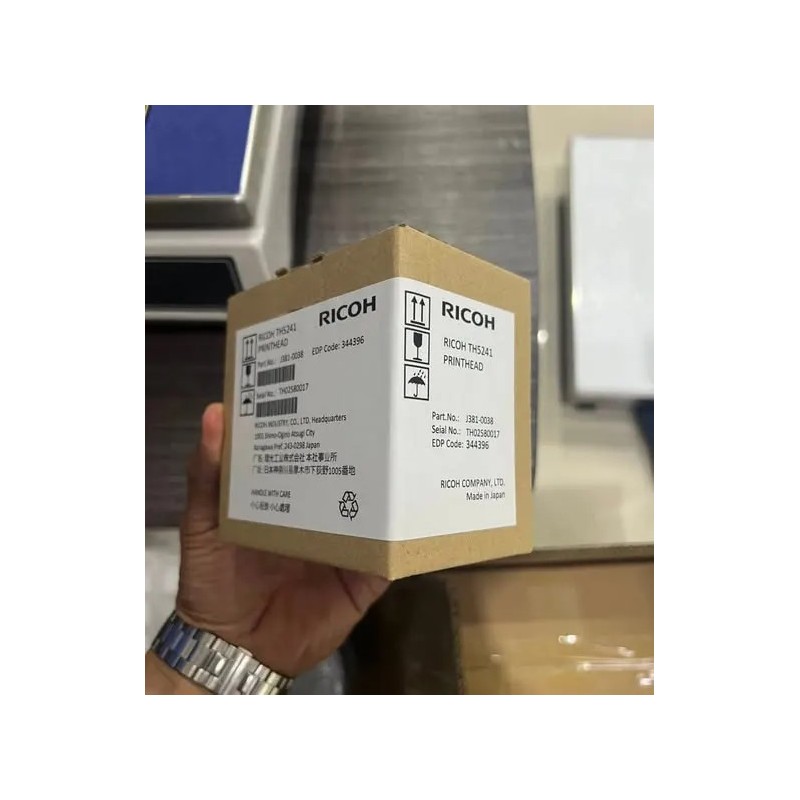

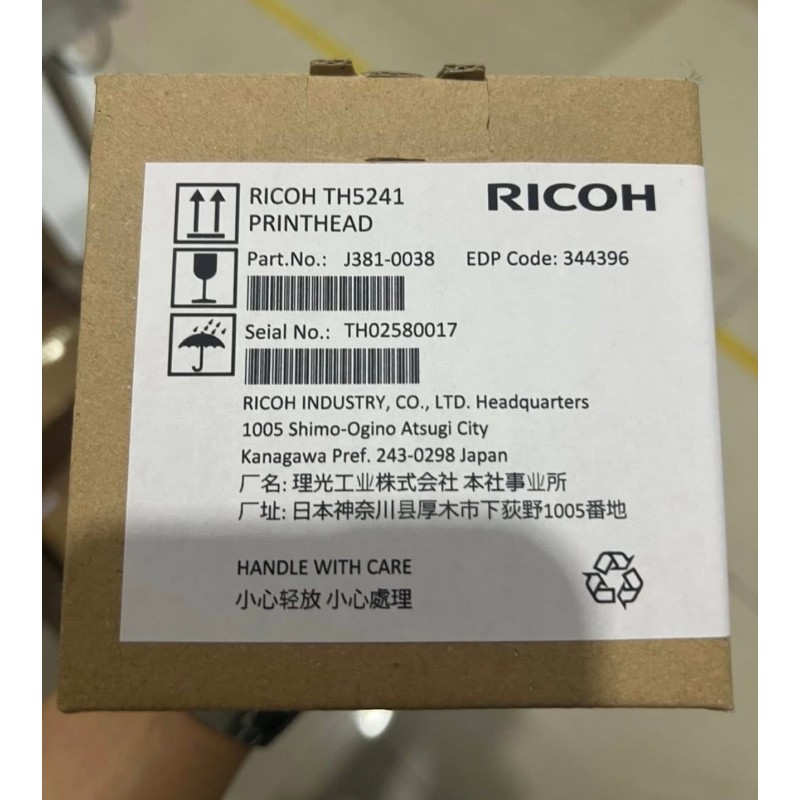

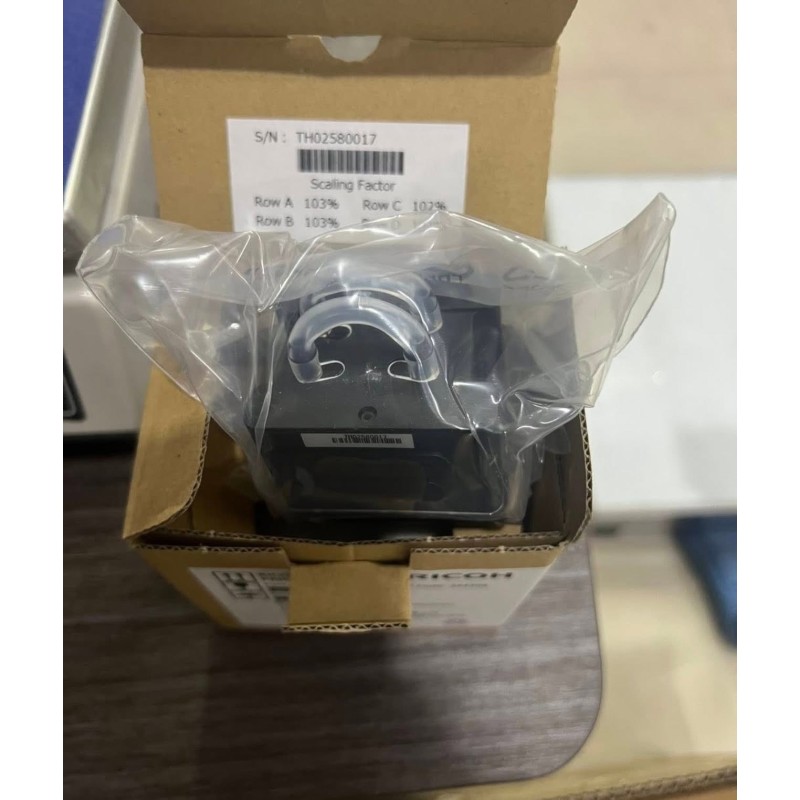

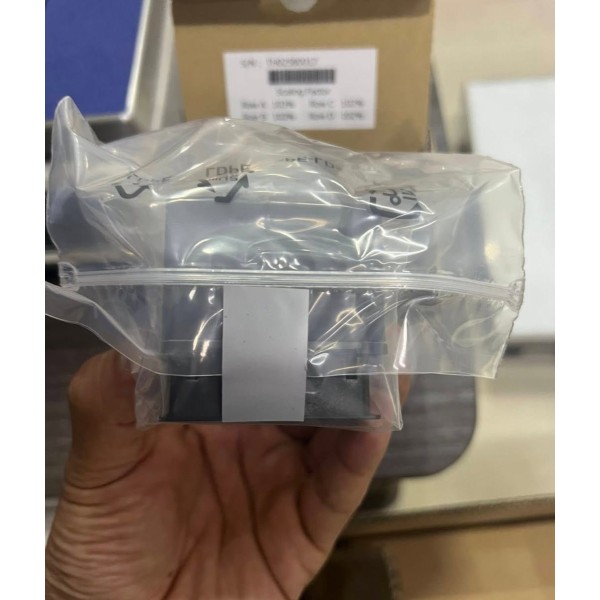

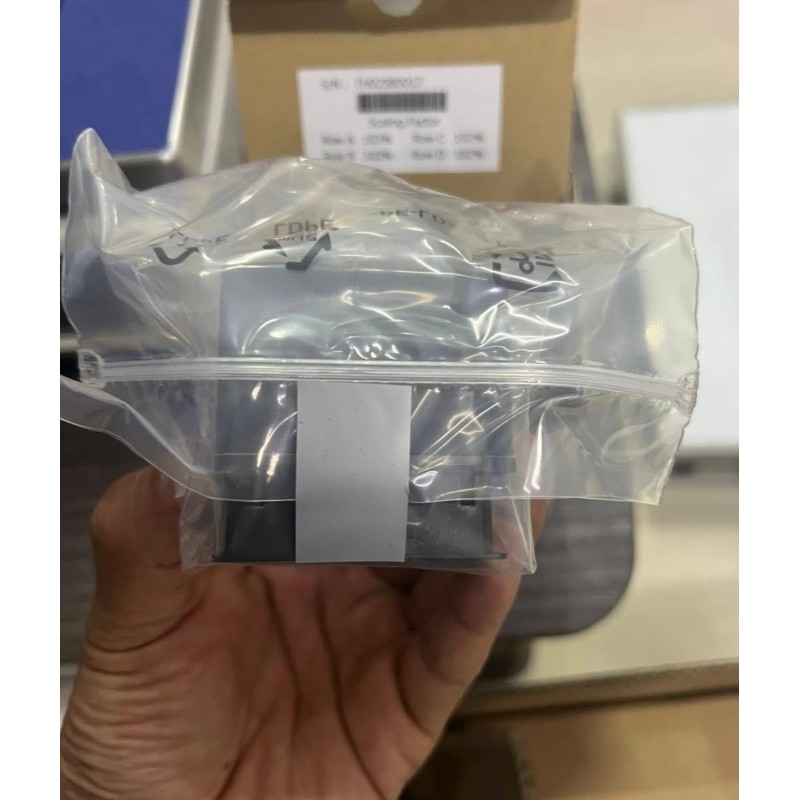

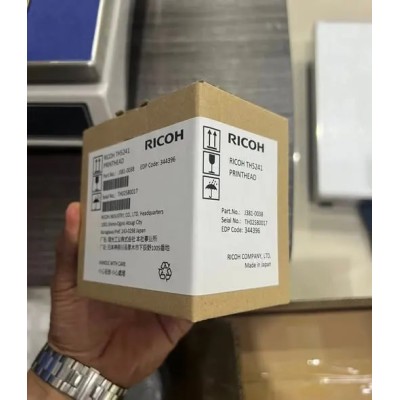

Genuine Ricoh TH5241 Gen5i / G5i Industrial Printhead
- Write a review
$1,250.00
Original Ricoh TH5241 (Gen5i / G5i) thin-film piezo printhead with 1,280 nozzles and 600 npi resolution. Supports UV, solvent and aqueous inks with variable 3–21 pL droplets. Compact, high-definition head ideal for signage, labels, textiles and DTG applications.
Product Overview
The Genuine Ricoh TH5241 (also known as Gen5i or G5i) is Ricoh’s first thin-film piezoelectric industrial inkjet printhead, delivering high-definition printing in a remarkably compact package. Featuring 1,280 nozzles arranged in four staggered rows of 320 nozzles each, it achieves 600 npi resolution for one or two colors (300 npi for four colors) and supports multi-drop greyscale technology for smooth tonal reproduction. The head jets precise droplets starting from 3 pL (single drop) up to a maximum of 21 pL in multi-drop mode, with firing frequencies of 40 kHz (2 levels) or 24 kHz (4 levels). Its broad ink compatibility — UV, solvent and aqueous — combined with excellent jetting stability makes it highly versatile for a wide range of industrial applications including sign-graphics, labels, textiles and direct-to-garment (DTG) printing. Lightweight (only 63 g) and compact (52.7 × 45.8 × 55.4 mm), the TH5241 offers outstanding system integration flexibility and reliable performance for both single-pass and multi-pass systems.
Part Information
- Brand: Ricoh
- Product Type: Industrial Inkjet Printhead (Thin-Film Piezo)
- Technology: Thin-film piezoelectric transducer with bend mode (MEMS)
- Ink Type Compatibility: UV / Solvent / Aqueous (and others)
- Condition: 100% Genuine Original, Brand New
- Country of Origin: Japan
Technical Specifications
| Specification | Detail |
|---|---|
| Manufacturer | Ricoh Company, Ltd., Japan |
| Native Resolution | 600 npi (1 or 2 colors) / 300 npi (4 colors) |
| Nozzle Count | 1,280 nozzles (320 × 4 rows, staggered) |
| Max Drive Frequency | 40 kHz (2 levels) / 24 kHz (4 levels) |
| Droplet Volume | 3 pL (single drop) / 3–12 pL (max 21 pL multi-drop) |
| Effective Print Width | 27.1 mm |
| Greyscale Levels | 4 levels (multi-drop) |
| Dimensions (W × D × H) | 52.7 × 45.8 × 55.4 mm |
| Weight | 63 g |
| Key Features | Thin-film MEMS piezo, multi-drop greyscale, broad ink compatibility, compact & lightweight design |
Technical Precision & Operational Advisory
- Electrostatic Discharge (ESD) Protection: Always wear a properly grounded ESD wrist strap when handling the printhead. Thin-film piezo electronics are highly sensitive to static discharge.
- Power Isolation Warning: Completely power off the printer and disconnect the main power supply before connecting or disconnecting the FFC ribbon cable or fluid lines.
- Cable Replacement Protocol: It is strongly recommended to replace the head cable with a new genuine cable when installing a new printhead to ensure reliable signal integrity.
- Fluid System Preparation: Thoroughly flush the ink system with the appropriate cleaning fluid for the ink type (UV, solvent or aqueous) before first use. Only use inks within the recommended viscosity range (~7 mPa·s).
- Temperature Management: The head includes an integrated thermistor (no heater). Maintain operating temperature within the specified range for stable jetting performance.
Compatible Equipment & Applications
| Category | Details / Compatible Systems |
|---|---|
| Printer Compatibility | Wide range of industrial inkjet systems designed for Ricoh Gen5i / TH5241 printheads, including sign-graphics printers, label presses, textile printers, DTG systems and custom OEM platforms supporting UV, solvent or aqueous inks. |
| Primary Applications | Sign & graphics, labels & packaging, digital textile printing, direct-to-garment (DTG) and other industrial applications requiring compact high-definition printheads with multi-ink compatibility. |
Terms, Warranty & Customer Protection:
- Pre-Installation Guarantee: 100% brand-new, factory-original Ricoh product supplied in original sealed packaging with full traceability.
- Store Warranty Policy: 30 working days warranty from the date of delivery, valid only when accompanied by complete unboxing video and full technical installation video performed by an experienced technician.
- Final Sale Conditions: Once the printhead has been exposed to ink or installed into any printer, it cannot be returned or exchanged under any circumstances.
