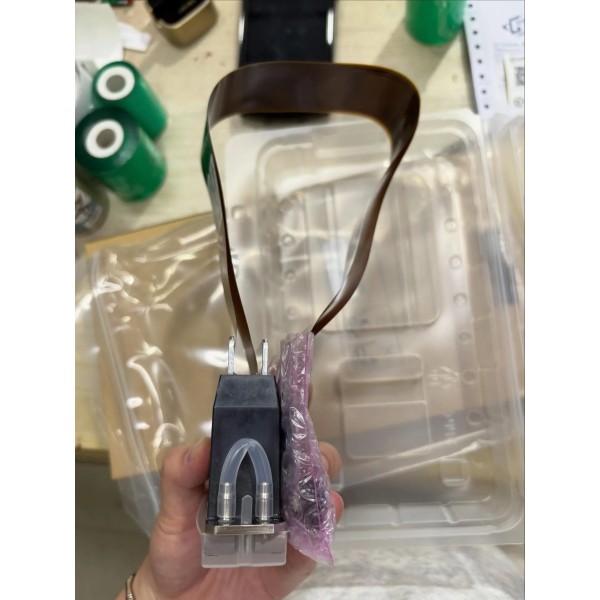

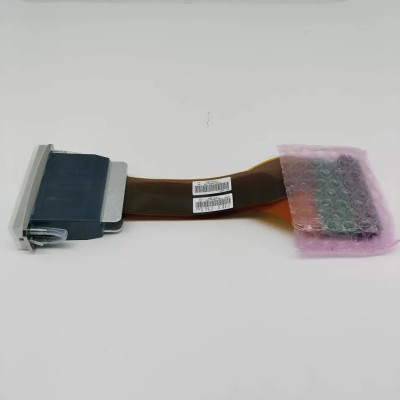

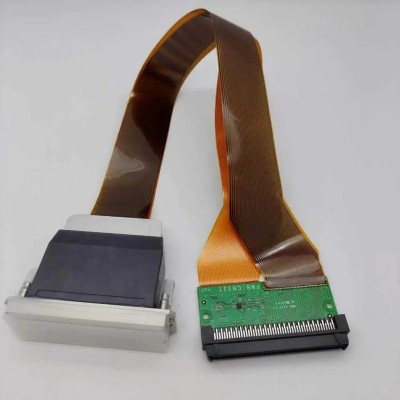

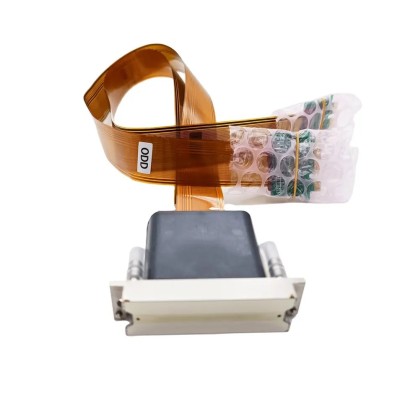

Genuine Ricoh MH5420 Gen5 Multi-Ink Industrial Printhead
- Write a review
$828.00
Original Ricoh MH5420 (Gen5) printhead with 1,280 nozzles and 600 dpi resolution. Supports UV, solvent and aqueous inks with variable 7–21 pL* droplets. Reliable high-definition performance for labels, packaging, textiles and wide-format industrial printing.
Product Overview
The Genuine Ricoh MH5420 (Gen5) is a robust and versatile industrial inkjet printhead designed for high-resolution multi-ink applications. Featuring 1,280 nozzles arranged in four staggered rows of 320 nozzles, it delivers native 600 dpi resolution with excellent image quality. Multi-drop greyscale technology provides variable droplet volumes starting from 7 pL (binary) up to approximately 21 pL* (practical range; official capability extends higher depending on ink), enabling smooth tonal reproduction across 4 grey levels. With jetting frequencies of 30 kHz in binary mode and 20 kHz in greyscale mode, the MH5420 balances quality and productivity. Fully compatible with UV, solvent and aqueous inks, this head uses isolated ink paths supporting up to two colors and includes an integrated heater and thermistor for stable viscosity control. Its stainless-steel construction and proven durability make it a popular choice for industrial systems used in labels, packaging, textiles and wide-format graphics.
Part Information
- Brand: Ricoh
- Product Type: Industrial Multi-Ink Inkjet Printhead
- Technology: Piston pusher with metallic diaphragm plate (Piezo)
- Ink Type Compatibility: UV / Solvent / Aqueous
- Condition: 100% Genuine Original, Brand New
- Country of Origin: Japan
Technical Specifications
| Specification | Detail |
|---|---|
| Manufacturer | Ricoh Company, Ltd., Japan |
| Native Resolution | 600 dpi |
| Nozzle Count | 1,280 nozzles (4 × 320 channels, staggered) |
| Max Drive Frequency | 30 kHz (binary) / 20 kHz (greyscale) |
| Droplet Volume | 7 pL (binary) / 7–21 pL* (multi-drop greyscale, practical range) |
| Effective Print Width | 54.1 mm |
| Greyscale Levels | 4 levels |
| Max Number of Colors | 2 colors |
| Dimensions (W × D × H) | 89 × 24.51 × 69 mm (excluding cables) |
| Weight | Approx. 155 g |
| Key Features | Integrated heater + thermistor, multi-ink compatibility (UV/Solvent/Aqueous), isolated ink paths, durable stainless-steel construction |
Technical Precision & Operational Advisory
- Electrostatic Discharge (ESD) Protection: Always wear a properly grounded ESD wrist strap when handling the printhead. Piezo electronics are highly sensitive to static electricity.
- Power Isolation Warning: Completely power off the printer and disconnect the main power supply before connecting or disconnecting the FFC ribbon cable or fluid lines.
- Cable Replacement Protocol: It is strongly recommended to replace the head cable with a new genuine Ricoh cable when installing a new printhead to ensure reliable signal transmission.
- Fluid System Preparation: Thoroughly flush the ink system with the appropriate cleaning fluid for the ink type (UV, solvent or aqueous) before first use. Only use inks within the recommended viscosity range (10–12 mPa·s).
- Temperature Control: Utilize the integrated heater and thermistor to maintain optimal ink temperature and viscosity for consistent droplet formation during production.
Compatible Equipment & Applications
| Category | Details / Compatible Systems |
|---|---|
| Printer Compatibility | Wide range of industrial printers and systems designed for Ricoh MH5420 / Gen5 printheads, including label presses, packaging lines, textile printers, wide-format graphics systems and custom OEM platforms supporting UV, solvent or aqueous inks. |
| Primary Applications | Labels & packaging, wide-format graphics, digital textile printing, industrial multi-ink production and other applications requiring reliable 600 dpi quality with multi-ink flexibility. |
Terms, Warranty & Customer Protection:

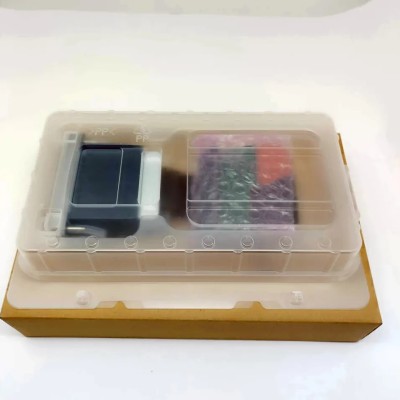

- Pre-Installation Guarantee: 100% brand-new, factory-original Ricoh product supplied in original sealed packaging with full traceability.
- Store Warranty Policy: 30 working days warranty from the date of delivery, valid only when accompanied by complete unboxing video and full technical installation video performed by an experienced technician.
- Final Sale Conditions: Once the printhead has been exposed to ink or installed into any printer, it cannot be returned or exchanged under any circumstances.
