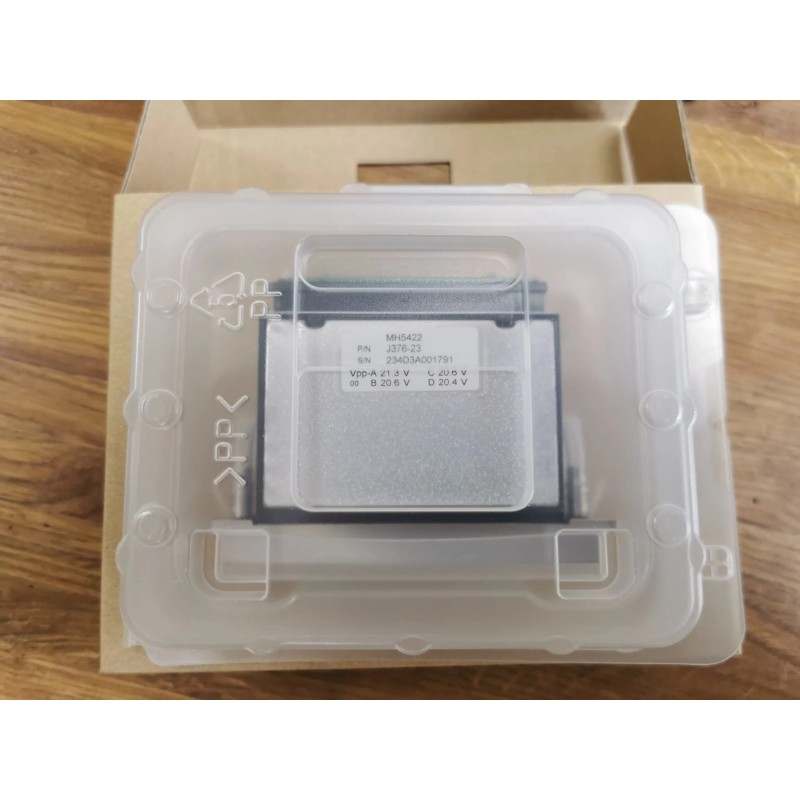

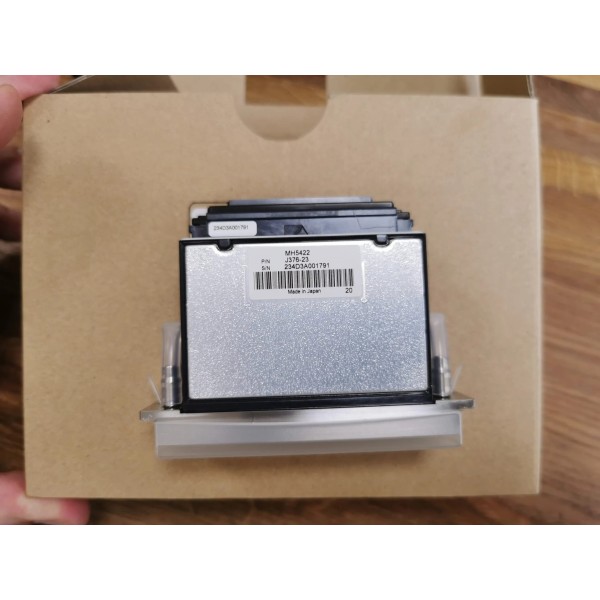

Genuine Ricoh MH5422 Advanced Gen5 Multi-Ink Industrial Printhead
- Write a review
$1,450.00
Original Ricoh MH5422 (Advanced Gen5 / G5 successor) printhead with 1,280 nozzles and 600 dpi resolution. Supports UV, solvent and aqueous inks with precise 7–21 pL variable droplets and up to 50 kHz binary frequency. Enhanced accuracy and productivity for industrial printing.
Product Overview
The Genuine Ricoh MH5422 is an advanced-generation industrial inkjet printhead that succeeds the earlier Gen5 series (MH5420/MH5421), delivering improved jetting accuracy, higher productivity and broader multi-ink reliability. Featuring 1,280 nozzles arranged in four staggered rows of 320 nozzles, it achieves native 600 dpi resolution with a standard 7 pL binary droplet size. Multi-drop greyscale technology enables variable drop volumes from 7 to 21 pL across 4 levels for smooth tonal reproduction. Maximum jetting frequency reaches 50 kHz in binary (2-level) mode and 30 kHz in 4-level greyscale mode, providing a significant productivity increase over previous models. Fully compatible with UV, solvent and aqueous inks, the MH5422 benefits from enhanced durability (especially with water-based fluids) and improved droplet velocity and landing accuracy for more consistent, high-quality results. Isolated ink paths support up to two colors, while the integrated heater and thermistor ensure stable viscosity control. A detachable cable design further improves serviceability. Ideal for labels, packaging, textiles, wide-format graphics and other demanding industrial applications.
Part Information
- Brand: Ricoh
- Product Type: Advanced Gen5 Multi-Ink Industrial Inkjet Printhead
- Technology: Piston pusher with metallic diaphragm plate (Piezo)
- Ink Type Compatibility: UV / Solvent / Aqueous
- Condition: 100% Genuine Original, Brand New
- Country of Origin: Japan
Technical Specifications
| Specification | Detail |
|---|---|
| Manufacturer | Ricoh Company, Ltd., Japan |
| Native Resolution | 600 dpi |
| Nozzle Count | 1,280 nozzles (4 × 320 channels, staggered) |
| Max Drive Frequency | 50 kHz (binary / 2 levels) / 30 kHz (4 levels) |
| Droplet Volume | 7 pL (binary) / 7–21 pL (multi-drop greyscale) |
| Effective Print Width | 54.1 mm |
| Greyscale Levels | 4 levels |
| Max Number of Colors | 2 colors |
| Dimensions (W × D × H) | 89 × 24.51 × 66.3 mm (excluding cables) |
| Weight | Approx. 228 g (including cable) |
| Key Features | Improved jetting accuracy & velocity uniformity, higher binary frequency (50 kHz), multi-ink compatibility, detachable cable, enhanced aqueous durability |
Technical Precision & Operational Advisory
- Electrostatic Discharge (ESD) Protection: Always wear a properly grounded ESD wrist strap when handling the printhead. Piezo electronics are highly sensitive to static electricity.
- Power Isolation Warning: Completely power off the printer and disconnect the main power supply before connecting or disconnecting the FFC ribbon cable or fluid lines.

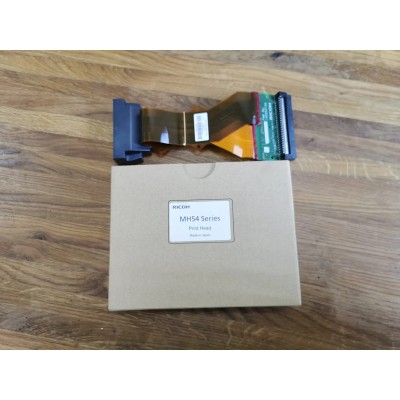

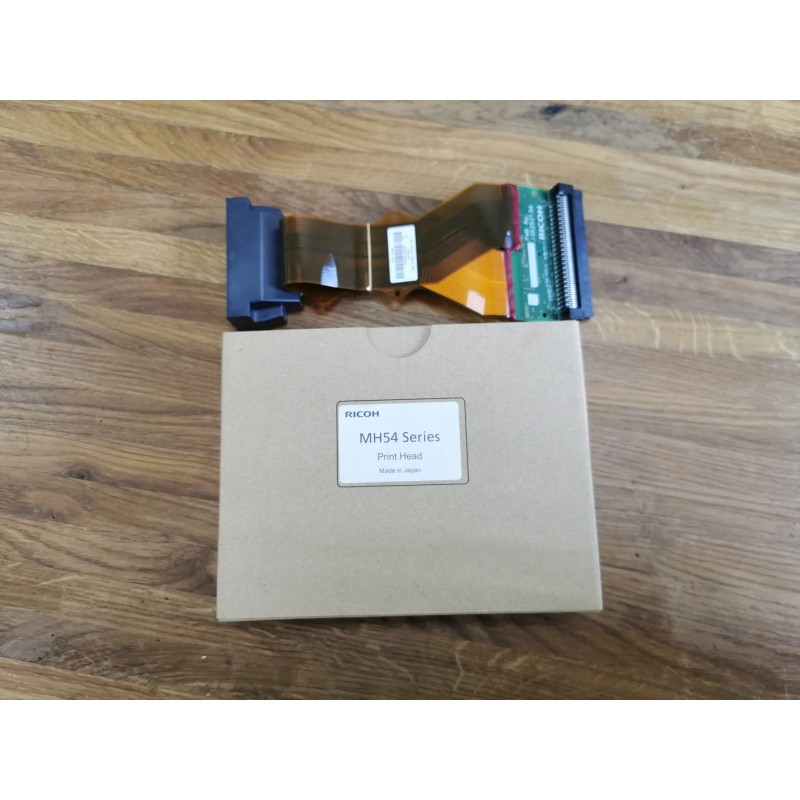

- Cable Replacement Protocol: It is strongly recommended to use the dedicated detachable cable and replace it with a new genuine Ricoh cable when installing a new printhead.
- Fluid System Preparation: Thoroughly flush the ink system with the appropriate cleaning fluid for the ink type (UV, solvent or aqueous) before first use. Only use inks within the recommended viscosity range (10–12 mPa·s).
- Temperature Control: Utilize the integrated heater and thermistor to maintain optimal ink temperature and viscosity for consistent 7–21 pL droplet formation during production.
Compatible Equipment & Applications
| Category | Details / Compatible Systems |
|---|---|
| Printer Compatibility | Wide range of industrial printers and systems designed for Ricoh MH5422 / Advanced Gen5 printheads, including label presses, packaging lines, textile printers, wide-format graphics systems and custom OEM platforms supporting UV, solvent or aqueous inks. |
| Primary Applications | Labels & packaging, wide-format graphics, digital textile printing, industrial multi-ink production and other high-resolution applications requiring improved accuracy, higher productivity and multi-ink flexibility. |
Terms, Warranty & Customer Protection:
- Pre-Installation Guarantee: 100% brand-new, factory-original Ricoh product supplied in original sealed packaging with full traceability.
- Store Warranty Policy: 30 working days warranty from the date of delivery, valid only when accompanied by complete unboxing video and full technical installation video performed by an experienced technician.
- Final Sale Conditions: Once the printhead has been exposed to ink or installed into any printer, it cannot be returned or exchanged under any circumstances.
