Genuine Kyocera KJ4A-EX1200-RC Recirculation UV Printhead 1200 DPI
- Write a review
$3,798.00
Original Kyocera KJ4A-EX1200-RC high-resolution UV piezo printhead with full nozzle recirculation. Delivers native 1200 × 1200 dpi, 5,116 nozzles, fine 2–4 pL droplets, 64 kHz frequency and speeds up to 81.3 m/min. Designed for ultra-fine UV printing on labels, packaging, offset surprint and high-end industrial applications.
Product Overview

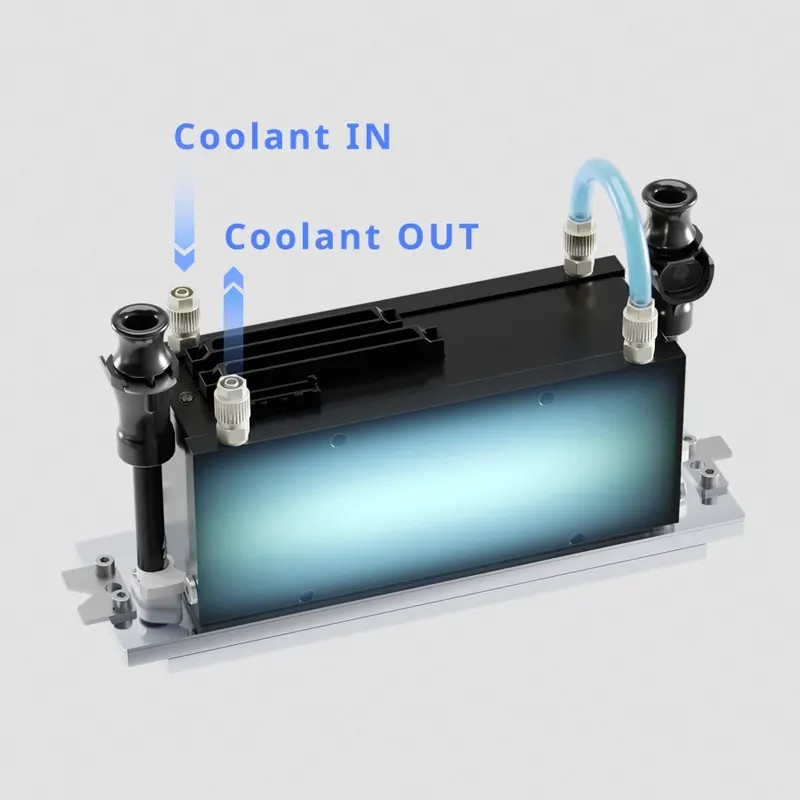

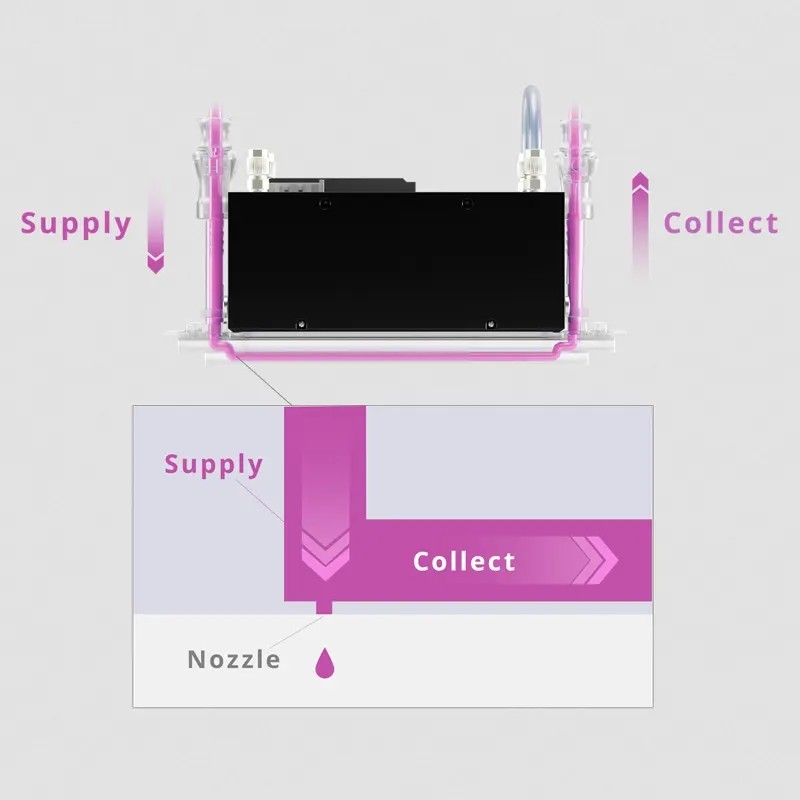

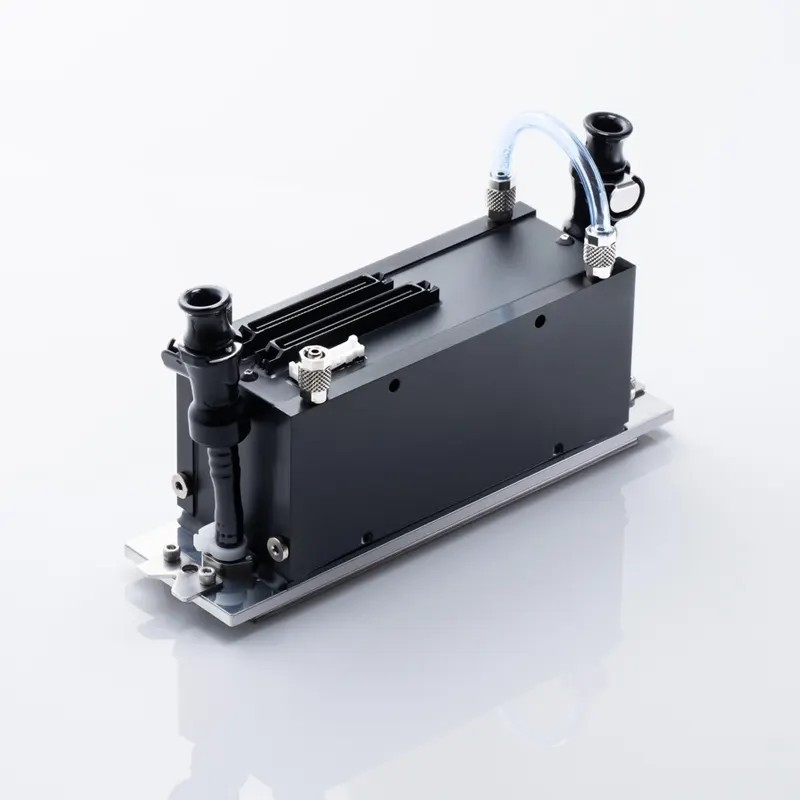

The Kyocera KJ4A-EX1200-RC is a genuine original industrial piezoelectric inkjet printhead from the KJ4A-EX series. Engineered specifically for UV-curable inks with full recirculation technology, it delivers exceptional image quality at native 1200 dpi resolution. The continuous ink flow system past the nozzles significantly reduces the risk of clogging and improves reliability during continuous industrial operation, making it ideal for high-precision UV applications such as labels, packaging, offset surprint and specialty media.
Part Information
- Brand: Kyocera
- Product Type: Industrial Inkjet Printhead
- Technology: Piezoelectric with Full Nozzle Recirculation
- Ink Type Compatibility: UV-curable
- Condition: 100% Genuine Original, Brand New
- Country of Origin: Japan
Technical Specifications
| Specification | Detail |
|---|---|
| Manufacturer | Kyocera |
| Native Resolution | 1200 × 1200 dpi |
| Nozzle Count | 5,116 |
| Effective Print Width | 108.27 mm |
| Max Drive Frequency | 64 kHz |

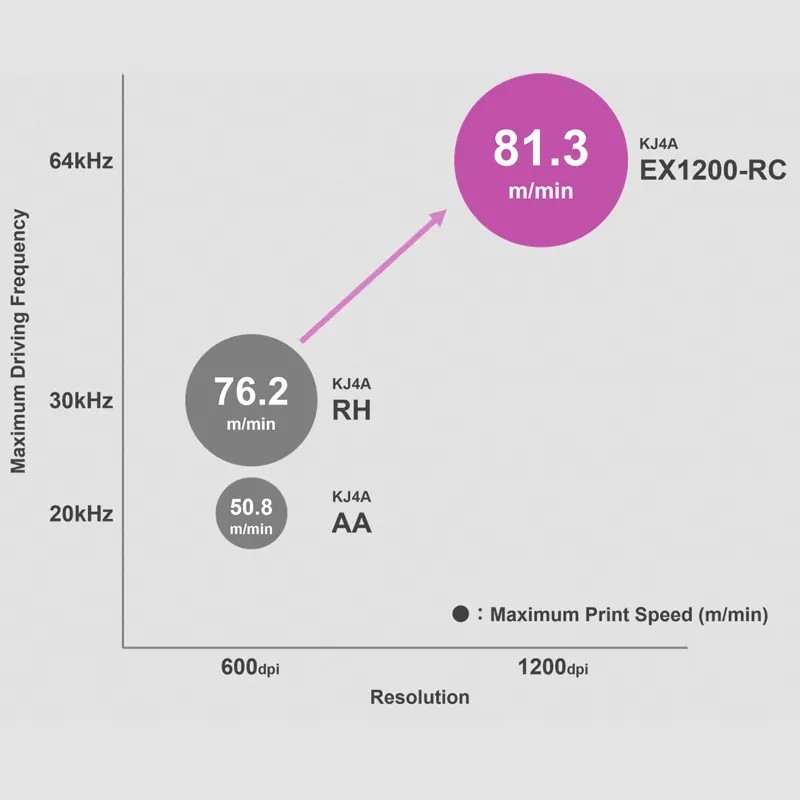

| Max Print Speed | 81.3 m/min |
| Droplet Volume | Min. 2 pL / Max. 4 pL |
| Recommended Ink Viscosity | 6.0 – 7.0 mPa·s |
| Nozzle Recirculation | Yes (Full Recirculation) |
| Dimensions (W × D × H) | 200 × 55.5 × 79.15 mm |
Technical Precision & Operational Advisory
- Electrostatic Discharge (ESD) Protection: Always use a grounded ESD wrist strap when handling the printhead.
- Power Isolation Warning: Completely power off the printer before connecting or disconnecting any flexible cables.
- Cable Replacement Protocol: It is strongly recommended to replace the head cables with new ones when installing a new printhead.
- Ink System Requirement: This recirculating head requires a properly designed UV ink delivery and recirculation system for optimal performance and reliability.
Compatible Equipment & Applications
| Category | Details / Compatible Systems |
|---|---|
| Primary Applications | High-resolution UV printing for labels, packaging, offset surprint, specialty graphics and industrial applications requiring ultra-fine detail |
| Printer Compatibility | Industrial systems specifically designed for the Kyocera KJ4A-EX1200-RC architecture with compatible recirculation UV ink systems. Full electrical, mechanical and firmware compatibility must be verified with the printer manufacturer or system integrator. |
Terms, Warranty & Customer Protection:
- Pre-Installation Guarantee: 100% genuine original factory-new product.
- Store Warranty Policy: 30 Business Days store warranty. Claims require a continuous uninterrupted unboxing video and a video of the technical installation and initial operation by a qualified technician.
- Final Sale Conditions: Once the printhead has been installed or exposed to ink, it cannot be returned or refunded.
