Kyocera KJ4B-YH Original High-Speed Water-Based Inkjet Printhead 600 DPI
- Write a review
$1,580.00

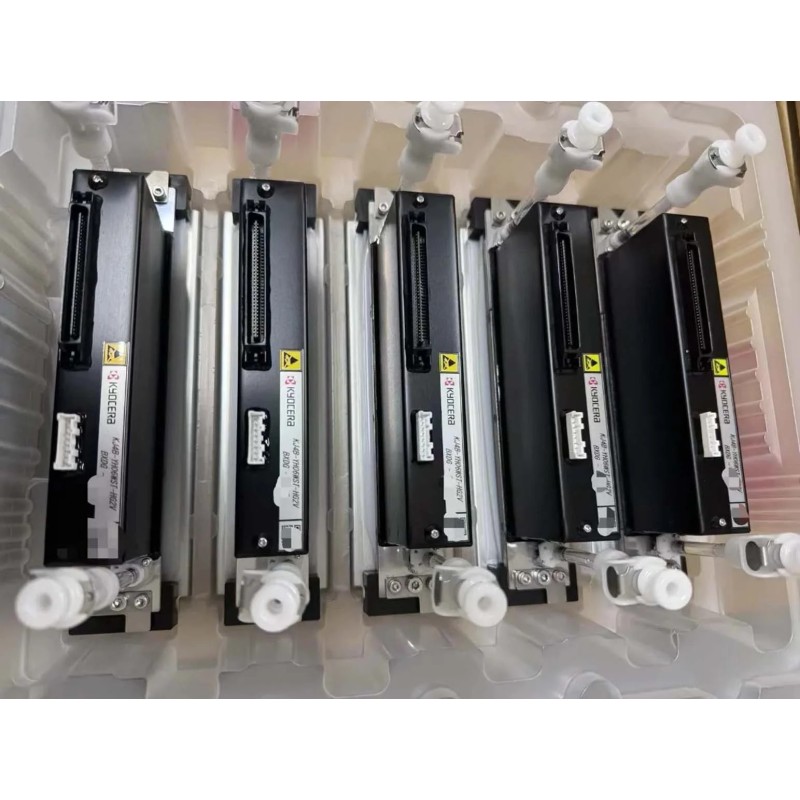

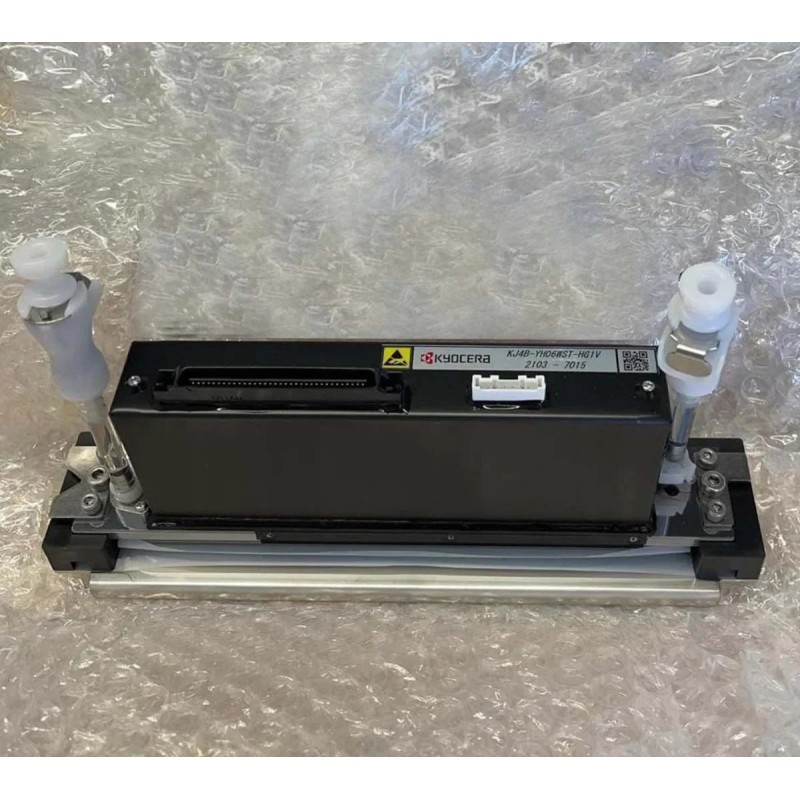

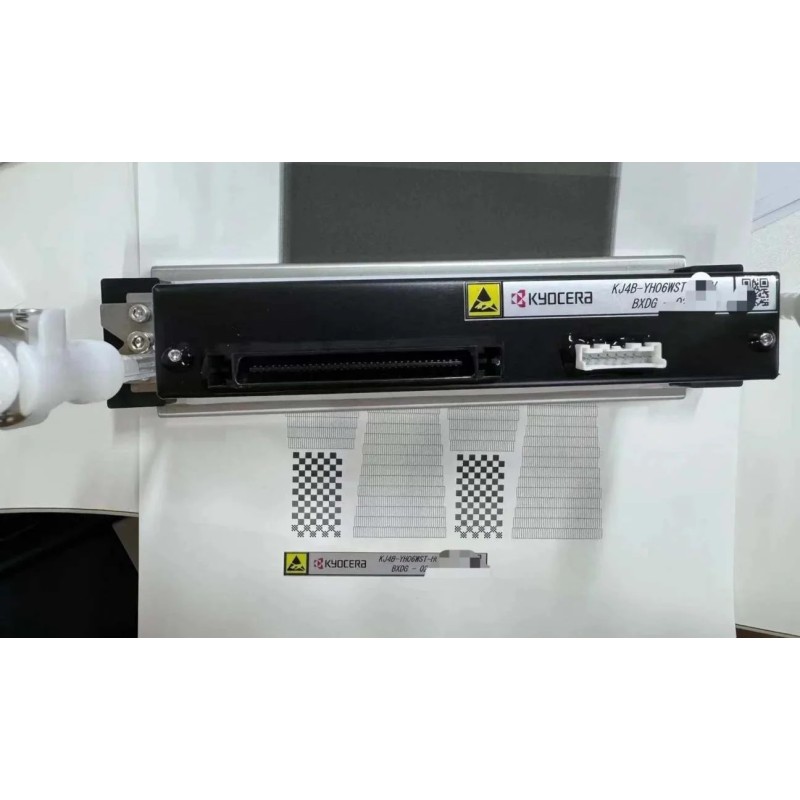

Original Kyocera KJ4B-YH aqueous piezo inkjet printhead engineered for high-speed water-based ink applications. Delivers native 600 × 600 dpi resolution, 2,656 nozzles across a 108.25 mm effective print width, variable drop volumes of 5–12 pL (up to 18 pL limited), maximum drive frequency of 40 kHz and print speeds up to 100 m/min, ideal for high-throughput textile, sublimation, document and industrial printing systems.
The Kyocera KJ4B-YH is an original genuine industrial piezo inkjet printhead from the KJ4B series, specifically designed for high-speed printing with water-based (aqueous) inks. It is the higher-speed counterpart to the KJ4B-QA model and is widely used in demanding single-pass and multi-pass applications including industrial textile printing, sublimation, document printing, transaction printing and other high-throughput aqueous systems. The printhead features internal filters that prevent foreign particles from reaching the nozzle plate and an integrated reservoir heater with thermistor for precise temperature control and stable long-term jetting performance.
This model provides native 600 × 600 dpi resolution across an effective print width of 108.25 mm. It utilises 2,656 nozzles (approximately 2,558 active within the effective print area) arranged at a nozzle pitch of 0.042 mm. Maximum drive frequency is 40 kHz, enabling a maximum print speed of 100 m/min. Drop volumes are selectable at 5 pL, 7 pL and 12 pL, with some configurations supporting an 18 pL drop limited to drive frequencies of 24 kHz or lower. Recommended ink viscosity range is 5.0–6.0 mPa·s. Typical physical dimensions are 200 × 30 × 60.9 mm (W × D × H) with a dry weight of approximately 438 g. The head does not incorporate nozzle recirculation.
Compared with the standard KJ4B-QA (30 kHz / 75 m/min), the KJ4B-YH offers significantly higher productivity while maintaining the same native resolution and nozzle count. Dimensions differ slightly from the QA series; the two models are not direct drop-in replacements.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Kyocera |
| Model / Part Number | KJ4B-YH (KJ4B-YH06WST series) |
| Technology | Piezoelectric |
| Ink Type | Aqueous / Water-based |
| Native Resolution | 600 × 600 dpi |
| Total Nozzles | 2,656 |
| Active Nozzles (approx.) | 2,558 |
| Nozzle Pitch | 0.042 mm |
| Effective Print Width | 108.25 mm |
| Maximum Drive Frequency | 40 kHz |
| Maximum Print Speed | 100 m/min |
| Drop Volume | 5 / 7 / 12 pL (18 pL limited to ≤24 kHz in some configurations) |
| Recommended Ink Viscosity | 5.0–6.0 mPa·s |
| Temperature Control | Integrated reservoir heater + thermistor |
| Internal Filters | Yes |
| Nozzle Recirculation | No |
| Dimensions (W × D × H) | 200 × 30 × 60.9 mm (typical) |
| Dry Weight | Approx. 438 g |
| Country of Origin | Japan |
Applications
High-speed single-pass and multi-pass aqueous printing for industrial textile production, dye-sublimation, document printing, transaction printing, coding and other high-throughput industrial environments requiring elevated productivity at 600 dpi.
Compatibility Notes
Used in selected high-speed industrial systems designed for the KJ4B-YH (examples include certain Hanway and other OEM platforms). The KJ4B-YH is dimensionally and electrically different from the KJ4B-QA/QL series and is not a direct drop-in replacement. Full system-level compatibility (head interface board, waveform, drive voltage, cables, firmware and ink delivery system) must be confirmed with the printer manufacturer or system integrator prior to installation.
Operational Recommendations
- Always handle the printhead while wearing a grounded anti-static ESD wrist strap.
- Power down the complete system before connecting or disconnecting any flexible cables.
- Thoroughly flush the ink channels with an approved cleaning solution before first use or after prolonged storage.
- Use only aqueous inks within the recommended viscosity range of 5.0–6.0 mPa·s.
- Replace the associated head cables at the same time as the printhead to minimise connection-related issues.
Warranty
Store Warranty: 30 Business Days After Delivery. Eligible claims for damage on arrival, defective product, non-functioning product, incorrect item or missing components require: (1) a continuous uninterrupted unboxing video, (2) clear evidence of the shipping package and shipping label, (3) clear evidence of the product condition, and (4) for functionality claims, a video showing initial installation and operation performed by a qualified technician. All claims remain subject to verification. When approved, a 100% money-back refund without deduction is provided. Manufacturer Warranty: Not publicly specified by Kyocera in available documentation (some suppliers state a manufacturer warranty is included; verify at time of purchase). Warranty expressly excludes defects related to the use of non-original inks, clogged/missing/deviated nozzles, misuse, abuse, neglect, improper storage, lack of prescribed maintenance, operation for unintended purposes, third-party applications/software/parts/components or bulk ink systems, and purely cosmetic issues.
This is a genuine original Kyocera OEM printhead. Proper system integration, approved aqueous inks and correct handling procedures are essential for optimal performance and service life.
