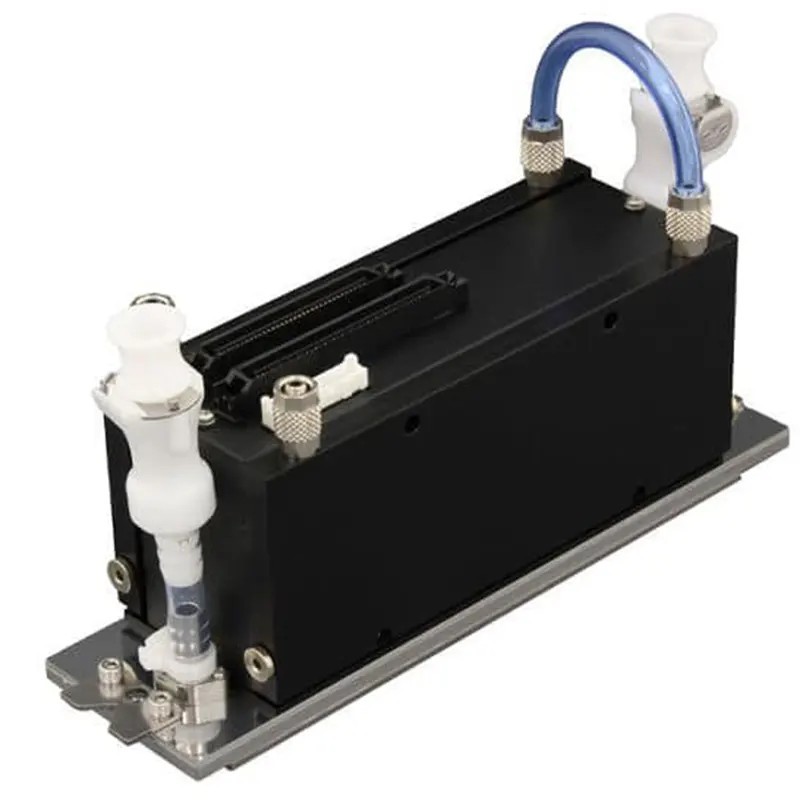

Genuine Kyocera KJ4B-EX1200-RC Premium Recirculation Industrial Printhead
- Write a review
$1,898.00
Genuine Kyocera KJ4B-EX1200-RC flagship 1200 DPI aqueous printhead with continuous nozzle-near recirculation. Delivers ultra-precise 2–4 pL droplets at 80 kHz, industry-leading 101.6 m/min productivity and outstanding image quality for high-end commercial, packaging and textile applications.
Product Overview
The Genuine Kyocera KJ4B-EX1200-RC is Kyocera’s premium flagship recirculating aqueous inkjet printhead, purpose-built for the highest levels of speed, precision and reliability in industrial digital printing. This advanced 1200 DPI model features continuous nozzle-near ink recirculation that actively prevents drying, clogging and pigment sedimentation, enabling stable long-run production even with fast-drying and high-solids water-based inks. A large monolithic piezoelectric actuator ensures uniform droplet formation and exceptional image consistency across the entire print width. Optimized fluid channels, a robust stainless-steel laminated structure, standard water cooling and an integrated heater work together to maintain precise temperature and viscosity control. With 5,116 nozzles, a maximum drive frequency of 80 kHz and variable droplet volumes from 2.0 to 4.0 pL, the KJ4B-EX1200-RC achieves print speeds of up to 101.6 m/min while delivering outstanding high-resolution results. It is the ideal choice for commercial printing, packaging, labels, digital textile and other premium aqueous applications where image quality, productivity and uptime are non-negotiable.
Part Information
- Brand: Kyocera
- Product Type: Premium Industrial Inkjet Printhead with Continuous Recirculation
- Technology: Piezoelectric Drop-on-Demand with Large Monolithic Actuator
- Ink Type Compatibility: Aqueous / Water-Based (including fast-drying and pigment inks)
- Condition: 100% Genuine Original, Brand New
- Country of Origin: Japan
Technical Specifications
| Specification | Detail |
|---|---|
| Manufacturer | Kyocera Corporation – Kagoshima Kokubu Plant, Japan |
| Native Resolution | 1200 dpi × 1200 dpi |
| Nozzle Count | 5,116 nozzles |
| Max Drive Frequency | 80 kHz |
| Droplet Volume | 2.0 – 4.0 pL (variable) |
| Effective Print Width | 108.3 mm |
| Maximum Print Speed | 101.6 m/min |
| Recommended Ink Viscosity | 5.0 – 6.0 mPa·s |
| Dimensions (W × D × H) | 200.0 × 58.5 × 79.3 mm |
| Key Features | Continuous nozzle-near recirculation, water cooling (standard), internal heater, large monolithic piezo actuator, stainless-steel laminated flow path |
Technical Precision & Operational Advisory
- Electrostatic Discharge (ESD) Protection: Always wear a properly grounded ESD wrist strap when handling the printhead. The high-precision piezo actuator and electronics are extremely sensitive to static electricity.
- Power Isolation Warning: Completely power off the printer and disconnect the main power supply before connecting or disconnecting the FFC ribbon cable or any fluid lines.
- Cable Replacement Protocol: It is strongly recommended to install a new genuine head cable together with the new printhead to ensure reliable signal integrity and long-term performance.
- Fluid System Preparation: Thoroughly flush the entire ink delivery system with approved cleaning fluid before first use. Only use Kyocera-compatible aqueous inks within the specified viscosity range.
- Temperature & Viscosity Control: Utilize the integrated heater and water-cooling circuit to maintain stable ink viscosity (5.0–6.0 mPa·s) for precise small-drop formation during extended high-resolution production runs.
Compatible Equipment & Applications
| Category | Details / Compatible Systems |
|---|---|
| Printer Compatibility | Industrial single-pass and multi-pass systems designed for Kyocera KJ4B-EX1200 series aqueous recirculating printheads. Suitable for high-end commercial, packaging, textile and custom OEM platforms that require 1200 DPI precision and continuous recirculation reliability. |
| Primary Applications | Premium commercial printing, packaging & labels, digital textile printing, transaction and document printing, security printing and other high-resolution aqueous industrial processes demanding maximum image quality, speed and uptime. |
Terms, Warranty & Customer Protection:
- Pre-Installation Guarantee: 100% brand-new, factory-original Kyocera product supplied in original sealed packaging with full traceability.
- Store Warranty Policy: 30 working days warranty from the date of delivery, valid only when accompanied by complete unboxing video and full technical installation video performed by an experienced technician.
- Final Sale Conditions: Once the printhead has been exposed to ink or installed into any printer, it cannot be returned or exchanged under any circumstances.
