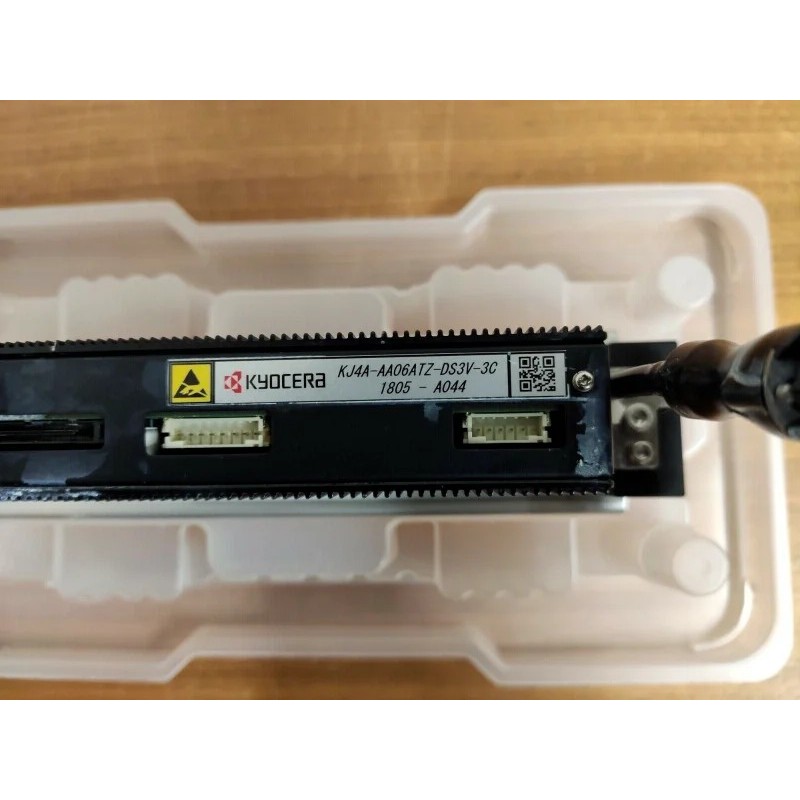

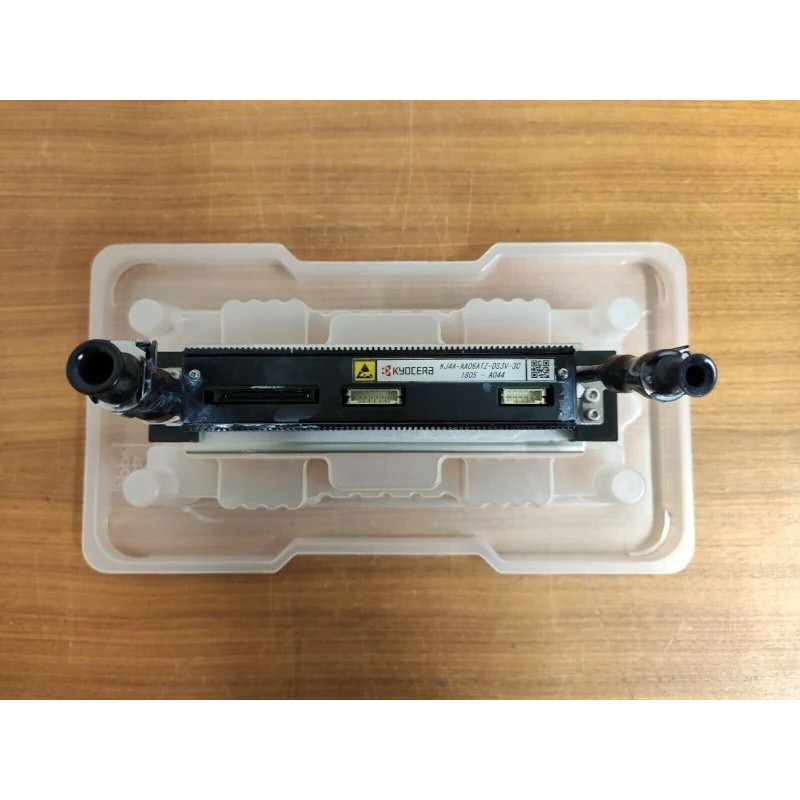

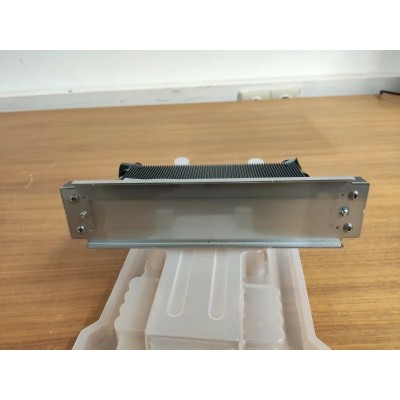

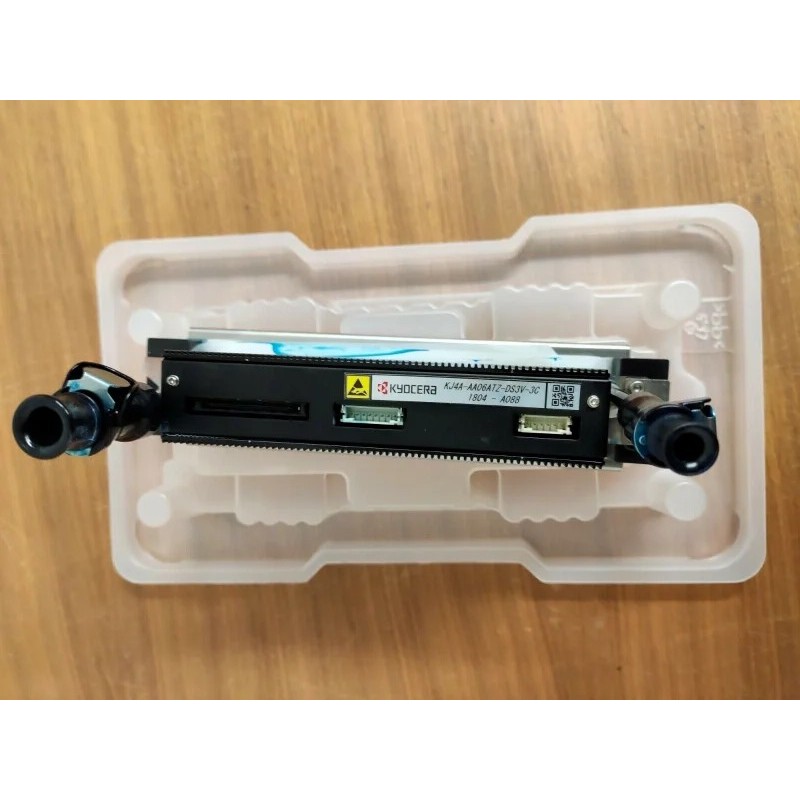

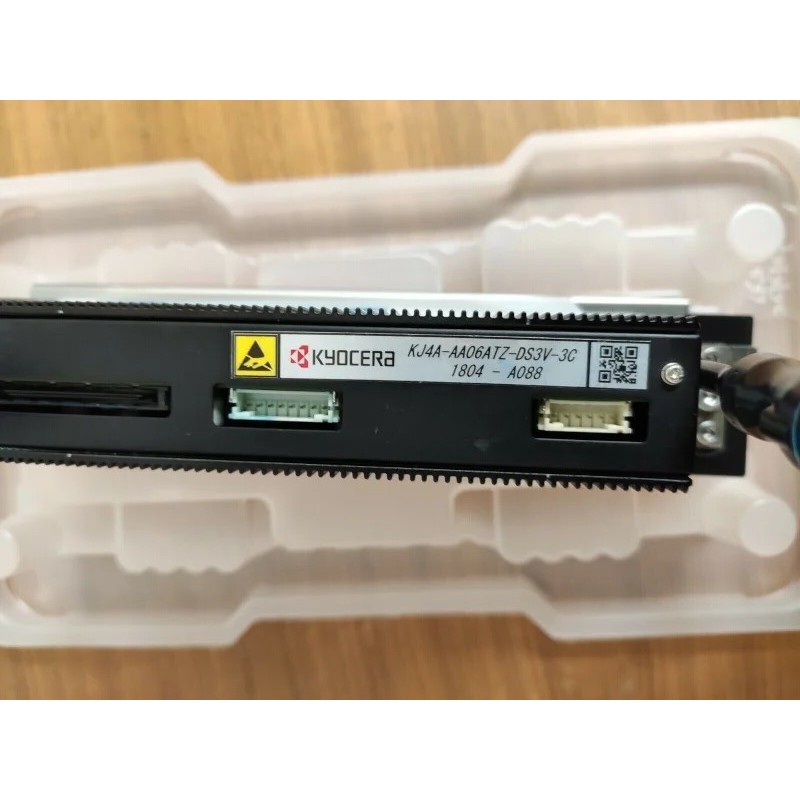

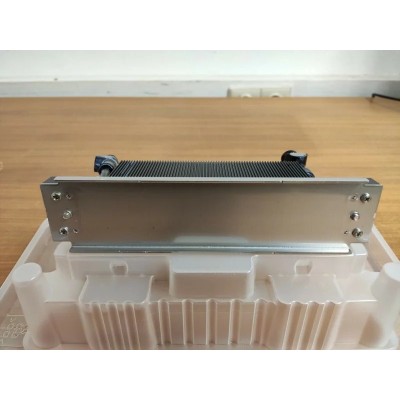

Kyocera KJ4A-AA UV Printhead High-Performance 600dpi Printhead for UV-Curable Inks
- Write a review
$1,782.00
The Kyocera KJ4A-AA UV Printhead is an industrial-grade 600 dpi inkjet printhead specifically engineered for high-speed UV-curable and high-viscosity ink applications. Designed for demanding single-pass and multi-pass digital printing systems, it delivers exceptional jetting precision, continuous thermal stability, and maximum uptime across label packaging, sign graphics, and offset surprinting applications.
Industrial Overview & Technical Capabilities
The Kyocera KJ4A-AA represents the benchmark in high-resolution, high-speed industrial piezo inkjet technology. Featuring an active print width of 108.25 mm powered by 2,656 precision-engineered channels, this native 600 dpi printhead enables high-density single-pass configurations while drastically reducing carriage pass requirements in multi-pass architectures. Operating at a drive frequency of up to 20 kHz, it drives production line speeds up to 50 meters per minute at full resolution.
Constructed with dual integrated thermal control and physical particulate filtration systems, the KJ4A-AA guarantees consistent droplet trajectory and volume uniformities. Its internal heater compensates for high-viscosity UV ink formulations, stabilizing ink rheology before entering the nozzle chamber, while the internal stainless-steel filter shields micro-nozzles from downstream particulate contamination.
Technical Specifications
| Parameter | Specification Standard |
|---|---|
| Manufacturer Part Model | Kyocera KJ4A-AA |
| Technology Type | Piezo Demand-on-Drop (DoD) Industrial Printhead |
| Native Resolution | 600 dpi |
| Active Print Width | 108.25 mm (4.26 inches) |
| Total Nozzle Count | 2,656 nozzles |
| Drop Volume | 3.0 picoliters (pL) native |
| Max Drive Frequency | 20 kHz |
| Max Linear Speed | 50 m/min (at 600 dpi) |
| Ink Type Compatibility | UV-Curable Inks, High-Viscosity Industrial Formulations |
| Viscosity Range | 6.0–10.0 mPa·s (at operating temperature) |
| Integrated Features | Internal Thermistor Heater & Industrial Dual-Stage Fluid Filter |
Printer Compatibility & Integration Guidance
The Kyocera KJ4A-AA printhead is widely integrated into industrial digital presses, single-pass label converters, wide-format UV flatbed, and hybrid printing machines, including but not limited to:
- Label & Packaging Presses: Industrial single-pass UV label systems, narrow-web packaging digital units.
- Signage & Flatbed Printers: High-speed UV flatbed and roll-to-roll graphic printers requiring 600 dpi native output.
- Industrial Printing Systems: Custom single-pass integration systems, offset surprinting equipment, and direct-to-shape industrial coaters.
Operational Advisory & Installation Best Practices
- ESD Protection: Grounding and static prevention precautions are mandatory prior to connecting electronic drive ribbon cables. Electrostatic discharge can permanently compromise internal driver ICs.
- Flush & Purge Protocol: Always utilize brand-approved UV flush solution before introducing operational UV inks. Never allow ambient light or UV exposure near exposed fluid lines during setup.
- Temperature Calibration: Ensure the internal heater system is configured to match the exact viscosity-temperature profile provided by your ink vendor before initiating jetting sequences.
Warranty, Return Policy & Quality Assurance
All printheads sourced from digitalprintpart.com undergo rigorous factory quality control. This product is backed by our standard commercial warranty and international manufacturer coverage where applicable[cite: 1]:
- 30-Day Guarantee: Eligible for 100% full refund or direct product replacement within 30 days of receipt[cite: 1].
- Mandatory Claims Criteria: To qualify for warranty service, return, or exchange, clients MUST provide:
- An uninterrupted video recording of the package unboxing process[cite: 1].
- A clear video recording of the initial installation and technical operation on the designated equipment[cite: 1].
- International Manufacturer Warranty: Standard manufacturer warranty terms apply where explicitly offered by the original equipment manufacturer (OEM)[cite: 1].
