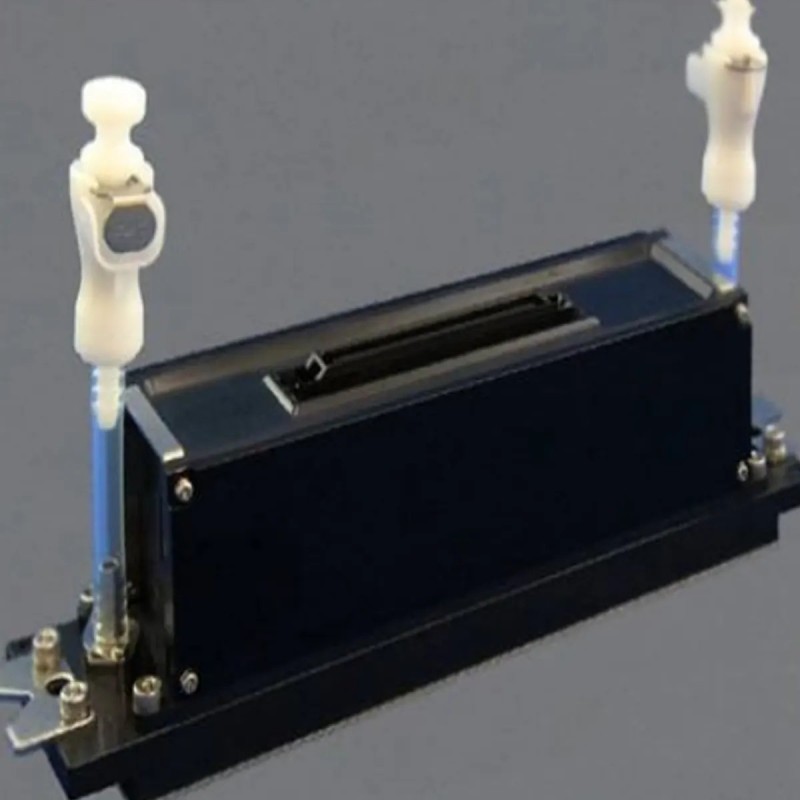

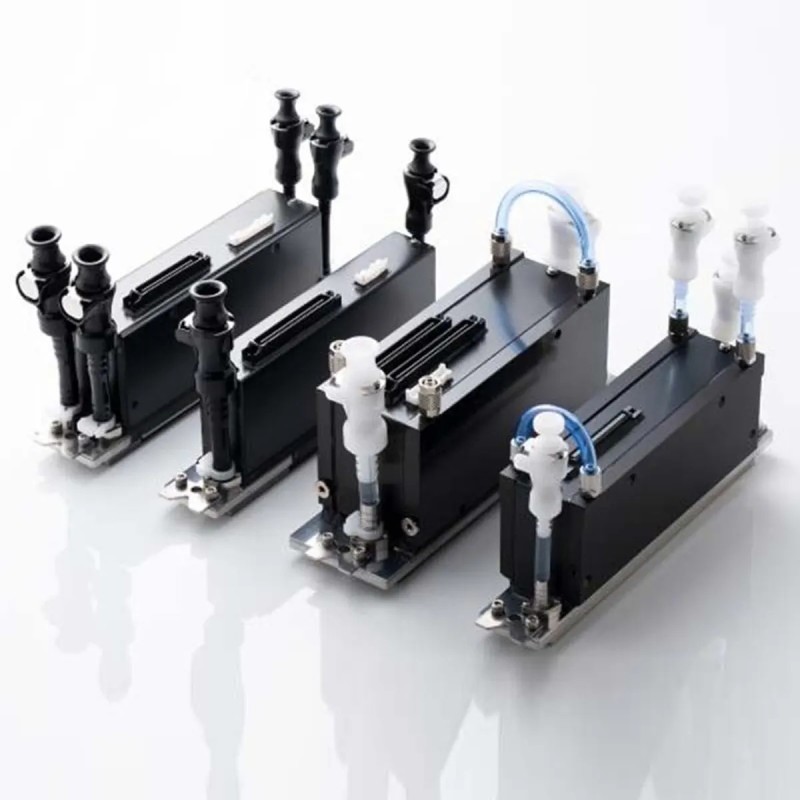

Genuine Kyocera KJ4C-0360 Oil Inkjet Printhead 360 DPI
- Write a review
$1,765.00
Original Kyocera KJ4C-0360 recirculating piezo printhead designed for high-viscosity oil-based inks. Features 360 × 360 dpi resolution, 1,568 nozzles, large adjustable drop volumes of 15–84 pL, 12 kHz frequency and speeds up to 50 m/min. Ideal for ceramic tile and high-performance industrial oil ink applications.
Product Overview
The Kyocera KJ4C-0360 is a genuine original industrial piezoelectric inkjet printhead specifically engineered for high-viscosity oil-based inks with full ink recirculation. Developed for demanding industrial applications such as ceramic tile decoration, it delivers stable large-drop performance, wide effective print width and reliable continuous operation at high speed. The recirculation system maintains consistent ink temperature and prevents sedimentation and air bubble formation.
Part Information
- Brand: Kyocera
- Product Type: Industrial Inkjet Printhead
- Technology: Piezoelectric with Ink Recirculation
- Ink Type Compatibility: Oil-based (primary) / Water-based
- Condition: 100% Genuine Original, Brand New
- Country of Origin: Japan
Technical Specifications
| Specification | Detail |
|---|---|
| Manufacturer | Kyocera |
| Native Resolution | 360 × 360 dpi |
| Nozzle Count | 1,568 |
| Effective Print Width | 109 mm |
| Max Drive Frequency | 12 kHz |
| Max Print Speed | 50 m/min (at 84 pL) |
| Droplet Volume | 15 – 84 pL (up to 120–160 pL at lower speeds) |
| Recommended Ink Viscosity | 10 – 18 mPa·s |
| Nozzle Recirculation | Yes |
| Dimensions (W × D × H) | 200 × 39 × 54 mm |
| Dry Weight | Approx. 407 g |
Technical Precision & Operational Advisory
- Electrostatic Discharge (ESD) Protection: Always use a grounded ESD wrist strap when handling the printhead.
- Power Isolation Warning: Completely power off the printer before connecting or disconnecting any flexible cables.
- Cable Replacement Protocol: It is strongly recommended to replace the head cables with new ones when installing a new printhead.
- Ink System Requirement: This printhead requires a properly designed recirculation ink delivery system for optimal performance with high-viscosity oil-based inks.
Compatible Equipment & Applications
| Category | Details / Compatible Systems |
|---|---|
| Primary Applications | Ceramic tile decoration, industrial oil-based printing, high-viscosity pigment applications |
| Printer Compatibility | Industrial systems specifically designed for the Kyocera KJ4C-0360 architecture with compatible recirculation ink systems. Full system compatibility must be verified with the printer manufacturer or integrator. |
Terms, Warranty & Customer Protection:
- Pre-Installation Guarantee: 100% genuine original factory-new product.
- Store Warranty Policy: 30 Business Days store warranty. Claims require a continuous uninterrupted unboxing video and a video of the technical installation and initial operation by a qualified technician.
- Final Sale Conditions: Once the printhead has been installed or exposed to ink, it cannot be returned or refunded.
