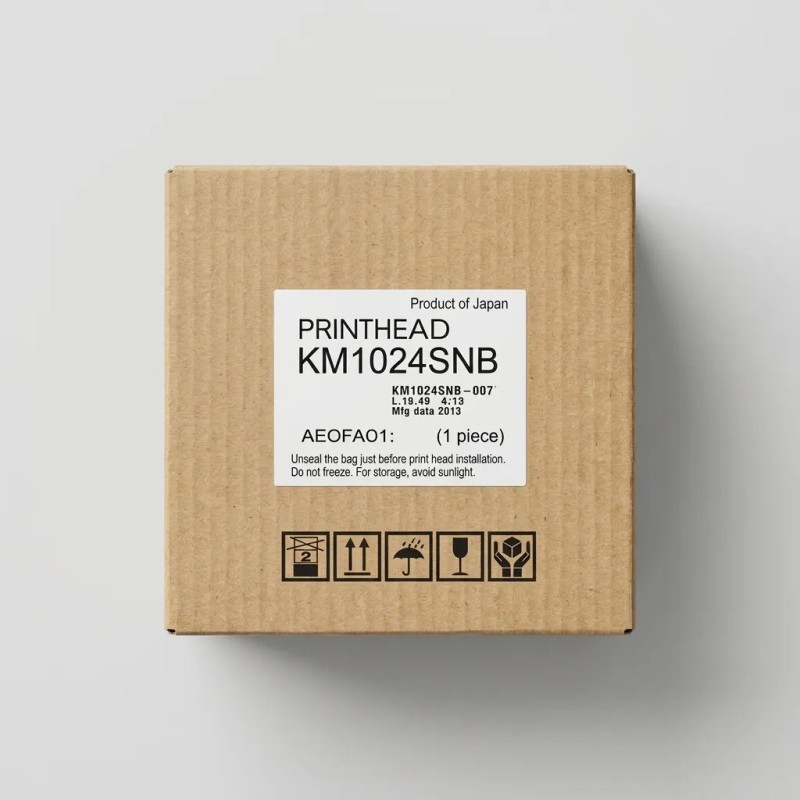

Konica Minolta KM1024SNB Printhead (6pL - Small Drop / Non-Heated)
- Write a review
$720.00
The Konica Minolta KM1024SNB is a high-resolution small-drop shared-wall piezo printhead delivering 6 pL drops at 360 dpi across a 72 mm print width. Designed as the non-heated small-drop variant of the KM1024 series, it offers excellent detail for solvent-based industrial printing. Ideal for applications requiring fine resolution without integrated heating.
Product Overview
The Konica Minolta KM1024SNB is the non-heated small-drop version of the widely used KM1024 series industrial inkjet printhead. Featuring 1024 nozzles arranged at a native 360 dpi resolution and a 72 mm print width, it delivers precise 6 picoliter drops using shared-wall 3-cycle piezoelectric technology. This model was designed for solvent-based applications where fine detail and high resolution are required without the need for an internal heater. With greyscale capability up to 8 levels, the KM1024SNB provides smooth tonal reproduction and is suitable for a range of industrial graphics and production printing systems. Note that this model has been officially discontinued by Konica Minolta as of 31 August 2026, so availability is limited to remaining genuine stock.
Part Information
- Brand: Konica Minolta
- Product Type: Industrial Inkjet Printhead (Small Drop Non-Heated)
- Technology: Piezo Drop-on-Demand (Shared Wall 3-Cycle)
- Ink Type Compatibility: Solvent (UV limited without heater)
- Condition: 100% Genuine Original, Brand New
- Country of Origin: Japan
Technical Specifications
| Specification | Detail |
|---|---|
| Manufacturer | Konica Minolta |
| Native Resolution | 360 dpi (180 dpi × 2 lines) |
| Nozzle Count | 1024 nozzles (512 nozzles × 2 lines) |
| Max Drive Frequency | Approximately 28–30 kHz (small drop) |
| Droplet Volume | 6 pL |
| Print Width | 72 mm |
| Grey Scale Levels | Up to 8 levels |
| Internal Heater | None (Non-Heated / N type) |
| Dimensions (W × D × H) | Approximately 131 mm × 18 mm × 89 mm |
| Weight | Approximately 150 g |
| Status | Discontinued (as of 31 August 2026) |
Technical Precision & Operational Advisory
- Electrostatic Discharge (ESD) Protection: Always handle the printhead in a fully ESD-protected environment. Wear a properly grounded wrist strap and use anti-static work surfaces. Never touch the nozzle plate or electrical contacts with bare hands.
- Power Isolation Warning: Completely power down the printer and disconnect all drive electronics before installing or removing the printhead. Confirm zero residual voltage on the interface.
- Cable Replacement Protocol: It is strongly recommended to replace the FFC ribbon cable and connectors with new ones during every printhead installation to prevent contact resistance and signal issues.
- Fluid Preparation: Use only thoroughly filtered and degassed solvent inks. As this is a non-heated model, ensure ink viscosity is suitable for ambient temperature operation.
- Greyscale Operation: Supports up to 8 grey levels. Ensure drive electronics and waveform are correctly configured for 6 pL small-drop performance.
- Maintenance: Perform regular purge and cleaning cycles using approved fluids. Never allow the nozzle plate to dry out. Note limited availability due to discontinuation.
Compatible Equipment & Applications
| Category | Details / Compatible Systems |
|---|---|
| Printer Compatibility | Industrial systems designed for KM1024 series (shared-wall) printheads; verify exact model and chassis compatibility |
| Primary Applications | High-resolution solvent graphics, fine-detail industrial printing, applications requiring small-drop precision without heater |
| Key Advantages | 6 pL small drop for fine detail, 72 mm wide format, 8-level greyscale, compact shared-wall design, solvent compatibility |
Terms, Warranty & Customer Protection:
- Pre-Installation Guarantee: 100% brand-new, factory-original product. Sealed and never installed or exposed to any fluid.
- Store Warranty Policy: 30 working days warranty covering manufacturing defects, subject to submission of complete unboxing video and professional installation video by qualified technicians.
- Final Sale Conditions: Once the printhead has been exposed to ink or installed in any equipment, the sale is final. No returns or exchanges will be accepted. Note: This model is discontinued by the manufacturer.
