Zebra 110PAX3 203 DPI Print Engine Thermal Printhead (OEM P/N: 43036-1M) – Genuine OEM Replacement

The Genuine Zebra 110PAX3 203 DPI Print Engine Thermal Printhead (Zebra OEM P/N: 43036-1M, also referenced as 43036M) is the authentic factory-original thermal imaging transducer engineered specifically for heavy industrial 24/7 print-and-apply automation applicators. Designed to meet the demanding duty cycles of automated manufacturing lines, high-throughput packaging centers, distribution sortation hubs, and pallet labeling cells, this mission-critical printhead ensures sustained edge acuity, superior print contrast, and certified ANSI/ISO Grade-A barcode scannability across continuous production shifts. Fabricated to strict Zebra OEM industrial specifications, the assembly offers robust thermal balance, structural resistance against web transport tension, and prolonged operational endurance across millions of linear inches.

At the operational core of this component is a precision-engineered high-efficiency thin-film ceramic micro-resistor array delivering a native optical dot density of 203 dots per inch (8.0 dots/mm) across an active 4.09-inch (104 mm) swath width, encompassing 832 individually energized thermal dots. Capable of supporting sustained production velocities up to 12 inches per second (305 mm/s), each micro-resistor element is governed by onboard shift registers and high-speed driver ICs that deliver ultra-fast thermal rise and recovery profiles. The linear burn line is shielded by a durable silicon nitride (Si3N4) and diamond-like carbon (DLC) protective passivation overcoat, engineered to resist abrasive friction from high-volume thermal transfer ribbons and aggressive direct thermal chemical topcoats, while integrated precision thermistors continuously report substrate core temperatures to maintain optimal burn line pulse profiles.

Manufactured in Japan, every unit is delivered 100% factory-sealed within certified static-shielding barrier packaging to isolate sensitive logic gates and micro-driver circuits from electrostatic discharge during logistics transit and storage. The assembly features an extruded, precision-milled aluminum heatsink backbone that ensures consistent planar contact against the platen roller, coupled with dedicated registration pivot points that lock securely into the 110PAX3 print engine carriage mechanism. High-density gold-plated terminal interfaces deliver secure, low-impedance electrical interconnects for print data transmission and high-current strobe pulses, preventing voltage drops and thermal unevenness across the full 4.09-inch burn line.

Identification Notes & Core Distinction

Interchangeability Notice: The Zebra 110PAX3 engine utilizes a dedicated cable interface pinout and bracket geometry distinct from subsequent 110PAX4 and ZE500 series. Printhead 43036-1M cannot be installed in 110PAX4 engines (which require 41000-1M), tabletop 105SL/Xi series printers, or 170PAX wide engines. Attempting cross-generational mounting risks terminal pin misalignment and drive transistor burnout.

Technical Precision & Installation Warning

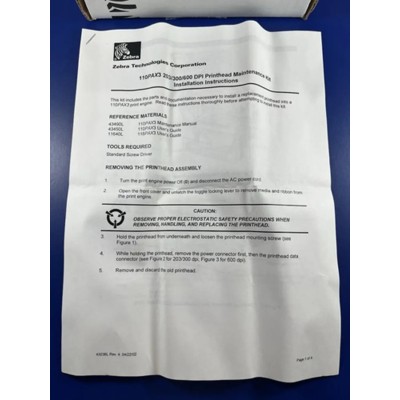

ATTENTION CERTIFIED AUTOMATION ENGINEERS: OEM printhead replacement on Zebra 110PAX3 print engines demands strict compliance with electrostatic discharge and mechanical alignment protocols. Careless handling, residual line voltages, or improper toggle pressure will cause premature element degradation or catastrophic circuit failure.

• Strict Electrostatic Discharge (ESD) Protection: Always wear a grounded anti-static wrist strap throughout unboxing, mechanical handling, and cable hookup. Micro-resistor driver ICs located on the thin-film substrate are highly susceptible to irreversible gate breakdown from static charges below human sensation thresholds (<100V).
• Power Isolation & Zero Hot-Swapping: Completely power down the 110PAX3 print engine and disconnect the main AC electrical feed prior to servicing. Never disconnect or insert printhead signal cables while the engine is energized. Live-plugging produces transient voltage spikes that instantaneously destroy the printhead logic arrays and compromise the engine main logic board.
• Cable & Gold Contact Inspection: Inspect the printhead cable harnesses for terminal pin oxidation, bending, or debris prior to seating. Ensure connectors are inserted squarely and seated completely into their locking slots. Uneven insertion leads to catastrophic short-circuiting across high-current strobe power traces.
• Zero Abrasive Surface Contact: The micro-heater dot line must never touch screwdrivers, utility knives, rings, or abrasive cleaning materials. Scratches through the protective DLC passivation permanently create dead white voids across printed barcodes. Clean the burn line exclusively using 99.7% electronic-grade Isopropyl Alcohol (IPA) with lint-free polyester swabs.
• Mechanical Pressure & Pivot Alignment: Following installation into the 110PAX3 toggle assembly, verify balanced, uniform head pressure across the platen roller. Uneven lateral pressure causes ribbon wrinkling, premature edge erosion, and uneven optical density across labels at high printing speeds.
• Firmware Configuration & Resistance Entry: After physical mounting, verify that the printhead resistance value corresponds accurately within the 110PAX3 engine setup menu or configuration software to optimize dot firing pulses without thermal overstressing.
