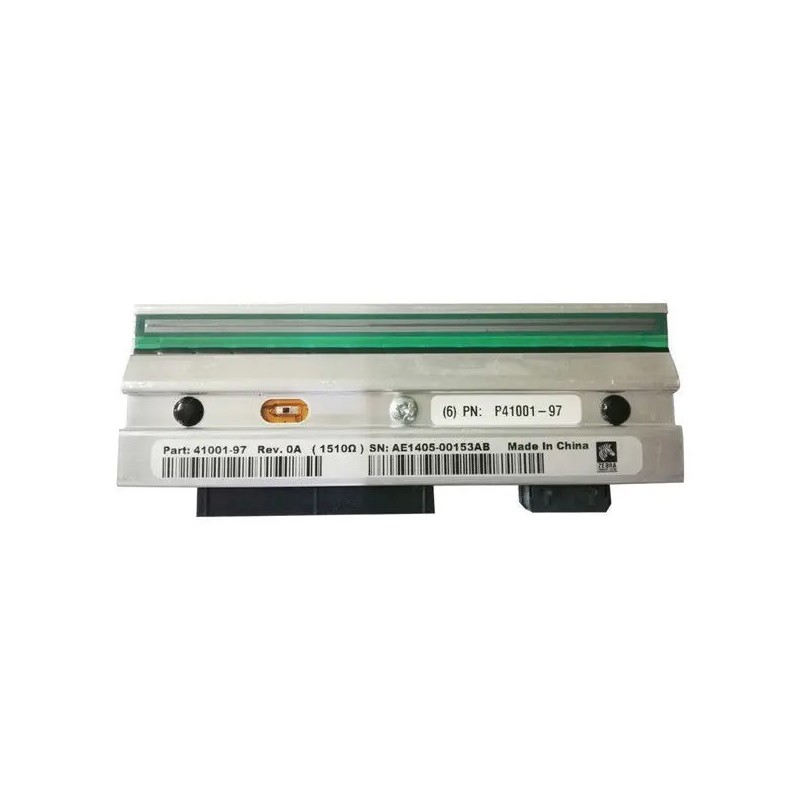

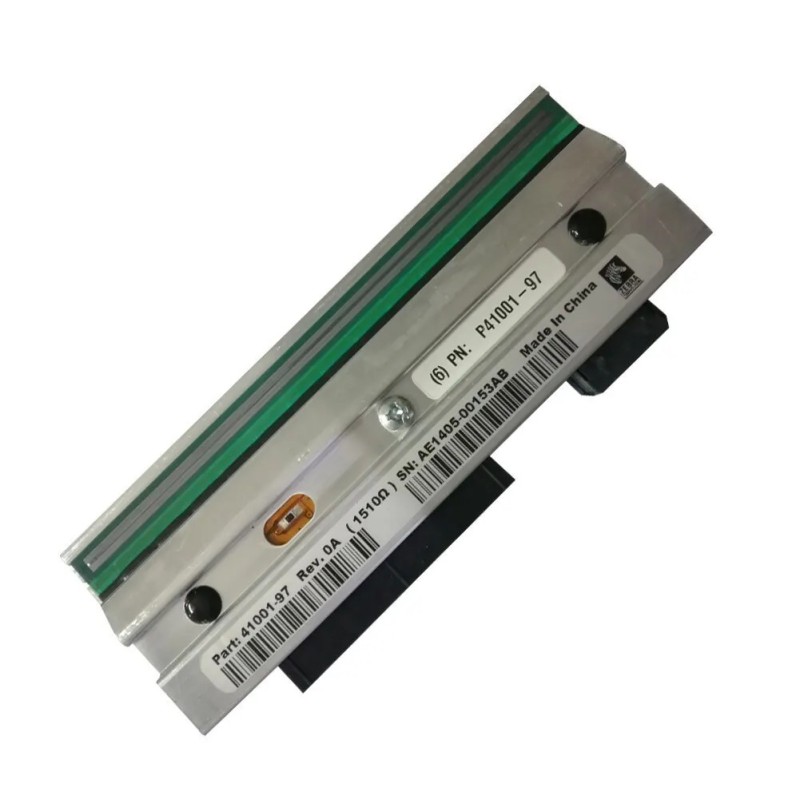

Zebra ZT410 / ZT411 300 DPI Thermal Printhead Kit (OEM P/N: P1058930-010) – Genuine OEM Replacement
OEM Part Number: P1058930-010 • Core Engine: High-Density Industrial Thin-Film Thermal Array (12 dots/mm) • Target Platform: Zebra ZT400 Series 4-Inch Industrial (ZT410 & ZT411 300 DPI)
The Zebra ZT410 / ZT411 300 DPI Thermal Printhead Kit (OEM P/N: P1058930-010) is an authentic, high-resolution electro-thermal transducer engineered specifically for Zebra ZT400-Series mid-range industrial label printers configured for precise, high-density imaging. Manufactured to stringent cleanroom semiconductor tolerances by Zebra Technologies Corporation, this printhead assembly delivers exceptional thermal conductivity, tight dot placement, and deep optical black contrast across mission-critical supply chains, pharmaceutical serialization, electronics assembly tracking, chemical GHS drum marking, and high-density 2D DataMatrix compliance labeling. Designed for rugged, continuous multi-shift production environments, the unit exhibits superior physical resilience against back-coating ribbon friction and abrasive synthetic media passage.
At its architectural foundation, the assembly integrates a 4.09-inch (104.0 mm) transverse ceramic substrate populated with 1,248 active micro-resistor heating dots arrayed at an intrinsic spatial density of 300 dots per inch (11.81 – 12.0 dots/mm with an ultra-fine nominal 0.084 mm dot pitch). Integrated high-frequency onboard shift registers and driver ICs regulate microsecond pulse-width strobe cycles, supporting sustained high-resolution industrial feed rates reaching up to 10.0 inches per second (254 mm/sec). The micro-machined heating line is shielded by an advanced multi-layer diamond-like carbon (DLC) and silicon nitride (Si3N4) anti-abrasion protective overcoat glaze, coupled with an onboard negative temperature coefficient (NTC) thermistor network that provides continuous closed-loop thermal compensation to prevent localized element overheating during heavy fill printing.
Pre-assembled on a precision-machined, high-thermal-conductivity aluminum heatsink carriage bracket measuring approximately 135 mm × 36 mm × 28 mm with an unprimed net weight of approximately 115 grams, the module incorporates factory pivot dowels and self-leveling spring seats configured specifically for the ZT400 toggle-bar mechanism. Direct electrical interconnectivity is established via dual high-grade gold-plated multi-pin PCB header sockets, minimizing electrical contact resistance and transient impedance across high-current strobe rails. Each P1058930-010 replacement kit is shipped as a 100% genuine factory-sealed OEM unit sealed inside certified electrostatic discharge (ESD) and moisture-vapor barrier shielding, safeguarding sensitive micro-circuitry prior to field commissioning.
Critical Resolution & Width Architecture Verification: Prior to procurement, verify the exact model configuration code and resolution on your printer's regulatory serial nameplate. Part number P1058930-010 is engineered exclusively for 4-inch 300 DPI chassis (ZT410 & ZT411). It cannot be installed as a direct drop-in replacement into 203 DPI carriages (P/N: P1058930-009) or 600 DPI carriages (P/N: P1058930-011) without completing a full drive-pulley, platen roller, and firmware resolution configuration conversion, nor into 6-inch wide-format ZT420/ZT421 platforms (P/N: P1058930-013).
FIELD ADVISORY
Technical Precision & Installation Warning
ATTENTION: High-density 300 DPI industrial thermal printheads feature tightly spaced micro-resistor elements and sensitive integrated driver circuitry. Installation and toggle alignment must strictly be executed by qualified service engineers or certified hardware personnel in accordance with Zebra ZT400-Series maintenance manuals.
- ESD Protection: Dense onboard driver ICs and shift register circuits are acutely vulnerable to electrostatic breakdown. Technicians must touch an earthed chassis point or wear a grounded anti-static wrist strap before opening the protective ESD shielding or handling the printhead harness contacts.
- Power Isolation & Absolute Prohibition of Hot-Swapping: Disconnect AC mains power from the rear power entry module and wait at least 60 seconds for internal reservoir capacitors to bleed down before disconnecting the printhead cables. Seating or unseating harness connectors while power is active will cause electrical arcing across 24V strobe pins, destroying mainboard driver MOSFETs and permanently blowing printhead channels.
- Cable / Harness Inspection: Thoroughly inspect the dual wiring harnesses for pinched insulation, copper fatigue, or oxidized pins. Verify that both multi-pin connectors are seated squarely and latched securely; misaligned or loose insertion can cross 24V power traces into low-voltage logic lines, destroying the main logic board.
- Ink / Fluid Chemical Compatibility: Clean the micro-resistor heating line exclusively with pure 99.7% electronic-grade Isopropyl Alcohol (IPA) using lint-free foam swabs. Never use metal scrapers, razor blades, abrasive textiles, or chlorinated chemical solvents to clear baked-on ribbon residue; scratching the protective DLC glaze permanently severs dot continuity.
- Handling Factory-Sealed Unit: Never touch the mirror-finished ceramic burn line with bare fingertips. Natural skin oils, acids, and salts will bond to the resistive glass glaze, charring under sustained operational heat and causing localized element burnout.
- Part Number & Pressure Calibration: Ensure the factory toggle pressure blocks are adjusted symmetrically across the 4-inch platen roller to prevent ribbon wrinkling and premature edge wear. After replacement, verify printhead resistance calibration and darkness settings via the ZT411 touch display or ZT410 front panel configuration menu.
