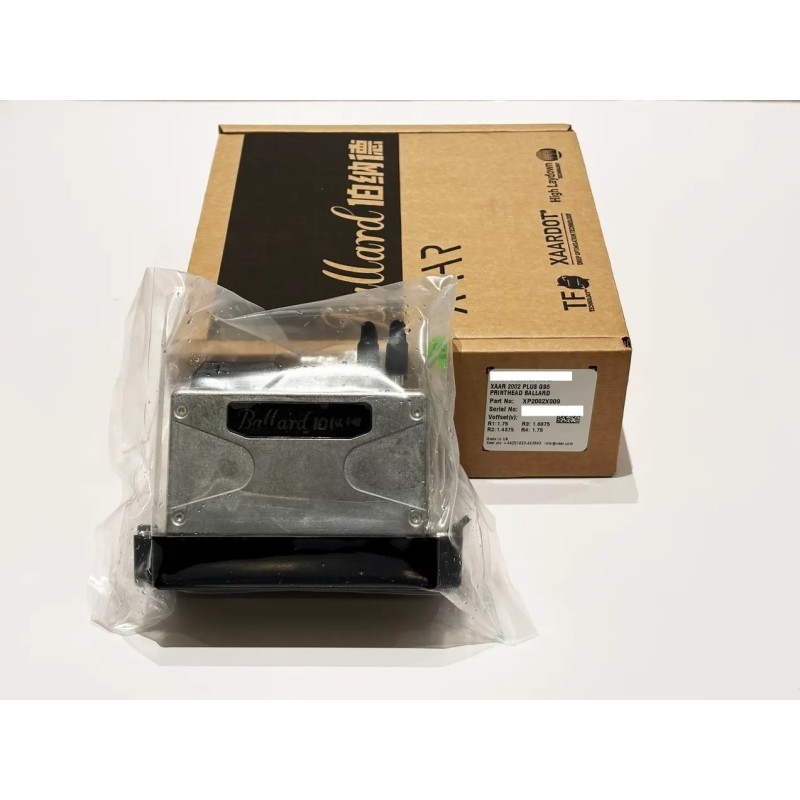

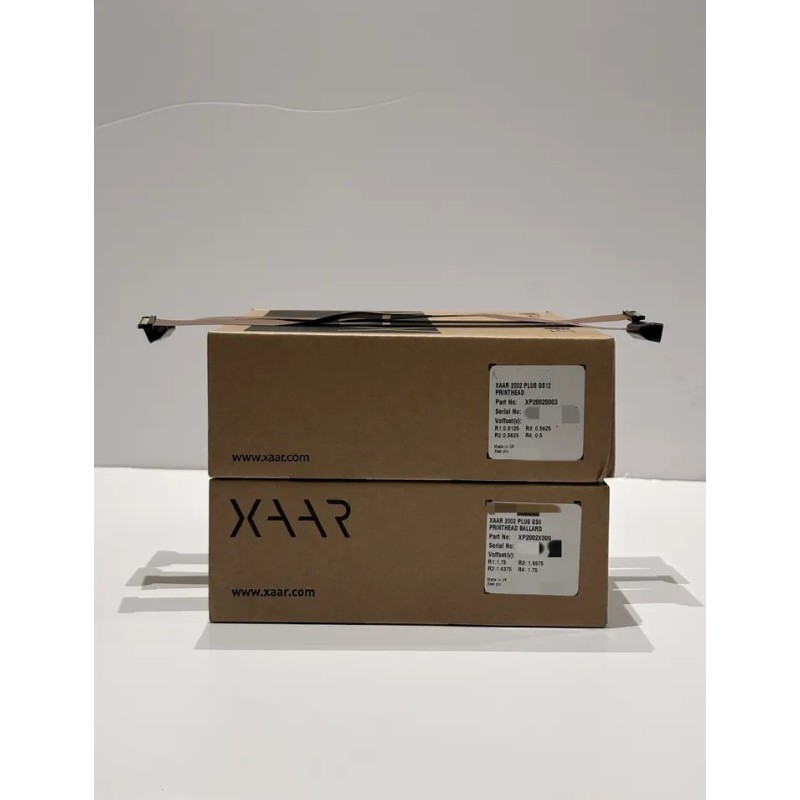

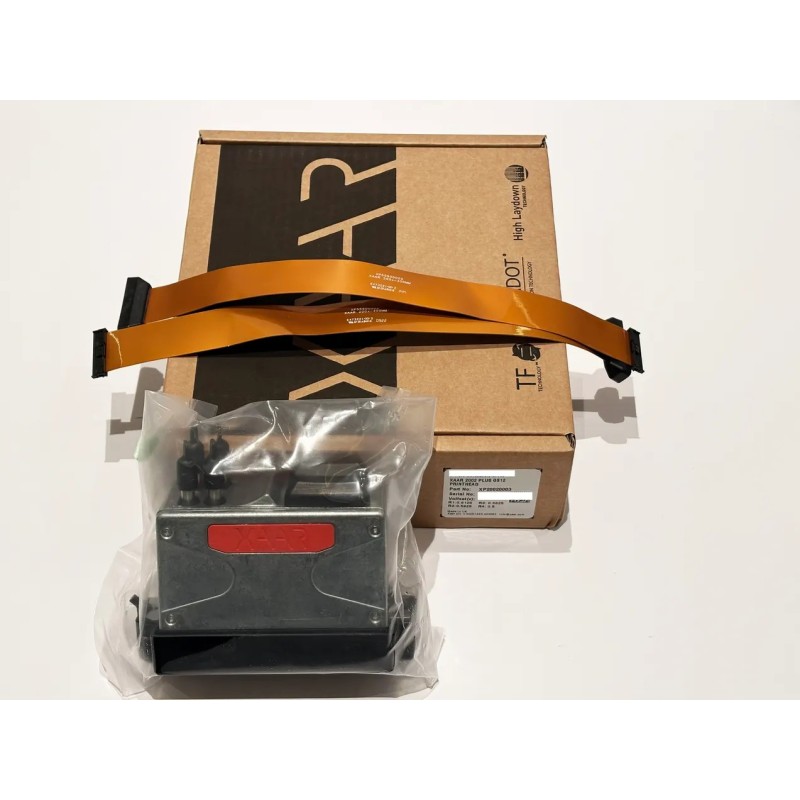

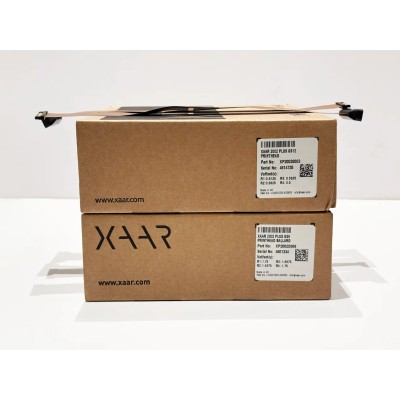

Genuine Xaar 2002 Printhead GS6 / GS12 / GS40 (Plus / Premium / Advanced) Original Piezo Inkjet Print Head
- Write a review
$1,525.00
Original Xaar 2002 Series printheads deliver native 720 npi resolution with 2000 nozzles and high-speed performance up to 75 m/min. Featuring TF Technology recirculation, AcuChp uniformity and High Laydown up to 240 g/m² for ceramics, glass, packaging and graphics. Fully backward compatible with Xaar 2001+ systems for reliable drop-in industrial upgrades.
Product Overview
The Genuine Xaar 2002 Series (GS6 / GS12 / GS40) is a high-performance industrial piezoelectric printhead designed for demanding single-pass applications in ceramics, glass, packaging, labels and graphics. With 2000 active nozzles arranged in four rows delivering native 720 npi resolution (or 360 npi dual-colour), a 70.52 mm print swathe and firing frequencies up to 36 kHz, the Xaar 2002 achieves print speeds of up to 75 m/min at 720 dpi while maintaining exceptional colour uniformity and drop placement accuracy. Equipped with Xaar’s industry-leading TF Technology (Through-Flow recirculation), AcuChp Technology, High Laydown Technology (up to 240 g/m²) and Ultra High Viscosity capability (up to 100 cP), it handles oil-based, solvent-based and UV-curable fluids with outstanding reliability. Available in Plus, Premium and Advanced variants, the Xaar 2002 is fully backward compatible with Xaar 2001+ systems, offering true plug-and-print installation, reduced setup time and maximised production uptime for high-volume industrial environments.
Part Information
- Brand: Xaar
- Product Type: Industrial Piezo Inkjet Printhead (GS6 / GS12 / GS40 – Plus / Premium / Advanced)
- Technology: Piezoelectric Hybrid Side Shooter with TF Technology recirculation
- Ink Type Compatibility: Oil-based, Solvent-based, UV-curable, Glass frit, Soluble salts (variant dependent)
- Condition: 100% Genuine Original, Brand New
- Country of Origin: United Kingdom
Technical Specifications
| Specification | Detail |
|---|---|
| Manufacturer | Xaar plc |
| Active Nozzles | 2000 |
| Native Resolution / Nozzle Density | 720 npi (single colour) / 360 npi (dual colour) |
| Print Swathe Width | 70.52 mm |
| Number of Fluid Paths | Up to 2 |
| Drop Volumes (Native) | GS6: 6 pL | GS12: 12 pL | GS40: 40 pL (greyscale up to 8 levels) |
| Maximum Drive Frequency | Up to 36 kHz (6/12 pL) / 24 kHz (40 pL) |
| Max Productivity (approx. @1.3 g/cm³) | 22 / 44 / 85 g/m² (standard) | High Laydown up to 240 g/m² |
| Viscosity Range | Up to 100 cP at jetting temperature |
| Dimensions (W × D × H) | 132 × 50 × 105 mm |
| Dry Weight | Approx. 445 g |
| Key Technologies | TF Technology, AcuChp, XaarDOT, XaarGuard, High Laydown, Ultra High Viscosity, In-line filter, Serviceable |
| Backward Compatibility | Full drop-in compatibility with Xaar 2001+ based systems |
Xaar 2002 Series Variant Comparison (Plus vs Premium vs Advanced)
| Variant | Fluid / Ink Compatibility | Max Speed @ 720 dpi | Alignment & Precision | Primary Applications |
|---|---|---|---|---|
| Xaar 2002 Plus Standard |
Oil-based inks | Up to 75 m/min | Standard mechanical alignment | Ceramic tiles, architectural surfaces, and high-volume industrial decoration. |
| Xaar 2002 Premium Advanced Alignment |
Oil-based, Solvent-based, Glass Frits, Soluble Salts | Up to 75 m/min | Precision Glass Sub-Frame (Fast drop-in alignment) |
Glass decoration, wood/laminates, specialty fluids, and demanding industrial lines. |
| Xaar 2002 Advanced Ultimate Precision |
All Fluid Types: UV-Curable, Solvent, Oil-based, Glass Frits, Soluble Salts | Up to 75 m/min | Sub-Micron Precision Datums (Plug-and-Print setup) |
High-resolution labels, display graphics, packaging, functional coatings, and tactile special effects. |
Drop Volume Specification Comparison (GS6 vs GS12 vs GS40)
| Specification Parameter | GS6 (Fine Detail) | GS12 (All-Rounder) | GS40 (High Laydown) |
|---|---|---|---|
| Native Drop Size | 6 pL | 12 pL | 40 pL |
| Greyscale Volume Range | 6 pL – 42 pL | 12 pL – 84 pL | 40 pL – 160 pL |
| Greyscale Levels | Up to 8 Levels | Up to 8 Levels | Up to 5 Levels |
| Max Firing Frequency | 36 kHz | 36 kHz | 24 kHz |
| Standard Productivity (@1.3 g/cm³) | Up to 22 g/m² | Up to 44 g/m² | Up to 85 g/m² (Up to 240 g/m² with High Laydown) |
| Print Characteristics | High-definition images, fine text, precise barcode edges, and smooth skin tones. | Versatile performance, combining strong color density with sharp image resolution. | Heavy fluid output, opaque whites, heavy coverage, and thick decorative effects. |
| Recommended Applications | High-resolution labels, premium packaging, wide-format graphics. | Standard ceramics, wood laminates, general packaging, and industrial products. | Dense white undercoats, High Build Varnish (textured/embossed varnish), glass glaze, heavy ceramics. |
Variant & Drop Size Combination Matrix
| Variant / Drop Size | GS6 (6 - 42 pL) | GS12 (12 - 84 pL) | GS40 (40 - 160 pL) |
|---|---|---|---|
| Xaar 2002 Plus | 2002 Plus GS6 (Oil-based / High Detail) |
2002 Plus GS12 (Oil-based / Standard) |
2002 Plus GS40 (Oil-based / Heavy Laydown) |
| Xaar 2002 Premium | 2002 Premium GS6 (Solvent & Glass / Fine Detail) |
2002 Premium GS12 (Solvent & Glass / All-Rounder) |
2002 Premium GS40 (Solvent & Glass / Heavy Laydown) |
| Xaar 2002 Advanced | 2002 Advanced GS6 (UV & Graphics / Fine Precision) |
2002 Advanced GS12 (UV & Packaging / Standard) |
2002 Advanced GS40 (UV & Effects / Heavy Laydown) |
Technical Precision & Operational Advisory
- Electrostatic Discharge (ESD) Protection: Always use a grounded ESD wrist strap and work on an ESD-safe surface when handling the printhead. The piezoelectric actuators are highly sensitive to static discharge.
- Power Isolation Warning: Completely power off the printer and disconnect all power sources before connecting or disconnecting the FFC ribbon cables or fluid lines.
- Cable Replacement Protocol: It is strongly recommended to replace the flexible flat cables (FFC) and related connectors with new genuine parts during every printhead installation to ensure reliable signal integrity.
- Fluid Preparation: Ensure inks/fluids are properly filtered, degassed and within the specified viscosity and temperature range. Continuous high-flow TF Technology recirculation is essential for consistent performance and nozzle health.
- Temperature Control: Maintain stable ambient and fluid temperatures. Avoid rapid temperature swings that can affect drop volume consistency and long-term reliability.
- Priming & Alignment: Utilise the improved mechanical datums and AcuChp Technology for true plug-and-print alignment. Instant priming is supported by continuous recirculation – minimise unnecessary purging.
- High Laydown & High Viscosity Operation: When using High Laydown mode or fluids up to 100 cP (including particle-loaded materials), follow Xaar recommended waveforms and ensure continuous recirculation to prevent sedimentation or nozzle clogging.
Compatible Equipment & Applications
| Category | Details / Compatible Systems |
|---|---|
| Printer Compatibility | Full drop-in upgrade for all Xaar 2001+ based industrial printers. Compatible with most OEM single-pass and multi-pass platforms originally designed around the Xaar 2001 / 2001+ series for ceramics, glass, packaging and graphics. |
| Xaar 2002 Plus | Optimised for oil-based inks – ceramic tile decoration, décor and high-volume architectural surfaces. Robust industrial performance with all core Xaar technologies. |
| Xaar 2002 Premium | Enhanced mechanical alignment features for faster setup. Compatible with oil-based, solvent-based inks, glass frits and soluble salts – ideal for glass decoration and more demanding fluid applications. |
| Xaar 2002 Advanced | Highest performance variant with superior drop placement accuracy and print uniformity. Supports oil, solvent, UV-curable inks, glass frits and soluble salts – perfect for high-quality graphics, labels, packaging and functional applications. |
| Typical Applications | Ceramic tiles, glass decoration, packaging, labels, display graphics, laminates, décor, product printing and high-laydown special effects (tactile varnish, textured finishes). |
Terms, Warranty & Customer Protection:
- Pre-Installation Guarantee: 100% brand-new, factory-original product. Each unit is inspected and sealed before shipment. We guarantee authenticity and factory condition upon arrival.
- Store Warranty Policy: 30 working days warranty covering manufacturing defects. Warranty claims require complete unboxing video and professional installation video performed by an experienced technician following Xaar recommended procedures.
- Final Sale Conditions: Once the printhead has been exposed to ink or installed into a printer, it is considered used and cannot be returned or exchanged. Please verify compatibility and installation readiness before opening the sealed packaging.
