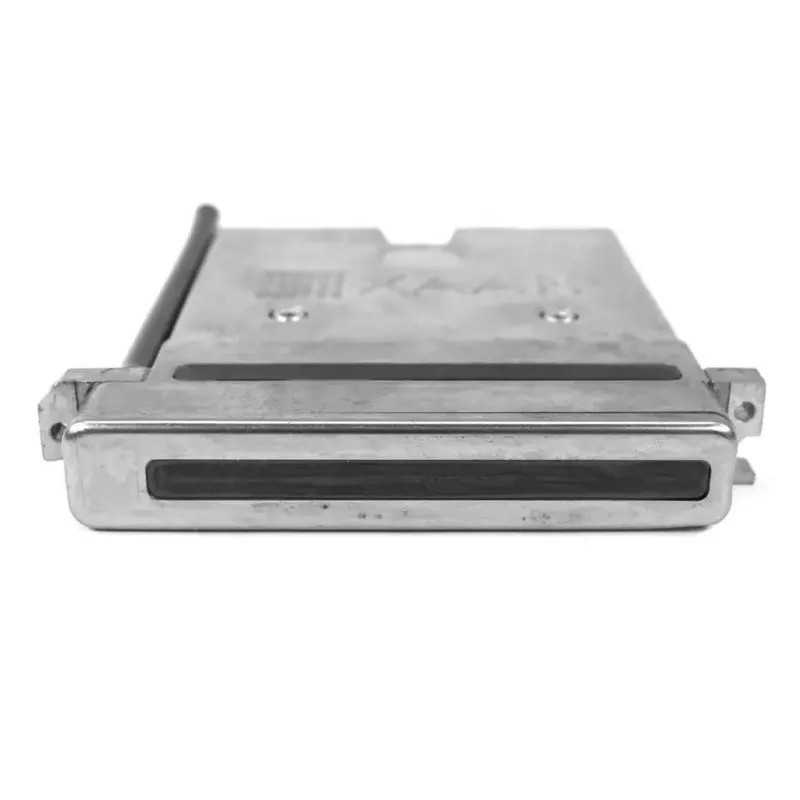

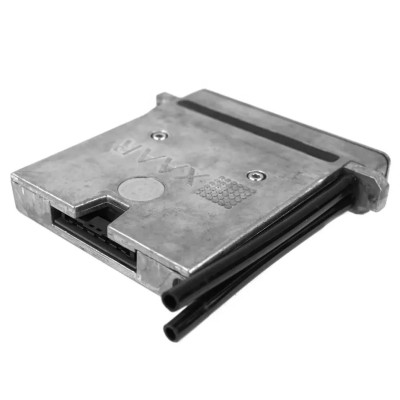

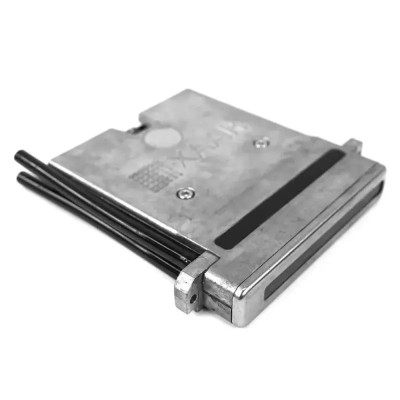

Xaar 501 GS8 S Printhead Solvent-Based Standard

Xaar 501 GS8 S Printhead Solvent-Based Standard

Write a review

$820.00

Genuine original Xaar 501 GS8 S piezoelectric printhead optimised for solvent-based inks delivering high print quality and industrial reliability in wide-format graphics and coding applications.

Quantity

Add to wishlist

Secure Payment

Secure bank transfer

Worldwide Delivery

Worldwide tracked shipping

Warranty & Returns

30-day warranty & returns

Guarantee safe & secure checkout

Product Overview

The Genuine Xaar 501 GS8 S Printhead is a precision piezoelectric drop-on-demand printhead specifically engineered for Solvent-Based ink applications in standard non-recirculating fluid configurations. Built upon Xaar’s PrecisionPlus actuator architecture, it delivers uniform drop formation, precise drop placement, and consistent firing performance with solvent ink chemistry. Featuring 500 active nozzles in a single-row layout at 180 npi native resolution across a 70.5 mm print swathe, it supports greyscale firing modes from 8 to 40 pL drop volumes across 6 grey levels. Constructed with robust, solvent-resistant materials and equipped with an integrated In-line Filter and WFG Nozzle Guard, it ensures long-term operational reliability and high-detail output in wide-format and industrial production environments.

Part Information

Brand: Xaar
Product Name: Xaar 501 GS8 S Printhead Solvent-Based Standard
Part Number / Reference: XP501 GS8 S
Specific Variant: GS8 Fine Drop (8–40 pL) / Solvent-Based Standard (S)
Technology: Piezoelectric Drop-on-Demand (PrecisionPlus)
Category: Xaar Printheads
Ink Type Compatibility: Solvent-Based Inks
Condition: 100% Genuine Original, Brand New, Factory Sealed
Country of Origin: United Kingdom

Technical Specifications

Specification Parameter	Details / Technical Values (GS8 S Specific)
Brand Manufacturer	Xaar plc
SKU / Reference	XP501 GS8 S
Active Nozzles & Density	500 active nozzles; 180 npi native resolution (1 row)
Print Swathe Width & Pitch	70.5 mm swathe; Nozzle pitch: 141.1 µm
Ink & Fluid Configuration	Solvent-based ink (Standard / None Pulsed TF)
Drop Volume & Velocity	8 to 40 pL (6 Grey levels); Drop velocity: 5 m/s
Maximum Firing Frequency	Up to 8 kHz (Greyscale) / Up to 27 kHz (Binary)
In-line Filter	Yes (Integrated internal filter)
Advanced Features	PrecisionPlus, WFG Nozzle Guard, AcuChp
Dimensions & Dry Weight	104 x 17 x 113 mm; Approx. 208 g

Xaar 501 Variant Matrix (Current Product Highlighted)

Ink & Recirculation Type	GS8 Variant (8 - 40 pL)	GS15 Variant (15 - 75 pL)
Oil-Based Standard (O)	501 GS8 O	501 GS15 O
Oil-Based + Recirculation (OR)	501 GS8 OR	501 GS15 OR
Solvent-Based Standard (S)	★ 501 GS8 S (This Product)	501 GS15 S
Solvent-Based + Recirculation (SR)	501 GS8 SR	501 GS15 SR
UV-Curable Standard (U / UV)	501 GS8 U / UV	501 GS15 U / UV
UV-Curable + Recirculation (UR / UVR)	501 GS8 UR / UVR	501 GS15 UR / UVR

Drop Size Specification Comparison (GS8 vs GS15)

Specification Parameter	GS8 - Fine Precision (This Product)	GS15 - Standard Industrial
Native Base Drop Size	8 pL	15 pL
Greyscale Volume Range	8 pL – 40 pL	15 pL – 75 pL
Greyscale Levels	Up to 6 Levels	Up to 6 Levels
Max Firing Frequency	Up to 8 kHz (Greyscale) / 27 kHz (Binary)	Up to 10 kHz (Greyscale) / 24 kHz (Binary)
Print Quality & Focus	High-resolution solvent graphics, crisp text, sharp edges, and detailed imaging.	Balanced ink coverage, high-speed industrial marking, and heavy ink laydown.
Primary Applications	Wide-format outdoor signage, solvent inkjet printing, packaging line marking.	Secondary packaging, product identification, corrugated boxes.

Technical Precision & Operational Advisory

Electrostatic Discharge (ESD) Protection: Always wear a grounded ESD wrist strap and work on an ESD-safe surface when handling sensitive electronic parts. Piezoelectric actuators are highly sensitive to static discharge.
Power Isolation Warning: Fully power off the equipment and disconnect main power sources before replacing parts or connecting flexible flat cables (FFC).
Cable Replacement Protocol: It is strongly recommended to replace flexible flat cables (FFC) and related connectors with new genuine parts during every printhead installation to ensure reliable signal integrity.
Solvent Fluid Compatibility: Designed specifically for solvent-based ink chemistries. Ensure solvent inks are within specified viscosity and surface tension limits. Although equipped with an integrated in-line filter, regular system flushing and maintaining clean fluid paths are crucial for optimal printhead lifespan.
Professional Installation: It is strongly recommended to have replacement performed by a certified technician following standard technical protocols.

Compatible Models & Systems

Brand / Integration	Compatible Models & Systems
Xaar OEM Platforms	Industrial OEM systems designed for Xaar 501 GS8 S solvent series including wide-format graphics printers, solvent-based coding and marking systems, packaging line printers, and continuous industrial inkjet platforms utilizing Xaar 501 GS8 S architecture.
Target Fluid Circuit	Solvent-Based Inks (Standard non-recirculating fluid systems).

Terms, Warranty & Customer Protection:

Pre-Installation Guarantee: Guaranteed 100% brand-new, factory-original product. Each item is factory inspected and sealed prior to shipment.
Store Warranty Policy: Covered against manufacturing defects. Warranty claims require an uninterrupted unboxing video and installation video performed by a certified technician following Xaar recommended procedures.
Final Sale Conditions: Once installed or exposed to operational fluids/ink, items are non-returnable. Please confirm model compatibility prior to opening.

Reference XP501 GS8 S

In stock 125 Items
