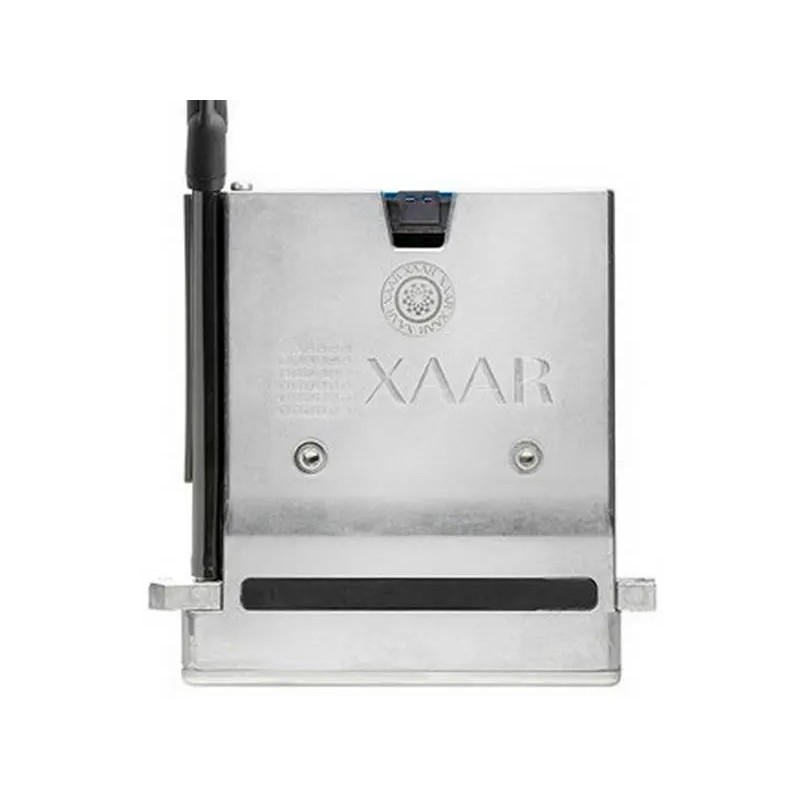

Xaar 502 GS40 UV Printhead UV-Curable Standard
- Write a review
$940.00
Genuine original Xaar 502 GS40 UV piezoelectric printhead optimised for high-laydown UV-curable inks delivering robust coverage and industrial reliability in graphics coding and packaging applications.
Product Overview
The Xaar 502 GS40 UV is a precision piezoelectric drop-on-demand printhead featuring PrecisionPlus actuator architecture for uniform drop formation, accurate dot placement, and high fluid deposition when using UV-curable inks. Incorporating 500 active nozzles in a single row at 180 npi native density across a 70.5 mm print swathe, it supports greyscale operation with large drop volumes (40 to 160 pL) across 6 grey levels. Engineered for high-opacity and heavy-laydown UV applications, it features Ultra High Viscosity capability, an integrated WFG nozzle guard, and internal filtration. Factory-sealed British OEM construction ensures complete chemical compatibility with demanding UV ink formulations in industrial printing environments.
Part Information
- Brand: Xaar
- Product Name: Xaar 502 GS40 UV Printhead UV-Curable Standard
- Part Number / Reference: XP502 GS40 UV
- Category: Xaar Printheads
- Condition: 100% Genuine Original, Brand New, Factory Sealed
- Country of Origin: United Kingdom
Technical Specifications
| Specification Parameter | Details / Technical Values |
|---|---|
| Brand Manufacturer | Xaar plc |
| SKU / Reference | XP502 GS40 UV |
| Active Nozzles | 500 nozzles (1 row) |
| Nozzle Geometry & Density | 180 npi | Nozzle Pitch: 141.1 µm | Nozzle Stagger: 47 µm |
| Print Swathe Width | 70.5 mm |
| Drop Volume & Velocity | 40 to 160 pL (6 Grey Levels) | Drop Velocity: 5 m/s |
| Maximum Firing Frequency | Up to 8.0 kHz |
| Ink Compatibility & Features | UV-curable inks | Ultra High Viscosity: Yes | TF Recirculation: No |
| Nozzle Guard & In-line Filter | Nozzle Guard: WFG | Integrated In-line Filter: Yes |
| Dimensions & Weight | 104 × 17 × 113 mm (W × D × H) | Dry Weight: 208 g |
Xaar 502 Complete Series Variant Matrix
| Ink & Recirculation Type | GS8 Variant (8 - 40 pL) | GS15 Variant (15 - 75 pL) | GS40 Variant (40 - 160/200 pL) |
|---|---|---|---|
| Oil-Based Standard (O) | 502 GS8 O | 502 GS15 O | 502 GS40 O |
| Oil-Based + Recirculation (OR) | 502 GS8 OR | 502 GS15 OR | 502 GS40 OR |
| Solvent-Based Standard (S) | 502 GS8 S | 502 GS15 S | 502 GS40 S |
| Solvent-Based + Recirculation (SR) | 502 GS8 SR | 502 GS15 SR | 502 GS40 SR |
| UV-Curable Standard (UV) | 502 GS8 UV | 502 GS15 UV | 502 GS40 UV (This Product) |
| UV-Curable + Recirculation (UVR) | 502 GS8 UVR | 502 GS15 UVR | 502 GS40 UVR |
Xaar 502 Drop Size Comparison (GS8 vs GS15 vs GS40)
| Specification Parameter | GS8 (Fine Precision) | GS15 (Standard Coding & Graphics) | GS40 (High Coverage / Heavy Laydown) |
|---|---|---|---|
| Native Base Drop Size | 8 pL | 15 pL | 40 pL |
| Greyscale Volume Range | 8 pL – 40 pL | 15 pL – 75 pL | 40 pL – 160/200 pL |
| Greyscale Levels | Up to 6 Levels | Up to 6 Levels | Up to 6 Levels |
| Max Firing Frequency | Up to 8.0 kHz | Up to 8.0 kHz | Up to 7.0 / 8.0 kHz |
| Print Resolution & Quality | Highest resolution for fine text, 2D barcodes, sharp graphics. | Balanced density and speed for industrial graphics and outer cartons. | Maximum ink laydown, high opacity, thick coats on rigid/flexible substrates. |
| Primary Applications | Small character coding, sharp logos, high-density 1D/2D barcodes, labels. | Secondary packaging coding, outer carton marking, primary graphics. | High-opacity UV white/varnish laydown, wide-format UV printing, heavy packaging. |
Technical Precision & Operational Advisory
- Electrostatic Discharge (ESD) Protection: Always wear a grounded ESD wrist strap and work on an ESD-safe surface when handling sensitive electronic parts. Piezoelectric actuators are susceptible to static damage.
- Power Isolation Warning: Fully power off the equipment and disconnect main power sources before replacing parts, connecting flexible flat cables (FFC), or handling fluid lines.
- UV Light Shielding & Handling: Protect the printhead nozzle plate from stray ambient UV light and LED curing lamps during installation to prevent accidental ink curing inside the nozzles.
- Professional Installation: It is strongly recommended to have replacement performed by a certified technician following standard technical protocols. Always use new ribbon cables during installation.
Compatible Models & Systems
| Brand / Integration | Compatible Models |
|---|---|
| Industrial OEM Systems | Industrial OEM systems designed for Xaar 502 GS40 UV series, including UV-curable wide-format graphics printers, coding and marking systems, packaging line printers, and continuous industrial inkjet platforms utilizing Xaar 502 high-laydown UV architecture. |
Terms, Warranty & Customer Protection:
- Pre-Installation Guarantee: Guaranteed 100% brand-new, factory-original product. Each item is factory inspected and sealed prior to shipment.
- Store Warranty Policy: Covered against manufacturing defects. Warranty claims require an uninterrupted unboxing video and installation video performed by a certified technician.
- Final Sale Conditions: Once installed or exposed to operational fluids, items are non-returnable. Please confirm model compatibility prior to opening.
