Xaar 501 GS15 O Original OEM Printhead Oil-Based Standard GS15 (15–75 pL)
- Write a review
$845.00

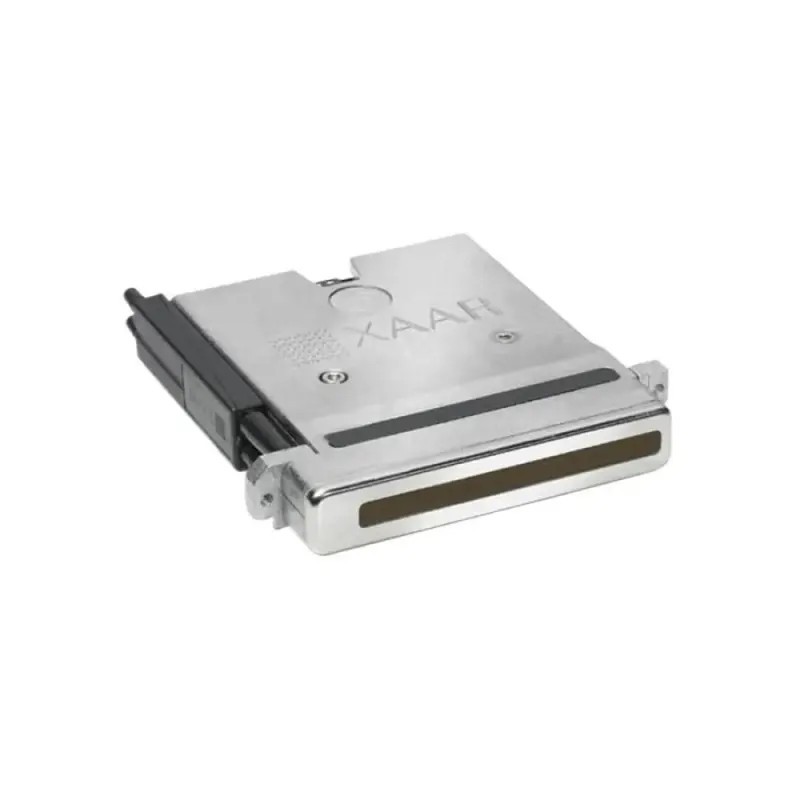

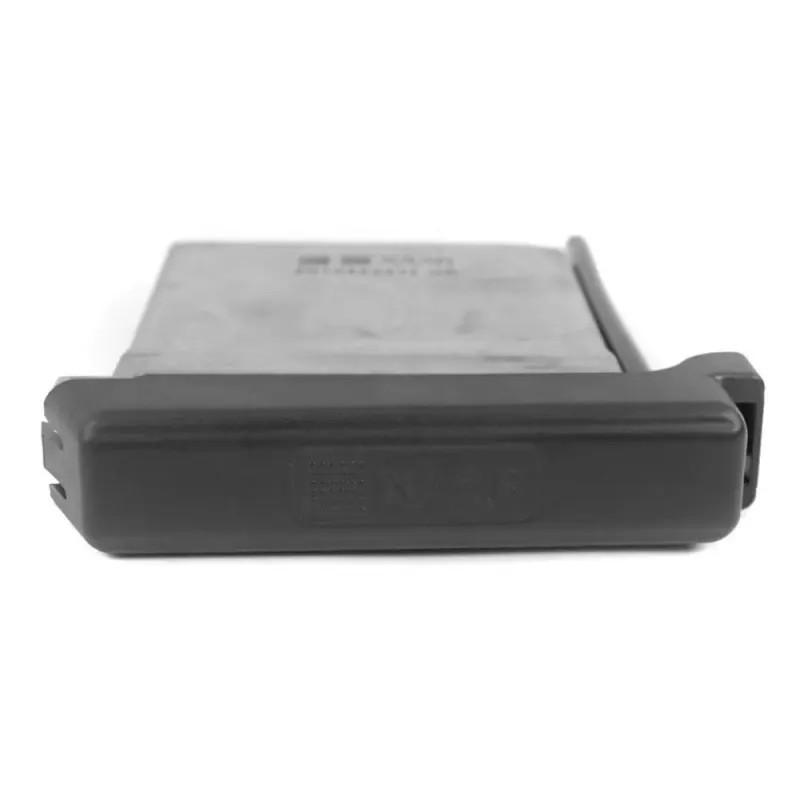

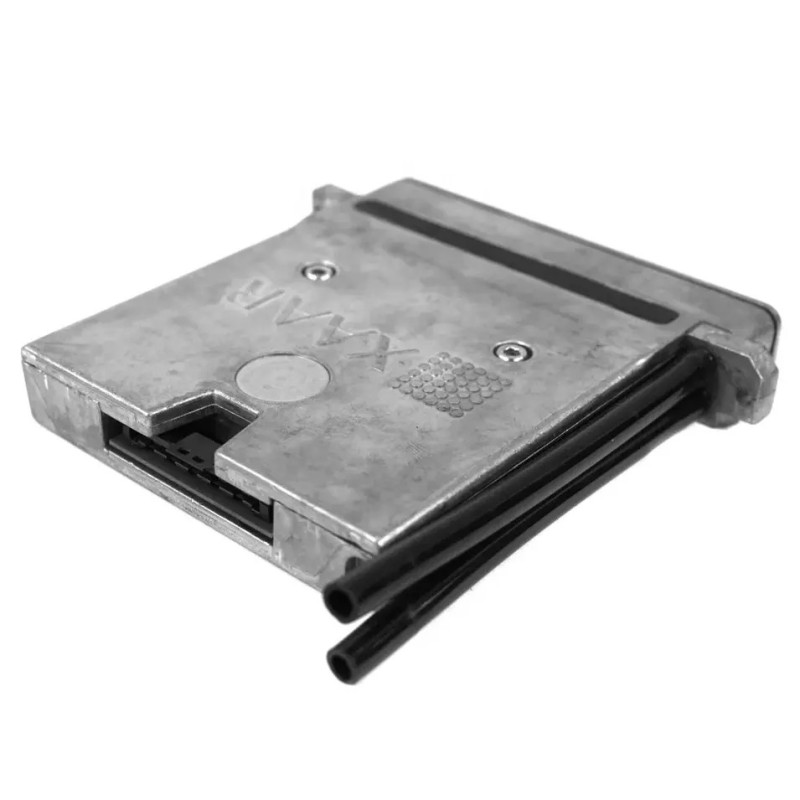

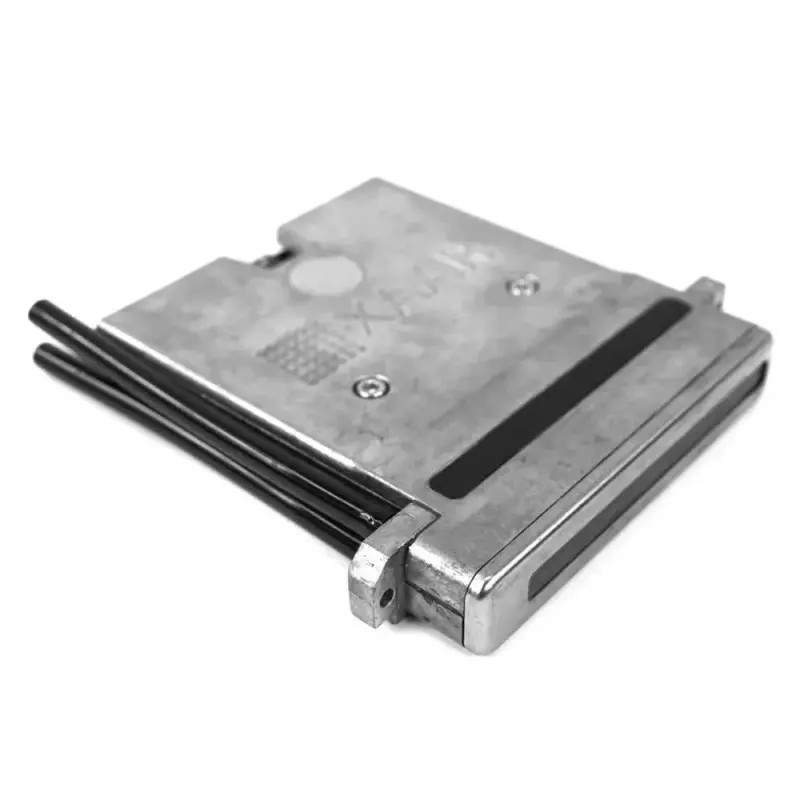

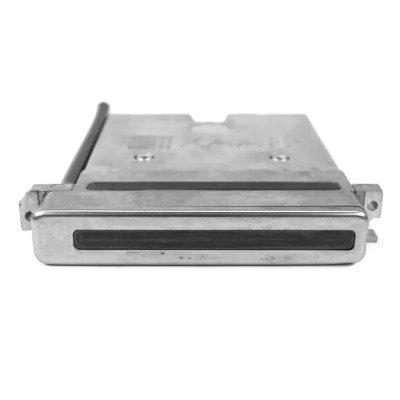

Genuine Xaar factory-original 501 GS15 O piezo printhead engineered for high-contrast coding and marking on porous and semi-porous substrates. Delivers 15–75 pL greyscale drops with PrecisionPlus architecture for industrial reliability in outer-case and secondary packaging applications.
Product Overview
The Genuine Xaar 501 GS15 O Printhead is a high-performance bulk piezoelectric drop-on-demand printhead built on Xaar’s PrecisionPlus Hybrid Side Shooter architecture. Designed specifically for oil-based and mineral-oil-free (MOF) inks in standard non-continuous recirculation applications, it features 500 individually lasered nozzles spanning a 70.5 mm print swathe at native 180 npi density. Supporting greyscale operation with drop volumes ranging from 15 to 75 pL across 6 grey levels, it provides high ink laydown, long throw distance, and sharp edge definition for barcodes, GS1 codes, and high-contrast text. Equipped with an optimized C&M nozzle guard for automated maintenance, pulsed TF Technology for on-demand nozzle priming, an integrated last-chance filter, and AcuChp technology, this head is engineered for extreme durability and continuous operation in demanding industrial outer-case packaging, coding, and marking environments.
Part Information
- Brand: Xaar
- Product Name: Xaar 501 GS15 O Original OEM Printhead Oil-Based Standard GS15 (15–75 pL)
- Part Number / Reference: XP501GS15O
- Specific Variant: GS15 Industrial Drop (15–75 pL) / Oil-Based Standard (O)
- Technology: Piezoelectric Drop-on-Demand (PrecisionPlus Hybrid Side Shooter)
- Recirculation Technology: TF Technology (Pulsed Mode)
- Category: Xaar Printheads
- Ink Type Compatibility: Oil-Based & Mineral-Oil-Free (MOF) Inks
- Condition: 100% Genuine Original, Brand New, Factory Sealed
- Country of Origin: United Kingdom
Technical Specifications
| Specification Parameter | Details / Technical Values (GS15 O Specific) |
|---|---|
| Brand Manufacturer | Xaar plc |
| SKU / Reference | XP501GS15O |
| Active Nozzles & Density | 500 active nozzles; 180 npi native resolution (1 row) |
| Print Swathe Width & Pitch | 70.5 mm swathe; Nozzle pitch: 141.1 µm; Nozzle stagger: 47 µm |
| Ink & Fluid Configuration | Oil-based & Mineral-Oil-Free (MOF) inks (Standard Non-continuous / Pulsed TF) |
| Drop Volume & Velocity | 15 to 75 pL (Binary 15 pL or Greyscale 45/60/75 pL); Drop velocity: 7 m/s |
| Firing Frequency | Typical 7.2 kHz (Max DPD); Up to 9.5 kHz (depending on waveform) |
| In-line Filter & Fittings | Integrated last-chance filter; Standard hose-barb ink fittings |
| Advanced Features | PrecisionPlus, Pulsed TF Technology, C & M Nozzle Guard, AcuChp, ICM option |
| Dimensions & Dry Weight | 104 x 17 x 113 mm; Approx. 208 g |
Xaar 501 Variant Matrix (Current Product Highlighted)
| Ink & Recirculation Type | GS8 Variant (8 - 40 pL) | GS15 Variant (15 - 75 pL) |
|---|---|---|
| Oil-Based Standard (O) | 501 GS8 O | ★ 501 GS15 O (This Product) |
| Oil-Based + Recirculation (OR) | 501 GS8 OR | 501 GS15 OR |
| Solvent-Based Standard (S) | 501 GS8 S | 501 GS15 S |
| Solvent-Based + Recirculation (SR) | 501 GS8 SR | 501 GS15 SR |
| UV-Curable Standard (U / UV) | 501 GS8 U / UV | 501 GS15 U / UV |
| UV-Curable + Recirculation (UR / UVR) | 501 GS8 UR | 501 GS15 UR / UVR |
Drop Size Specification Comparison (GS15 vs GS8)
| Specification Parameter | GS15 - Heavy Industrial (This Product) | GS8 - Fine Precision |
|---|---|---|
| Native Base Drop Size | 15 pL | 8 pL |
| Greyscale Volume Range | 15 pL – 75 pL | 8 pL – 40 pL |
| Greyscale Levels | Up to 6 Levels | Up to 6 Levels |
| Drop Velocity | 7 m/s (Long Throw Distance) | 5 m/s |
| Print Focus & Performance | High opacity, dark solid text, crisp GS1 barcodes, robust coverage on porous substrates. | High-resolution graphics, smooth gradients, micro-text, and detailed fine graphics. |
| Primary Applications | Outer-case coding, corrugated box printing, high-speed secondary packaging lines. | Continuous high-resolution coding, primary packaging, fine graphic printing. |
Technical Precision & Operational Advisory
- Electrostatic Discharge (ESD) Protection: Always wear a grounded ESD wrist strap and work on an ESD-safe surface when handling sensitive electronic parts. Piezoelectric actuators are highly vulnerable to static damage.
- Power Isolation Warning: Fully power off the equipment and disconnect main power sources before replacing parts or connecting standard electrical cables.
- Fluid Compatibility Strict Warning: This head is configured for Oil-Based and Mineral-Oil-Free (MOF) inks ONLY. Do not flush or introduce solvent, water-based, or UV-curable inks into this unit, as doing so will instantly destroy internal seals.
- Pulsed TF Maintenance Protocol: Utilize pulsed TF Technology during non-printing or idle periods to maintain instant prime and prevent pigment settling in oil-based fluids.
- Professional Installation: It is strongly recommended to have replacement performed by a certified technician following standard technical protocols.
Compatible Models & Systems
| Brand / Integration | Compatible Models & Systems |
|---|---|
| Domino | C-Series Plus C6000+, C6000+ 70 mm outer-case coder |
| MapleJet | ProDigit 70 |
| RN Mark | RN Mark 7 |
| Macsa ID & Squid Ink | Macsa ID Xaar 501-equipped coders, Squid Ink Xaar 501 coding systems |
| General OEM Platforms | Industrial outer-case and secondary packaging printers designed for Xaar 501 GS15 O, including systems upgraded from discontinued Xaar 500/80 and Xaar 128 platforms via ICM interface module. |
Terms, Warranty & Customer Protection:
- Pre-Installation Guarantee: Guaranteed 100% brand-new, factory-original product. Each item is factory inspected and sealed prior to shipment.
- Store Warranty Policy: Covered against manufacturing defects. Warranty claims require an uninterrupted unboxing video and installation video performed by a certified technician following Xaar recommended procedures.
- Final Sale Conditions: Once installed or exposed to operational fluids/ink, items are non-returnable. Please confirm model compatibility prior to opening.
XP501GS15O
124 Items
