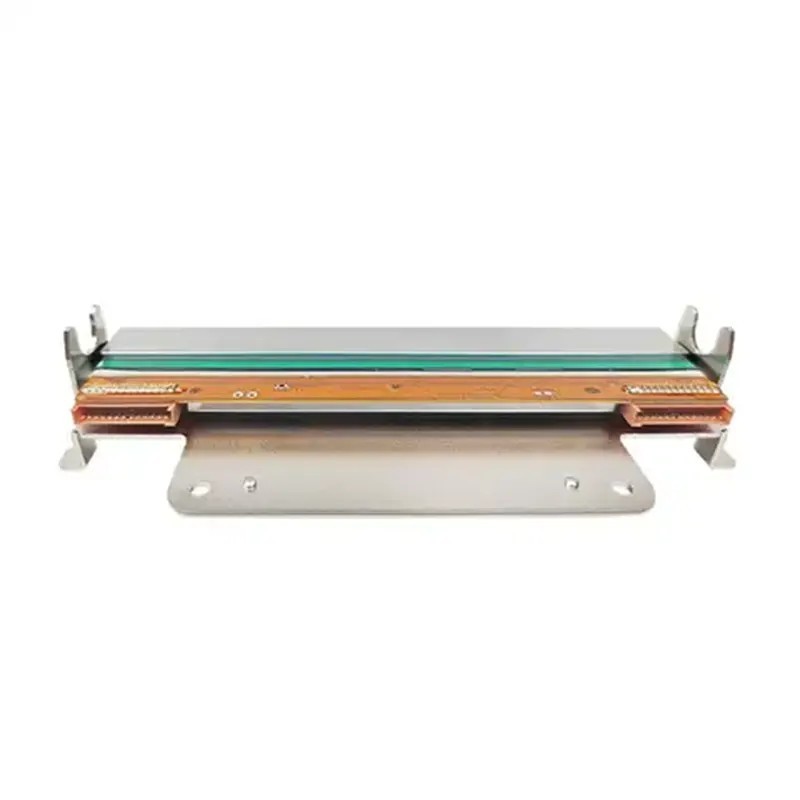

Toshiba TEC B-30 Series Thermal Printhead 203 DPI FMBC0011202
- Write a review
$310.00
$179.80
Save 42%
Factory OEM 203 DPI ultra-legacy flat-head thermal printhead for vintage Toshiba TEC B-30 Series industrial barcode printers. Delivers durable thermal transfer barcoding across a standard 4-inch path. Authentic replacement spare part.
Toshiba TEC B-30 Series Thermal Printhead (203 DPI)
OEM Part Number: FMBC0011202 | Genuine Direct Thermal & Thermal Transfer Replacement
Product Overview
The Toshiba TEC FMBC0011202 is a genuine factory-original 203 DPI thermal printhead engineered specifically for the Toshiba TEC B-30 Series industrial and desktop label printing architectures. Designed for both direct thermal and thermal transfer workflows, this printhead integrates precision micro-thin-film resistor elements that deliver sharp barcoding, clear alphanumeric typography, and high-contrast graphical reproduction.
Equipped with a hardened protective ceramic overcoat, the heating array is built to withstand mechanical friction from continuous media feeding, abrasive synthetic label faces, and heavy-duty wax, wax-resin, and resin thermal transfer ribbons. As an original OEM assembly, it guarantees native electrical impedance alignment, zero-configuration mechanical fitment into the pivot bracket, and consistent dot energy transmission without causing micro-arcing or premature element burnout.
Part Identification & Logistics
| Product Name | Toshiba TEC B-30 Series Thermal Printhead 203 DPI |
|---|---|
| OEM Part Number | FMBC0011202 |
| Manufacturer | Toshiba TEC Corporation |
| Component Type | Thick/Thin Film Thermal Array Printhead Assembly |
| Packaging Condition | 100% Brand New, Factory Sealed, Antistatic Sealed |
| Country of Origin | Japan / Toshiba Certified Manufacturing Facility |
Technical Specifications
| Parameter | Engineering Value / Standard |
|---|---|
| Printing Technology | Direct Thermal (DT) & Thermal Transfer (TT) |
| Resolution | 203 DPI (8 dots/mm) |
| Nominal Dot Pitch | 0.125 mm (~125 μm) |
| Effective Print Width | Up to 76.2 mm (~3.0 inches) / 104 mm depending on chassis configuration |
| Interface / Connector Type | Integrated FPC / Multi-pin Flat Flexible Ribbon Interface |
| Substrate / Media Compatibility | Direct Thermal Paper, Vellum, Coated Paper, Synthetic Films (PE, PP, PET) |
| Ribbon Chemistry Compatibility | Standard Wax, Premium Wax-Resin, Industrial Full-Resin |
| Operating Temperature Range | 5°C to 40°C (41°F to 104°F) |
| Operating Relative Humidity | 25% to 85% RH (Non-condensing) |
| Storage Environment | -20°C to 60°C (-4°F to 140°F), 10% to 90% RH |
Key Features & Operational Advantages
- OEM Thermal Precision: Engineered to standard Toshiba TEC factory pulse-width and heat-strobe tables, eliminating void lines, barcode edge feathering, and uneven black saturation.
- Micro-Engineered Protective Glaze: Proprietary protective layer prevents element breakdown caused by micro-scratches from continuous synthetic label liners and back-coating ribbon abrasion.
- Optimal Energy Dissipation: Machined aluminum substrate base efficiently diffuses localized thermal buildup, protecting internal driver ICs during continuous, high-volume production cycles.
- Strict Plug-and-Play Compatibility: Matches factory ribbon connector pinouts and mechanical mounting brackets exactly, eliminating the need for wiring modifications or chassis recalibration.
Technical Precision & Operational Advisory
ELECTROSTATIC DISCHARGE (ESD) HAZARD: Thermal printhead heater elements and onboard drive ICs are exceptionally sensitive to static transients. Grounding wrist straps (1 MΩ resistance) and conductive ESD mats are strictly mandatory during handling, unpacking, and installation. Never touch the contact pins or the gold/glaze dot array directly with bare fingers.
POWER ISOLATION REQUIREMENT: The printer MUST be powered off completely and the AC line power cord disconnected from the wall receptacle prior to removing or seating the printhead data cable. Connecting or disconnecting the FPC ribbon harness while auxiliary DC power is active will cause instant over-current blowouts across the printhead driver chips and motherboard control circuits.
SURFACE PROTECTION & CHEMICAL CLEANING: Never use abrasive pads, metallic blades, or hydrocarbon/solvent-based cleaners to clear adhesive residue or ribbon buildup. Clean only using lint-free foam-tipped swabs saturated with 99.7%+ electronic-grade isopropyl alcohol (IPA). Ensure the alcohol evaporates completely before closing the print carriage and applying power.
Compatible Models & Systems
| Series Family | Verified Model Configurations | Native Resolution |
|---|---|---|
| Toshiba TEC B-30 Series | B-30, B-30-QM, B-30-QM-R (Designated 203 DPI variants) | 203 DPI (8 dots/mm) |
| OEM Cross-Reference | Part No. FMBC0011202 / FMBC-0011202 | Direct Replacement |
*Note: Verify the factory part tag on your defective printhead before purchasing. The B-30 series features distinct head variants across resolution levels (203 DPI vs 300 DPI) and specific chassis revisions.
Terms, Warranty & Customer Protection
Genuine OEM Assurance: Every unit delivered is guaranteed brand new, original Toshiba TEC manufactured component stock, housed in factory-sealed antistatic packaging.
Dead-On-Arrival (DOA) Protection: This product is covered under a 30-day DOA policy covering factory material defects or initial electrical failure upon arrival. Any claim must be filed within 30 days of receipt accompanied by printer diagnostic self-test printout sheets and installation verification by a certified technician.
Non-Returnable Policy for Consumables: Due to the extreme vulnerability of precision thermal printheads to incorrect installation, static breakdown, mechanical scratching, and ungrounded electrical surges, this component is strictly non-returnable and non-refundable once the factory ESD packaging seal is broken or opened.
