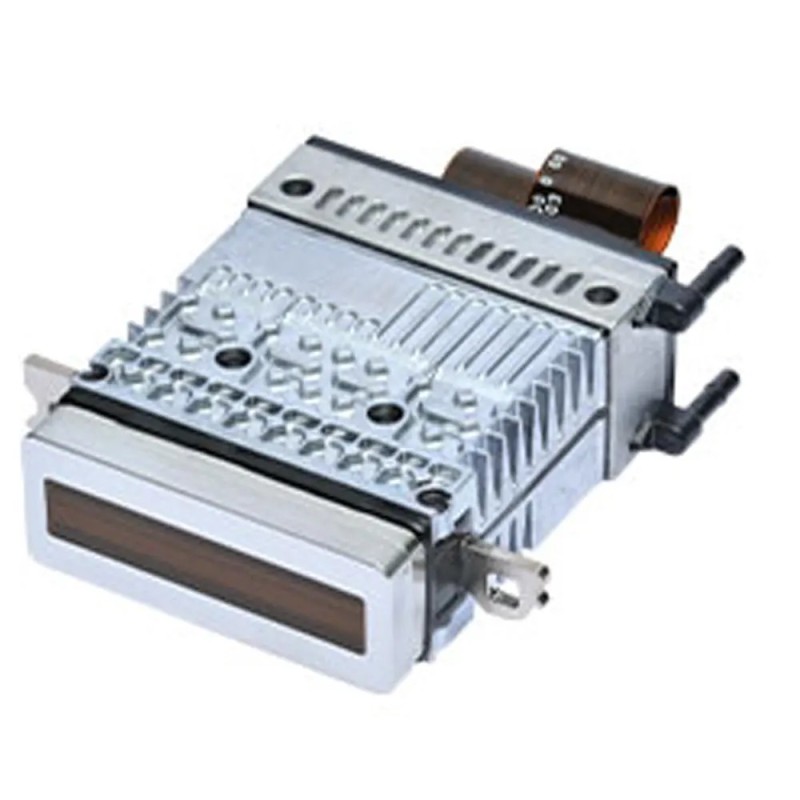

Toshiba TEC CF6R Original Water-Cooled Recirculating Industrial Inkjet Printhead 6pL High-Speed
- Write a review
$1,950.00
Genuine Toshiba TEC factory-original CF6R water-cooled recirculating piezo printhead with 1278 nozzles, native 6 pL and 12 kHz. High-speed water-cooled drop-in replacement for CF3R.
Toshiba TEC CF6R Original Water-Cooled Recirculating Industrial Inkjet Printhead 6pL High-Speed
The Toshiba TEC CF6R is the water-cooled high-speed variant of the CF6 recirculating industrial inkjet printhead. It combines the elevated firing frequency and optimised multi-drop performance of the CF6 with active water cooling for superior thermal stability in continuous high-duty operation.
The CF6R produces a native drop volume of 6 pL and can fire up to three drops to achieve 12 pL and 18 pL. It operates with 4 greyscale levels (0–3 drops) at a maximum frequency of 12 kHz — up to 1.5 times faster than the CF3 series. In single-colour mode it provides 1,278 nozzles at 600 npi across a 53.95 mm print width; dual-colour configuration yields 300 npi per colour.
Full recirculation through every channel ensures high jetting reliability and supports UV-curable and oil-based inks. The water-cooling circuit provides enhanced temperature control compared with the air-cooled CF6, making the CF6R particularly suitable for extended high-speed production runs.
Like the CF6, the CF6R is designed as a drop-in upgrade path for systems originally built around the CF3 / CF3R, sharing the same mechanical envelope, electrical interface and fluid connections (apart from the added water-cooling ports).
Part Information
| Parameter | Detail |
|---|---|
| Product Name | Toshiba TEC CF6R Original Water-Cooled Recirculating Industrial Inkjet Printhead 6pL High-Speed |
| Manufacturer | Toshiba TEC / RISO Technologies |
| Exact Model | CF6R |
| Model Family | Toshiba TEC CF6 Series (CF6 / CF6R) |
| OEM Part Number | CF6R |
| Known Replacement / Related Numbers | Related air-cooled variant: CF6; designed as high-speed upgrade for CF3R |
| Known Alias | Toshiba TEC CF6R Water-Cooled High-Speed Recirculating Printhead |
| Ink Type | UV-curable, oil-based (consult for specific fluid compatibility) |
| Product Status | Available as genuine OEM / industrial supply |
| Condition | 100% Genuine OEM Factory Sealed |
| Country of Origin | Japan |
| Industrial Application | High-speed, high-duty single-pass and scan-based industrial printing requiring enhanced thermal control: labels, packaging, corrugated, coding, signs & graphics |
Technical Specifications
| Parameter | Value |
|---|---|
| Technology | On-Demand Piezoelectric with full ink recirculation through all channels |
| Recirculation | Yes – through all channels |
| Active Nozzles (1 colour) | 1,278 |
| Active Nozzles (2 colours) | 639 × 2 |
| Nozzle Arrangement | 2 rows (laterally offset) |
| Nozzle Resolution | 600 npi (1 colour) / 300 npi × 2 colours |
| Print Swathe Width | 53.95 mm (1 colour) / 53.91 mm (2 colours) |
| Native Drop Volume | 6 pL |
| Multi-drop Volumes | 12 pL / 18 pL (up to 3 drops) |
| Grayscale Levels | 4 levels (0 – 3 drops) |
| Firing Frequency | 12 kHz (at 3 drops) |
| Cooling Method | Water cooling (includes water cooling port) |
| Ink Compatibility | UV-curable and oil-based fluids |
| Dimensions (W × D × H) | 96.7 × 31.3 × 100.7 mm |
| Weight | 285 g |
| Built-in Temperature Sensor | Yes |
Master Comparison Matrix – Toshiba TEC CF3 / CF6 Series
| Model | Nozzles | Resolution | Drop Volume | Frequency | Cooling | Relative Speed |
|---|---|---|---|---|---|---|
| CF3 | 1,278 | 600 npi | 3–20 pL | 9.2 kHz | Air | Baseline |
| CF3R | 1,278 | 600 npi | 3–20 pL | 9.2 kHz | Water | Baseline |
| CF6 | 1,278 | 600 npi | 6–18 pL | 12 kHz | Air | Up to 1.5× CF3 |
| CF6R (Current) | 1,278 | 600 npi | 6–18 pL | 12 kHz | Water | Up to 1.5× CF3 |
Technical Precision & Operational Advisory
Installation Warning
Printhead installation must be performed by a qualified technician following the official procedures of the printer and printhead manufacturers. Incorrect handling can permanently damage the nozzle plate, electronics or ink system.
- ESD Protection: Always use a grounded wrist strap and anti-static surface when opening the packaging and handling the printhead. Piezo printheads are highly sensitive to electrostatic discharge.
- Power Isolation: Completely power down and isolate the printer before removing or installing the printhead. Do not hot-swap.
- Water Cooling Circuit: The CF6R requires a properly connected and functioning water-cooling loop. Ensure coolant flow, temperature and quality meet the manufacturer’s recommendations before operation.
- Drop-in Compatibility: The CF6R is designed as a high-speed upgrade for CF3R-based systems. Verify that the existing drive electronics and firmware support the higher frequency and updated waveform.
- Recirculation System: Full ink recirculation through all channels must be correctly configured. Ensure flow rate, meniscus pressure and temperature control remain within specification.
- Ink Compatibility: Use only UV-curable or oil-based fluids verified for the CF6R. Confirm compatibility when changing from previous generation fluids.
- Handling Factory-Sealed Unit: Do not break the seal until ready for installation. Once the printhead has been exposed to ink or installed, it is considered used and cannot be returned.
- Drive Electronics: Confirm waveform and drive voltage match the CF6R requirements. Incorrect electronics or outdated firmware may prevent full performance or damage the head.
Compatible Models & Systems
The Toshiba TEC CF6R is the water-cooled high-speed evolution of the CF3R. It is intended for industrial single-pass and scan-based systems that require both elevated productivity and enhanced thermal management. Typical applications include high-duty labels, packaging, corrugated, coding, signs & graphics and other continuous industrial printing environments.
Because the CF6R shares the same mechanical envelope and electrical interface as the CF3R (with the addition of water-cooling ports), many existing CF3R platforms can be upgraded. Drive electronics and firmware must support the higher firing frequency and updated waveforms.
Recommendation: Confirm compatibility of the existing drive electronics, water-cooling circuit, recirculation system and ink chemistry before ordering. Do not assume full interchangeability with air-cooled CF6, CF1-series or non-recirculating heads.
Terms, Warranty & Customer Protection
Pre-Installation Guarantee: 100% brand-new, factory-original product. Each unit is inspected and sealed before shipment. We guarantee authenticity and factory condition upon arrival.
Store Warranty Policy: 30 working days warranty covering manufacturing defects. Warranty claims require complete unboxing video and professional installation video performed by an experienced technician following standard recommended procedures.
Final Sale Conditions: Once the printhead has been exposed to ink or installed into a printer, it is considered used and cannot be returned or exchanged. Please verify compatibility and installation readiness before opening the sealed packaging.
