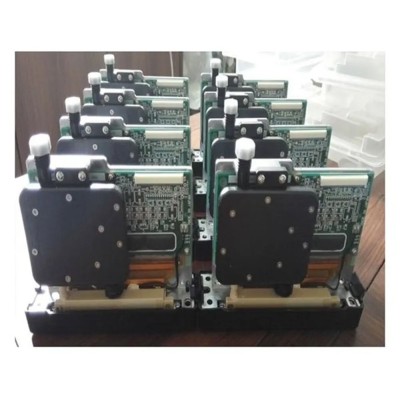

Seiko SPT510/35PL Printhead New IC Driver Edition
- Write a review
$530.00
$307.40
Save 42%
Upgraded 510-nozzle 35 pL industrial piezoelectric printhead featuring modified driver IC electronics for improved electrostatic and short-circuit protection.
OEM Replacement Component

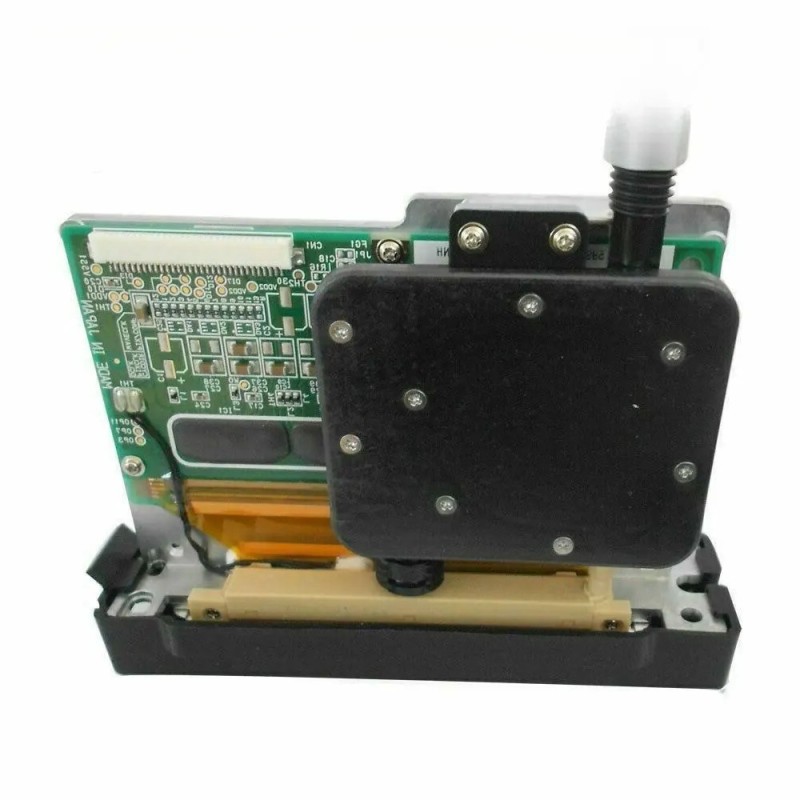

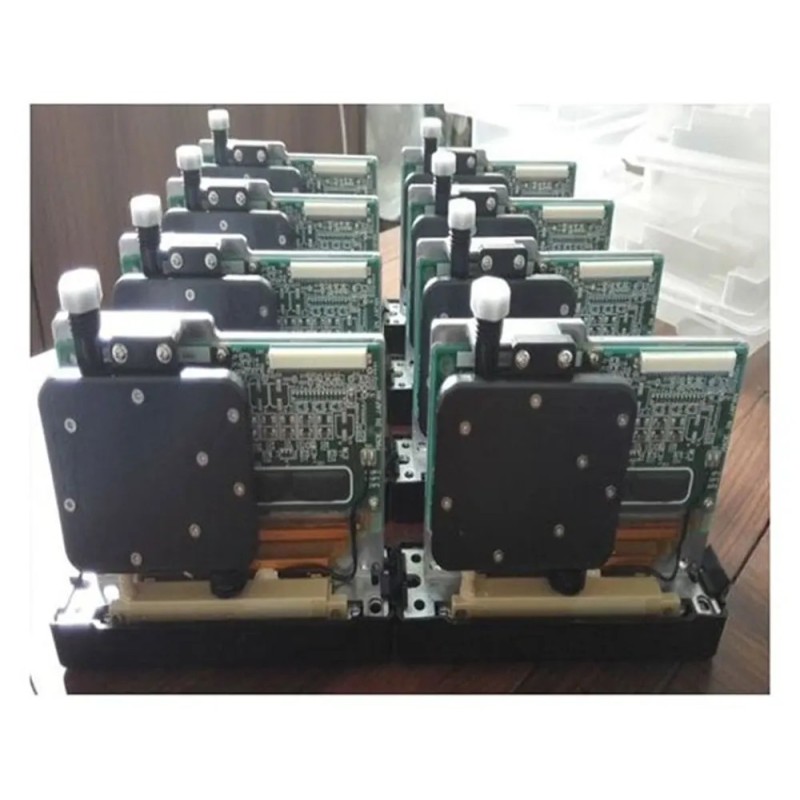

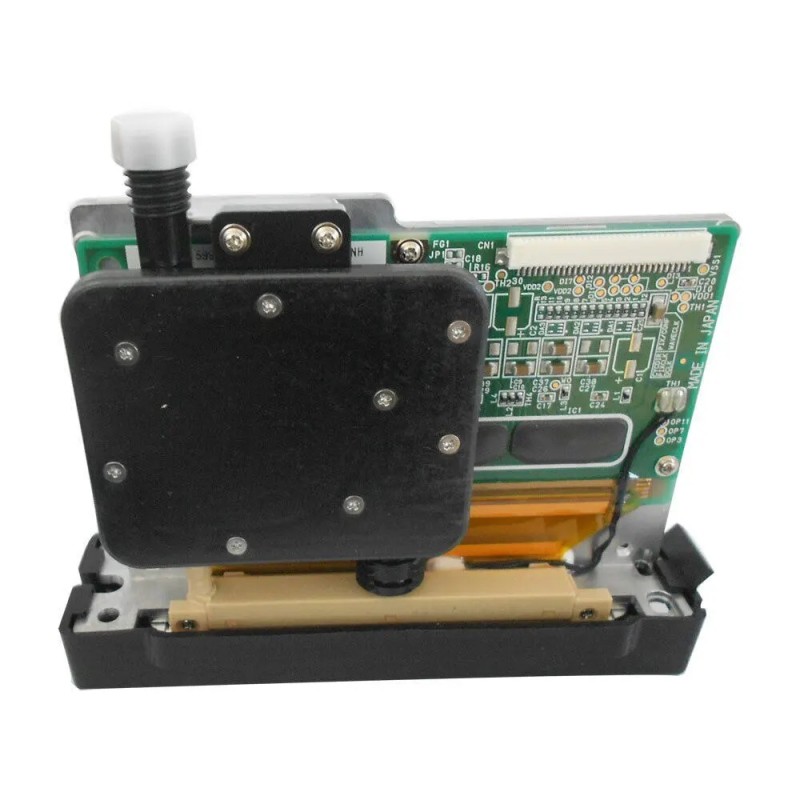

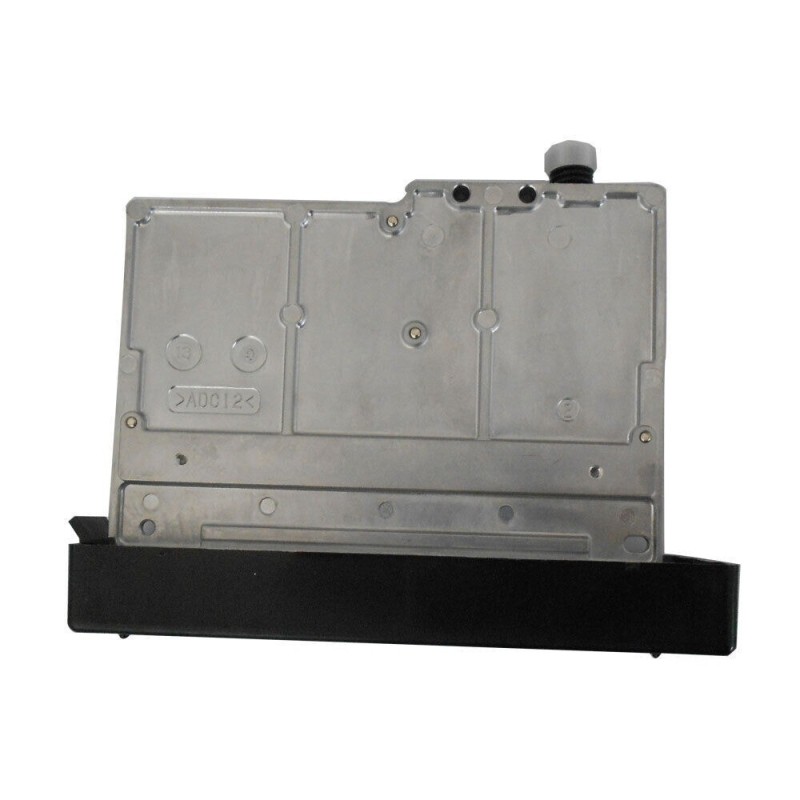

Seiko Instruments SPT-510 / 35 pL Printhead (New IC Driver Edition)
OEM Part Number: IRH1513D-1111-NIC / SPT510-35PL-NIC Series | Upgraded High-Voltage Gate Driver Circuitry Drop-on-Demand (DoD) Jetting Assembly
Product Overview
The Seiko Instruments SPT-510 (35 pL) New IC Driver Edition is an authentic original equipment manufacturer piezoelectric drop-on-demand (DoD) industrial inkjet printhead featuring redesigned, modern onboard driver integrated circuits (ICs). Engineered to replace legacy, obsolete driver silicon that suffered from thermal drift and voltage sag under sustained continuous production, this upgraded edition provides improved electrical noise immunity, lower parasitic switching heat, and sharper trapezoidal waveform pulse transitions across all 510 active channels.
Incorporating 510 active addressable nozzles across an active 71.8 mm (2.82 inches) print swath, the printhead jets calibrated 35 picoliter (pL) nominal binary droplets at a native resolution of 180 DPI (achieving interpolated resolutions up to 720–1080 DPI via multi-pass interlacing). Built upon Seiko's isolated PZT shear-mode piezoelectric ceramics and shielded by a chemically passivated stainless steel nozzle guard plate, the New IC Driver Edition retains full backward mechanical and electrical compatibility with existing grand-format carriages while significantly extending operating life under aggressive industrial solvent, mild solvent, and UV-curable ink environments.
Part Information
| Product Name | Seiko Instruments SPT-510 / 35 pL Printhead (New IC Driver Edition) |
| OEM Manufacturer | Seiko Instruments Inc. (SII Printek) |
| OEM Part Number / Series | IRH1513D-1111-NIC / SPT510-35PL New IC Series |
| Component Classification | Industrial Binary Drop-on-Demand (DoD) Piezoelectric Inkjet Head |
| Driver IC Architecture | Upgraded High-Efficiency Silicon Driver ICs (Optimized rise/fall response & reduced heat generation) |
| Actuation Architecture | Isolated PZT Piezo Shear-Mode Matrix with Chemically Bonded Stainless Steel Orifice Plate |
| Manufacturing Standard | Seiko Instruments Factory Certified (Japan) |
Technical Specifications
| Printhead Technology | Piezoelectric Drop-on-Demand (DoD) Binary Jetting |
| Number of Active Nozzles | 510 addressable channels (interleaved dual-row configuration) |
| Native Resolution / Pitch | 180 DPI (approx. 141.1 micron nozzle-to-nozzle pitch) |
| Maximum Interpolated Resolution | Up to 720–1080 DPI via multi-pass carriage interlacing |
| Active Print Swath Width | 71.8 mm (2.82 inches) |
| Calibrated Base Drop Volume | 35 picoliters (pL) nominal calibrated binary droplet (34–35 pL range) |
| Nominal Drop Velocity | 7.0 to 8.5 m/sec (meter/second) |
| Maximum Operating Frequency | 6.0 to 8.29 kHz (drive waveform, ink viscosity, and carriage speed dependent) |
| Operating Viscosity Range | 8 to 15 mPa·s (cP) at operating jetting temperature |
| Temperature Regulation | Up to 50°C (122°F) via integrated internal heating elements and feedback thermistor |
| Thermal Voltage Tracking | Enhanced real-time thermistor circuit coupled with low-drift New IC driver logic for precise voltage compensation |
| Fluid Compatibility | Aggressive industrial solvent inks, mild solvent, eco-solvent, UV-curable inks, oil-based fluids |
| Fluid & Electrical Interfaces | Dual top-mounted push-in solvent damper ports; standard 30-pin parallel / FFC interface |
Key Features & Operational Advantages
- Upgraded New IC Driver Silicon: Employs next-generation gate driver ICs that operate with significantly lower junction temperatures, drastically cutting internal heat buildup and eliminating driver IC failure during multi-hour continuous print runs.
- Reduced Thermal Crosstalk: Sharper waveform rise and fall slopes ensure clean drop cutoff without tail drag, minimizing satellite drops and maintaining identical jetting energy between row edges and row centers.
- Expansive 71.8 mm Print Swath: Provides broad coverage per carriage sweep on 3.2-meter and 5.0-meter grand-format roll platforms, enabling continuous production speeds exceeding 60 m²/h.
- Reinforced Stainless Steel Faceplate: Chemically bonded steel orifice shield protects internal ceramic piezoelectric elements from media edge curling, abrasive automated silicone wipers, and solvent flushes.
- Direct Drop-In Interchangeability: Fully pin-compatible with older SPT-510 installations, enabling legacy carriage upgrades to current driver silicon without requiring motherboard or carriage card hardware replacements.
CRITICAL TECHNICAL & OPERATIONAL ADVISORY
1. Voltage Rank Re-Calibration (New IC Offset): While the New IC Driver Edition shares the same physical pinout as legacy SPT-510 heads, the revised driver ICs feature lower internal voltage drop. Always record the factory rank code from the head barcode label and enter it into the control software; do not carry over previous voltage offsets from burned-out legacy heads, as this may result in slight over-driving.
2. Mandatory ESD Grounding & Power Sequencing: High-speed driver ICs and PZT shear-mode piezoelectric ceramics are Class 1 ESD-sensitive components. Technicians must wear a grounded ESD wrist strap and work on a static-dissipative work mat. Always turn off the printer's main power switch and disconnect AC power cords prior to mating or unseating interface cables; hot-plugging will instantaneously destroy driver IC gates.
3. Meniscus Vacuum & Fluid Pressure: Industrial solvent jetting with 35 pL droplets requires properly balanced sub-tank negative pressure (typically -1.5 to -3.0 mbar). Incorrect vacuum calibration will lead to face weeping from gravity or air ingestion during rapid carriage reversals.
4. Storage Fluid Purge Protocol: Factory-shipped printheads contain a protective storage fluid. Flush the printhead thoroughly using filtered, compatible flush fluid (filtered to 0.2 microns) before charging with production solvent or UV inks to prevent cross-contamination and nozzle dropouts. Clean the stainless steel faceplate solely using dedicated lint-free cleanroom polyurethane swabs soaked in approved flush solvent; never apply dry wipes or abrasive materials.
Compatible Models & Systems
| Printer Manufacturer | Ink Chemistry | Supported Grand-Format Platforms |
|---|---|---|
| Infiniti / Challenger | Solvent / Mild Solvent | FY-3208T, FY-3208H, FY-3208G, FY-3206T/H/G Grand-Format Presses |
| Phaeton / Icontek | Solvent / Eco-Solvent | Phaeton Galaxy UD-3208P, Icontek 3308HD, TW-3306FD, TW-3308FD |
| CrystalJet / Gongzheng (GZ) | Solvent / UV-Curable | CrystalJet CJ3000, CJ4000, CJ6000, Gongzheng GZCK 3208S / GZCK 3212S |
| Zhongye / Allwin / Myjet | Solvent Inks | Zhongye 510 Series, Allwin 510-35PL, Myjet 3208 Grand-Format Platforms |
*Model Differentiation Note: The New IC Driver Edition is an upgraded production revision of the standard Seiko SPT-510 35 pL head (OEM Part # IRH1513D-1111). It features the revised silicon driver IC architecture, offering superior thermal management and reduced failure rates compared to legacy discontinued driver revisions. Always verify the voltage rank on the casing label prior to unsealing.
Terms, Warranty & Customer Protection
Condition: 100% Brand New, Unopened Factory Original Genuine OEM Component in Factory-Sealed Anti-Static Packaging with Factory Storage Fluid Intact.
Warranty Scope: Covered by standard manufacturer DOA replacement protection against electrical continuity failures and physical manufacturing defects upon initial arrival. Operating longevity and channel firing integrity are governed by ink filtration, degassing quality, correct waveform tuning, and routine maintenance compliance.
Return Policy: Precision industrial electronic consumable. Due to sensitivity to electrostatic discharge, internal fluid priming requirements, and contamination risks once unsealed, components that have been removed from their static-shielding bag, filled with ink, flushed with solvents, or energized cannot be returned or restocked under standard commercial terms. Please confirm your printer model and drop-volume specification with technical support prior to unsealing.
