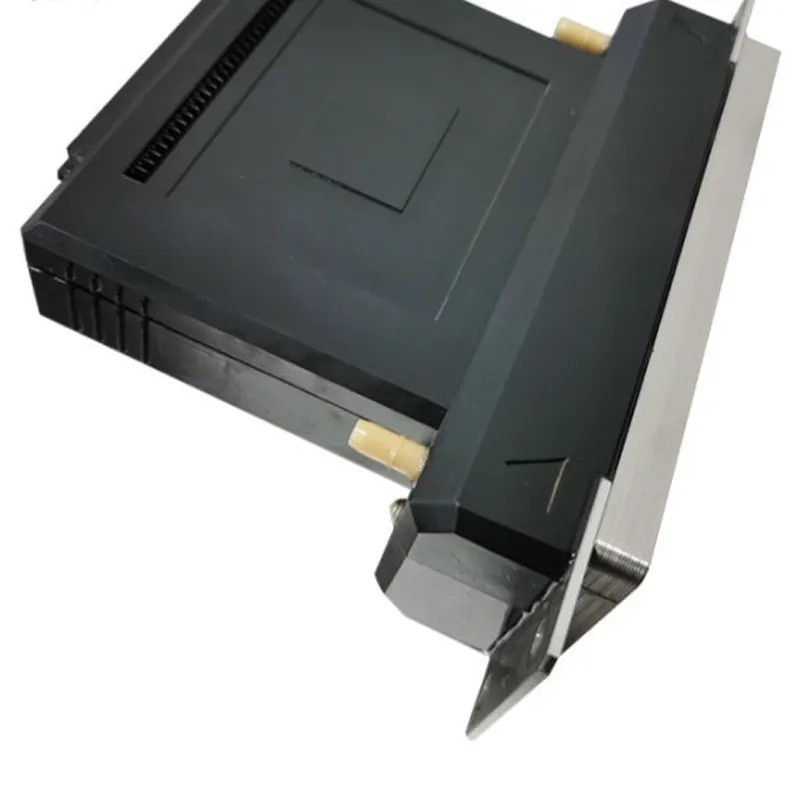

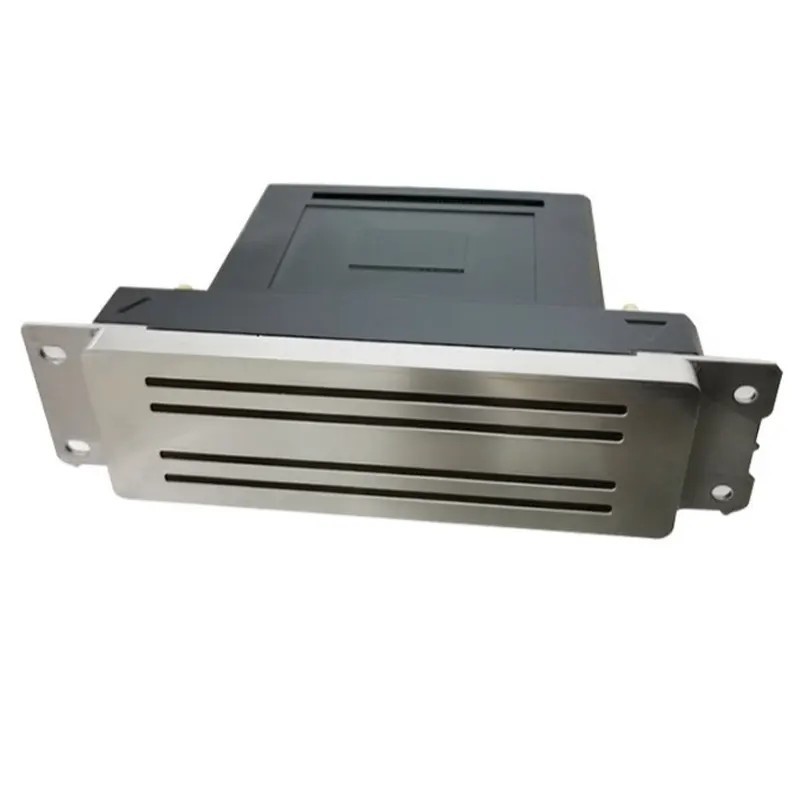

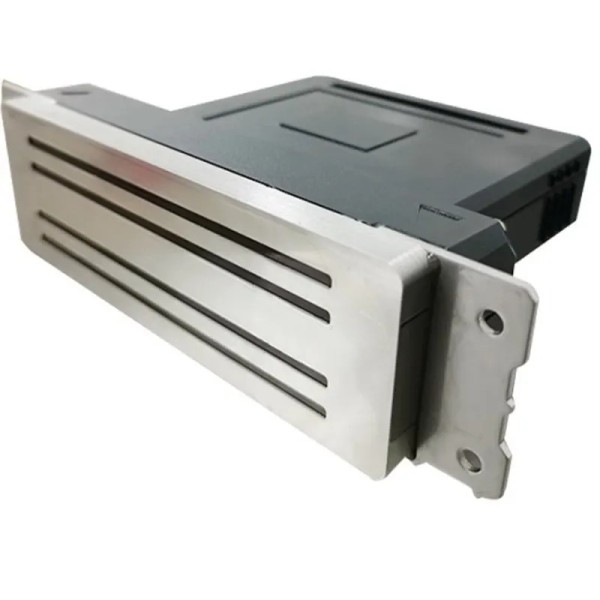

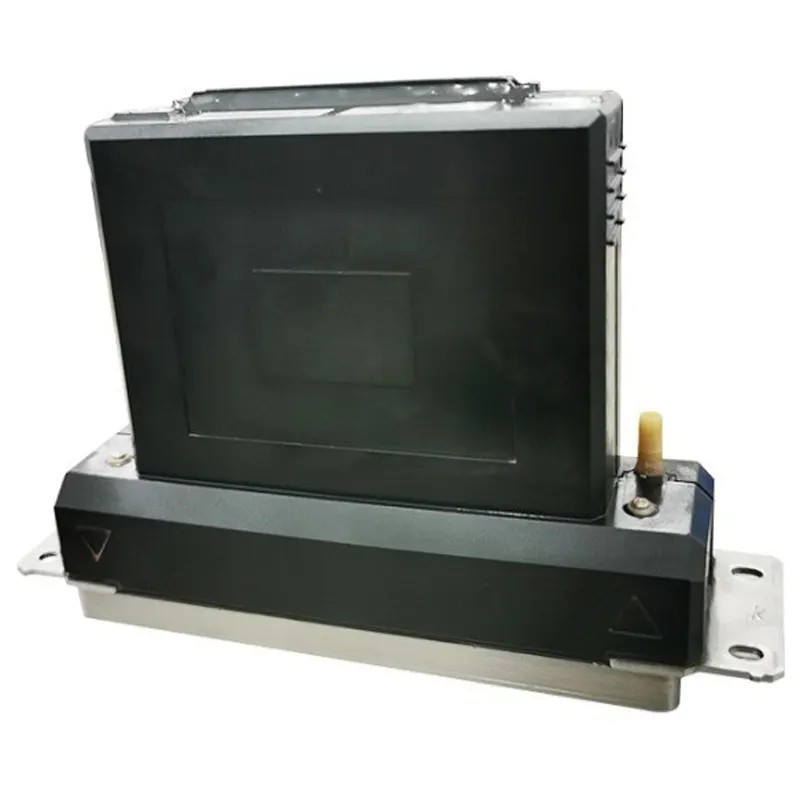

Seiko RC1536-M Recirculation Industrial Printhead (Medium Drop)
- Write a review
$2,350.00
$1,081.00
Save 54%
Industrial 1536-nozzle continuous ink recirculation printhead engineered for oil and UV-curable chemistries with an adjustable 13 to 150 pL drop volume envelope.
OEM Replacement Component
Seiko Instruments RC1536-M Recirculation Industrial Printhead (Medium Drop)
OEM Part Number: Seiko RC1536-M / IRH3023U-M Series | Balanced Multi-Drop Continuous Through-Flow Greyscale Piezoelectric Jetting Assembly
Product Overview
The Seiko Instruments RC1536-M (Medium Drop) is an authentic original equipment manufacturer (OEM) piezoelectric drop-on-demand (DoD) industrial inkjet printhead engineered specifically for high-speed single-pass digital ceramic printing, corrugated packaging, decorative laminates, industrial textiles, and hybrid UV flatbed platforms. Housing 1,536 active nozzles arranged across an expansive 108.3 mm print swath, the RC1536-M features an intermediate native nozzle geometry calibrated for a balanced baseline droplet volume of 25 picoliters (pL), scaling smoothly up to 100+ pL across 8 multi-drop greyscale levels.
Built on Seiko's full-nozzle isolated continuous through-flow architecture, the RC1536-M continuously circulates ink directly across the back of each individual nozzle orifice at high flow rates. This prevents pigment sedimentation in dense formulations (such as ceramic glazes, inorganic pigments, and opaque white UV inks), sweeps away micro-bubbles, and prevents nozzle dry-out during standby. Supported by integrated dual-zone internal electric heaters, onboard precision thermistors, and a chemically passivated stainless steel nozzle guard plate, this line head reliably handles fluid viscosities up to 20 mPa·s at firing frequencies up to 37 kHz, delivering high image fidelity and dense area coverage in round-the-clock factory operations.
Part Information
| Product Name | Seiko Instruments RC1536-M Industrial Printhead (Medium Drop) |
| OEM Manufacturer | Seiko Instruments Inc. (SII Printek) |
| OEM Part Number / Series | Seiko RC1536-M / IRH3023U-M Series |
| Component Classification | Industrial Recirculating Drop-on-Demand (DoD) Piezoelectric Line Head |
| Recirculation Dynamic | Continuous Full-Nozzle Through-Flow Recirculation (Differential Pressure Driven) |
| Nozzle Guard Architecture | Chemically Bonded Passivated Stainless Steel Nozzle Plate Guard |
| Manufacturing Standard | Seiko Instruments Factory Certified (Japan) |
Technical Specifications
| Printhead Technology | Piezoelectric Drop-on-Demand (DoD) Greyscale with Continuous Recirculation |
| Number of Active Nozzles | 1,536 addressable channels (interleaved multi-row linear matrix) |
| Native Resolution / Pitch | 360 DPI across combined active rows (70.5 micron nozzle-to-nozzle pitch) |
| Active Print Swath Width | 108.3 mm (4.26 inches) continuous swath |
| Native Base Drop Volume | 25 picoliters (pL) native calibrated droplet |
| Multi-Drop Greyscale Range | 25 to 100+ pL (up to 8 greyscale levels via multi-pulse sub-drop merging) |
| Maximum Operating Frequency | Up to 37 kHz binary; approx. 20–26 kHz greyscale (waveform & ink dependent) |
| Operating Viscosity Range | 8 to 20 mPa·s (cP) at elevated operating jetting temperature |
| Recirculation Flow Dynamic | Continuous through-flow loop across nozzle backplate driven by differential pressure |
| Temperature Regulation | Up to 55°C (131°F) via dual integrated internal heaters and closed-loop thermistors |
| Fluid Compatibility | Ceramic pigment inks, inorganic frits, UV-curable inks, oil-based fluids, specialty functional coatings |
| Fluid & Electrical Interfaces | Dual high-flow stainless steel push-in fluid ports (Inlet/Outlet); high-speed shielded FFC terminals |
Key Features & Operational Advantages
- Balanced 25–100+ pL Drop Latitude: Bridges the gap between fine pattern clarity and high optical density, firing sharp vector outlines while merging sub-drops for uniform, streak-free solid color fields.
- Full-Nozzle Continuous Through-Flow: Constant ink flow sweeping behind the nozzle orifices prevents pigment stagnation, purges air bubbles, and keeps nozzles primed without frequent purge-and-wipe cycles.
- Expansive 108.3 mm Single-Pass Swath: The wide footprint reduces printhead count across single-pass print bars, simplifying mechanical calibration and eliminating stitch-line banding.
- Active Viscosity Management (Up to 55°C): Integrated dual-zone electric heating blocks lower the dynamic viscosity of dense ceramic inks and reactive UV fluids for consistent velocity and straight drop flight.
CRITICAL TECHNICAL & OPERATIONAL ADVISORY
1. Recirculation Pressure Differential & Meniscus Stability: The through-flow architecture requires a calibrated differential pressure between supply and return lines (typically 15 to 30 mbar delta) while maintaining strict negative meniscus vacuum (-2.0 to -4.0 mbar) at the nozzle plate. Improper tuning will cause ink weeping, nozzle flooding, or severe air ingestion during high-frequency firing.
2. Filtration & Ink Conditioning: Operating with heavy pigments or ceramic suspensions requires multi-stage filtration (nominal 5 to 10 micron pre-filters and 2 to 3 micron absolute sub-tank filters) to avoid particle bridging in internal micro-channels. Regularly monitor recirculation flow rates and differential pressure sensors.
3. Mandatory ESD Grounding & Power Sequencing: PZT shear-mode piezoelectric crystals and onboard high-frequency driver ICs are Class 1 ESD-sensitive components. Technicians must wear a grounded ESD wrist strap and work on a static-dissipative work surface. Never connect or disconnect FFC data cables while the carriage board or main power supply is energized.
4. Storage Fluid Purge Protocol: Factory-shipped printheads contain a protective storage fluid. Flush the head thoroughly using filtered, compatible flush fluid (filtered to 0.2 microns) before charging with production inks. Clean the stainless steel faceplate solely using dedicated lint-free cleanroom polyurethane swabs soaked in approved flush solvent; never use dry wipes or metallic scrapers.
Compatible Models & Systems
| System Manufacturer | Ink Chemistry | Supported Industrial Platforms |
|---|---|---|
| EFI Cretaprint / Projecta | Ceramic Inks / Glazes | Cretaprint C3 / C4 Industrial Ceramic Tile Decoration Lines |
| TecnoFerrari / Hope Digital | Inorganic Pigments / Frits | VivaJet Single-Pass Ceramic Printing Systems |
| Docan Digital / Handtop | UV-Curable / White / Varnish | High-Speed UV Flatbed & Single-Pass Packaging Lines |
| Industrial OEM Custom Presses | UV / Oil / Ceramic | Corrugated Packaging Bars, Decorative Surface Printing Lines |
*Model Differentiation Note: This printhead is dedicated strictly to the single-channel RC1536-M (Medium Drop, 25 pL native) recirculating configuration. It is distinct from the RC1536-L (Large Drop, 35 pL native), dual-channel RC1536-2C heads, and non-recirculating Seiko 1024GS / 1024HG series. Ensure waveform calibrations and recirculation system pressures match the Medium Drop specification before installation.
Terms, Warranty & Customer Protection
Condition: 100% Brand New, Unopened Factory Original Genuine OEM Component in Factory-Sealed Anti-Static Packaging with Factory Storage Fluid Intact.
Warranty Scope: Covered by standard manufacturer DOA replacement protection against electrical continuity failures and physical manufacturing defects upon initial arrival. Operating longevity and channel firing integrity are governed by ink filtration quality, degassing efficiency, differential recirculation pressure stability, and routine maintenance compliance.
Return Policy: Precision industrial electronic consumable. Due to sensitivity to electrostatic discharge, internal fluid priming requirements, and cross-contamination risks once unsealed, components that have been removed from their static-shielding bag, filled with ink, flushed with solvents, or energized cannot be returned or restocked under standard commercial terms. Please confirm your printer model and recirculation subsystem specifications with technical support prior to unsealing.
