Seiko RCH1536-L Industrial Printhead with Stainless Steel Face Plate
- Write a review
$2,725.00
$1,253.50
Save 54%
Heavy-duty large-drop 1536-nozzle continuous recirculation printhead featuring a stainless steel faceplate and 25 to 225 pL drop volume for ceramic, glass, and construction materials.
OEM Replacement Component
Seiko Instruments RCH1536-L Heavy-Duty Recirculation Printhead (Large Drop)
OEM Part Series: Seiko RCH1536-L / IRH3023H-L Series | Stainless Steel Metallic Faceplate Through-Flow Recirculation Jetting Assembly

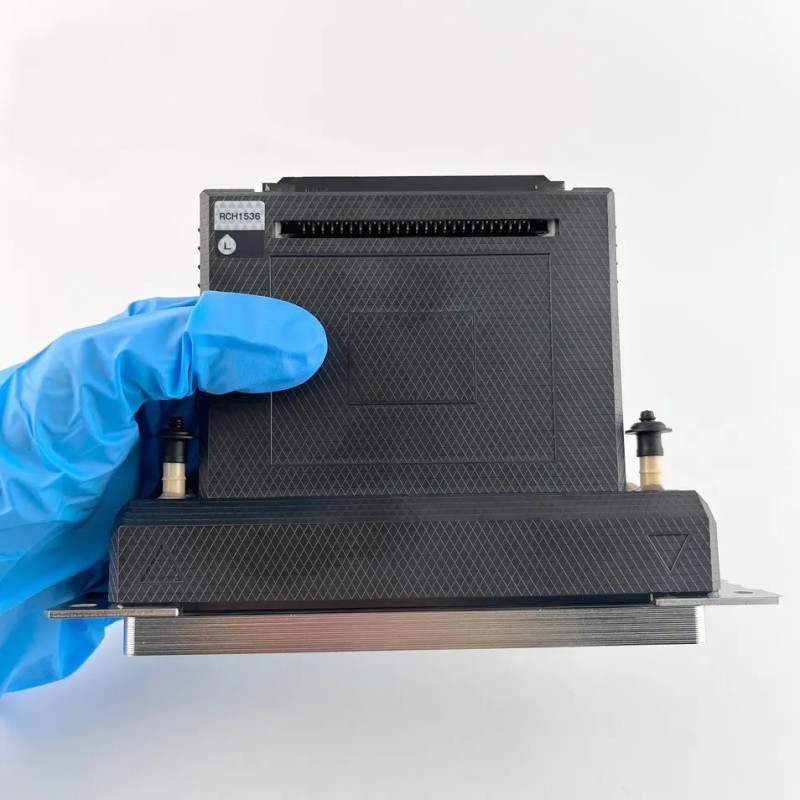

Product Overview

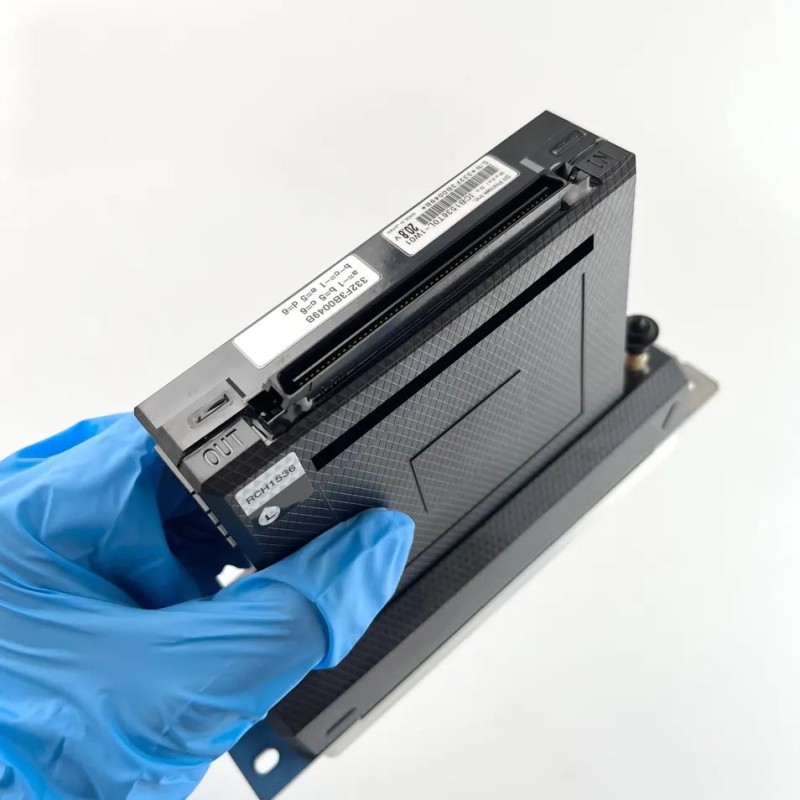

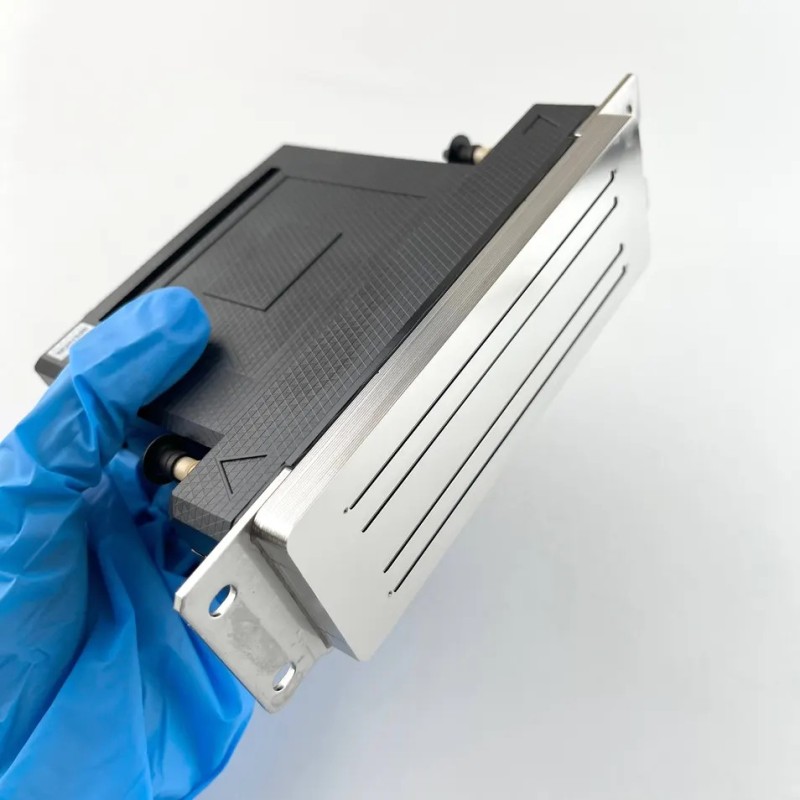

The Seiko Instruments RCH1536-L (Large Drop) is an authentic high-durability original equipment manufacturer (OEM) piezoelectric drop-on-demand (DoD) industrial inkjet printhead engineered specifically for harsh, abrasive, and high-wear single-pass manufacturing environments. As the enhanced "Hardened" upgrade to the industry-standard RC1536-L, the RCH series introduces a structural metallic stainless steel nozzle faceplate directly integrated into a shear-mode piezoelectric array. This engineering advancement replaces legacy polymer orifice plates with a scratch-resistant, robust metal surface capable of withstanding aggressive mechanical wiping cycles, airborne debris, and abrasive media contact.
Housing 1,536 active nozzles across an expansive 108.3 mm print swath (360 DPI native pitch), the RCH1536-L features upgraded internal structural bonding adhesives and re-engineered drive electrodes to ensure uniform energy transfer and droplet velocity across the entire width of the printhead. With continuous full-nozzle through-flow recirculation sweeping directly behind each nozzle chamber, the RCH1536-L prevents pigment settling in heavy suspension fluids (such as ceramic glazes, inorganic enamels, and opaque white UV fluids). Firing a calibrated native base drop of 35 picoliters (pL) up to 140+ pL in multi-pulse greyscale modes at frequencies up to 37 kHz, it serves as a seamless, backward-compatible drop-in replacement for existing RC1536 installations.
Part Information
| Product Name | Seiko Instruments RCH1536-L Industrial Printhead (Large Drop) |
| OEM Manufacturer | Seiko Instruments Inc. (SII Printek) |
| OEM Part Number / Series | Seiko RCH1536-L / IRH3023H-L Series |
| Component Classification | Heavy-Duty Metallic Faceplate Recirculating Drop-on-Demand (DoD) Piezoelectric Line Head |
| Nozzle Plate Construction | Precision Machined Stainless Steel Metallic Orifice Plate (Non-Polymer) |
| Backward Compatibility | 100% Drop-In Functional Replacement for standard RC1536-L (Identical electrical FFC & fluid porting) |
| Manufacturing Standard | Seiko Instruments Factory Certified (Japan) |
Technical Specifications
| Printhead Technology | PZT Shear-Mode DoD Piezoelectric with Continuous Cross-Flow Recirculation |
| Number of Active Nozzles | 1,536 addressable channels (4 interleaved rows x 384 nozzles/row) |
| Native Resolution / Pitch | 360 DPI across combined active rows (approx. 70.5 micron nozzle pitch) |
| Active Print Swath Width | 108.3 mm (4.26 inches) continuous swath |
| Native Base Drop Volume | 35 picoliters (pL) native calibrated droplet |
| Multi-Drop Greyscale Range | 35 to 140+ pL (up to 8–10 greyscale levels via multi-pulse sub-drop merging) |
| Maximum Operating Frequency | Up to 37 kHz binary; approx. 18–24 kHz heavy-laydown multi-drop modes |
| Operating Viscosity Range | 8 to 25 mPa·s (cP) at elevated operating jetting temperature |
| Recirculation Flow Dynamic | Continuous full-nozzle cross-flow directly behind orifice chambers (differential pressure driven) |
| Temperature Regulation | Up to 55°C (131°F) via dual integrated internal heaters and closed-loop thermistors |
| Fluid Compatibility | UV-curable inks, ceramic glazes, glass enamels, industrial oil/solvent inks, dense functional fluids |

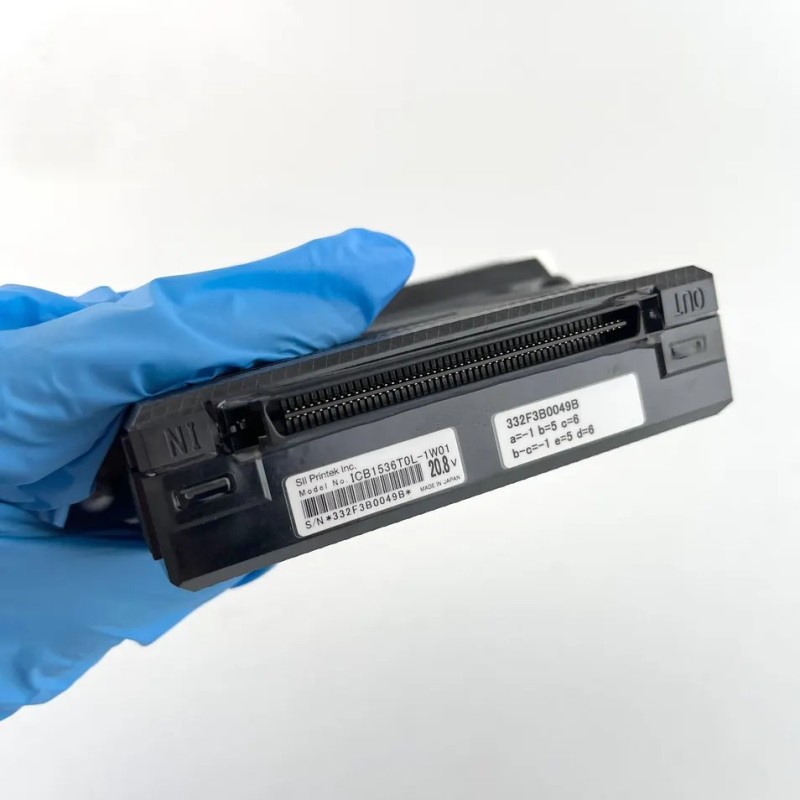

| Fluid & Electrical Interfaces | Dual high-flow stainless steel push-in fluid ports (Inlet/Outlet); standard RC1536-compatible shielded FFC ports |
Key Features & Operational Advantages
- Stainless Steel Metallic Orifice Plate: Structural metal faceplate provides high resistance against mechanical scratching, automated wiper blade friction, and contact abrasions from curling cardboard or tile fragments. Tested beyond 2,000 automated cleaning sweeps without surface degradation.
- Advanced Electrode Application & Jetting Uniformity: Redesigned internal piezoelectric drive electrodes ensure balanced acoustic energy transfer to all 1,536 channels, eliminating drop velocity decay and volume discrepancies between row ends and row centers.
- Extended Chemical Resilience: Built with advanced internal structural adhesives to prevent manifold bond breakdown or fluid seepage when subjected to aggressive UV monomers, ceramic suspension vehicles, and industrial flushes.
- Drop-In Retrofit Architecture: Utilizes the exact mechanical form factor, fluid plumbing layout, and electrical pin assignments as the standard RC1536-L, allowing system builders and plant operators to upgrade existing printing bars without changing drive boards or carriages.
CRITICAL TECHNICAL & OPERATIONAL ADVISORY
1. Recirculation Pressure Differential & Meniscus Stability: The through-flow architecture requires a calibrated differential pressure between the supply and return fluid loops (typically 15 to 30 mbar delta) while strictly preserving negative meniscus pressure (-2.0 to -4.0 mbar) at the nozzle plate. Failure to balance recirculation differential will cause ink dripping or air ingestion during multi-pulse firing.
2. Fluid Chemistry Caution (Water-Based Validation): While the standard RC line offers dedicated aqueous variants (RC1536A), the metallic nozzle plate of the RCH1536 is primarily optimized and certified for UV-curable, oil, and ceramic inks. Do not charge with uncertified water-based inks without factory sign-off regarding electrochemical interactions with the metallic faceplate.
3. Mandatory ESD Grounding & Power Sequencing: Shear-mode PZT actuators and high-speed CMOS driver ICs are Class 1 ESD-sensitive components. Technicians must wear a grounded ESD wrist strap and work on a static-dissipative work surface. Never connect or disconnect FFC data cables while the carriage board or main power supply is energized.
4. Storage Fluid Purge Protocol: Factory-shipped printheads contain a protective storage fluid. Flush the printhead thoroughly using filtered, compatible flush fluid (filtered to 0.2 microns) before charging with production inks. Clean the metallic faceplate solely using dedicated lint-free cleanroom polyurethane swabs soaked in approved flush solvent; never apply abrasive cleaning tools.
Compatible Models & Systems
| System Manufacturer | Ink Chemistry | Supported Industrial Platforms |
|---|---|---|
| EFI Cretaprint / Projecta | Ceramic Glaze / Frits | Cretaprint C3 / C4 / High-Durability Industrial Ceramic Lines |
| TecnoFerrari / Hope Digital | Inorganic Pigments / Frits | VivaJet Industrial Single-Pass Ceramic Decoration Presses |
| Corrugated Single-Pass OEMs | UV / Industrial Oil / White | Heavy Corrugated Packaging & Folding Carton Lines |
| Industrial Coding & Marking OEMs | UV-Curable / Functional | Large-Character Secondary Packaging Bars, Timber & Gypsum Lines |
*Model Differentiation Note: This printhead is dedicated strictly to the Seiko RCH1536-L (Metallic Stainless Steel Faceplate, 35 pL Large Drop) configuration. It is distinct from the polymer-faceplate RC1536-L, standard medium drop RCH1536-M (25 pL), and non-recirculating Seiko 1024GS / 1024HG series. Ensure waveform calibrations and recirculation system pressures match the RCH specification before installation.
Terms, Warranty & Customer Protection
Condition: 100% Brand New, Unopened Factory Original Genuine OEM Component in Factory-Sealed Anti-Static Packaging with Factory Storage Fluid Intact.
Warranty Scope: Covered by standard manufacturer DOA replacement protection against electrical continuity failures and physical manufacturing defects upon initial arrival. Operating longevity and channel firing integrity are governed by ink filtration quality, degassing efficiency, differential recirculation pressure stability, and routine maintenance compliance.
Return Policy: Precision industrial electronic consumable. Due to sensitivity to electrostatic discharge, internal fluid priming requirements, and cross-contamination risks once unsealed, components that have been removed from their static-shielding bag, filled with ink, flushed with solvents, or energized cannot be returned or restocked under standard commercial terms. Please confirm your printer model and recirculation subsystem specifications with technical support prior to unsealing.
RCH1536-L
318 Items
