Mutoh MY-80034 Printhead Assembly for Viper Extreme Series
- Write a review
$1,280.00
$665.60
Save 48%

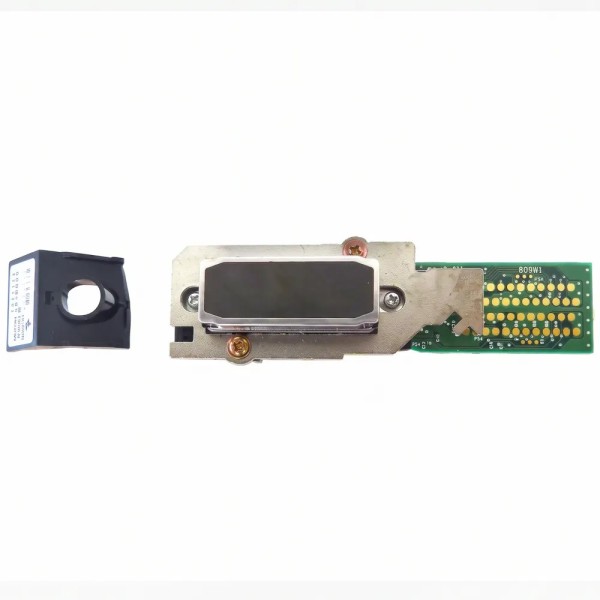

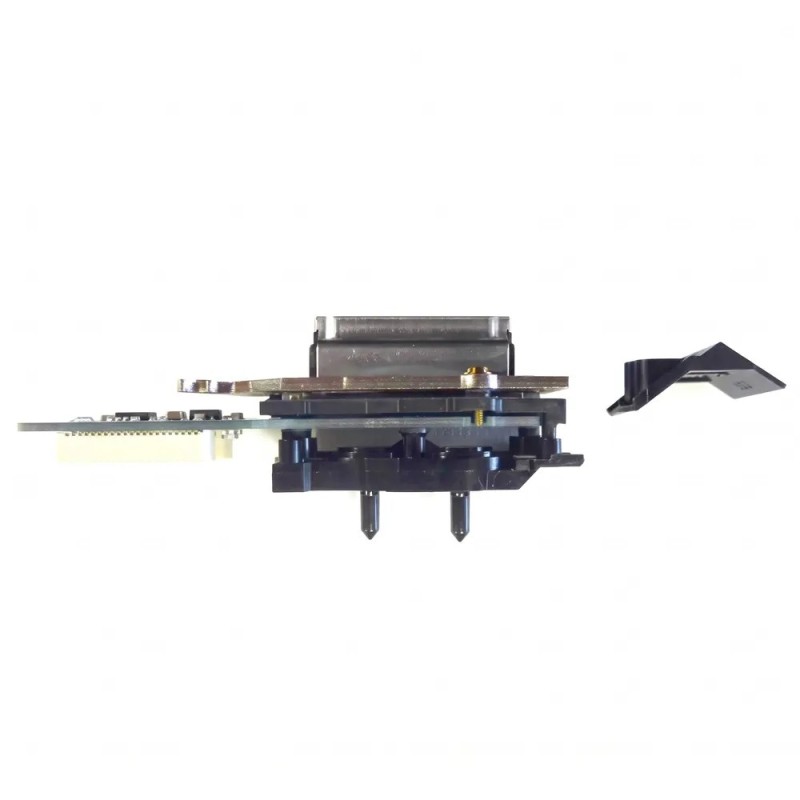

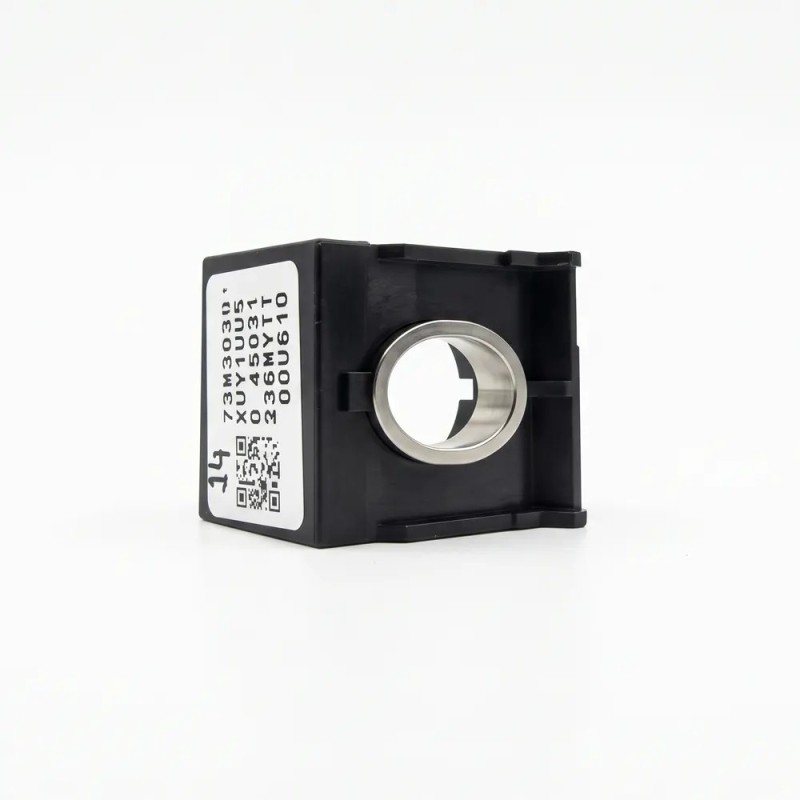

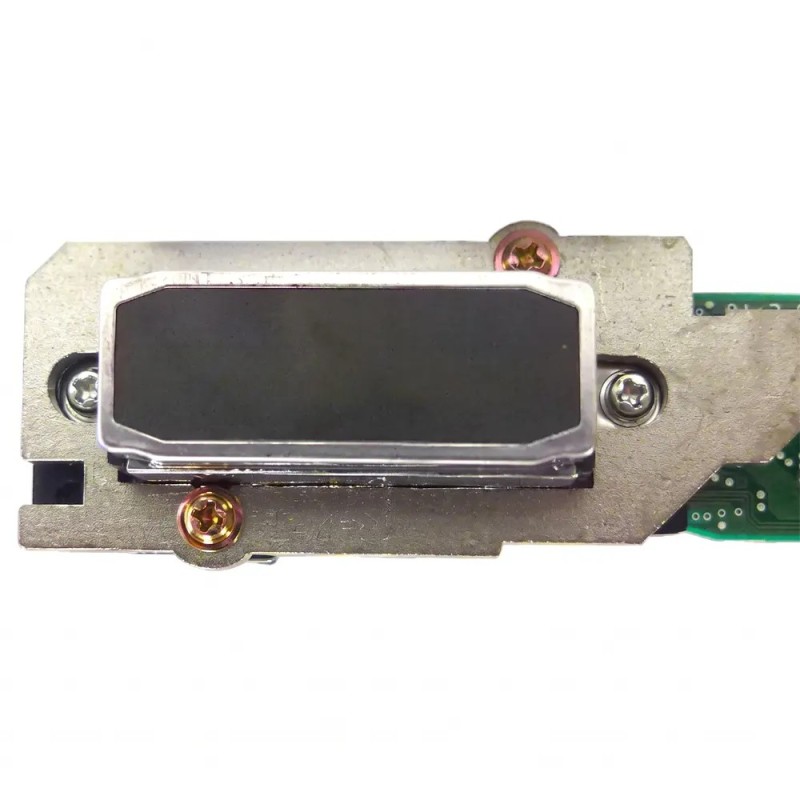

Factory-original Mutoh MY-80034 DX5 printhead assembly engineered for Mutoh Viper Extreme 65/90 and Viper TX Extreme 65/90 printers.
OEM High-Speed Dye Sublimation Component
Original Mutoh MY-80034 Printhead Assembly (Viper TX Extreme Series)
OEM Part Number: MY-80034 (Direct Service Supersession: DF-49029 Viper Multi-Head Platform) | MicroPiezo DX4 High-Speed Aqueous & Dye Sublimation Staggered Printhead Module
Viper Extreme Series Multi-Head Staggered Architecture Notice
The Mutoh MY-80034 Printhead Assembly is an authentic OEM replacement module engineered specifically for Mutoh’s industrial grand-format dye sublimation and direct-to-textile presses: the Viper TX Extreme 65, Viper TX Extreme 90, Viper TX Extreme 100, and Viper 100 Extreme Soft Signage series. Built around an aqueous-passivated MicroPiezo DX4 multi-head transducer core, this module features dual 21-pin FFC interfaces and precision fluid channels calibrated for high-speed continuous transfer printing with water-based dye sublimation, direct disperse dyes, and textile pigment inks.
Product Overview
The Original Mutoh MY-80034 Printhead Assembly is an industrial drop-on-demand (DoD) piezoelectric printhead designed for continuous high-throughput dye sublimation printing on lightweight transfer papers as well as direct printing onto open-weave polyester textiles, sportswear, flags, and theatrical backdrops. Deployed across multi-head staggered carriage arrays (typically containing 4 to 8 printheads firing in tandem), each module provides two isolated fluid paths supporting either two discrete color channels or a single split-color line.
Featuring 360 active addressable nozzles partitioned across 2 parallel rows (180 nozzles per line at 180 NPI native density), the assembly delivers optical resolutions up to 1440 DPI. Leveraging advanced Variable Sized Droplet Technology (VSDT), the piezo actuators dynamically eject variable droplets down to 3.5 picoliters, producing smooth tonal gradients, rich solid color yields, and sharp vector edge acuity across high-speed passes.
Part Information
| Product Name | Original Mutoh MY-80034 Viper Extreme Printhead Assembly |
| OEM Manufacturer | Mutoh Industries Ltd. / Epson MicroPiezo Core (Japan) |
| Primary OEM Part Number | MY-80034 |
| Cross-Reference Engineering Codes | DF-49029 (Viper Platform Application) |
| Core Transducer Architecture | MicroPiezo DX4 Drop-on-Demand (DoD) Piezoelectric Platform |
| Component Classification | Aqueous & Dye Sublimation Industrial Dual-Channel Printhead Module |
| Carriage Allocation Versatility | Universal Station: Mounts across any head position in Viper 4-head or 8-head staggered arrays |
| Ink Chemistry Pairing | Water-Based Dye Sublimation Inks, Direct Disperse Dyes, & Aqueous Pigment Inks |
| Country of Origin | Japan (100% Genuine Factory-Original Sealed Packaging) |
Technical Specifications
| Actuation Physics | Industrial MicroPiezo Drop-on-Demand (PZT Actuator System) |
| Active Addressable Nozzles | 360 nozzles total (2 parallel rows × 180 nozzles per line) |
| Native Nozzle Density | 180 NPI per line / 360 NPI dual-row interleaved |
| Maximum Resolution | Profiles supporting up to 1440 DPI multi-pass output |
| Droplet Size Modulation | Variable Sized Droplet Technology (VSDT): Multi-drop firing with 3.5 pl minimum droplet volume |
| Fluid Manifold Porting | Dual-nipple aqueous-passivated manifold adapter matched to Viper DX4 dampers |

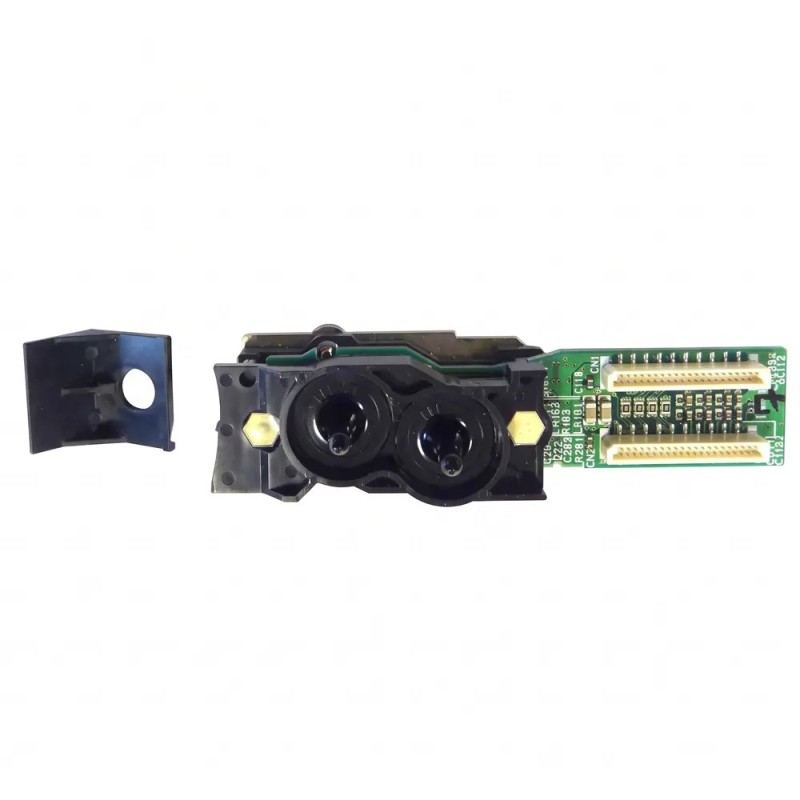

| Electrical Interface | Dual 21-pin flat flexible cable (FFC) socket array with integrated chassis grounding clips |
| Operating Environment | 18°C to 30°C (64°F to 86°F); 40% to 70% RH non-condensing |
| Dimensions & Net Weight | Approx. 84 × 40 × 35 mm; Net weight: ~70 g / Gross packaged weight: ~0.20 kg |
Key Features & Operational Advantages
- Aqueous & Sublimation Rheology Optimization: Internal micro-cavity channels are tailored for high water content and organic cosolvents, preventing ink foaming, cavitation, and faceplate drying during continuous sublimation paper runs.
- Staggered Multi-Head Array Balancing: Mechanically aligned for tight grouping across the 4-head and 8-head staggered gantry carriages of Viper Extreme systems.
- Fine 3.5 pl Droplet Acuity: MicroPiezo variable droplet modulation produces clean highlights, smooth photo gradations, and sharp 2-point vector text.
- Direct Drop-In OEM Fitment: Built to exact Mutoh factory dimensions, restoring original droplet trajectory and carriage height clearance without mechanical alterations.
CRITICAL TECHNICAL & SERVICE ADVISORY
1. DX4 Aqueous (MY-80034) vs. DX4 Solvent (MY-44743 / DF-49059) Incompatibility: The MY-80034 is an aqueous-passivated printhead assembly engineered specifically for water-based sublimation and textile inks. Never introduce eco-solvent or mild-solvent inks into this assembly. Solvent carriers will dissolve internal adhesives, causing inter-channel leaks and permanent failure. For solvent models (Rockhopper II / Spitfire / Blizzard), use MY-44743.
2. Multi-Head Gantry Slant & Registration Calibration: In Viper Extreme 4-head and 8-head staggered carriage arrays, head replacement requires physical dial-indicator mechanical leveling against gantry reference pins followed by Service Mode electronic dot registration (`HEAD SLANT` and `INTER-HEAD ADJUST`) to align all heads across both forward and reverse scan passes.
3. Mandatory Head-Rank ID Calibration: After mechanical installation, the technician MUST enter the alphanumeric Head-Rank ID (printed on the barcode label) via the Mutoh Maintenance Engineer Software (`MSA`). Running without registering the factory voltage rank leads to drop velocity deviations, color drift, and premature piezo actuator burnout.
4. Faceplate Maintenance Precautions: Never wipe the metallic nozzle faceplate with dry shop wipes or coarse paper towels. Clean only using approved lint-free foam swabs moistened with genuine Mutoh aqueous cleaning liquid. Regularly inspect and clean the rubber capping station seals and wiper blades to avoid dried sublimation ink build-up along the nozzle row.
Compatible Models & Systems
| Series / Lineup | Compatible Printer Models | Carriage Configuration |
|---|---|---|
| Mutoh Viper TX Extreme Series | Viper TX Extreme 65, 90, 100 | 4 to 8 Staggered DX4 Heads (Direct Textile) |
| Mutoh Viper Extreme Series | Viper 65 Extreme, Viper 90 Extreme, Viper 100 Extreme | High-Speed Transfer Sublimation Array |
| Mutoh Falcon II Series (Reference) | Falcon II (RJ-8000 Series 50 / 64 / 87) | Compatible Transducer Core (DF-49029 base) |
| Mutoh Rockhopper / Spitfire (Reference) | Rockhopper II, Spitfire, Blizzard | Incompatible: Solvent DX4 platform requires MY-44743 |
| Mutoh ValueJet Sublimation (Reference) | VJ-1628TD, VJ-2628TD, VJ-1638WX | Incompatible: Later models use DX5 (DG-42771) or DX7 (DH-40275) |
*Model Differentiation Note: Specifically engineered for Mutoh Viper Extreme and Viper TX Extreme platforms requiring the aqueous DX4 assembly. Verify machine model and carriage bay configuration prior to unpacking.
Terms, Warranty & Customer Protection
Condition: 100% Brand New, Genuine OEM Factory-Original Mutoh replacement printhead assembly in sealed factory packaging with factory shipping preservation fluid intact.
Manufacturer Warranty: Covered under standard OEM parts limited warranty against material and manufacturing defects out-of-box prior to ink introduction. No warranty applies once active textile/sublimation ink or flush fluid has been introduced into the micro-fluidic chambers, or if damage results from head strikes, fabric jams, electrostatic discharge, or improper cable seating.
Return Policy: Precision industrial electronic component. Unopened, factory-sealed boxes with intact tamper-evident seals are eligible for standard commercial return. Once the vacuum seal is broken, protective nozzle tape removed, or the head mounted onto a carriage frame, returns cannot be accepted due to fluid priming, static risk, and electrical contamination hazards.
