Mutoh DG-48800 Industrial UV Printhead for PerformanceJet 2508UF
- Write a review
$2,850.00
$1,311.00
Save 54%
Genuine OEM Mutoh DG-48800 heavy-duty industrial UV printhead assembly engineered for the Mutoh PerformanceJet 2508UF true flatbed printer.
OEM Grand-Format Industrial Flatbed UV Component
Original Mutoh DG-48800 Industrial UV Printhead Assembly (PerformanceJet 2508UF)
OEM Part Number: DG-48800 | Industrial Grayscale Drop-on-Demand (DoD) Piezoelectric Multi-Drop UV-LED Printhead Module with Internal Thermal Conditioning
PerformanceJet 2508UF True Flatbed Industrial Architecture Notice
The Mutoh DG-48800 Printhead Assembly is the authentic factory-original OEM replacement component engineered exclusively for Mutoh’s industrial true-flatbed production press: the PerformanceJet 2508UF (PJ-2508UF, 4' × 8' / 1250 × 2540 mm bed). Departing from Mutoh’s desktop and roll-to-roll Epson-based MicroPiezo DX-series designs, this heavy-duty industrial transducer unit features an all-metal stainless steel chassis, an integrated internal heating block with precision thermistor conditioning, and high-frequency multi-drop grayscale firing. It is passivated specifically to withstand aggressive Mutoh UV-LED rigid inks (CMYK, High-Opacity White, and Tactile Varnish) across high-speed scanning gantry passes.
Product Overview
The Original Mutoh DG-48800 Industrial UV Printhead Assembly is an industrial drop-on-demand (DoD) piezoelectric printhead designed for heavy-duty flatbed printing on rigid substrates up to 100 mm (4 inches) thick and weighing up to 50 kg/m² (including corrugated plastics, acrylic sheets, foam boards, aluminum composite panels, wood, glass, and architectural stone). Operating within the expandable 4-head to 6-head staggered carriage array of the PJ-2508UF, this module delivers production speeds up to 20 m²/h while maintaining micron-level dot landing accuracy.
Featuring 1,280 active addressable nozzles arranged across 4 separate rows (320 nozzles per line), the printhead achieves native optical output resolutions ranging from 600 × 300 dpi up to 600 × 1200 dpi. Leveraging advanced multi-drop grayscale waveform modulation, the unit discharges microscopic highlight droplets for smooth continuous tones, clean skin gradations, and sharp 2-point micro-lettering alongside larger drop volumes for dense solid color fills, high-opacity white underbases, and embossed 3D tactile varnish textures. Integrated internal heating dynamically conditions UV monomer viscosity directly behind the acoustic chambers, preventing fluid starvation and jetting deflection during continuous shifts.
Part Information
| Product Name | Original Mutoh PerformanceJet 2508UF Industrial UV Printhead Assembly |
| OEM Manufacturer | Mutoh Industries Ltd. (Japan) |
| Primary OEM Part Number | DG-48800 |
| Core Transducer Architecture | Industrial Stainless Steel Piezoelectric Drop-on-Demand (DoD) Transducer Engine |
| Component Classification | Grand-Format High-Duty Industrial UV-LED Curable Printhead Assembly |
| Carriage Allocation Versatility | Universal Station: Mounts across any position in the PJ-2508UF 4-head standard or 6-head upgraded gantry |
| Channel Versatility | Configurable for Process CMYK Colors, Dual High-Opacity White Circulation, or Clear Tactile Varnish |
| Ink Chemistry Pairing | Mutoh Genuine UV-LED Rigid Inks & Dedicated Factory Industrial Flush Solutions |
| Country of Origin | Japan (100% Genuine Factory Original Sealed Packaging) |
Technical Specifications
| Actuation Physics | High-Speed Industrial Piezoelectric Drop-on-Demand (PZT Actuator System) |
| Active Addressable Nozzles | 1,280 nozzles total (4 parallel rows × 320 nozzles per line) |
| Carriage Architecture | 4-Head Base Array (Field-upgradable to 6-Head Staggered Industrial Gantry) |
| Native Output Resolutions | 600 × 300 dpi, 600 × 600 dpi, 600 × 900 dpi, 600 × 1200 dpi native output profiles |
| Droplet Size Modulation | Industrial multi-drop variable dot grayscale waveform modulation (fine highlight drops up to heavy solid drops) |
| Thermal Viscosity Management | Integrated internal heating block and precision thermistor system calibrated for UV-LED monomer rheology |
| Structural Chassis Metallurgy | All-metal stainless steel nozzle plate and chemically passivated fluid manifold cavities |
| Fluid Interface Porting | UV-passivated upper fluid manifold adapter ports matched to PJ-2508UF sub-tank damper joint supply lines |
| Electrical Interface | Industrial flat flexible cable (FFC) socket array with dedicated chassis ESD ground leads |
| Operating Environment | 20°C to 30°C (68°F to 86°F); 40% to 80% RH non-condensing |
| Package Gross Weight | Approx. 0.45 kg (packaged with anti-static shielding and protective caps) |
Key Features & Operational Advantages
- True Industrial Heavy-Duty Construction: Built with an all-metal stainless steel chassis, providing mechanical resistance against substrate head strikes on thick rigid boards up to 100 mm.
- Internal Thermal Conditioning: Integrated heating elements warm heavy UV-curable monomers directly behind the nozzle acoustic cavity, stabilizing drop velocity across continuous commercial shifts.
- Expandable Staggered Array Production: Operates in the PJ-2508UF gantry across 4 standard heads or upgraded 6-head setups, driving production throughput up to 20 m²/h.
- Direct Drop-In OEM Fitment: Built to exact Mutoh factory specifications, restoring factory drop landing trajectory, dot circularity, and platen height alignment without carriage bracket modifications.
CRITICAL TECHNICAL & SERVICE ADVISORY
1. Absolute Architecture Incompatibility: The DG-48800 is engineered exclusively for the PerformanceJet 2508UF true flatbed. It is completely incompatible with Mutoh's roll-to-roll and tabletop ValueJet printers running Epson MicroPiezo heads (such as DX7 UV DG-45279 on the VJ-426UF / VJ-1626UH or DX5 DG-41914 / DF-49684). Physical dimensions, sub-tank manifolding, heater drive lines, and board protocols do not cross over.
2. Multi-Head Gantry Slant & Registration Calibration: In the PJ-2508UF 4-head or 6-head staggered array, replacing a printhead requires physical dial-indicator mechanical leveling against the gantry reference points followed by software calibration via the Mutoh Maintenance Engineer Software (`MSA`). Re-register the head rank ID values and calibrate inter-head dot placement across bidirectional passes.
3. Mandatory FFC Cable & UV Damper Servicing: Always install brand-new flat flexible head data cables (FFC) and new UV dampers concurrently. Reusing aged, bent, or ink-contaminated ribbon cables risks shorting the carriage board driver circuits, causing catastrophic damage to mainboard driver ICs.
4. Faceplate Maintenance Precautions: Never wipe the metallic nozzle faceplate with dry shop wipes or coarse paper towels. Clean only using approved lint-free swabs moistened with genuine Mutoh UV cleaning solution. Regularly inspect and clean the rubber capping station seals and wiper blades to avoid cured UV ink buildup along the nozzle row caused by UV-LED lamp scatter.
Compatible Models & Systems
| Printer Platform | OEM Part Number | Carriage Configuration & Supported Inks |
|---|---|---|
| Mutoh PerformanceJet 2508UF | DG-48800 | 4' × 8' (1250 × 2540 mm) True Flatbed (4 to 6 Staggered Heads; UV-LED Rigid Inks) |
| Mutoh ValueJet 426UF (Reference) | DG-45279 | Incompatible: Tabletop UV flatbed uses MicroPiezo DX7 assembly |
| Mutoh ValueJet 1626UH (Reference) | DG-45279 | Incompatible: Hybrid roll/rigid series uses MicroPiezo DX7 assembly |
| Mutoh ValueJet 1638UR (Reference) | DG-43988 / DX7 UV | Incompatible: Roll-to-roll UV series uses dual DX7 printhead units |
| Roland IU-1000F (Reference) | 1000021818 | Competing Grand-Format Industrial Flatbed Platform (12-Head Array) |
*Model Differentiation Note: Specifically engineered for the Mutoh PerformanceJet 2508UF industrial UV-LED flatbed printer. Confirm machine model and carriage head position prior to unpacking.
Terms, Warranty & Customer Protection

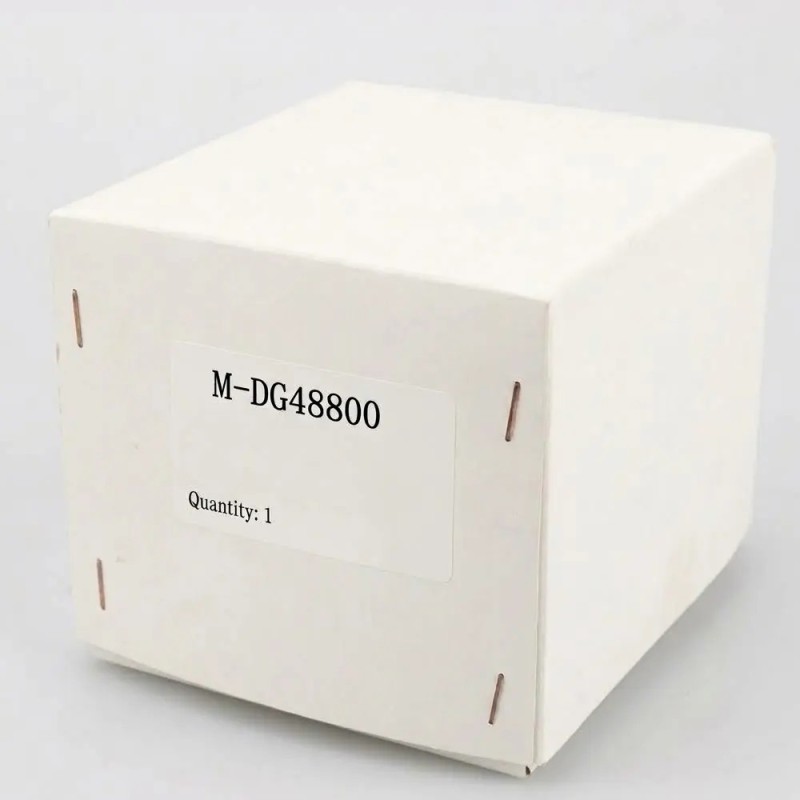

Condition: 100% Brand New, Genuine OEM Factory-Original Mutoh replacement printhead assembly in sealed factory packaging with shipping preservation fluid intact.
Manufacturer Warranty: Covered under standard OEM parts limited warranty against material and manufacturing defects out-of-box prior to ink introduction. No warranty applies once active UV ink or flush fluid has been introduced into the micro-fluidic chambers, or if damage results from head strikes, rigid media crashes, electrostatic discharge, or improper cable seating.
Return Policy: Precision industrial electronic component. Unopened, factory-sealed boxes with intact tamper-evident seals are eligible for standard commercial return. Once the vacuum seal is broken, protective nozzle tape removed, or the head mounted onto a carriage frame, returns cannot be accepted due to fluid priming, static risk, and electrical contamination hazards.
