Genuine Mimaki SWJ-320 Gen5 4-Channel Print Head Assy - Part M022650 (Replaces M012639)
- Write a review
$2,750.00
$1,265.00
Save 54%
100% Genuine OEM Mimaki M022650 (Gen5 Solvent Head Assy, directly superseding M012639) 4-channel industrial micro-piezo printhead assembly engineered specifically for Mimaki SWJ-320S, SWJ-320EA, and allied grand-format solvent printers.
OEM Super-Wide-Format Solvent Component

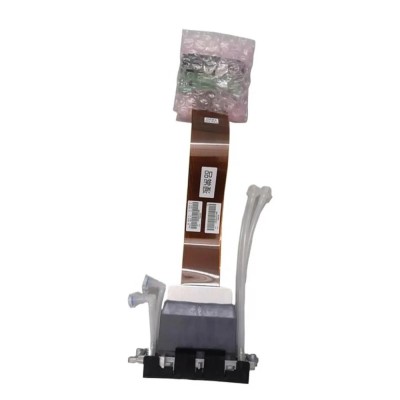

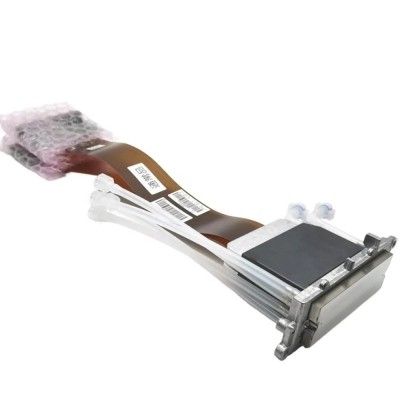

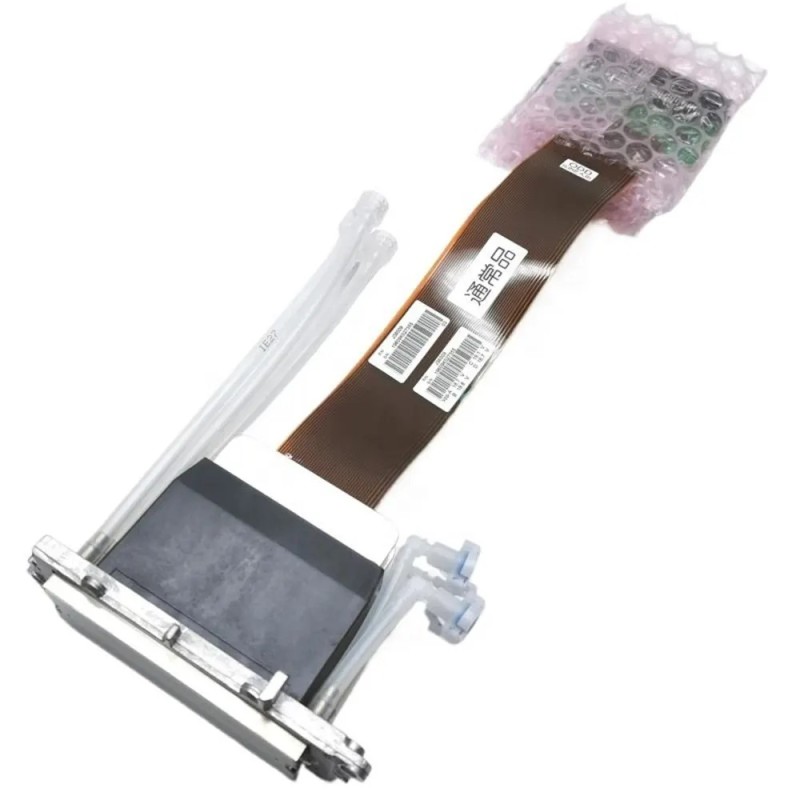

Original Mimaki SWJ-320 Gen5 4-Channel Print Head Assy (M022650)
OEM Part Number: M022650 / MP-M022650 (Replaces M012639) | Industrial Ricoh Gen5 MH5420 Multi-Drop Grayscale Piezoelectric Solvent Printhead Module (4-Channel Routing)
SWJ-320 Super-Wide Grand-Format Solvent Architecture Notice
The Mimaki M022650 Print Head Assy (officially superseding factory part number M012639) is an authentic OEM industrial piezoelectric drop-on-demand replacement assembly engineered specifically for Mimaki’s 3.2-meter super-wide production platforms: the SWJ-320S2, SWJ-320S4, SWJ-320EA, and SWJ-320EA Plus. Configured with a dedicated 4-channel solvent manifold array and aggressive solvent-resistant cavity bonding, this assembly is purpose-built to handle solvent formulations including genuine Mimaki CS100 and CS200 solvent inks.
Product Overview
The Original Mimaki SWJ-320 Gen5 4-Channel Print Head Assy (M022650 / M012639) is a heavy-duty industrial drop-on-demand (DoD) printhead engineered for continuous grand-format billboard printing, giant building wraps, outdoor PVC banners, fleet livery, and large-scale backlit signage across media widths up to 3,200 mm. Operating in 2-head in-line (S2) or 4-head staggered carriage arrays (S4 / EA), this assembly achieves massive throughput speeds up to 137 m²/h while maintaining precise dot roundness across high-speed scanning carriage travel.
Engineered with 1,280 active addressable micro-nozzles configured across 4 independent rows (320 nozzles per row), the unit achieves native output resolutions up to 1200 DPI across 360, 540, 720, 1080, and 1200 DPI production profiles. Leveraging advanced multi-drop grayscale waveform modulation, it modulates droplet volumes from an ultra-fine 7 picoliters up to 35 picoliters, delivering smooth photo-realistic tonal shading alongside heavy solid color flood fills without banding. Its all-metal stainless steel structure, D33 isolated PZT piezo actuators, and chemically inert manifold seals provide exceptional mechanical longevity under 24/7 industrial production environments.
Part Information
| Product Name | Original Mimaki SWJ-320 Gen5 4-Channel Print Head Assy |
| OEM Manufacturer | Mimaki Engineering Co., Ltd. / Ricoh Industrial Engine (Japan) |
| Primary OEM Part Numbers | M022650 / MP-M022650 |
| Superseded OEM Part Number | M012639 |
| Core Transducer Architecture | Ricoh Gen5 / MH5420 Industrial Piezo Platform (D33 Stacked PZT) |
| Component Classification | Industrial High-Speed Piezoelectric Drop-on-Demand (DoD) Solvent Printhead Module |
| Carriage Allocation Versatility | Universal Station: Mounts in Head 1, 2, 3, or 4 slot across 2-head or 4-head staggered carriage setups |
| Ink Chemistry Pairing | Mimaki Genuine Grand-Format Solvent Inks (CS100, CS200 Series) & Solvent Maintenance Flush |
| Country of Origin | Japan (Genuine Factory Original Sealed Package) |
Technical Specifications
| Actuation Physics | Industrial High-Durability D33 Stacked PZT Piezoelectric Actuator Engine |
| Active Addressable Nozzles | 1,280 nozzles total (4 parallel rows × 320 nozzles per row) |
| Nozzle Density & Pitch | 600 NPI (dual-channel combination); pitch: 0.1693 mm |
| Droplet Size Spectrum | Multi-drop grayscale: 7 pl native droplet size; variable drop range from 7 pl to 35 pl |
| Maximum Jetting Frequency | Up to 30 kHz (optimized for continuous grand-format solvent ink transport) |
| Structural Chassis Materials | Stainless Steel (SST), Nickel alloy, and solvent-passivated epoxy bonding |
| Faceplate Surface Chemistry | Fluororesin-coated Stainless Steel anti-wetting plate resisting solvent carrier corrosion |
| Fluid Interface Porting | 4-channel solvent manifold porting matched to SWJ sub-tank damper joint manifolds |
| Electrical Interface | High-speed multi-conductor gold flat flexible cable (FFC) socket array with ESD chassis ground |
| Operating Temperature & Humidity | 20°C to 30°C (68°F to 86°F); 35% to 65% RH non-condensing |
| Dimensions & Net Weight | 89 × 25 × 69 mm (head body); Net weight: ~0.16 kg / Packaged: ~0.45 kg |
Key Features & Operational Advantages
- Solvent-Grade Manifold Passivation: Factory-bonded with chemically inert manifold resins resistant to aggressive solvent carriers (CS100/CS200), preventing delamination and internal channel bleed.
- Industrial Gen5 Durability: Solid metal and stainless steel construction with D33 stacked PZT actuators delivers high drop velocity across the wide 3.2m scan stroke, rated up to 100 billion actuations per nozzle.
- Multi-Drop Grayscale Precision: Dynamically modulates drops between 7 pl and 35 pl to render smooth vignettes and sharp characters alongside heavy solid fills in fewer carriage passes.
- Direct Drop-In OEM Replacement: Fully supersedes legacy part number M012639, restoring factory droplet trajectory, dot circularity, and ink firing speeds without carriage bracket alterations.
CRITICAL TECHNICAL & SERVICE ADVISORY
1. Platform & Fluid Incompatibility (Solvent vs. UV/Latex Gen5): The M022650 assembly is configured with a 4-channel solvent manifold specifically for the SWJ-320 series. While it shares the core Ricoh Gen5 MH5420 physical dimensions with UV flatbeds (JFX200 M022625), roll-to-roll UV (UCJV300 M026887), and latex printers (JV400-LX M022651), the internal manifold porting, adhesive chemical resistance, and heater thermistor wiring are mapped specifically for solvent controllers. Never install UV or Latex Gen5 modules into an SWJ-320 carriage.
2. Staggered Carriage Slant & Registration Adjustment: On 4-head models (SWJ-320S4 / SWJ-320EA), after mechanical installation the technician MUST carry out optical slant calibration followed by inter-head position calibration (`[#] ADJUST` > `HEAD SP-ADJUST`) to synchronize the front and rear staggered rows across the 3.2-meter beam.
3. Mandatory Head ID Voltage Registration: After physical mounting and cable connection, the technician MUST enter the alphanumeric Head ID value (printed on the barcode label) into the printer’s Service Mode menu (`[#] PARAMETER` > `HEAD ID`). Running a Gen5 head without its specific factory-calibrated voltage table will cause drop deflection, ink misting, or premature piezo fatigue.
4. Faceplate Maintenance Precautions: Never wipe the delicate nozzle face with dry shop wipes or coarse paper towels. Clean only using approved lint-free foam-tipped swabs moistened with genuine Mimaki solvent cleaning solution (SPB-0150 / CS cleaning flush). Inspect and clean the rubber capping station seals and wiper blades regularly to avoid dried solvent ink build-up along the nozzle row.
Compatible Models & Systems
| Printer Platform | OEM Part Number | Carriage Configuration & Supported Inks |
|---|---|---|
| Mimaki SWJ-320EA | M022650 / MP-M022650 | 3.2m Super-Wide Grand-Format Solvent Press (4-Head Staggered Array; CS100 / CS200 Inks) |
| Mimaki SWJ-320S4 | M022650 / M012639 | 3.2m High-Speed 4-Head Solvent Printer (Direct drop-in replacement) |
| Mimaki SWJ-320S2 | M022650 / M012639 | 3.2m 2-Head In-Line Solvent Production Printer |
| Mimaki JV400-LX Series (Reference) | M022651 / M014384 | Incompatible: Latex roll-to-roll printers use aqueous resin Gen5 printheads |
| Mimaki JFX200 UV Series (Reference) | M022625 / MP-M022625 | Incompatible: JFX flatbed series uses UV-curable Gen5 heads with different manifolding |
*Model Differentiation Note: Specifically engineered for Mimaki SWJ-320 grand-format solvent printers using 4-channel Gen5 MH5420 technology. Confirm the machine serial plate and head station allocation prior to unpacking.
Terms, Warranty & Customer Protection

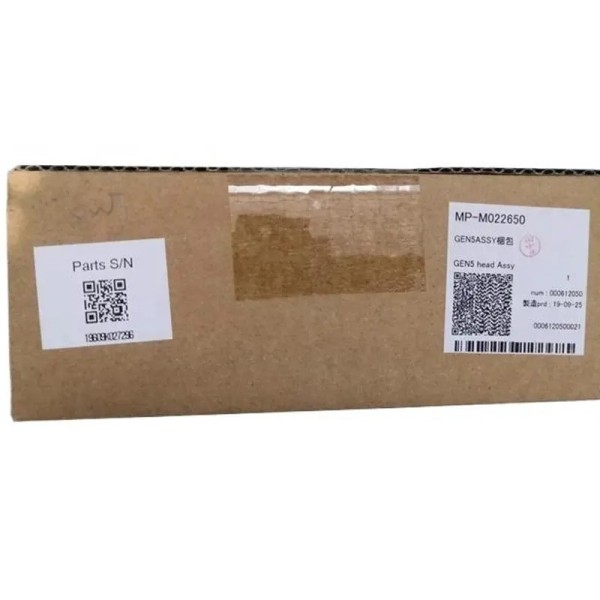

Condition: 100% Brand New, Genuine OEM Factory-Original Mimaki / Ricoh Industrial Replacement Printhead Assembly in sealed factory packaging with factory shipping preservation fluid intact.
Manufacturer Warranty: Covered under standard OEM parts limited warranty against material and manufacturing defects out-of-box prior to ink introduction. No warranty applies once active solvent ink or flush fluid has been introduced into the micro-fluidic chambers, or if damage results from head strikes, media jams, electrostatic discharge, or improper cable seating.
Return Policy: Precision industrial electronic component. Unopened, factory-sealed boxes with intact tamper-evident seals are eligible for standard commercial return. Once the vacuum seal is broken, protective nozzle tape removed, or the head mounted onto a carriage frame, returns cannot be accepted due to fluid priming, static risk, and electrical contamination hazards.
