Mimaki Gen5 Printhead for JFX200-2513 / JFX200-2513 EX – MP-M022625
- Write a review
$2,650.00
$1,219.00
Save 54%
Factory-original Mimaki MP-M022625 (superseding / interchangeable with M015028) Gen5 (MH5420) industrial UV piezoelectric printhead engineered for Mimaki JFX200, JFX500, and UJV500 wide-format UV LED flatbed printers.
OEM Industrial Large-Format UV Component
Original Mimaki Gen5 Printhead for JFX200 Series (M022625 / MP-M022625)
OEM Part Number: M022625 / MP-M022625 (Replaces M017004 & M015028) | Industrial Ricoh MH5420 Gen5 Drop-on-Demand (DoD) UV Printhead Assembly (incl. Heater)
Industrial UV Flatbed Gen5 Architecture Notice
The Mimaki M022625 / MP-M022625 Printhead Assembly is the genuine OEM industrial Ricoh Gen5 (MH5420 core) replacement module engineered specifically for Mimaki’s wide-format UV-curable flatbed platforms (including the JFX200-2513, JFX200-2513 EX, and JFX200-2531). This assembly includes the factory-calibrated internal heating block and thermistor harness, delivering the thermal stability required to regulate the viscosity of high-solids UV inks.
Product Overview
The Original Mimaki Gen5 Printhead Assembly (M022625 / MP-M022625) is a heavy-duty industrial piezoelectric drop-on-demand (DoD) printhead engineered for continuous production on large-format 4 × 8 ft and 8 × 10 ft flatbed systems. Configured in 2-head or 3-head staggered carriage arrays on the JFX200-2513 and JFX200-2513 EX, this unit jets process colors (CMYK), high-density Opaque White, Gloss Clear, and Primer onto rigid substrates such as acrylic, wood, glass, aluminum composite panels, foam board, and metals up to 50 mm thick.

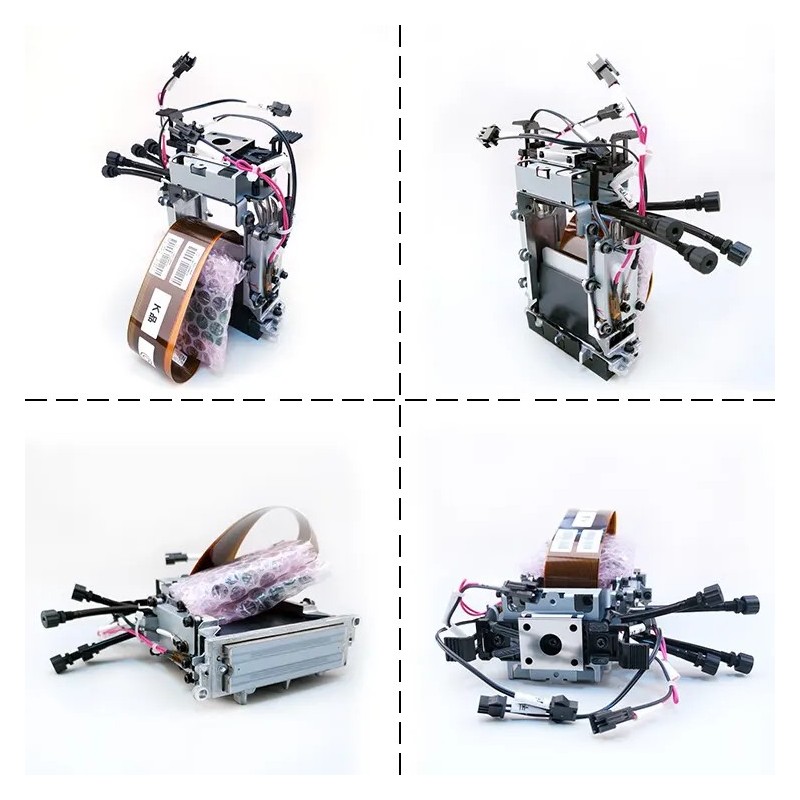

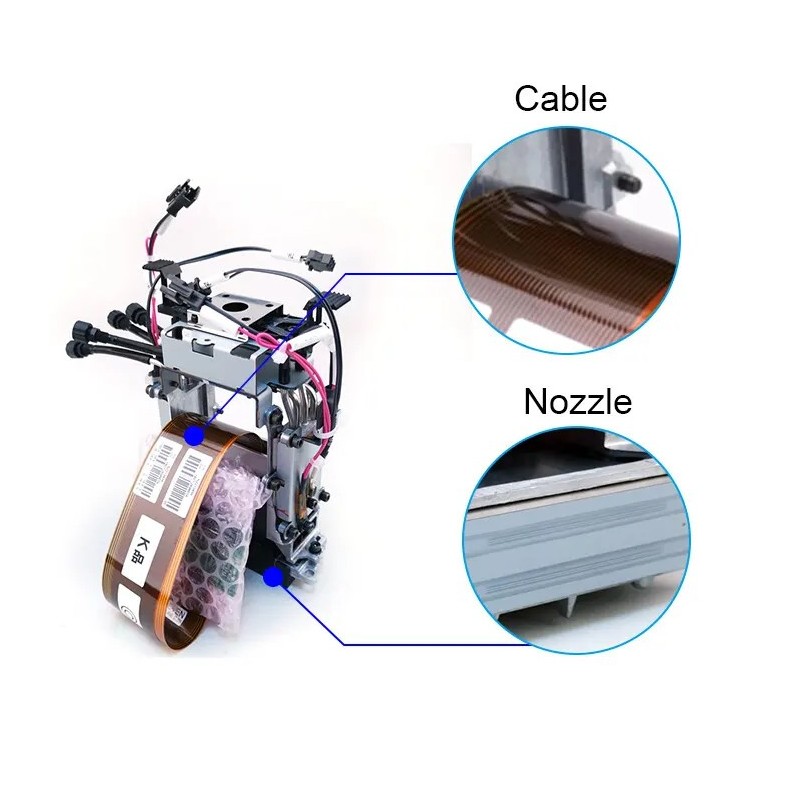

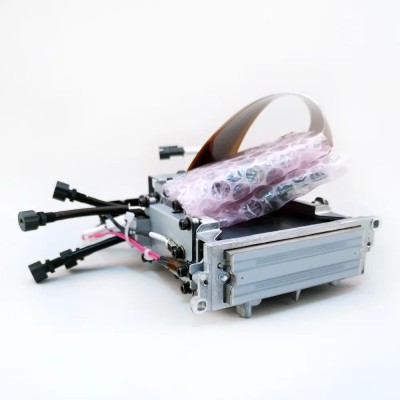

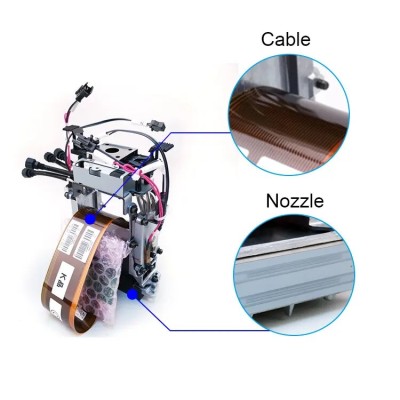

Engineered with 1,280 active addressable micro-nozzles configured across 4 separate rows (320 nozzles per row), the assembly supports 2-color and 4-color channel routing with a nozzle density of up to 600 NPI. Featuring multi-drop grayscale control with native drop sizes starting at 7 picoliters and variable drops up to 35 picoliters, the M022625 combines fine detail with solid color coverage. Its coated stainless steel (SST) nozzle plate and D33 stacked PZT piezo actuators offer rated mechanical durability of up to 100 billion actuations per nozzle.
Part Information
| Product Name | Original Mimaki JFX200 Gen5 Printhead Assy (incl. Heater) |
| OEM Manufacturer | Mimaki Engineering Co., Ltd. / Ricoh Industrial Engine (Japan) |
| Primary OEM Part Numbers | M022625 / MP-M022625 |
| Superseded / Legacy Part Numbers | M017004 / M015028 (Subsequent revision: M026887) |
| Core Transducer Architecture | Ricoh Gen5 / MH5420 Platform (D33 Stacked PZT) |
| Component Classification | Industrial High-Speed Piezoelectric Drop-on-Demand (DoD) Printhead Module |
| Channel Versatility | Universal Station: Configurable for CMYK, White, Clear, or Primer channels |
| Ink Chemistry Pairing | Mimaki Genuine UV-Curable Inks (LH-100, LUS-120, LUS-150, LUS-200, PR-200) |
| Country of Origin | Japan (Genuine Factory Original Sealed Package) |
Technical Specifications
| Printhead Platform | Industrial High-Durability D33 Stacked PZT Piezoelectric Actuator Engine |
| Active Addressable Nozzles | 1,280 nozzles total (4 parallel rows × 320 nozzles per row) |
| Nozzle Density & Pitch | Up to 600 NPI (nozzles per inch) with 0.1693 mm nozzle spacing |
| Native & Variable Drop Volume | 7 pl native drop; variable volume range from 7 pl to 35 pl (8-level grayscale) |
| Maximum Jetting Frequency | Up to 60 kHz (typical operating drop velocity: 7 m/s) |
| Structural Chassis Materials | Stainless Steel (SST), Nickel alloy, and solvent/UV-resistant Epoxy Adhesive |
| Faceplate Surface | Fluororesin-coated Stainless Steel (SST) anti-wetting nozzle plate |
| Integrated Temperature Control | Integrated internal heating block and precision thermistor (operating up to 80°C) |
| Fluid Interface Porting | Dual-port manifold assembly matched to Mimaki sub-tank joint valves (M006954) |
| Service Lifespan | Rated for up to 100 billion actuations per nozzle under standard maintenance |

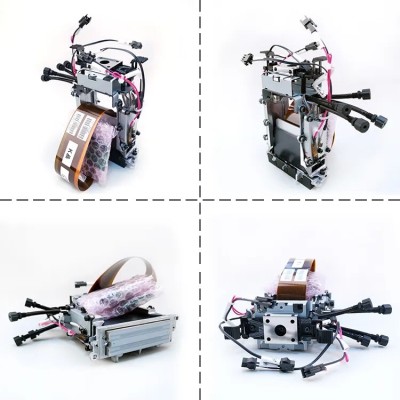

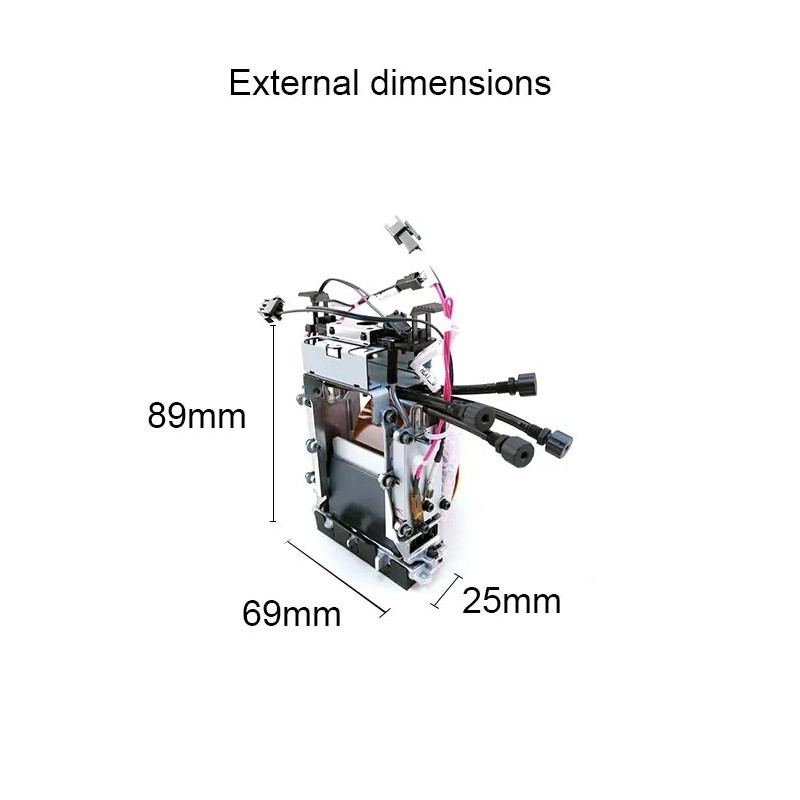

| Dimensions & Weight | 89 × 25 × 69 mm (excluding cables); Net weight: ~0.15 kg / Packaged: ~0.45 kg |
Key Features & Operational Advantages
- Industrial Gen5 Durability: Solid metal and epoxy construction with D33 stacked PZT actuators offers long operational life on 24/7 production shifts.
- 8-Level Grayscale Modulation: Variable droplet sizing from 7 pl to 35 pl produces smooth skin tones, sharp micro-text, and solid block fills without graininess.
- Integrated Heating System: Factory-mounted heater and thermistor maintain uniform ink viscosity right at the nozzles, ensuring reliable drop velocity and landing accuracy.
- Universal Station Support: Can be assigned to Color (CMYK), White, Clear, or Primer positions, standardizing spare parts inventory across the machine.
CRITICAL TECHNICAL & SERVICE ADVISORY
1. Mandatory Firmware Verification (Recognition Lockout): The M022625 printhead uses an updated internal ID signature. Installing it in a printer running older firmware will result in a head recognition failure. You MUST update your machine firmware before installation:
• Mimaki JFX200-2513: Firmware version v2.60 or later required.
• Mimaki JFX200-2531: Firmware version v2.50 or later required.
2. Mandatory Head Cable (FFC) Replacement: Always install brand-new head data cables concurrently when replacing a Gen5 head. Reusing aged, bent, or ink-contaminated ribbon cables can short the slider PCB driver circuits, damaging the motherboard or the new printhead.
3. Head ID Input & Voltage Waveform Calibration: After mechanical mounting, enter the alphanumeric Head ID printed on the barcode label into the printer’s Service Mode menu (`[#] PARAMETER` > `HEAD ID`). Running a printhead without its specific voltage profile will cause droplet deflection, ink misting, or premature actuator failure.
4. Faceplate Maintenance Precautions: Never wipe the coated stainless steel nozzle plate with dry wipes or abrasive cloths. Clean only using approved lint-free foam-tipped swabs moistened with genuine Mimaki UV cleaning solution (F-200 / LF-200). Regularly inspect and clean the rubber capping station seals and wiper blades to prevent cured UV ink buildup.
Compatible Models & Systems
| Printer Platform | OEM Part Number | Supported Machine Configuration |
|---|---|---|
| Mimaki JFX200-2513 | M022625 / MP-M022625 | 4 × 8 ft Industrial UV Flatbed (2-Head Array; requires FW v2.60+) |
| Mimaki JFX200-2513 EX | M022625 / MP-M022625 | High-Productivity 3-Head Flatbed (simultaneous Color, White & Clear) |
| Mimaki JFX200-2531 | M022625 / MP-M022625 | Extended 8 × 10 ft Dual-Origin UV Flatbed (requires FW v2.50+) |
| Mimaki JFX500-2131 (Reference) | M018821 / Variant | Ultra-high-speed flatbed; verify carriage cable harness and head part numbering |
| Mimaki UJF-7151 Plus (Reference) | M017429 / MP-M025074 | Incompatible: UJF-7151 Plus uses Toshiba TEC shared-wall CF1 architecture |
*Model Differentiation Note: Specifically engineered for JFX200 series flatbeds using Ricoh Gen5 MH5420 technology. Always check your printer's firmware version prior to installation.
Terms, Warranty & Customer Protection
Condition: 100% Brand New, Genuine OEM Factory-Original Mimaki Industrial Replacement Printhead in sealed factory packaging with factory preservation fluid intact.
Manufacturer Warranty: Covered under standard OEM parts limited warranty against material and manufacturing defects out-of-box prior to ink introduction. No warranty applies once active UV ink or flush fluid has been introduced into the micro-fluidic chambers, or if damage results from head strikes, substrate collisions, electrostatic discharge, or improper cable seating.
Return Policy: Precision industrial electronic component. Unopened, factory-sealed boxes with intact tamper-evident seals are eligible for standard commercial return. Once the vacuum seal is broken, protective nozzle tape removed, or the head mounted onto a carriage frame, returns cannot be accepted due to fluid priming, static risk, and electrical contamination hazards.
