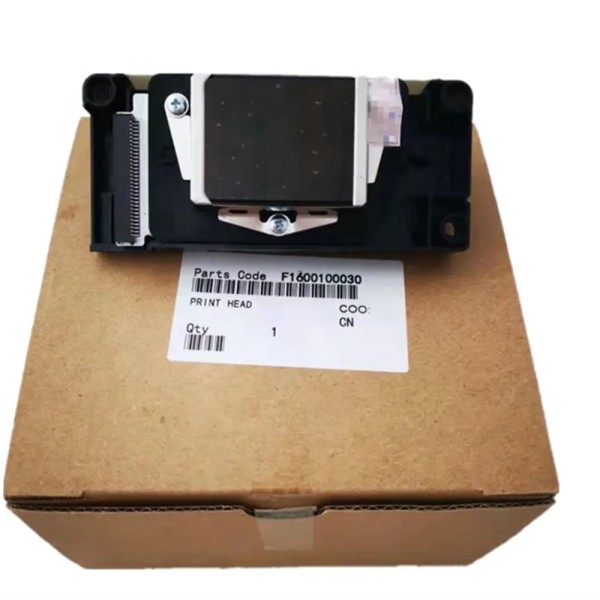

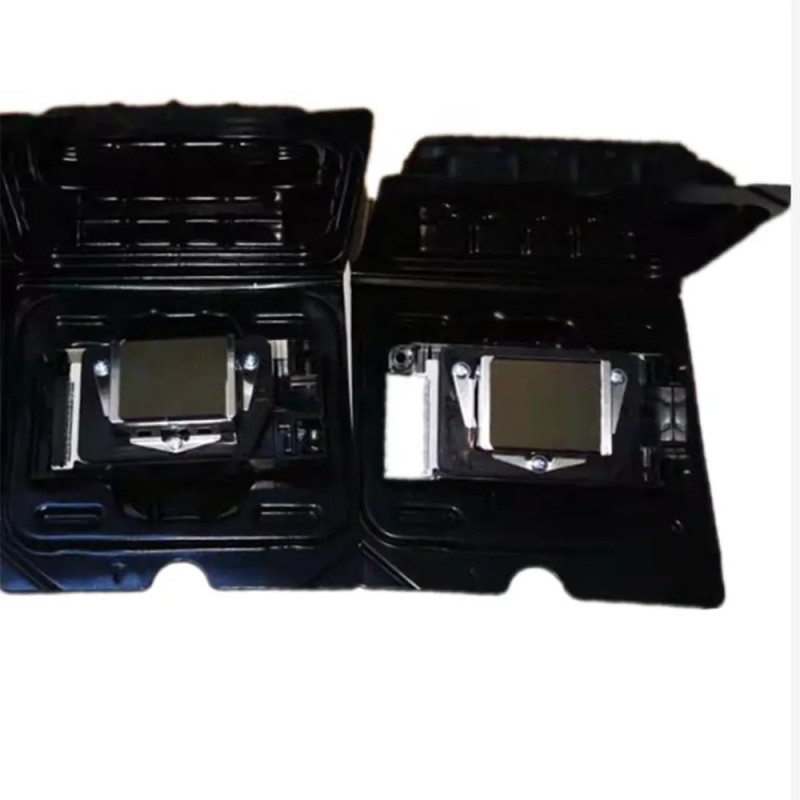

Mimaki DX5 Water-Based Printhead – F160010 (F160000) for JV33 JV5 CJV30 Series
- Write a review
$890.00
$516.20
Save 42%
Factory-original Mimaki F160010 (superseding F160000) Micro-Piezo DX5 water-based printhead engineered for dye-sublimation, textile, and aqueous applications on Mimaki JV33, JV5, CJV30, and TS3 printers.
OEM Wide-Format Component

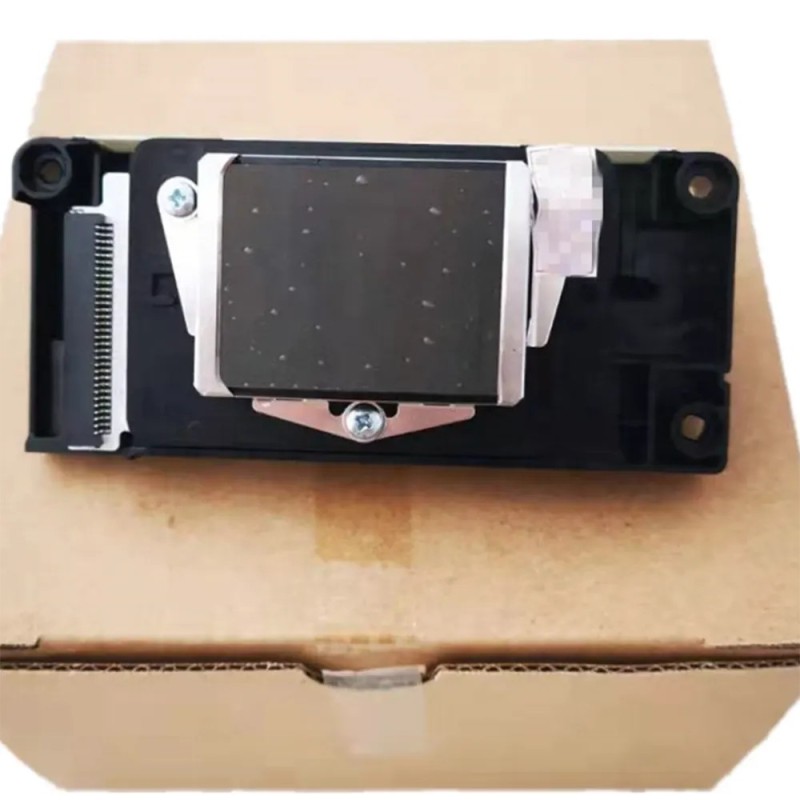

Original Mimaki DX5 Water-Based Printhead – F160010 (F160000)
OEM Part Number: F160010 / F160000 (Cross-Ref: F158000 / F187000) | Micro-Piezo DoD Water-Based & Sublimation Printhead
Water-Based & Textile Sublimation Architecture Notice
The Mimaki DX5 Water-Based Printhead F160010 (F160000) is an authentic OEM micro-piezoelectric drop-on-demand replacement printhead engineered specifically for aqueous dye, pigment, and dye-sublimation fluid configurations across Mimaki platforms (including aqueous-converted JV33, JV5, CJV30, TS3-1600, TS5-1600, and TPC-1000). Designed with water-compatible internal cavity manifolds and hydrophilic surface treatments, it ensures stable meniscus formation and droplet firing for water-based ink chemistries.
Product Overview
The Original Mimaki DX5 Water-Based Printhead – F160010 / F160000 is an authentic OEM multi-channel micro-piezoelectric printhead engineered for textile sublimation printing, CAD technical drawings, indoor fine-art reproductions, photographic proofs, and water-based graphics. Built on the proven 8-channel micro-piezo platform, this unit arranges 180 nozzles across 8 independent channels (totaling 1,440 active nozzles) to deliver photorealistic detail at native resolutions up to 1440 DPI.
Leveraging Variable Sized Droplet Technology (VSDT), the F160010 modulates droplet volume from ultra-fine 1.5 picoliter dots for smooth skin tones and soft gradients up to 21 picoliters for dense, saturated solid fills on transfer papers and fabrics. Its internal fluidic chambers and manifold seals are tailored for aqueous solutions, preventing internal cavitation and air entrapment when running high-velocity water-based pigment inks or dispersed dye-sublimation inks (such as Mimaki Sb51, Sb52, Sb53, and Sb54).
Part Information
| Product Name | Original Mimaki DX5 Water-Based Printhead |
| OEM Manufacturer | Mimaki Engineering Co., Ltd. / Epson Precision Core Technology (Japan) |
| Primary OEM Part Numbers | F160010 / F160000 |
| Cross-Reference SKUs | F158000 / F187000 / F186000 / PPHEP4003 |
| Component Classification | Industrial Micro-Piezoelectric Drop-on-Demand (PZT DoD) Water-Based Printhead |
| Channel Configuration | 8 Independent Channels: 2 × CMYK, 6-Color (CMYKLcLm), or 8-Color Dispersed Textile Sets |
| Ink Chemistry Pairing | Aqueous Pigment, Dye Inks, Water-Based Textile Dye Sublimation (Sb51, Sb52, Sb53, Sb54) |
| Country of Origin | Japan (Genuine Factory Original Sealed Package) |
Technical Specifications
| Printhead Technology | Micro-Piezo Electric Drop-on-Demand (PZT Actuator System) |
| Active Addressable Nozzles | 1,440 nozzles total (8 parallel lines × 180 nozzles per line) |
| Native Output Resolution | 1440 DPI native optical resolution |
| Droplet Size Spectrum | Variable 1.5 picoliters (min) to 21 picoliters (max) |
| Firing Frequency | Up to 8.0 kHz per channel |
| Fluid Interface Porting | 8 upper fluid adapter nipples matched to standard DX5 damper manifolds |
| Electrical Interface | Dual high-density 31-pin gold flat flexible cable (FFC) connector sockets |
| Operating Temperature Range | 18°C to 30°C (64°F to 86°F) recommended ambient |
| Operating Humidity Range | 40% to 70% RH non-condensing (preserves nozzle hydration and transfer paper stability) |
| Net Physical Weight | Approx. 0.15 kg (head module alone) / Packaged: ~0.35 kg |
Key Features & Operational Advantages
- Optimized for Water-Based & Sublimation Inks: Internal manifold channels are coated to prevent surfactant foaming and sedimentation when handling aqueous dye, pigment, and dispersed sublimation inks.
- Variable Sized Droplet Technology (VSDT): Multidrop waveform control yields smooth photographic transitions with 1.5 pl micro-droplets and rich color density with larger 21 pl drops.
- Flexible Multi-Channel Color Configuration: The 8-channel array supports dual CMYK high-speed production or specialized color sets (CMYK + Light Cyan, Light Magenta, Light Black, etc.) for high-end proofing.
- Factory Calibrated Head ID: Includes factory-measured voltage and timing calibration parameters on the onboard barcode label to synchronize drop trajectory across all 8 channels.
CRITICAL TECHNICAL & SERVICE ADVISORY
1. Chemical Incompatibility with Aggressive Solvent Inks: The F160010 / F160000 is engineered strictly for water-based dye, aqueous pigment, and dye-sublimation inks. It does not use the specialized solvent-resistant manifold bonding found on the solvent-grade M007947 printhead. Introducing aggressive eco-solvent or mild solvent inks into this unit can dissolve manifold seals and cause catastrophic internal short circuits.
2. Head Memory Board & Decoder Compatibility: When retrofitting or replacing heads on Mimaki JV33 or CJV30 machines, ensure the green Head Memory Board PCB is properly transferred or matched to your printer’s slider board firmware. Certain firmware revisions require an uncoded/unlocked head configuration to initialize without encryption lock errors.
3. Mandatory FFC Cable Replacement: Always install brand-new 31-pin flat flexible head cables (FFC) when replacing the printhead. Inserting cables with worn gold fingers or ink residue risks shorting the driver transistors on the slider PCB and damaging the main board.
4. Dampers & Capping Station Maintenance: Always install new water-compatible ink dampers and inspect the rubber capping top before introducing ink. Never wipe the delicate gold-plated nozzle face with dry wipes or abrasive cloths; use only genuine lint-free swabs moistened with approved aqueous cleaning solution.
Compatible Models & Systems
| Printer Platform | OEM Part Number | Supported Machine Configuration |
|---|---|---|
| Mimaki JV33 Series (Aqueous) | F160010 / F160000 | JV33-130, JV33-160, JV33-260 (configured with Water-Based / Sublimation ink sets) |
| Mimaki CJV30 Series (Aqueous) | F160010 / F160000 | CJV30-60, CJV30-100, CJV30-130, CJV30-160 (Print & Cut aqueous configurations) |
| Mimaki TS3 / TS5 Series | F160010 / F160000 | TS3-1600, TS5-1600 Dedicated Dye Sublimation Textile Printers |
| Mimaki JV5 Series (Water-Based) | F160010 / F160000 | JV5-130S, JV5-160S, JV5-320DS (High-speed 4-head textile dye sublimation presses) |
| Mimaki TPC-1000 | F160010 / F160000 | Textile Print & Cut Sublimation Workstations |
| Mimaki Solvent Platforms (Reference) | M007947 | Incompatible: Standard solvent installations (SS21 / ES3) require solvent-grade M007947 |
*Model Differentiation Note: Specifically engineered for aqueous and dye-sublimation ink sets. Confirm your machine's fluid conversion status and part assignment prior to ordering.
Terms, Warranty & Customer Protection
Condition: 100% Brand New, Genuine OEM Factory-Original Mimaki / Epson Replacement Printhead in sealed factory packaging with factory shipping preservation fluid intact.
Manufacturer Warranty: Covered under standard OEM parts limited warranty against material and manufacturing defects out-of-box prior to ink introduction. No warranty applies once active ink or flush fluid has been introduced into the micro-fluidic chambers, or if damage results from head strikes, platen rubs, ungrounded electrostatic discharge, or improper cable seating.
Return Policy: Precision electro-mechanical component. Unopened, factory-sealed boxes with intact tamper-evident seals are eligible for standard commercial return. Once the vacuum seal is broken, protective nozzle tape removed, or the head mounted onto a carriage frame, returns cannot be accepted due to fluid priming, static risk, and electrical contamination hazards.
