Mimaki UJF-7151 Plus Printhead – M017429 (MP-M025074)
- Write a review
$2,450.00
$1,127.00
Save 54%
Factory-original Mimaki M017429 (superseding / interchangeable with MP-M025074) industrial on-demand piezo printhead engineered specifically for the Mimaki UJF-7151 Plus and UJF-7151 Plus II UV flatbed printers.
OEM Industrial UV-LED Component

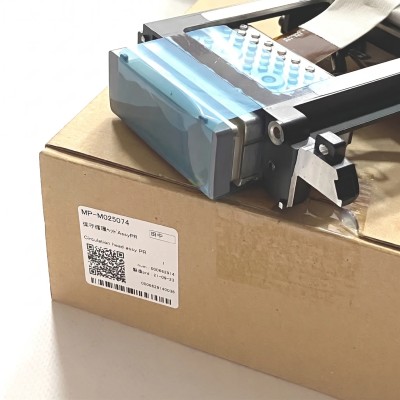

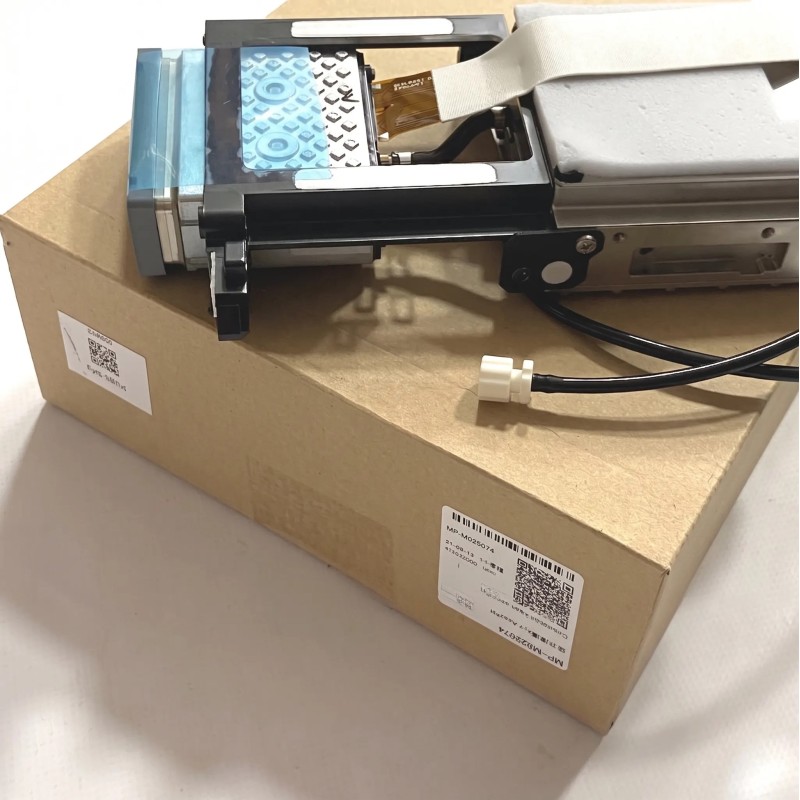

Original Mimaki UJF-7151 Plus Printhead (M017429 / MP-M025074)
OEM Part Number: M017429 / MP-M025074 (Core Code: Toshiba TEC CF1 / CA4 Architecture) | High-Precision Industrial Piezoelectric DoD UV-Curable Printhead
Industrial UV Flatbed & Active Recirculation Architecture Notice
The Mimaki M017429 Printhead (and factory service replacement code MP-M025074) is an authentic OEM industrial piezoelectric drop-on-demand replacement module engineered specifically for Mimaki’s flagship high-accuracy UV flatbed printers (including the UJF-7151 Plus and UJF-7151 Plus II). Built upon an industrial shear-mode PZT actuator platform with active ink recirculation and an internal fluid-heating manifold, this head delivers high dot landing precision for fine art, industrial nameplates, dials, and heavy promotional substrates.
Product Overview

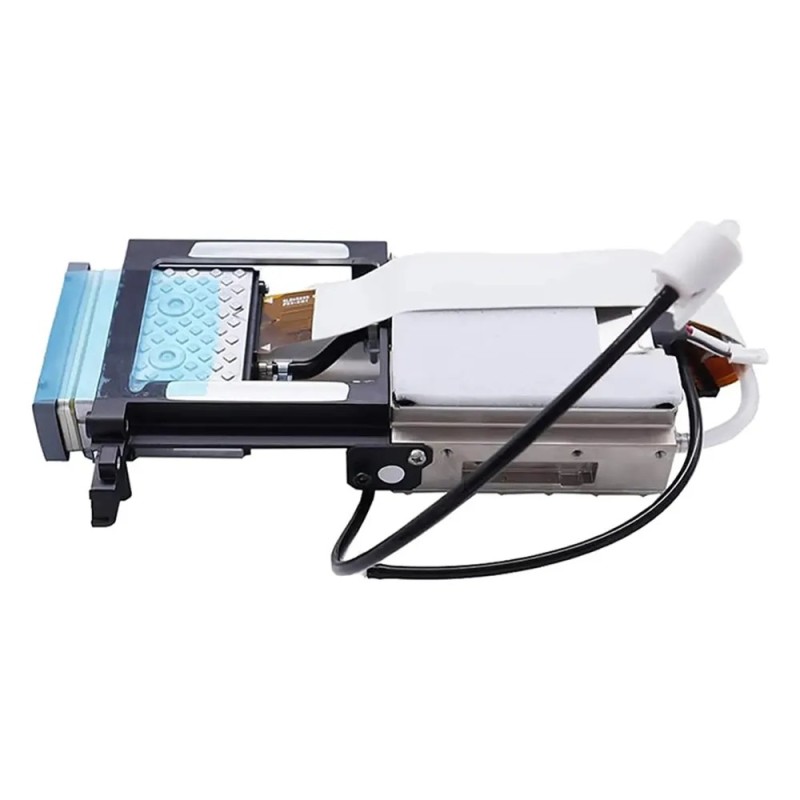

The Original Mimaki UJF-7151 Plus Printhead (M017429 / MP-M025074) is a heavy-duty industrial printhead engineered to meet demanding industrial manufacturing standards, high-throughput commercial customization, and precision instrument marking. Arranged in a 6-head staggered carriage configuration on the UJF-7151 Plus platform, this unit drives process colors (CMYK), high-density Opaque White, Gloss Clear, and Primer onto rigid plastics, glass, metals, acrylics, wood, and leather up to 153 mm thick.

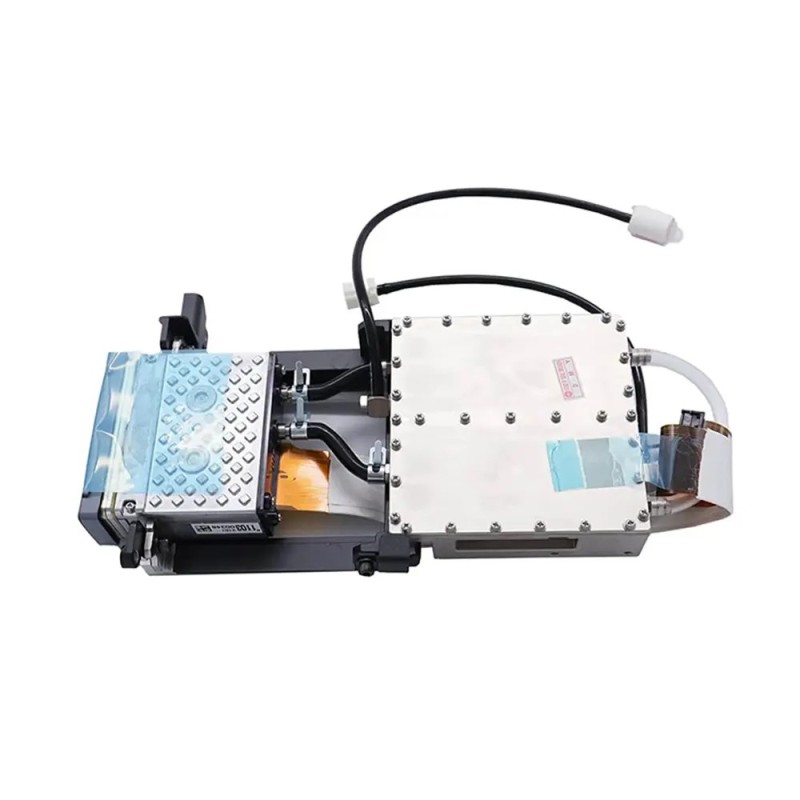

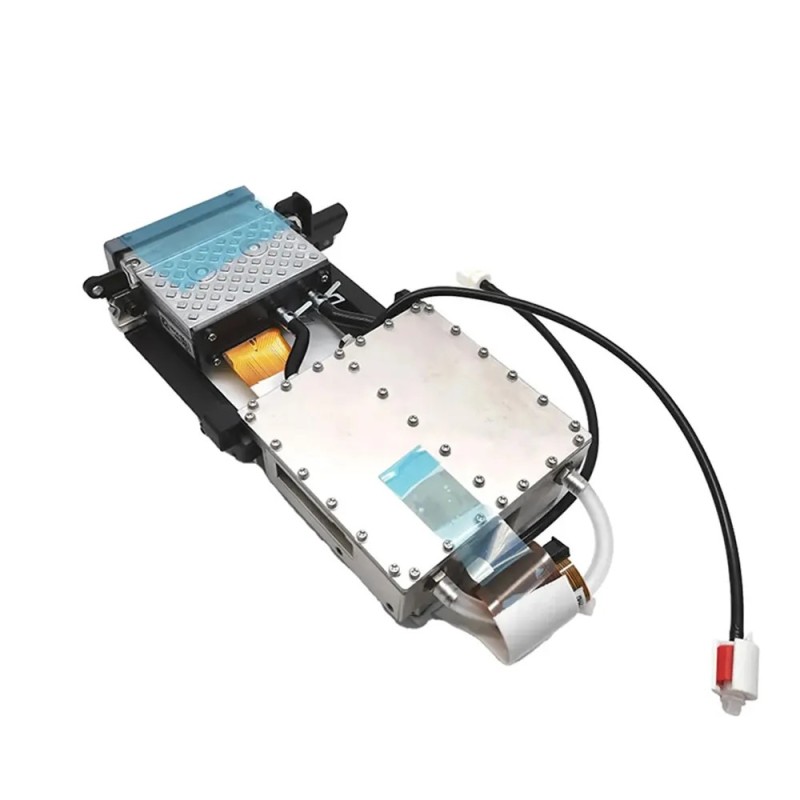

Engineered with 636 active addressable micro-nozzles configured in high-density linear arrays, the printhead achieves native optical output resolutions up to 1200 × 1200 DPI. The unit integrates an active internal ink circulation channel that continuously cycles UV-curable ink directly past the nozzle chambers. This constant movement prevents pigment settling—critical for titanium dioxide white ink and metallic formulations—while automatically purging micro-bubbles and preventing nozzle dropouts during long industrial production cycles.
Part Information
| Product Name | Original Mimaki UJF-7151 Plus Printhead Assembly |
| OEM Manufacturer | Mimaki Engineering Co., Ltd. / Toshiba TEC Core Technology (Japan) |
| Primary OEM Part Numbers | M017429 / MP-M025074 |
| Associated Core Transducer | Toshiba TEC CF1 / CA4 Series Industrial Architecture |
| Component Classification | Industrial Shared-Wall Piezoelectric Drop-on-Demand (PZT DoD) Printhead |
| Carriage Allocation Versatility | Universal 6-head carriage bay: Mounts in CMYK, White, Clear, or Primer positions |
| Ink Chemistry Pairing | Mimaki Genuine UV-Curable Inks (LH-100, LUS-120, LUS-350, PR-200 Primer) |
| Country of Origin | Japan (Genuine Factory Original Sealed Package) |
Technical Specifications
| Printhead Technology | Industrial Shared-Wall 3-Cycle Piezoelectric Drop-on-Demand (PZT) |
| Active Addressable Nozzles | 636 micro-nozzles (dual linear staggered orifice rows × 318 nozzles per row) |
| Native Optical Resolution | Up to 1200 × 1200 DPI selectable production profiles |
| Droplet Size Spectrum | Variable multi-drop grayscale (calibrated fine micro-droplets up to heavy fill drops) |
| Recirculation Support | Continuous dual-port ink circulation channel routed directly behind the nozzle plate |
| Thermal Management | Integrated internal thermistor and heater circuit for precise UV ink viscosity control |
| Fluid Interface Porting | Precision dual-inlet/outlet manifold connectors for closed-loop recirculation |
| Electrical Interface | High-speed multi-pin gold edge connector with integrated ESD and chassis grounding |
| Operating Temperature Range | 20°C to 30°C (68°F to 86°F) recommended press ambient (head internal heater: up to 45°C) |
| Operating Humidity Range | 35% to 65% RH non-condensing |
| Net Physical Weight | Approx. 0.18 kg (head module alone) / Packaged: ~0.42 kg |
Key Features & Operational Advantages
- Active In-Head Recirculation: Continuous ink flow immediately behind the nozzle plate prevents titanium dioxide pigment sedimentation, minimizes air bubble accumulation, and reduces automated purge cycles.
- Industrial Jetting Accuracy: Shear-mode PZT actuators fire droplets along straight flight paths, ensuring sharp edge registration, legible 2-point micro-text, and precise barcode lines on thick substrates.
- Built-In Viscosity Conditioning: Onboard heating elements warm high-viscosity UV-curable inks to optimal firing temperature, ensuring reliable droplet ejection across varying workshop environments.
- Universal Single-SKU Architecture: One part number fits any color, white, clear, or primer station across the 6-head carriage array, simplifying shop spare parts management.
CRITICAL TECHNICAL & SERVICE ADVISORY
1. Platform Incompatibility with Desktop UJF Series: The M017429 / MP-M025074 is engineered specifically for the Mimaki UJF-7151 Plus series. It cannot be used in compact entry-level flatbed models (such as UJF-3042FX/HG, UJF-6042, or UJF-3042MkII / UJF-6042MkII, which use Epson or Ricoh-based heads like M010010 or M005860). Physical mountings, recirculation connections, and electrical pinouts are completely different.
2. Mandatory Head ID Parameter Registration: Following mechanical docking, the technician MUST enter the alphanumeric Head ID value (printed on the barcode label) into the printer's service maintenance parameters (`#PARAMETER` > `HEAD ID`). Operating without registration will lead to incorrect drive voltages, droplet deflection, and premature actuator damage.
3. Circulation Loop Priming & De-aeration Protocol: Always prime the supply and return fluid loops using the printer's service maintenance routine until the lines are entirely free of micro-bubbles. Trapped air inside the internal heating chamber will disrupt meniscus pressure, causing temperature errors and severe nozzle dropouts.
4. Faceplate Maintenance & Capping Care: Never wipe the nozzle plate with dry shop wipes or abrasive materials. Use only genuine lint-free swabs moistened with approved Mimaki UV cleaning liquid (such as F-200 / LF-200 wash). Inspect rubber cap tops and wiper blades regularly to avoid cured UV ink accumulation along the nozzle plate perimeter.
Compatible Models & Systems
| Printer Platform | OEM Part Number | Carriage Configuration & Channels |
|---|---|---|
| Mimaki UJF-7151 Plus | M017429 / MP-M025074 | 6-Head Staggered Flatbed Array (Services CMYK, White, Clear, and Primer) |
| Mimaki UJF-7151 Plus II | M017429 / MP-M025074 | 8-Head Industrial High-Speed Configuration (Color, White, Clear, Primer) |
| Mimaki UJF-3042 / 6042 MkII (Reference) | M010010 / Variant | Incompatible: MkII desktop models use compact Ricoh-based heads |
| Mimaki JFX Series Large Flatbeds (Reference) | M018821 / GEN5 Series | Incompatible: JFX200 / JFX500 series use large-format Ricoh Gen5 printheads |
*Model Differentiation Note: Specifically engineered for Mimaki UJF-7151 Plus series industrial UV flatbeds. Confirm the printer serial specification plate and carriage station assignment prior to unpacking.
Terms, Warranty & Customer Protection
Condition: 100% Brand New, Genuine OEM Factory-Original Mimaki Industrial Replacement Printhead in sealed factory packaging with factory preservation fluid intact.
Manufacturer Warranty: Covered under standard OEM parts limited warranty against material and manufacturing defects out-of-box prior to ink introduction. No warranty applies once active UV ink or flush fluid has been introduced into the micro-fluidic chambers, or if damage results from head strikes, substrate collisions, electrostatic discharge, or improper cable seating.
Return Policy: Precision industrial electronic component. Unopened, factory-sealed boxes with intact tamper-evident seals are eligible for standard commercial return. Once the vacuum seal is broken, protective nozzle tape removed, or the head mounted onto a carriage frame, returns cannot be accepted due to fluid priming, static risk, and electrical contamination hazards.
