100% Genuine OEM Mimaki M007947 solvent-resistant DX5 micro-piezo printhead engineered for Mimaki JV33, JV5, CJV30, and TS3 series wide-format printers.
OEM Wide-Format Component

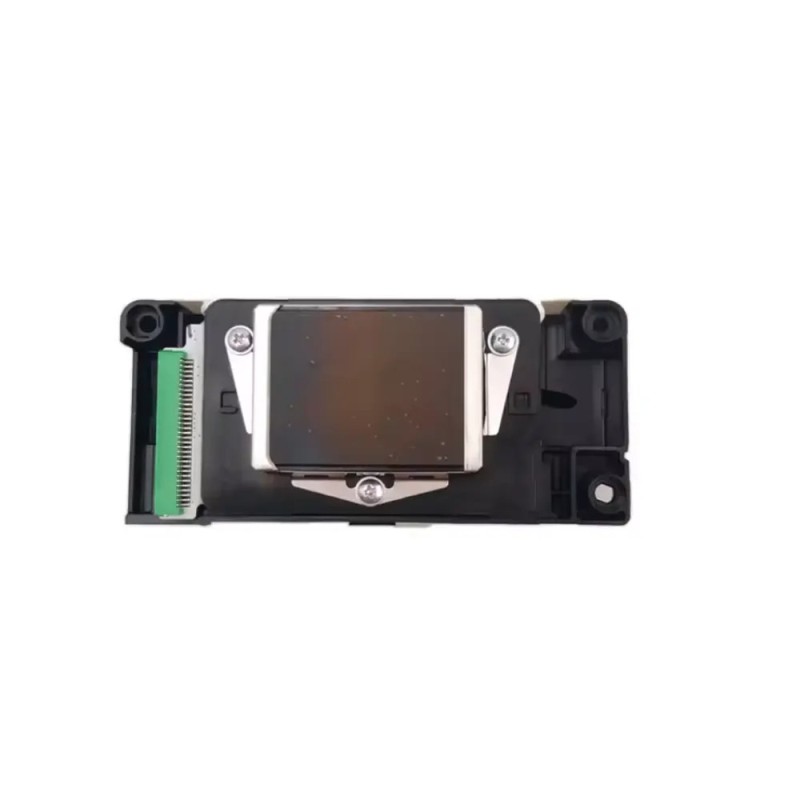

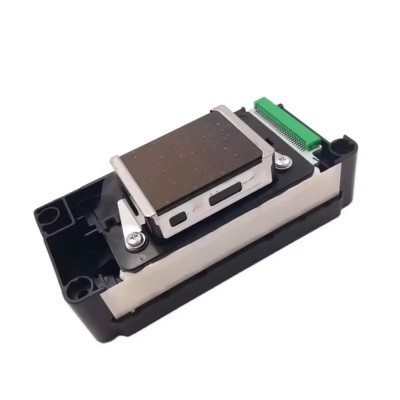

Original Mimaki JV33 / JV5 DX5 Printhead (M007947)
OEM Part Number: M007947 / MP-M007947 | Micro-Piezo Variable Sized Droplet Technology (VSDT) Solvent / Sublimation Printhead
Mimaki DX5 Solvent Engine Architecture Notice
The Mimaki M007947 DX5 Printhead is the genuine OEM micro-piezoelectric drop-on-demand replacement printhead engineered for Mimaki’s wide-format solvent and dye-sublimation printer platforms (including the JV33, CJV30, JV5, JV34, and TPC-1000 series). Featuring 8 independent fluidic channels and solvent-resistant internal manifold adhesives, this head is designed for high-density drop placement with Mimaki SS21, ES3, and Sb53/Sb54 inks.
Product Overview
The Original Mimaki JV33 / JV5 DX5 Printhead (M007947) is a factory-original multi-channel micro-piezo printhead built for commercial signage, vehicle wraps, fine-art graphics, and high-speed textile transfer production. Configured with 8 independent nozzle lines (180 nozzles per line, totaling 1,440 active nozzles), it delivers native resolution up to 1440 DPI and supports multiple color arrangements including dual CMYK, 6-color (CMYKLcLm), and 8-color configurations (with White, Clear, or Orange).
Equipped with advanced Variable Sized Droplet Technology (VSDT), the M007947 fires calibrated micro-droplets as fine as 1.5 picoliters for smooth skin tones and subtle gradients, expanding up to 21 picoliters to lay down solid fields and dense banners rapidly. The internal fluid chamber is chemically passivated to withstand aggressive solvent carriers and high-viscosity dispersed dyes, maintaining uniform droplet trajectory and high edge definition across continuous production cycles.
Part Information
| Product Name | Original Mimaki JV33 / JV5 DX5 Printhead |
| OEM Manufacturer | Mimaki Engineering Co., Ltd. (Nagano, Japan) |
| Primary OEM Part Numbers | M007947 / MP-M007947 |
| Associated Assembly Part Number | PPHMIJV5002 (With Head Memory Board included) |
| Component Classification | Industrial Micro-Piezoelectric Drop-on-Demand (DoD) Printhead Module |
| Color Configuration Versatility | 8 Channels: 2 × CMYK, CMYKLcLm, or CMYK + Special Inks (White / Clear / Metallic) |
| Ink Compatibility Pairing | Mimaki SS21, ES3 (Eco-Solvent), Mild Solvent, Sb53 / Sb54 (Dye Sublimation) |
| Country of Origin | Japan (Genuine Factory Original Sealed Package) |
Technical Specifications
| Printhead Technology | Micro-Piezo Electric Drop-on-Demand (Epson DX5 Platform Base) |
| Active Addressable Nozzles | 1,440 nozzles total (8 parallel lines × 180 nozzles per line) |
| Native Output Resolution | 1440 DPI native optical resolution |
| Droplet Size Spectrum | Variable 1.5 picoliters (min) to 21 picoliters (max) |
| Maximum Firing Frequency | 8.0 kHz per channel |
| Fluid Interface Porting | 8 top-mounted fluid adapter nipples matched to Mimaki DX5 damper manifolds |
| Electrical Interface | Dual high-density 31-pin gold flat flexible cable (FFC) connector sockets |
| Operating Temperature Range | 20°C to 35°C (68°F to 95°F) recommended operational ambient |
| Operating Humidity Range | 35% to 65% RH non-condensing |
| Net Physical Weight | Approx. 0.15 kg (head module alone) / Packaged: ~0.35 kg |
Key Features & Operational Advantages
- Variable Sized Droplet Technology (VSDT): Precisely modulates droplet volumes between 1.5 pl and 21 pl, delivering smooth tones, crisp 4-point micro-text, and dense solid fills without graininess.
- 8-Channel Integrated Manifold: Allows a single printhead to drive a complete 4-color dual-CMYK setup or complex multi-channel ink sets (6-color + White/Metallic), maximizing space efficiency on the carriage.
- Genuine Mimaki Solvent Passivation: Factory-bonded using solvent-resistant epoxy adhesives that resist swelling and delamination when running aggressive eco-solvent and mild solvent inks.
- Factory Calibrated Head ID: Delivered with an alphanumeric Head ID label for input into the printer's service parameters, synchronizing firing voltages and pulse timings across all channels.
CRITICAL TECHNICAL & SERVICE ADVISORY
1. Head Memory Board Transfer Notice: The M007947 printhead package includes the factory Head ID code but does not include a new green Head Memory Board PCB. Technicians should carefully unclip and transfer the existing Head Memory Board from the old printhead onto the new unit, or select part number PPHMIJV5002 if a complete assembly with a pre-mounted board is required.
2. Mandatory Head Cable (FFC) Replacement: Always install brand-new 31-pin flat flexible head cables concurrently with the printhead. Worn or corroded cable ends frequently cause short circuits that damage the main slider PCB and blow onboard motherboard transistors/fuses.
3. Head ID Input & Voltage Alignment: After physical installation, input the factory alphanumeric Head ID printed on the label into the printer’s Service Mode menu (`[#] PARAMETER` > `HEAD ID`). Running a printhead without its specific voltage calibration will lead to drop deflection, ink misting, or premature piezo fatigue.
4. Damper & Cap Top Servicing: Never run dry suction or forceful syringe flushes on the nozzle plate. Always install new ink dampers and inspect the capping station rubber seal and wiper blade before introducing ink to maintain proper vacuum sealing during cleaning cycles.
Compatible Models & Systems
| Printer Platform | OEM Part Number | Supported Machine Configuration |
|---|---|---|
| Mimaki JV33 Series | M007947 | JV33-130, JV33-160, JV33-260, JV33-130BS, JV33-160BS, JV33-260BS |
| Mimaki CJV30 Series | M007947 | CJV30-60, CJV30-100, CJV30-130, CJV30-160 (including all BS models) |
| Mimaki JV5 Series | M007947 | JV5-130S, JV5-160S, JV5-260S, JV5-320S, JV5-320DS (uses 4 × M007947 heads) |
| Mimaki JV34 / TPC Series | M007947 | JV34-260, TPC-1000 Textile / Sublimation Printer |
| Industrial Textile Platforms | M007947 | Aleph TXB 160S and compatible OEM platforms using Mimaki DX5 carriage boards |
*Model Differentiation Note: Specifically engineered for Mimaki DX5 carriage architectures. Not interchangeable with DX7-based printers (such as JV150 / JV300, which use part number M015307).
Terms, Warranty & Customer Protection
Condition: 100% Brand New, Genuine OEM Factory-Original Mimaki Replacement Printhead in sealed factory packaging with shipping preservation fluid intact.
Manufacturer Warranty: Covered under standard OEM parts limited warranty against material and manufacturing defects out-of-box prior to ink introduction. No warranty applies once active solvent ink, flush fluid, or cleaning solvent has been introduced into the micro-fluidic chambers, or if damage results from head strikes, platen rubs, ungrounded static discharge, or improper cable seating.
Return Policy: Precision electro-mechanical component. Unopened, factory-sealed boxes with intact tamper-evident seals are eligible for standard commercial return. Once the vacuum seal is broken, protective nozzle tape removed, or the head mounted onto a carriage frame, returns cannot be accepted due to fluid priming, static risk, and electrical contamination hazards.
