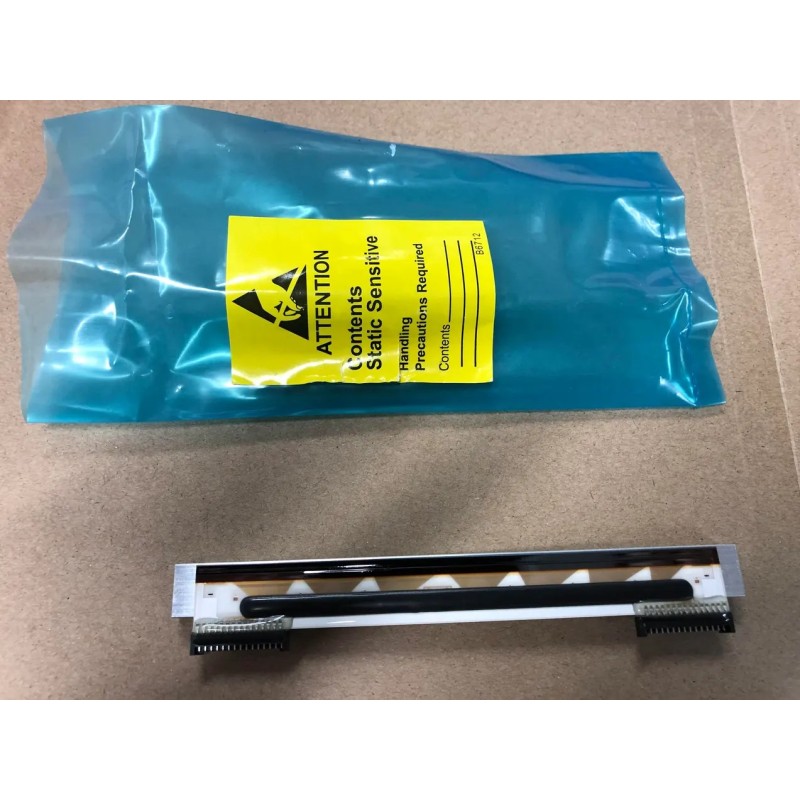

Zebra GK420t / GX420t / GC420t 203 DPI Thermal Printhead Kit (OEM P/N: 105934-038)
- Write a review
$75.00
$43.50
Save 42%
Genuine OEM Zebra 203 DPI thermal transfer printhead kit for G-Series GK420t, GX420t, and GC420t desktop printers. Delivers reliable 4.09-inch active width printing for logistics, healthcare, and retail labeling. Pre-mounted factory replacement assembly.
GENUINE OEM REPLACEMENT • PRECISION THERMAL HARDWARE
Zebra GK420t / GX420t / GC420t 203 DPI Thermal Printhead Kit (OEM P/N: 105934-038) – Genuine OEM Replacement
OEM Part Number: 105934-038 • Core Engine: Thermal Transfer / Direct Thermal Dual Thin-Film Micro-Resistor Array • Target Platform: Zebra G-Series & C-Series Desktop Thermal Transfer (GK420t, GX420t, GC420t)
The Zebra GK420t / GX420t / GC420t 203 DPI Thermal Printhead Kit (OEM P/N: 105934-038) is an authentic, factory-calibrated thermal imaging replacement assembly engineered specifically for Zebra G-Series and C-Series desktop printers equipped with ribbon carriage mechanisms. Fabricated under stringent cleanroom semiconductor protocols by Zebra Technologies Corporation, this printhead assembly delivers uniform energy distribution and consistent dot replication across demanding industrial, logistics, manufacturing, asset management, and pharmaceutical labeling workflows. Engineered to withstand continuous multi-shift production, the component demonstrates superior physical endurance against abrasive media friction and repetitive high-heat transfer cycling.
At its core, the printing assembly features an advanced ceramic line array containing 832 active micro-resistor heating dots spread across a nominal 4.09-inch (104.0 mm) active print width at a native linear density of 203 dots per inch (8 dots/mm, 0.125 mm dot pitch). Integrated high-frequency onboard driver ICs and shift registers coordinate microsecond strobe pulse activation, supporting linear output velocities reaching up to 5 inches per second (127 mm/s) on GK420t/GC420t models and up to 6 inches per second (152 mm/s) on GX420t architectures. The micro-resistor burn line is protected by a tough silicon nitride (Si3N4) anti-abrasion glaze layer, while an onboard negative temperature coefficient (NTC) thermistor provides real-time thermal feedback to ensure uniform optical print density and prevent thermal runaway.
The sub-assembly is pre-mounted to a specialized die-cast aluminum heatsink carriage bracket measuring approximately 115 mm × 31 mm × 26 mm with a dry net weight of approximately 68 grams, specifically contoured with side pivot mounts and spring-alignment seats required for clearance within the printer's ribbon drive carriage. Electrical connection to the main logic board is established via a single high-integrity gold-plated Flexible Flat Cable (FFC) header interface. Each 105934-038 kit is supplied as a 100% genuine factory-sealed OEM unit packaged in certified electrostatic discharge (ESD) protective barrier shielding, preserving semiconductor health and surface cleanliness prior to commissioning.
Critical Thermal Transfer ("t") vs. Direct Thermal ("d") Mechanical Distinction: Prior to procurement, verify the model suffix on your printer's regulatory serial plate. Part number 105934-038 is engineered exclusively for Thermal Transfer ("t") models (GK420t, GX420t, GC420t) featuring ribbon spindles. It cannot be installed into Direct Thermal ("d") units (GK420d, GX420d, GC420d), which require part number 105934-037 due to distinctly different heatsink bracket geometries, mounting lugs, and latching spring profiles.
ENGINEERING REFERENCE
Identification Notes & Core Distinction
| Reference Parameter | Engineering Specification & Description |
|---|---|
| Current Official OEM P/N | 105934-038 (Zebra OEM Global Standard Kit Part Number). |
| Model Architecture Target | Dedicated solely to Thermal Transfer ("t") desktop chassis configured with thermal transfer ribbon take-up and feed assemblies. |
| Direct Thermal Counterpart | 105934-037 (for GK420d / GX420d / GC420d). Incompatible due to differing top-cover chassis latching tabs and non-ribbon heatsink casting. |
| Resolution Disqualification | Strictly incompatible with 300 DPI units (GX430t – OEM P/N: 105934-039). The micro-resistor dot pitch, driver clock timing, and mechanical platen gearing are completely distinct. |
Notice: This printhead is dedicated solely to 4-inch G-Series and GC-Series Thermal Transfer desktop units. Do not attempt retrofit installations into older TLP2844 / TLP3842 series or next-generation ZD-Series printers (ZD420t, ZD421t, ZD620t, ZD621t) without verified part number matching.
Part Information Matrix
| Product Official Designation | Zebra GK420t / GX420t / GC420t 203 DPI Thermal Replacement Printhead Kit |
| OEM Manufacturer & Assembly Fab | Zebra Technologies Corporation (Specialty Printing Solutions Operations) |
| Exact Model Identification | Zebra G-Series 4-inch 203 DPI Thermal Transfer Sub-Assembly |
| OEM Part Number (P/N) | 105934-038 |
| Known Superseded Aliases | 105934-038-A, ZEB-105934-038, KIT PRINTHEAD 203DPI THERMAL TRANSFER |
| Print Technology Compatibility | Thermal Transfer (Wax, Wax-Resin, Resin Ribbons) & Direct Thermal (Chemically Treated Media) |
| Product Lifecycle Status | Active OEM Production & Tier-1 Spares Maintenance Support |
| Physical Condition | • 100% Brand New, Factory Sealed in Original OEM Anti-Static Moisture Barrier Packaging |
| Country of Origin | Japan / China (Certified Zebra Semiconductor & Sub-assembly Operations) |
| Primary Industrial Application | Durable Asset Tagging, Polyimide Circuit Identification, Pharmaceutical Prescription Barcoding, Industrial Compliance Labeling |
Technical Specifications Matrix
| Engineering Metric | Certified Parameter Value |
|---|---|
| Native Print Resolution | 203 DPI (8 dots per mm / 0.125 mm nominal dot pitch) |
| Total Active Heating Dot Count | 832 individual micro-resistor elements aligned in a contiguous linear array |
| Maximum Active Print Width | 4.09 inches (104.0 mm) continuous transverse imaging line |
| Maximum Rated Print Speed | Up to 5 ips (127 mm/s) on GK420t/GC420t; up to 6 ips (152 mm/s) on GX420t |
| Nominal Dot Resistance | Standard calibrated factory rank ~650 – 780 Ω (stamped on barcode rank label) |
| Protective Overcoat Glaze | High-durability Silicon Nitride (Si3N4) anti-abrasion passivation layer |
| Operating Thermal Range | 5°C to 40°C (40°F to 105°F) operating environment; monitored via onboard NTC thermistor |
| Logic & Strobe Drive Voltage | +5.0V DC logic drive rail; +24.0V DC ±5% nominal head strobe power rail |
| Dimensions & Physical Mass | Approx. 115 mm × 31 mm × 26 mm | Dry assembly net weight: ~68 g |
| Electrical Interconnect Interface | Single gold-plated high-density Flexible Flat Cable (FFC) connector header |
FIELD ADVISORY
Technical Precision & Installation Warning
ATTENTION: Thermal transfer ceramic heating arrays are highly sensitive, electrostatic-sensitive micro-devices. Installation must strictly be executed by qualified service technicians or trained hardware personnel in accordance with Zebra G-Series desktop maintenance protocols.
- ESD Protection: Substrate-level shift registers and switching MOSFETs are highly vulnerable to static discharge. Technicians must touch an earthed chassis ground or utilize a grounded anti-static wrist strap prior to unpacking the sealed anti-static bag or touching the electrical FFC contacts.
- Power Isolation & Absolute Prohibition of Hot-Swapping: Turn off the printer power switch and unplug the 24V external DC power supply cable before attempting printhead replacement. Disconnecting or seating the FFC ribbon cable while live current is supplied will arc across the 24V strobe pins, destroying mainboard driver transistors and permanently bridging printhead channels.
- Cable / FFC Inspection: Carefully inspect the flexible flat cable contacts for bent fingers, lint, or adhesive residue. Seat the cable squarely into the connector housing and lock the retaining latch fully; angled insertion can cross 24V power traces into 5V logic lines, resulting in instantaneous destruction of the logic board.
- Ink / Fluid Chemical Compatibility: Use only 99.7% electronic-grade Isopropyl Alcohol (IPA) with lint-free foam swabs to clean the heating line. Never use aromatic solvents, acetone, chlorine-based cleaners, or metallic tools/scrapers to remove baked ribbon wax or chemical residue; scratching the protective glaze permanently destroys dot line continuity.
- Handling Factory-Sealed Unit: Never touch the mirror-finished ceramic burn line with bare fingertips. Natural epidermal oils, acids, and skin salts will bond to the resistive glass coating, charring under operational heat and causing localized dot burnout.
- Part Number & Spring Calibration: Ensure the factory retention springs and pivot posts seat symmetrically within the thermal transfer ribbon mechanism carriage. Perform a manual feed calibration and verify printhead darkness settings via Zebra Setup Utilities to ensure nominal energy delivery and avoid over-driving the heating elements.
Target Equipment Compatibility Matrix
Zebra G-Series Thermal Transfer Desktop (203 DPI)
- Zebra GK420t (Model Code: GK42-1025xx-xxx / GK42-1022xx-xxx)
- Zebra GX420t (Model Code: GX42-1025xx-xxx / GX42-1024xx-xxx)
- Zebra ZPS Thermal Transfer Desktop Units
Zebra C-Series Thermal Transfer Desktop (203 DPI)
- Zebra GC420t (Model Code: GC420-1005xx-xxx)
- Thermal Transfer Desktop Spares Drop-In Units
Incompatible Equipment Alert (Do Not Procure for the Following Platforms):
This assembly is strictly NOT COMPATIBLE with Direct Thermal ("d") models (GK420d, GX420d, GC420d – requires P/N 105934-037), 300 DPI models (GX430t – requires P/N 105934-039), legacy 2844 series (TLP2844 / LP2844), nor newer generation Zebra ZD series printers (ZD420, ZD421, ZD620, ZD621). Always inspect the model code badge on the bottom of the printer chassis prior to placing orders.
Terms, Warranty & Customer Protection Policy
1. Pre-Installation Guarantee: Every printhead kit is guaranteed to be 100% genuine Zebra OEM, brand new, factory sealed in original anti-static moisture barrier packaging, and completely free of missing dots, scratches, or electrical opens/shorts upon arrival.
2. Store Warranty Policy: We provide a 30 working-day store warranty against dead-on-arrival (DOA) electrical defects from the recorded delivery date. Warranty claims require an unedited, continuous video recording showing unboxing of the intact factory seal and full physical installation by a qualified technician, including cable connection verification and self-test config printout.
3. Final Sale Conditions: Due to the sensitive semiconductor characteristics of micro-resistor thermal heating arrays, all sales are strictly final once the anti-static vacuum seal is breached or the printhead is mounted to the printer chassis. Scratched protective glaze, physical chipping from sharp tools or staples, reverse voltage destruction, heat burnout from extreme darkness settings, or ribbon wrinkle adhesive contamination are explicitly excluded from warranty coverage.
