Zebra ZT420 / ZT421 203 DPI Wide-Format Thermal Printhead Kit (OEM P/N: P1058930-012) – Genuine OEM Replacement

The Zebra ZT420 / ZT421 203 DPI Wide-Format Thermal Printhead Kit (OEM P/N: P1058930-012) is a heavy-duty, factory-calibrated electro-thermal imaging transducer engineered specifically for Zebra ZT400-Series 6-inch wide-web industrial label printers. Manufactured under strict ISO semiconductor cleanroom protocols by Zebra Technologies Corporation, this printhead assembly delivers uniform micro-element heat transfer, razor-sharp edge contrast, and superior barcode scannability across extra-wide media formats. Purpose-built for non-stop industrial manufacturing, pallet master tracking, chemical GHS 55-gallon drum labeling, and automotive supply chain compliance, the unit provides exceptional physical endurance across demanding continuous multi-shift production schedules.

At its structural core, the assembly incorporates an extended 6.6-inch (168.0 mm) transverse ceramic substrate populated with 1,344 active micro-resistor heating dots calibrated at an intrinsic spatial resolution of 203 dots per inch (8 dots/mm, nominal 0.125 mm dot pitch). Integrated high-speed onboard shift registers and power driver ICs modulate energy pulses under microsecond pulse-width modulation (PWM) control, sustaining industrial linear feed velocities reaching up to 12.0 inches per second (305 mm/sec). To guard against physical wear from wide synthetic liners and back-coating ribbon friction, the active heating line is fortified with an advanced diamond-like carbon (DLC) and silicon nitride (Si3N4) anti-abrasion protective overcoat glaze, while an onboard negative temperature coefficient (NTC) thermistor network maintains continuous closed-loop thermal compensation across wide printing webs.

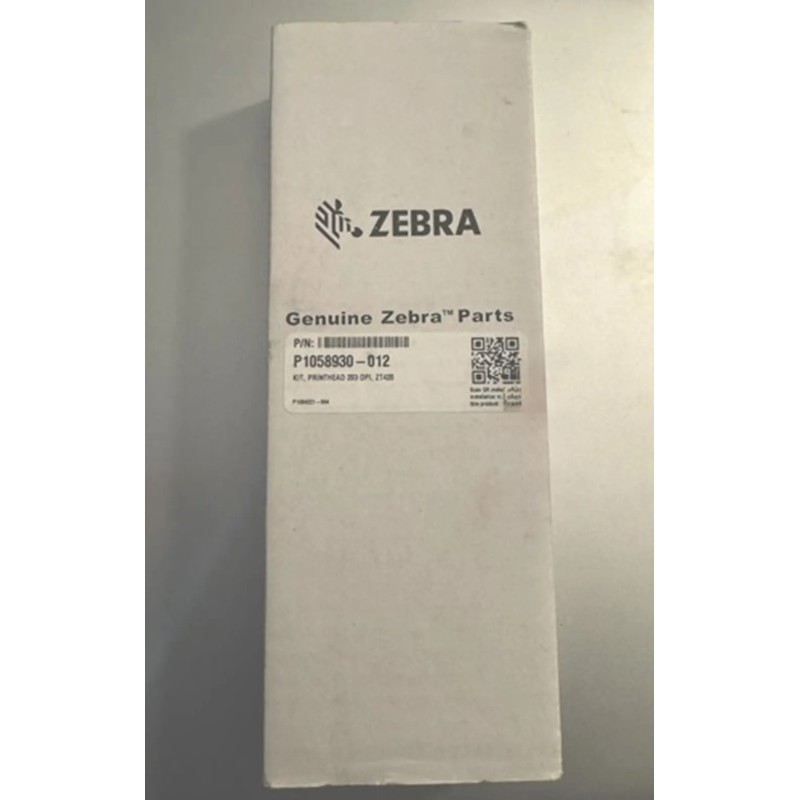

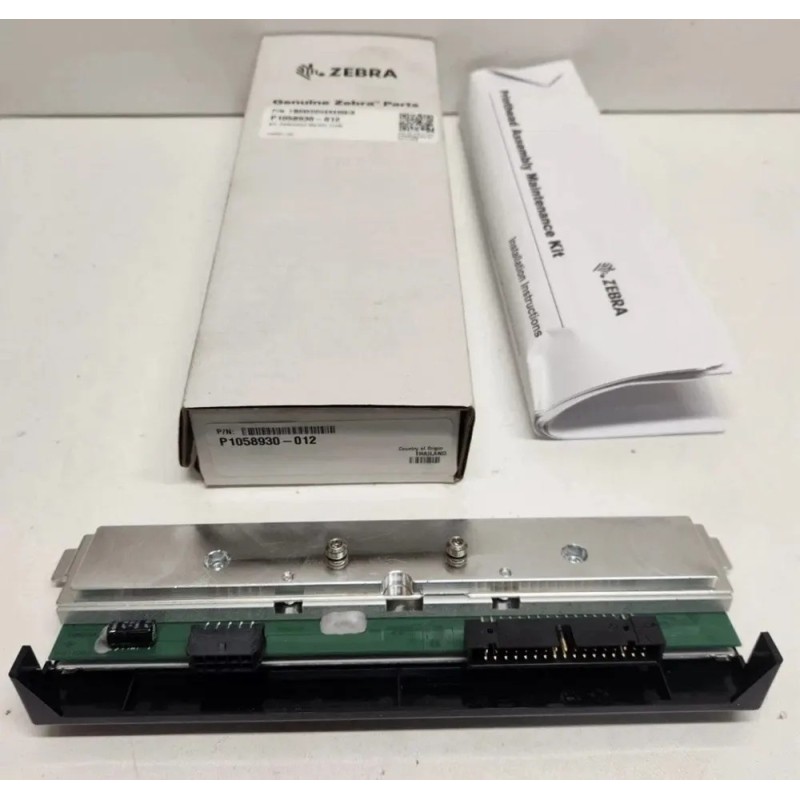

Pre-assembled directly onto a rigid, high-thermal-conductivity aluminum heatsink carriage frame measuring approximately 202 mm × 36 mm × 28 mm with an unprimed dry net weight of approximately 185 grams, the module features dual self-aligning toggle pivot notches and ground leads engineered specifically for the ZT420/ZT421 dual-toggle carriage mechanism. Electrical communication and 24V strobe currents are interfaced via heavy-duty gold-plated multi-pin PCB header sockets, minimizing electrical resistance and transient voltage drop across high-current rails. Each P1058930-012 replacement kit is shipped as a 100% genuine factory-sealed OEM unit packaged inside certified moisture-vapor and electrostatic discharge (ESD) protective shielding to preserve semiconductor integrity prior to on-site commissioning.

Identification Notes & Core Distinction

Notice: This printhead is dedicated solely to 6-inch wide ZT420 and ZT421 industrial chassis operating at 203 DPI. Do not attempt retrofit installations into 4-inch wide ZT410/ZT411 units, 170Xi4 industrial printers, or 220Xi4 wide-web systems without matching OEM chassis specifications.

Part Information Matrix

Technical Specifications Matrix

Technical Precision & Installation Warning

ATTENTION: Wide-format 6-inch thermal printheads operate under significant mechanical platen tension and distribute high strobe current across extended ceramic arrays. Replacement and mechanical alignment must strictly be conducted by certified industrial hardware technicians following official Zebra ZT400-Series depot service protocols.

• ESD Protection: Dense onboard shift registers and switching MOSFETs distributed along the 6.6-inch array are exceptionally vulnerable to dielectric failure. Field engineers must wear an active, grounded anti-static wrist strap clamped to the chassis frame before opening the static barrier bag or handling the harness headers.
• Power Isolation & Absolute Prohibition of Hot-Swapping: Turn off the main AC power switch and disconnect the power cord, waiting a minimum of 60 seconds for power supply reservoir capacitors to bleed down before unplugging printhead harnesses. Hot-swapping cables while 24V bus potential is live will cause destructive electrical arcing, permanently destroying driver ICs and main logic board circuitry.
• Cable / Harness Inspection: Thoroughly inspect both heavy-duty wiring harnesses for bent contact pins, insulation pinching, or carbon build-up. Ensure both multi-pin connectors are fully seated parallel into the PCB sockets; skewed insertion will cross 24V strobe rails directly into 5V logic lines, resulting in instantaneous destruction of the internal controller board.
• Glaze Line Maintenance & Chemical Cleaning: Clean the micro-resistor heating line exclusively with pure 99.7% electronic-grade Isopropyl Alcohol (IPA) using lint-free foam swabs. Never use metallic tools, razor scrapers, abrasive pads, or chlorinated chemical solvents to remove baked-on ribbon residue; scratching the protective DLC glaze permanently severs dot continuity, resulting in continuous white void lines.
• Handling Factory-Sealed Unit: Never touch the mirror-finished ceramic burn line with bare fingertips. Natural epidermal oils, acids, and skin salts will bond to the resistive glass glaze, charring under sustained operational heat and causing premature dot burnout.
• Dual-Toggle Pressure & Resistance Calibration: On 6-inch carriages, unbalanced toggle pressure will cause severe ribbon wrinkling and uneven print density. Ensure both outer and inner toggle blocks are balanced symmetrically across the media width. Following replacement, verify printhead resistance rank calibration and darkness settings via the ZT421 color touch display or ZT420 front panel configuration menu.

Target Equipment Compatibility Matrix
