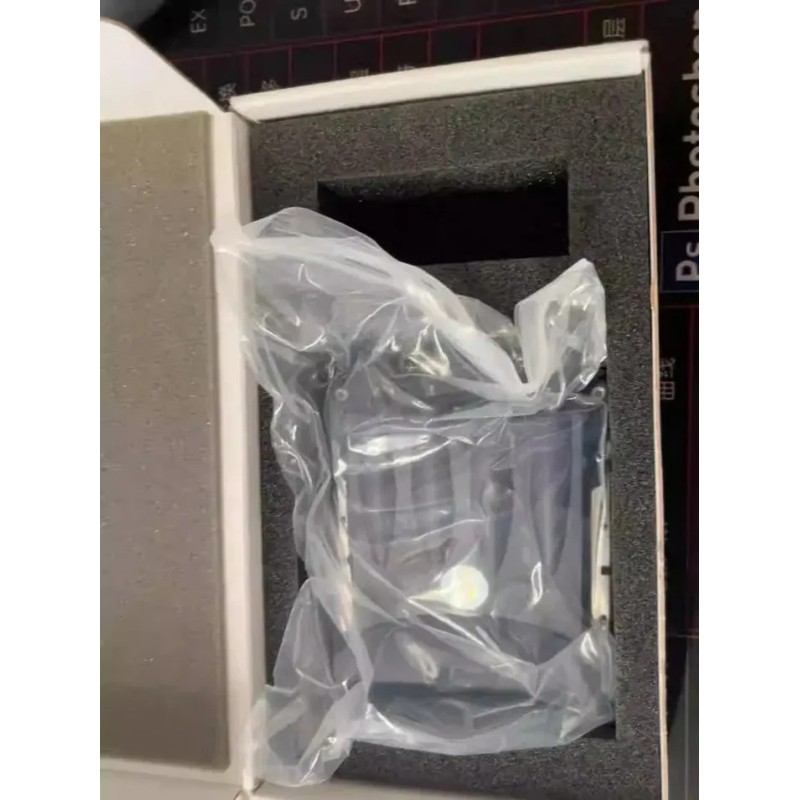

Xaar 500/40 Original OEM Printhead 40pL Binary
- Write a review
$225.00
Genuine Xaar factory-original 500/40 piezo printhead with 500 nozzles delivering 40 pL drops. Robust binary head for high-quality UV wide-format and solvent graphics applications.
Xaar 500/40 Original OEM Printhead – 40 pL Binary
The Xaar 500/40 is a proven industrial piezoelectric inkjet printhead designed for high-quality binary printing applications. With 500 active nozzles at a native resolution of 180 npi and a wide 70.5 mm print swathe, it delivers reliable performance for coding & marking, wide-format graphics, outdoor signage and industrial printing.
This 40 pL binary version offers excellent drop placement accuracy and consistent output. It supports UV, solvent-based and oil-based inks, making it a versatile solution for both indoor and outdoor applications. The printhead can be used in standard or skyscraper (vertical) printing orientations depending on system requirements.
This genuine OEM factory-sealed unit remains a popular choice for OEMs and end-users seeking a robust, cost-effective binary printhead with a wide print swathe and proven reliability.
Part Information
| Product Name | Xaar 500/40 Original OEM Printhead – 40 pL Binary |
| Brand | Xaar plc (United Kingdom) |
| Category | Industrial Piezoelectric Inkjet Printhead – Graphics, Coding & Marking |
| Condition | 100% Genuine Original OEM – Factory Sealed, Brand New, Never Used or Refurbished |
| Country of Origin | United Kingdom |
| Ink / Fluid Type | UV-curable, solvent-based and oil-based inks |
| Drop Mode | Binary – 40 pL fixed drop volume |
| Orientation Support | Standard and skyscraper (vertical) printing modes |
Technical Specifications
| Parameter | Specification |
|---|---|
| Active Nozzles | 500 |
| Print Swathe Width | 70.5 mm |
| Nozzle Density | 180 npi |
| Nozzle Pitch | Approximately 141 µm |
| Native Resolution | 180 dpi |
| Drop Volume | 40 pL (binary) |
| Typical Firing Frequency | Up to approximately 7.2 – 8 kHz (application dependent) |
| Fluid Compatibility | UV-curable, solvent-based and oil-based inks |
| Printing Orientation | Horizontal (standard) and vertical (skyscraper) modes |
| Key Strengths | Wide swathe, proven reliability, versatile ink compatibility |
* Specifications compiled from official and verified technical sources. Actual performance depends on ink chemistry, waveform and system integration.
Xaar 500 Series Overview
| Model | Drop Volume | Mode | Primary Application Focus |
|---|---|---|---|
| Xaar 500/40 ★ | 40 pL | Binary | High-quality UV & solvent graphics, coding & marking |
| Xaar 500/80 | 80 pL | Binary | Higher coverage – grand-format & outdoor coding |
★ Highlighted row indicates the current product. The Xaar 500/40 is the finer-drop binary variant preferred for higher quality graphics applications.
Technical Precision & Operational Advisory
CRITICAL SAFETY & HANDLING WARNINGS
- ESD Protection: The printhead is sensitive to electrostatic discharge. Always use a properly grounded wrist strap, anti-static work mat, and maintain relative humidity between 40–60% RH. Never touch the electrical connectors or nozzle plate without ESD protection.
- Power Isolation & Sequencing: Ensure correct power sequencing is followed according to Xaar guidelines. Use only approved driver electronics and power supplies. Incorrect voltage application or hot-plugging can permanently damage the actuator.
- Meniscus Pressure / Sub-Atmospheric Control: Maintain stable negative (sub-atmospheric) meniscus pressure at all times. Incorrect pressure settings can cause nozzle flooding, air ingestion or deprime. Always follow the pressure parameters recommended for the specific ink in use.
- Ink System Compatibility: Use only approved UV, solvent or oil-based inks. Ensure the ink system is clean, properly filtered and free of contamination before installation.
Failure to observe these operational guidelines may result in irreversible damage that is not covered under warranty. Installation and commissioning should only be performed by trained technicians experienced with Xaar 500 series systems.
Compatible Models & Systems
The Xaar 500/40 is widely used in a variety of industrial and wide-format systems, including:
- Wide-format and grand-format UV / solvent graphics printers
- Coding & marking systems for secondary packaging
- Flatbed and outdoor signage printers
- Systems from manufacturers such as Grapo, Teckwin, Zund, HP Scitex, JHF Vista, GCC and similar platforms supporting the Xaar 500 interface
Full electrical and mechanical compatibility must be verified against the specific machine model, firmware and waveform set before installation. Contact technical support with your machine make and model for confirmation.
Terms, Warranty & Customer Protection
| Pre-Installation Guarantee | Every unit is guaranteed 100% genuine, brand-new, and factory-sealed. The product is warranted free from manufacturing defects when received with the original factory seal intact and prior to any installation or fluid introduction. |
| Video Unboxing Requirement | Any claim for damage, shortage, or non-conformity must be supported by a continuous, unedited video recording of the unboxing process, starting from the outer packaging and clearly showing the serial number / barcode. Claims submitted without a complete unboxing video will not be processed. |
| Non-Returnable Policy | Once the factory seal is broken, the printhead is installed, or any fluid (ink) is introduced into the device, the product becomes strictly non-returnable and non-refundable. This policy applies to all industrial piezoelectric printheads due to their extreme sensitivity to contamination and operational history. |
| Storage & Handling | Store in the original sealed packaging at 10–30 °C and 40–60% relative humidity. Protect from strong magnetic fields, direct sunlight, and electrostatic sources. Do not open the seal until the printhead is ready for immediate installation. |
100% Genuine Xaar OEM Product – Factory Sealed – Authenticity Guaranteed
