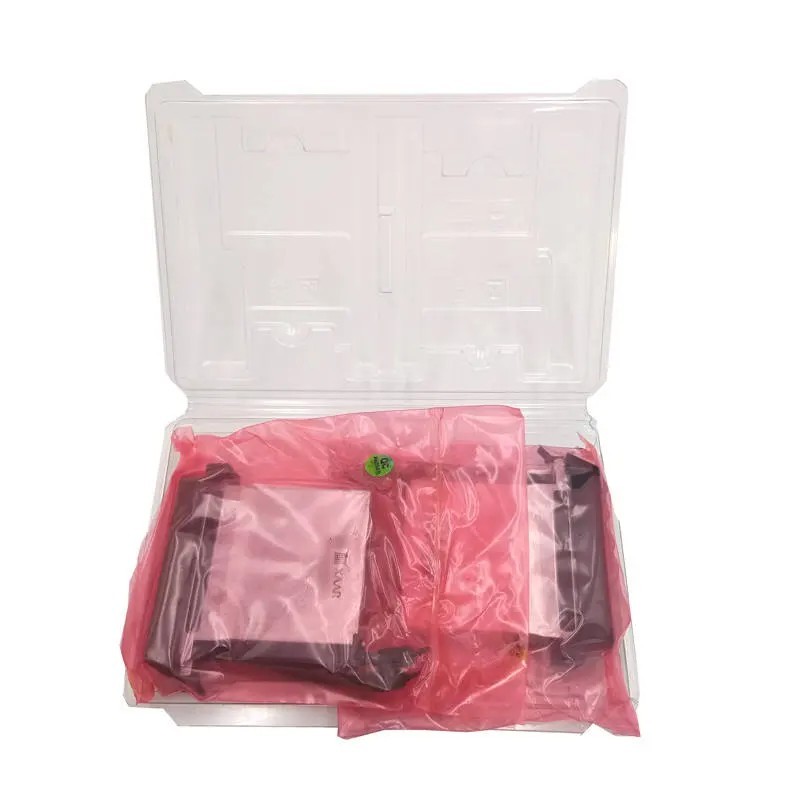

Xaar 502 GS15 UVR Printhead UV-Curable Recirculation TF Technology

Xaar 502 GS15 UVR Printhead UV-Curable Recirculation TF Technology

Write a review

$950.00

Genuine original Xaar 502 GS15 UVR piezoelectric printhead with TF Technology recirculation optimised for UV-curable inks delivering maximum reliability in industrial UV graphics coding and packaging production.

Quantity

Add to wishlist

Secure Payment

Secure bank transfer

Worldwide Delivery

Worldwide tracked shipping

Warranty & Returns

30-day warranty & returns

Guarantee safe & secure checkout

Product Overview

The Xaar 502 GS15 UVR (UV-Curable Recirculation) printhead combines PrecisionPlus actuator architecture with full TF Technology ink recirculation for continuous nozzle health, instant priming, and complete prevention of pigment sedimentation when operating with UV-curable inks. Featuring 500 active nozzles at 180 npi native density across a 70.5 mm print swathe, it supports greyscale drop volumes from 15 to 75 pL with up to 6 grey levels. Enhanced by Ultra High Viscosity capability, a WFG nozzle guard, and an integrated in-line filter, it delivers exceptional jetting stability, maximum uptime, and robust chemical resistance for heavy-duty industrial UV printing applications.

Part Information

Brand: Xaar
Product Name: Xaar 502 GS15 UVR Printhead UV-Curable Recirculation TF Technology
Part Number / Reference: XP502 GS15 UVR
Category: Xaar Printheads
Condition: 100% Genuine Original, Brand New, Factory Sealed
Country of Origin: United Kingdom

Technical Specifications

Specification Parameter	Details / Technical Values
Brand Manufacturer	Xaar plc
SKU / Reference	XP502 GS15 UVR
Active Nozzles	500 nozzles (1 row)
Nozzle Geometry & Density	180 npi \| Nozzle Pitch: 141.1 µm \| Nozzle Stagger: 47 µm
Print Swathe Width	70.5 mm
Drop Volume & Velocity	15 to 75 pL (6 Grey Levels) \| Drop Velocity: 5 m/s
Maximum Firing Frequency	Up to 8.0 kHz
Ink Compatibility & Features	UV-curable inks \| Ultra High Viscosity: Yes \| TF Recirculation: Yes
Nozzle Guard & In-line Filter	Nozzle Guard: WFG \| Integrated In-line Filter: Yes
Dimensions & Weight	104 × 17 × 113 mm (W × D × H) \| Dry Weight: 208 g

Xaar 502 Complete Series Variant Matrix

Ink & Recirculation Type	GS8 Variant (8 - 40 pL)	GS15 Variant (15 - 70/75 pL)	GS40 Variant (40 - 200 pL)
Oil-Based Standard (O)	502 GS8 O	502 GS15 O	502 GS40 O
Oil-Based + Recirculation (OR)	502 GS8 OR	502 GS15 OR	502 GS40 OR
Solvent-Based Standard (S)	502 GS8 S	502 GS15 S	502 GS40 S
Solvent-Based + Recirculation (SR)	502 GS8 SR	502 GS15 SR	502 GS40 SR
UV-Curable Standard (UV)	502 GS8 UV	502 GS15 UV	502 GS40 UV
UV-Curable + Recirculation (UVR)	502 GS8 UVR	502 GS15 UVR (This Product)	502 GS40 UVR

Xaar 502 Drop Size Comparison (GS8 vs GS15 vs GS40)

Specification Parameter	GS8 (Fine Precision)	GS15 (Standard Coding & Graphics)	GS40 (High Coverage)
Native Base Drop Size	8 pL	15 pL	40 pL
Greyscale Volume Range	8 pL – 40 pL	15 pL – 75 pL	40 pL – 200 pL
Greyscale Levels	Up to 6 Levels	Up to 6 Levels	Up to 6 Levels
Max Firing Frequency	Up to 8.0 kHz	Up to 8.0 kHz	Up to 7.0 kHz
Print Resolution & Quality	Highest resolution for fine text, 2D barcodes, sharp graphics.	Balanced density and speed for industrial graphics and outer cartons.	High opacity, dark substrate coverage, and heavy ink laydown.
Primary Applications	Small character coding, sharp logos, high-density 1D/2D barcodes, labels.	UV wide-format graphics, recirculating UV coding/marking, packaging lines.	Porous outer cases, heavy UV ink laydown, dark background printing.

Technical Precision & Operational Advisory

Electrostatic Discharge (ESD) Protection: Always wear a grounded ESD wrist strap and work on an ESD-safe surface when handling sensitive electronic parts. Piezo actuators are highly sensitive to static voltage spikes.
Power Isolation Warning: Fully power off the equipment and disconnect main power sources before replacing parts, connecting flexible flat cables (FFC), or handling fluid lines.
Recirculation & UV Ambient Protection: Verify TF Technology recirculation loop pressures and ensure opaque UV-resistant tubing is used. Protect nozzles and fluid lines from ambient UV light to prevent premature curing inside channels.
Professional Installation: It is strongly recommended to have replacement performed by a certified technician following standard technical protocols. Always install brand-new ribbon cables during printhead replacement.

Compatible Models & Systems

Brand / Integration	Compatible Models
Industrial OEM Systems	Industrial OEM systems designed for Xaar 502 GS15 UVR UV-curable recirculating TF Technology series, including UV wide-format graphics printers, coding and marking systems, packaging line printers, and continuous production industrial inkjet platforms utilizing Xaar 502 GS15 UV recirculation architecture.

Terms, Warranty & Customer Protection:

Pre-Installation Guarantee: Guaranteed 100% brand-new, factory-original product. Each item is factory inspected and sealed prior to shipment.
Store Warranty Policy: Covered against manufacturing defects. Warranty claims require an uninterrupted unboxing video and installation video performed by a certified technician.
Final Sale Conditions: Once installed or exposed to operational fluids, items are non-returnable. Please confirm model compatibility prior to opening.

Reference XP502 GS15 UVR

In stock 235 Items
