Product Overview

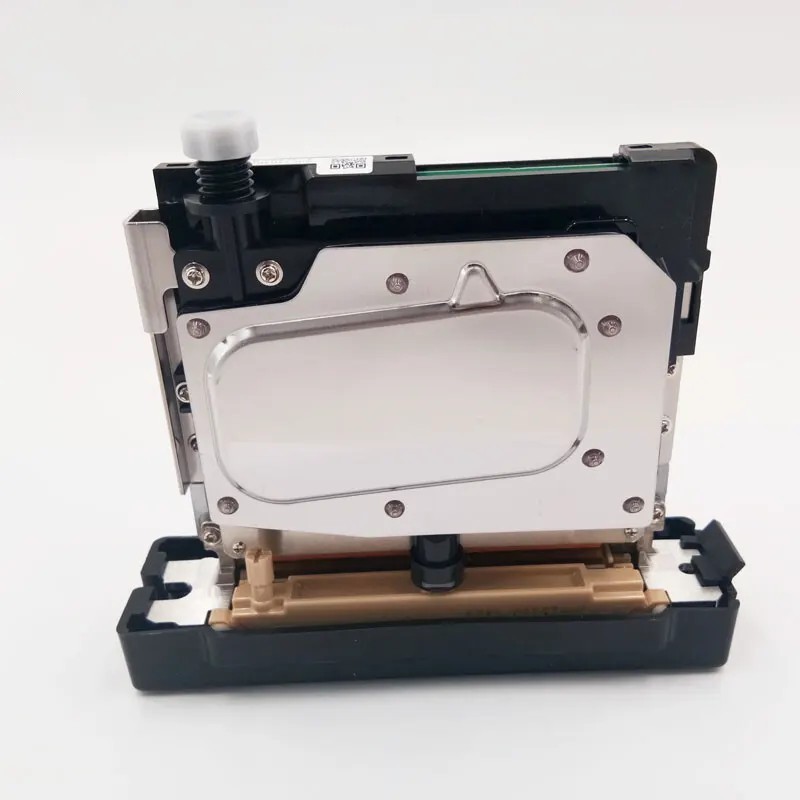

The Seiko Instruments 508GS (Blue Label / Blue Tag) is an authentic original equipment manufacturer (OEM) piezoelectric drop-on-demand (DoD) industrial inkjet printhead engineered specifically for high-surface-tension, aqueous-based ink chemistries. Built for digital textile printing, industrial dye-sublimation transfer, aqueous architectural plotting, and water-based corrugated packaging, this specialized variant is distinguished by its factory-assigned blue rating label. Its internal wetted fluid channels, manifold glues, and dampening seals are formulated to resist aqueous cavitation, corrosion, and biological or surfactant buildup without chemical decomposition.

Featuring an interleaved dual-row configuration of 508 active nozzles across an active 71.8 mm print swath, the 508GS Blue Label delivers multi-drop greyscale performance starting from a native 12 picoliter (pL) droplet size up to 48 pL composite drops across a 180 DPI channel pitch. Integrated internal electric heating elements and a precision thermistor provide tight viscosity management and stable droplet velocity up to 28 kHz. Shielded by a bonded stainless steel nozzle guard plate, it ensures high jet straightness, consistent textile saturation, and high mechanical reliability in round-the-clock industrial production.

Part Information

Technical Specifications

Key Features & Operational Advantages

• Aqueous Fluidic Optimization: Internal fluid paths and dampening structures are chemically passivated to prevent oxidation, bubble nucleation, and binder clogging common to water-based pigment and disperse dye formulations.
• Dynamic 12–48 pL Greyscale Range: Delivers sharp textile vector patterns and fine linework with the 12 pL base drop, while firing multi-drop bursts up to 48 pL to ensure complete fiber penetration and saturated solid fills on apparel and flag fabrics.
• Passivated Stainless Steel Nozzle Plate: Provides structural resistance against contact abrasion during fabric transport, automated wiper passes, and regular water/glycol maintenance flushing.
• Active Thermal Feedback Control: Internal electric heating elements and sensitive thermistors stabilize water-based ink viscosity, preventing drop velocity decay and misting during continuous roll-to-roll production.

Compatible Models & Systems

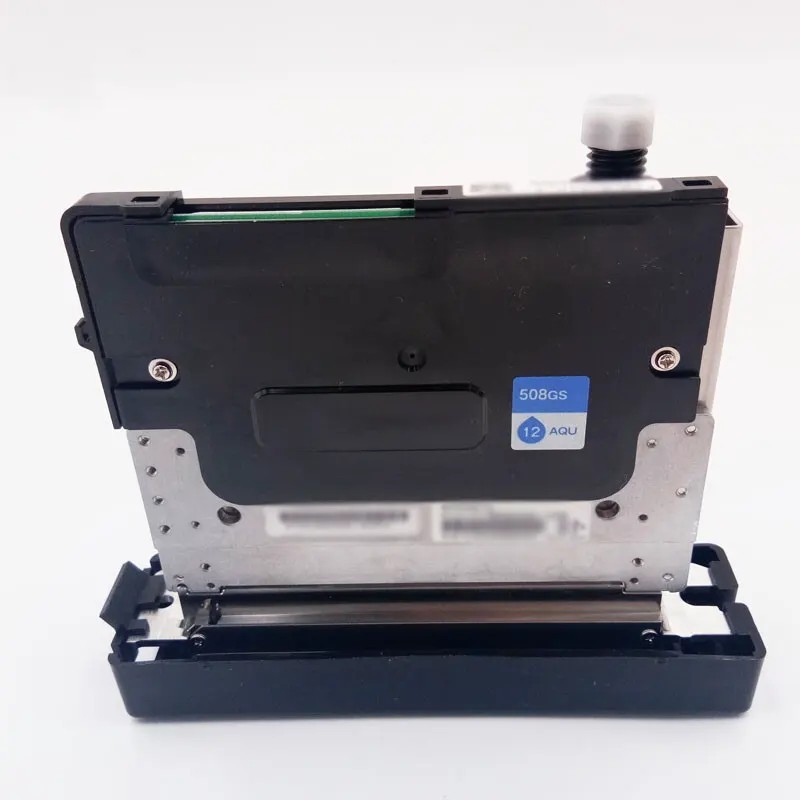

*Model Differentiation Note: This printhead is dedicated strictly to the Seiko 508GS Blue Label (water-based / aqueous) specification. It is NOT physically or chemically interchangeable with the Green Label variant (IRH1513N-UV/Solvent). Always verify the blue serial label on the printhead casing prior to unsealing the component.
