Genuine Honeywell PC45t PC45d 203 DPI Desktop Printhead 50190533-001
- Write a review
$195.00
$113.10
Save 42%
Factory-original 203 DPI thermal printhead kit designed for next-generation Honeywell PC45t and PC45d desktop label printers. Built for dependable daily shipping labels, retail tags, and inventory markers at speeds up to 8 ips. Drop-in OEM fitment guaranteed.
GENUINE OEM REPLACEMENT • PRECISION THERMAL HARDWARE

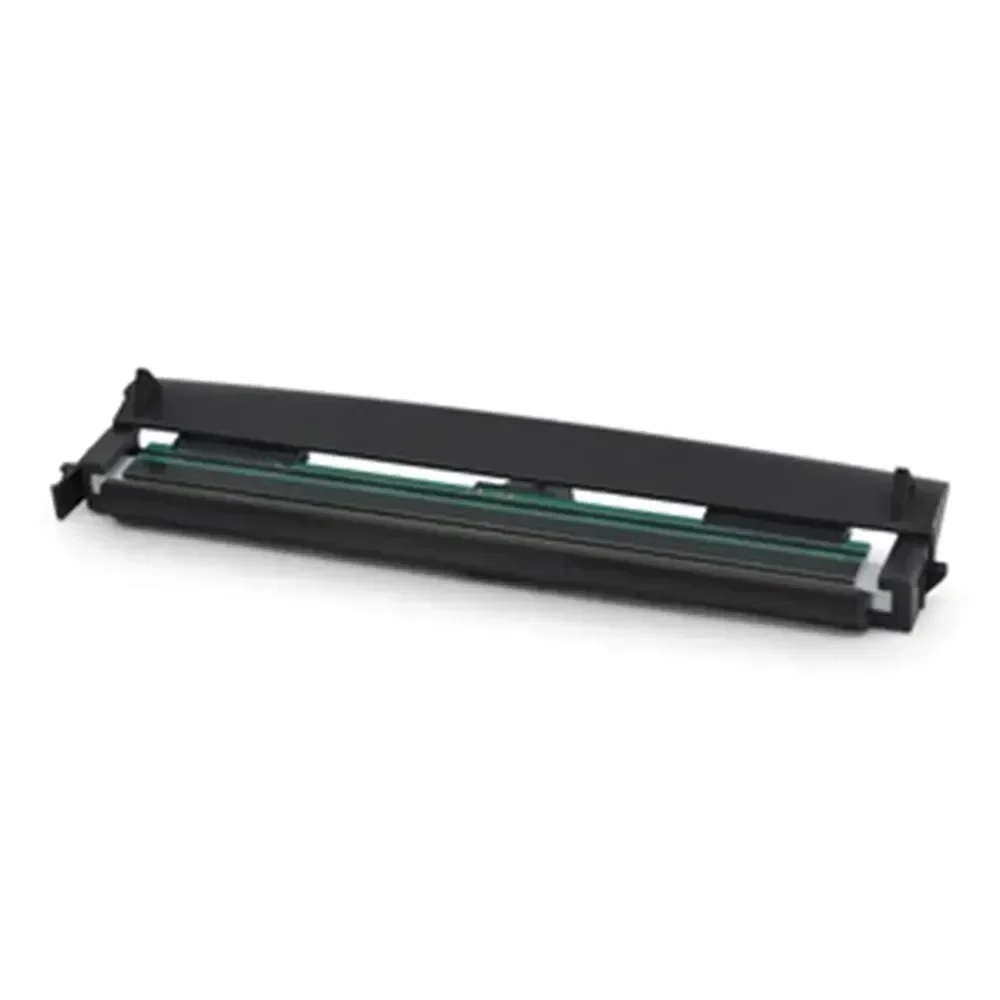

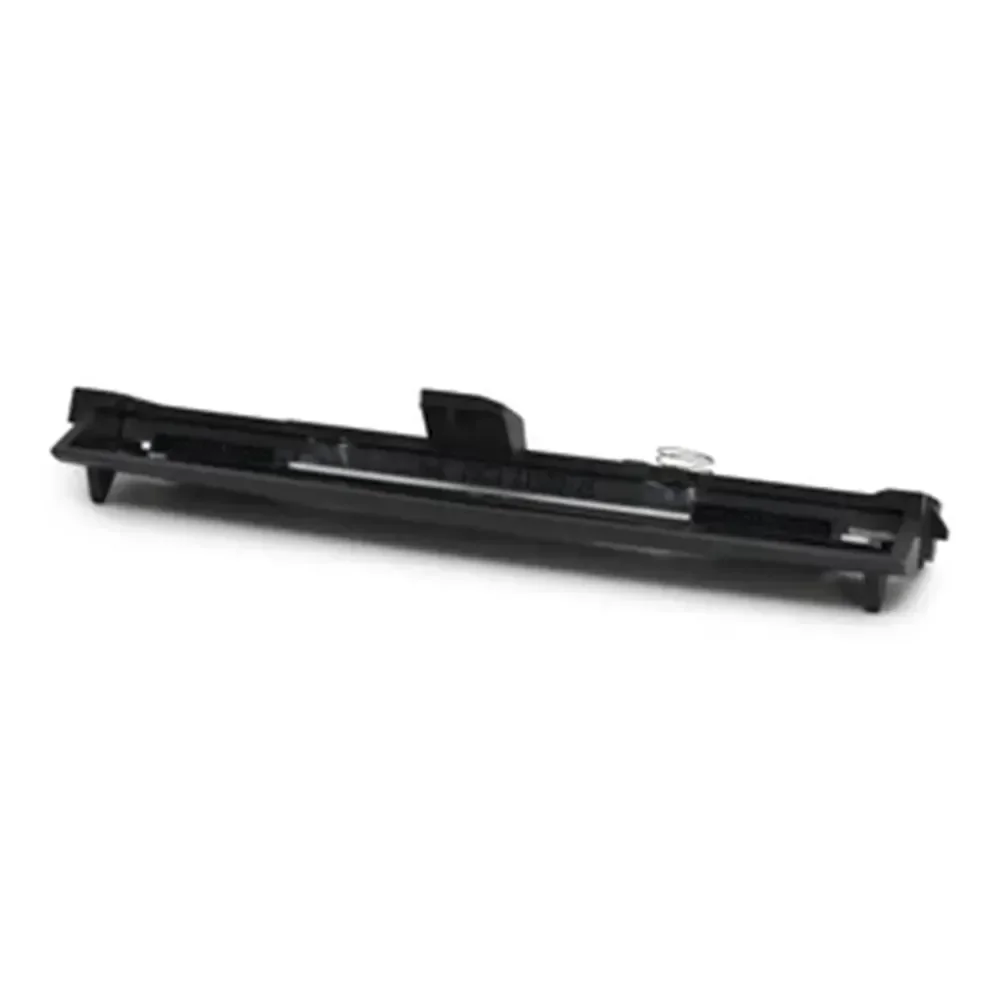

Honeywell PC45t / PC45d 4" 203 DPI Desktop Thermal Printhead (P/N 50190533-001) – Genuine OEM Replacement
OEM Part Number: 50190533-001
Resolution / Print Width: 203 DPI (8 dots/mm) / 104 mm (4.1")
Technology Core: Direct Thermal & Thermal Transfer Micro-Resistor Array
Target Platform: Honeywell PC45 Series Desktop Printers (PC45t / PC45d)
ARCHITECTURAL OVERVIEW
Next-Generation Enterprise Desktop Thermal Deposition & Edge Definition
The Honeywell PC45 Series 203 DPI Printhead (OEM P/N: 50190533-001) is an authentic original equipment manufacturer transducer engineered specifically for Honeywell PC45t (thermal transfer) and PC45d (direct thermal) next-generation compact desktop printers. Designed for intense enterprise workflows across healthcare labeling, retail shelf-edge ticketing, express parcel dispatch, light manufacturing compliance, and inventory management, this replacement head ensures continuous contrast consistency, precise dot placement, and reliable scanning read-rates for high-density 1D barcodes and 2D matrix symbologies (including Data Matrix, PDF417, and QR codes).
Constructed using advanced micro-resistor thin-film technology laid on a high-grade ceramic glaze substrate, the print array features 832 individual micro-heating elements spaced at 8 dots per millimeter (203 dots per inch) across a 104 mm (4.1 inch) active print line. A specialized Diamond-Like Carbon (DLC) wear barrier passivates the active firing surface against continuous abrasive friction from chemically treated direct thermal facestocks, synthetic polymer tags, and thermal transfer ribbons (wax, wax-resin, and resin formulations). This coating shields the resistive elements against localized pitting, electrostatic arcing, and adhesive burn-on at print feed speeds up to 200 mm/s (8 ips).
The assembly is mounted to a rigid, precision-formed stamped aluminum bracket that functions as an immediate heatsink, drawing latent energy away from the dot line during continuous label bursts to maintain sharp text edges without blooming. Complete with an integrated negative temperature coefficient (NTC) thermistor for dynamic strobe regulation and factory-aligned gold-plated signal contact headers, each genuine 50190533-001 unit is manufactured under cleanroom conditions, factory resistance-graded, and hermetically sealed inside an anti-static ESD shielding pouch with serialized Honeywell factory tracking identifiers.
CRITICAL RESOLUTION & GENERATION CROSS-CHECK: Always verify the part number on your printer's configuration label before servicing. Part number 50190533-001 is designated exclusively for 203 DPI configurations of the PC45 platform. It is not interchangeable with 300 DPI PC45 models (P/N 50190534-001) or legacy PC43 series printheads (P/N 710-129S-001 / 710-179S-001), as mounting latches, cable dimensions, and firmware strobe timings differ significantly.
ENGINEERING REFERENCE
Identification Notes & Core Distinction
| Reference Standard | Technical Description & Interoperability Context |
|---|---|
| Current OEM Part Number | 50190533-001 – Official Honeywell factory catalog reference for the 4-inch 203 DPI printhead assembly dedicated to the PC45 architecture. |
| Core Engine Technology | Thin-Film Ceramic Thermal Array (8 dots/mm) – Tuned for Honeywell PrintSet 5 / Fingerprint / Direct Protocol / IPL / DPL / ZSim2 emulation environments. |
| Platform Architecture | Honeywell PC45 Enterprise Platform – Quick-release pivot mechanism matching both PC45d (Direct Thermal) and PC45t (Thermal Transfer) modular carriages. |
NOTICE: Do not attempt to swap this 203 DPI unit with the 300 DPI version (50190534-001) without performing a full resolution reconfiguration, drive gear/platen roller compatibility check, and mainboard firmware parameter recalibration. Deploying an unconfigured resolution mismatch will result in communication errors, distorted aspect ratios, and truncated label formatting.
SYSTEM PARAMETERS
Product Details & Engineering Specifications
Part A: Part Information Matrix
| Product Name | Honeywell PC45t / PC45d 4" 203 DPI Thermal Printhead Assembly |
| OEM Manufacturer | Honeywell Safety and Productivity Solutions (Charlotte, NC, USA) |
| Exact Model Code | PC45 Printhead 203 DPI (4-inch Standard Resolution) |
| OEM Part Number | 50190533-001 |
| Known Cross-Reference / Aliases | HON-50190533-001, PC45 203DPI Head Kit, PC45t/d Replacement Head |
| Media & Chemistry Compatibility | Direct Thermal Paper / Top-Coated Films, Thermal Transfer Media (Wax, Wax-Resin, Full Resin Ribbons) |
| Product Status & Condition | 100% Brand New, Genuine OEM Factory Original, Sealed in Anti-Static Enclosure |
| Country of Origin | China / Japan (OEM Sub-assembly Core) |
| Primary Industrial Application | Healthcare Patient Wristbands & Specimen Labeling, Retail Price Marking, Logistics Shipping Tags, Light Manufacturing WIP |
Part B: Technical Specifications
| Print Technology | Direct Thermal (DT) & Thermal Transfer (TT) Dual Mode Thin-Film Ceramic |
| Optical Print Resolution | 203 DPI (8.00 dots/mm) |
| Effective Print Swath Width | 104.0 mm / 4.1 inches (Accommodates media up to 118 mm width) |
| Total Heating Dot Array | 832 Resistive Heating Elements |
| Dot Pitch / Geometry | 0.125 mm (center-to-center dot spacing) |
| Nominal Resistance Rating | Approx. 600 Ω – 750 Ω (Automated baseline detection by PC45 mainboard) |
| Maximum Linear Printing Speed | Up to 203 mm/s (8.0 inches per second) |
| Surface Protective Glaze | Diamond-Like Carbon (DLC) Abrasion-Resistant Overcoat |
| Thermal Sensor Feedback | Integrated High-Precision NTC Thermistor with real-time temperature tracking |
| Electrical Interface | Multi-pin gold-plated header connector for clock, strobe, logic, and 24V supply lines |
| Structural Carrier Substrate | Precision-formed stamped aluminum bracket with tool-less snap-in alignment pins |
FIELD ADVISORY
Technical Precision & Installation Warning
CAUTION: Replacement and calibration of this printhead assembly must be executed by trained maintenance personnel adhering to electrostatic discharge (ESD) and hardware isolation protocols.
- Electrostatic Discharge (ESD) Protection: Wear a grounded anti-static wrist strap. The micro-resistors and onboard CMOS shift registers are sensitive to latent static breakdown.
- Complete Power Isolation (No Hot-Swapping): Disconnect the 24V power adapter from the rear of the PC45 chassis before opening the printhead mechanism. Never connect or disconnect printhead cables while power is supplied. Hot-plugging induces severe inductive voltage spikes that immediately burn out the logic driver circuitry and mainboard FETs.
- Harness & Connector Inspection: Inspect the printhead cable connector for bent pins, debris, or conductor fatigue. Align the connector squarely and seat it fully into the header without forced canting.
- Platen Roller Inspection & Maintenance: Clean the platen roller thoroughly with 99% pure electronic-grade isopropyl alcohol (IPA) prior to installing the new printhead. Replace platen rollers that show grooves, cuts, or adhesive buildup, as irregularities will puncture the new thermal element glaze.
- Handling Factory-Sealed Unit: Never touch the glazed thermal print line with bare fingers; skin oils create localized hot spots that accelerate element burnout. Clean the glazed line using a lint-free swab saturated in pure IPA before initial power-on.
- Firmware & Calibration Check: After installation, power on the printer and perform a media calibration sequence via Honeywell PrintSet 5 or the touchscreen interface. Confirm that darkness and heat settings conform to the specified media grade to prevent premature thermal stress.
SYSTEM INTEROPERABILITY
Compatible Engine Platforms & Procurement Terms
Honeywell PC45t (Thermal Transfer)
- Honeywell PC45t Standard Desktop Printer (203 DPI)
- Honeywell PC45t Healthcare Edition (Disinfectant-Ready Housing)
- Honeywell PC45t with Dispenser / Peeler Configuration
- Honeywell PC45t with Cutter Module Assembly
Honeywell PC45d (Direct Thermal)
- Honeywell PC45d Standard Direct Thermal Printer (203 DPI)
- Honeywell PC45d Healthcare Edition (Clinical White)
- Honeywell PC45d Linerless Printing Configuration
- Honeywell PC45d with Real-Time Clock & Peel Mechanism
Confirmed Incompatible Hardware Platforms (Strict Verification Notice)
DO NOT DEPLOY IN: Honeywell PC45 300 DPI configurations (P/N 50190534-001), Honeywell legacy PC43 series (PC43t / PC43d / P/N 710-129S-001 or 710-179S-001), PC42 series (PC42t / PC42d), Honeywell mid-range industrial printers (PM43 / PM45 / PD45), or third-party desktop carriages from Zebra (ZD421/ZD621), TSC, or Datamax. Mounting brackets and connector pinout configurations are non-interchangeable.
Terms, Warranty & Customer Protection Policy
1. Pre-Installation Authenticity Guarantee: This item is guaranteed to be 100% genuine OEM, brand new, and factory-sealed from Honeywell Safety and Productivity Solutions. Each unit carries its authentic factory serial number and OEM batch traceability barcode.
2. Limited Operational Warranty (30 Working Days): Due to the operating nature of thermal resistive components, warranty coverage against manufacturing defects is valid for 30 working days from the verified date of delivery. Any warranty claim requires continuous, unedited high-definition video documentation covering package unboxing of the intact seal, pre-installation multi-meter resistance verification, and replacement executed by a qualified service technician.
3. Final Sale & Return Exclusions: Under standard industrial spare parts policy, once the sealed anti-static protective pouch has been opened, mounted into a machine carriage, or subjected to electrical power, this printhead is classified as an active consumable item and is non-returnable and non-refundable. Physical abrasions, scratches on the glazed print array, or element burn-out caused by debris or electrical spikes void all coverage.
