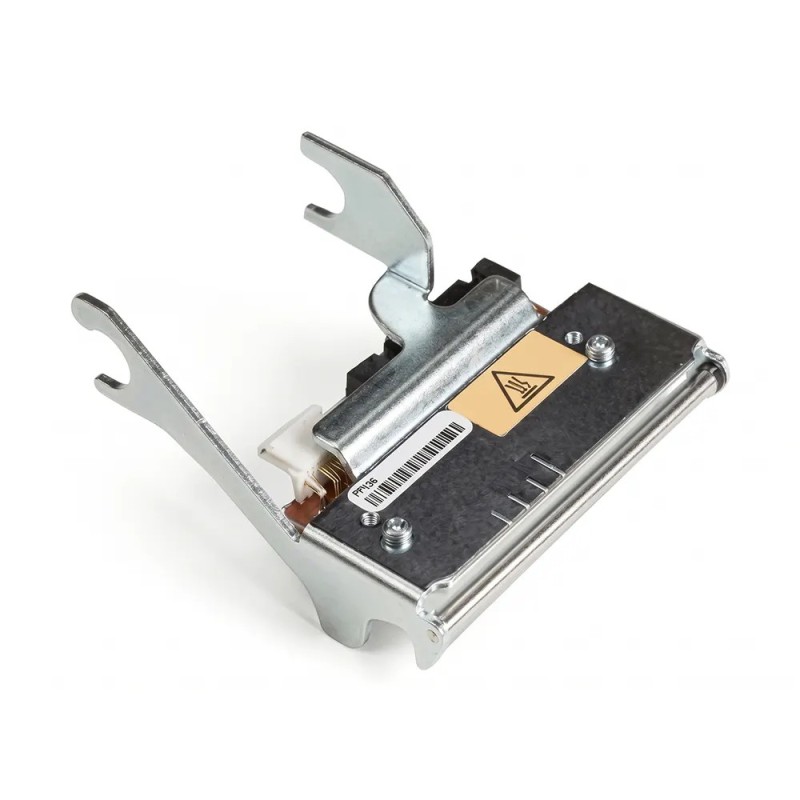

Honeywell Intermec PM23c 406 DPI Ultra-Precision Industrial Thermal Printhead (OEM P/N: 714-804S-001) – Genuine OEM Replacement

The Genuine Honeywell Intermec PM23c 406 DPI Ultra-Precision Industrial Thermal Printhead (Honeywell OEM P/N: 714-804S-001) is the authentic factory-original ultra-high-resolution imaging transducer engineered specifically for Honeywell/Intermec PM23c compact industrial tabletop printers configured for micro-pitch imaging. Purpose-built to sustain demanding high-precision workflows—including microscopic electronics circuit board (PCB) component labeling, semiconductor tracking, surgical instrument marking, pharmaceutical unit-dose serialization, cryogenic vial identification, and ultra-dense 2D barcode reproduction—this 406 DPI replacement assembly delivers exceptional line-edge sharpness, microscopic text clarity down to fractional-point typography, and certified ANSI/ISO Grade-A scannability across standard linear 1D barcodes and dense 2D DataMatrix/QR symbologies. Fabricated strictly to Honeywell OEM micro-electronic tolerances, it ensures uniform thermal transfer equilibrium, physical resilience against continuous media web tension, and extended mechanical service life across millions of linear inches.

At the operational core of this component is an ultra-dense high-efficiency thin-film ceramic micro-resistor array delivering an optical dot density of 406 dots per inch (16.0 dots/mm) across an active 2.2-inch (56 mm) swath width, incorporating 910 individually energized thermal heating dots. Engineered to support precision industrial feed velocities up to 10 inches per second (250 mm/s), each thermal micro-dot exhibits ultra-low thermal inertia and instantaneous hysteresis pulse control governed by onboard shift registers and high-speed driver ICs. The active linear burn line is fortified with an advanced diamond-like carbon (DLC) and silicon nitride (Si3N4) hard-passivation glaze, providing superior wear resistance against abrasive pure resin thermal transfer ribbons and chemically coated direct thermal paper stocks, while integrated precision substrate thermistors continuously deliver real-time thermal feedback to dynamic pulse control loops to eliminate microscopic dot blooming.

Manufactured in Japan, every unit is delivered 100% factory-sealed within certified static-shielding barrier packaging to isolate sensitive logic gates and micro-driver circuits from electrostatic discharge (ESD) during logistics transit and facility storage. The assembly features an extruded, precision-milled aluminum heatsink backbone designed to ensure uniform, dead-parallel planar contact against the platen roller, coupled with dedicated tool-less magnetic latching and registration pivot points keyed explicitly for the PM23c print mechanism carriage. Multi-pin gold-plated terminal interfaces deliver secure, low-impedance electrical interconnects for high-speed serial print data transmission and high-current strobe pulses, preventing voltage drops and thermal unevenness across the full burn line.

Identification Notes & Core Distinction

Interchangeability Notice: The Honeywell PM23c features a narrow 2-inch quick-mount carriage mechanism with magnetic retention distinct from 4-inch PM43 platforms. Part 714-804S-001 cannot be installed in PM43, PM43c, or PM42 printers (710-180S-001), nor does it fit legacy EasyCoder PF2i printers or desktop PC23d/PC43d units. Forcing an incompatible model will damage carriage pivot latches and cause electrical pin mismatch.

Technical Precision & Installation Warning

ATTENTION CERTIFIED FIELD ENGINEERS: Handling 406 DPI ultra-precision thermal printheads requires exceptional care. The microscopic 62.5 μm dot pitch makes this printhead twice as vulnerable to particulate contamination, electrostatic discharge, and uneven mechanical alignment compared to standard 203 DPI models.

• Strict Electrostatic Discharge (ESD) Protection: Always wear a grounded anti-static wrist strap throughout unboxing, mechanical handling, and cable hookup. Micro-resistor driver ICs located on the thin-film substrate are highly susceptible to irreversible gate breakdown from static charges below human sensation thresholds (<50V).
• Power Isolation & Zero Hot-Swapping: Completely power down the printer and disconnect the main AC electrical feed cord prior to servicing. Never disconnect or insert printhead signal cables while the printer is energized. Live-plugging produces transient voltage spikes that instantaneously destroy the printhead logic arrays and compromise the printer's main engine control board.
• Cable & Gold Contact Inspection: Inspect the printhead cable harness for terminal pin oxidation, bending, or debris prior to seating. Ensure connectors are inserted squarely and seated completely into their locking slots. Uneven insertion leads to catastrophic short-circuiting across high-current strobe power traces.
• Zero Abrasive Surface Contact: The micro-heater dot line must never touch screwdrivers, utility knives, rings, or abrasive cleaning materials. At 406 DPI, even an invisible microscopic scratch will sever multiple micro-heating elements, creating unprinted white void lines through 2D DataMatrix codes. Clean the burn line exclusively using 99.7% electronic-grade Isopropyl Alcohol (IPA) with lint-free polyester swabs.
• Magnetic Mount & Lever Latch Seating: The PM23c features a tool-free magnetic latching printhead bracket. Ensure the alignment dowels seat completely into the magnetic carriage frame without canting. Misaligned seating leads to uneven platen roller contact, ribbon wrinkles, and diagonal print density fade.
• Firmware Configuration & Resistance Calibration: After physical mounting, verify that the printer recognizes the printhead resistance value and resolution via the PM23c touchscreen interface or Honeywell PrintSet configuration utility to ensure optimal pulse firing.
