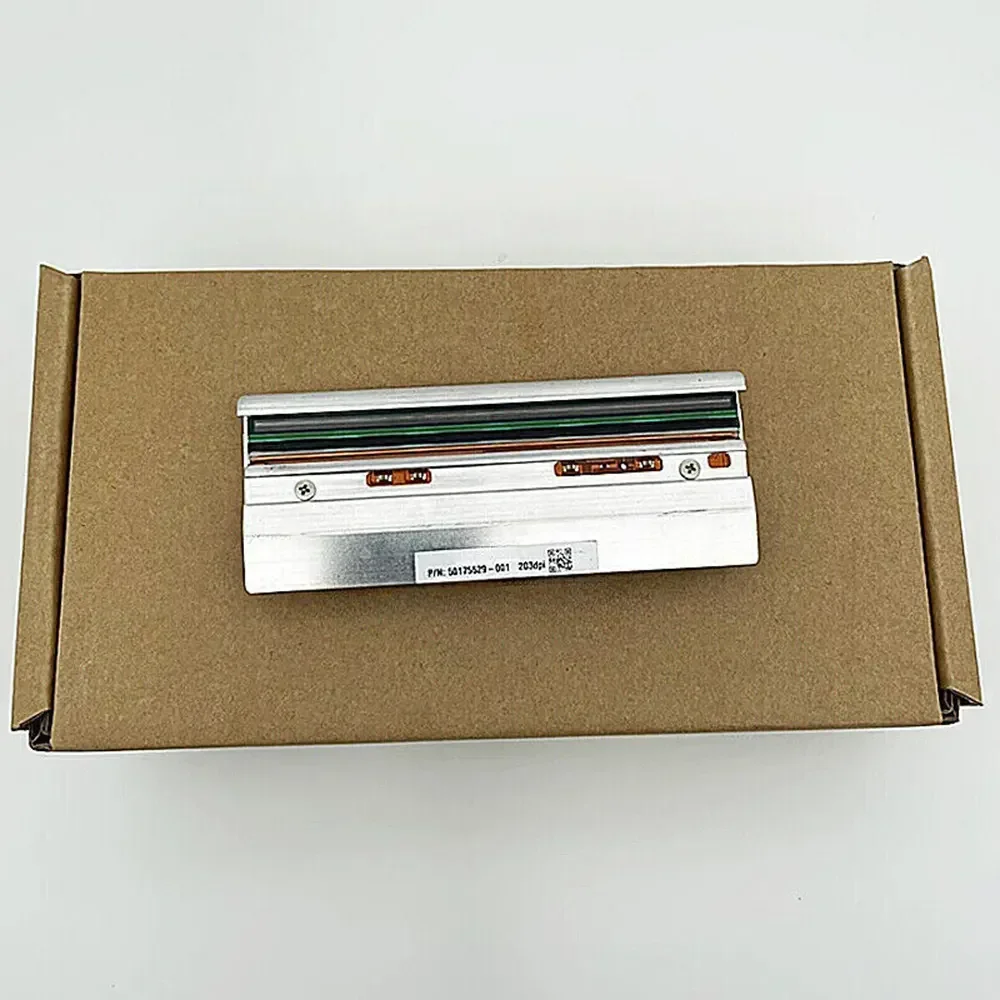

Genuine Honeywell PD45 / PD45S 4" 203 DPI Industrial Thermal Printhead (P/N 50178577-001)
- Write a review
$325.00
$188.50
Save 42%
Authentic OEM 200 DPI thermal printhead kit designed for Honeywell PD45 industrial label printers. Built for reliable daily carton labeling, shipping tags, and inventory identification with print speeds up to 8 ips. Drop-in replacement with guaranteed factory alignment.
GENUINE OEM REPLACEMENT • PRECISION THERMAL HARDWARE
Honeywell PD45 / PD45S 4" 203 DPI Industrial Thermal Printhead (P/N 50178577-001) – Genuine OEM Replacement
OEM Part Number: 50178577-001
Print Resolution / Width: 203 DPI (8 dots/mm) / 104 mm (4.09")
Technology Core: Direct Thermal / Thermal Transfer Ceramic Micro-Resistor Array
Target Platform: Honeywell PD45 & PD45S Commercial Industrial Printers
ARCHITECTURAL OVERVIEW
Industrial-Grade Thermal Deposition & High-Duty Logistics Barcode Imaging
The Honeywell PD45 / PD45S 203 DPI Industrial Printhead (OEM P/N: 50178577-001) is an authentic original equipment manufacturer replacement transducer engineered specifically for Honeywell PD45 and PD45S mid-tier commercial industrial label printing engines. Built to satisfy relentless 24/7 manufacturing line cycles, warehouse distribution, freight routing, and retail inventory hubs, this printhead guarantees razor-sharp edge acuity, high optical density, and compliant ANSI/ISO first-pass scan rates across standard 1D linear symbologies (Code 128, GS1 DataBar, UPC/EAN) and complex 2D matrix formats (QR Code, PDF417, Data Matrix).
Manufactured using a robust ceramic thick/thin-film hybrid substrate, the linear array incorporates 832 individual micro-heating elements calibrated at 8 dots per millimeter (203 dots per inch) across an active print width of 104 mm (4.09 inches). The active firing line is protected by a high-grade Diamond-Like Carbon (DLC) glaze overcoat that provides exceptional wear resistance against abrasive chemical top-coatings on continuous direct thermal facestocks and high-friction thermal transfer ribbons (wax, wax-resin, and pure resin). This ultra-durable passivation barrier prevents premature dot-resistor thinning, static pinhole failure, and molten polymer burn-on at industrial throughput speeds up to 250 mm/s (10 ips on PD45S).
Integrated directly onto a solid, machined aluminum structural backbone, the assembly ensures rapid, uniform thermal dissipation away from the element line during dense raster fills to eliminate thermal trailing and dot blooming. Featuring an integrated negative temperature coefficient (NTC) thermistor for continuous strobe voltage compensation and gold-plated logic/driver connector headers, each genuine 50178577-001 assembly is cleanroom manufactured, factory resistance-graded, vacuum-sealed inside an anti-static ESD shielding pouch, and marked with authentic Honeywell serial tracking labels.
CRITICAL RESOLUTION & HARDWARE VERIFICATION: Verify the part number stamped on your defective printhead bracket before ordering. Part number 50178577-001 corresponds strictly to the 203 DPI variant of the PD45/PD45S platform. It is not directly interchangeable with 300 DPI PD45 assemblies (P/N 50178578-001) without updating the printer configuration parameters and driver resolution profiles.
ENGINEERING REFERENCE
Identification Notes & Core Distinction
| Reference Standard | Technical Description & Interoperability Context |
|---|---|
| Current OEM Part Number | 50178577-001 – Primary Honeywell spare parts catalog reference for the 4-inch 203 DPI industrial printhead assembly. |
| High-Resolution Counterpart | 50178578-001 (300 DPI / 11.8 dots/mm) – High-resolution version with 1,248 heating elements; requires complete driver and printer calibration changes. |
| Target Sub-Assembly Architecture | Honeywell PD45 Chassis Platform – Precision dual-spring pivot carriage matching both PD45 (Standard) and PD45S (High-Speed Advanced) industrial models. |
NOTICE: Do not attempt to install this printhead into Honeywell PM43 / PM45 industrial chassis (P/N 710-129S-001 / 50180236-001), PX4ie / PX45 print engines, or desktop PC45 printers (P/N 50190533-001). Although print resolutions and media widths match, the mechanical pivot pins, bracket geometry, and wiring harness orientations are non-compatible.
SYSTEM PARAMETERS
Product Details & Engineering Specifications
Part A: Part Information Matrix
| Product Name | Honeywell PD45 / PD45S 4" 203 DPI Industrial Thermal Printhead Assembly |
| OEM Manufacturer | Honeywell Safety and Productivity Solutions (Charlotte, NC, USA) |
| Exact Model Code | PD45 / PD45S Printhead Kit 203 DPI (8 dots/mm) |
| OEM Part Number | 50178577-001 |
| Known Cross-Reference / Aliases | HON-50178577-001, PD45-203DPI-KIT, PD45S Replacement Head 203 |
| Media & Ribbon Chemistry | Direct Thermal Paper / Synthetic Label Stock; Thermal Transfer Ribbons (Standard Wax, Premium Wax/Resin, High-Durability Resin) |

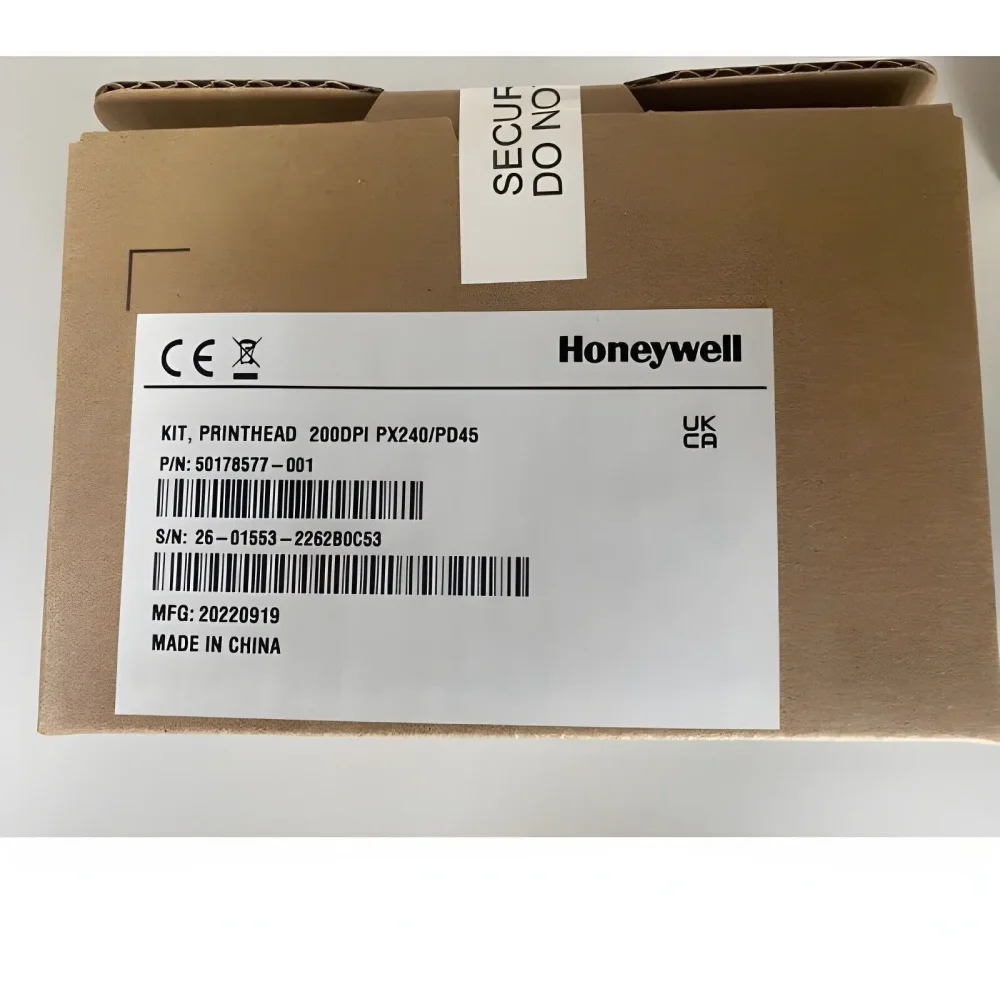

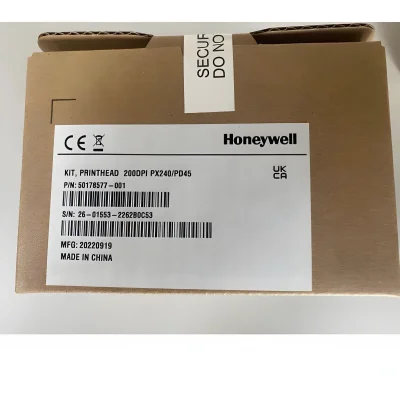

| Product Status & Condition | 100% Brand New, Genuine OEM Original, Factory Sealed in Anti-Static Enclosure |
| Country of Origin | China / Japan (OEM Sub-assembly Core) |
| Primary Industrial Application | Manufacturing Work-in-Progress (WIP), Warehouse Shipping & Receiving, Pallet Identification, Retail Logistics Distribution |
Part B: Technical Specifications
| Print Technology | Direct Thermal (DT) & Thermal Transfer (TT) Dual Mode Ceramic Array |
| Optical Print Resolution | 203 DPI (8.00 dots/mm) |
| Effective Print Swath Width | 104.0 mm / 4.09 inches (Accepts media widths from 20 mm to 114 mm) |
| Total Heating Dot Array | 832 Resistive Heating Elements |
| Dot Pitch / Geometry | 0.125 mm (center-to-center dot spacing) |
| Nominal Resistance Rating | Approx. 650 Ω – 760 Ω (Automatic baseline resistance reading by PD45 mainboard) |
| Maximum Linear Printing Speed | Up to 200 mm/s (8 ips on PD45) / Up to 250 mm/s (10 ips on PD45S) |
| Surface Protective Glaze | Diamond-Like Carbon (DLC) Abrasion-Resistant Overcoat |
| Thermal Sensor Integration | Integrated High-Precision NTC Thermistor with real-time temperature tracking |
| Electrical Interface | Multi-pin gold-plated header for clock, strobe logic, and 24V supply lines |
| Thermal Heat Sink Carrier | Solid machined aluminum mounting carrier with integrated pivot points |
FIELD ADVISORY
Technical Precision & Installation Warning
CAUTION: Installation and mechanical calibration of this industrial printhead must be executed exclusively by qualified service engineers adhering strictly to OEM safety protocols.
- Electrostatic Discharge (ESD) Protection: Wear a grounded anti-static wrist strap throughout servicing. The microscopic heating elements and onboard CMOS driver ICs are susceptible to immediate failure from static charges.
- Complete Power Isolation (No Hot-Swapping): Shut down the main power switch and disconnect AC mains power from the rear of the PD45 printer before unlatching the carriage. Never connect or disconnect printhead cables while power is supplied. Hot-plugging induces severe inductive voltage spikes that immediately burn out the logic driver circuitry and mainboard FETs.
- Cable & Harness Inspection: Inspect the printhead cable connector for bent pins, debris, or conductor fatigue. Align the connector squarely and seat it fully into the header without forced canting.
- Platen Roller Cleaning & Pressure Balance: Clean the platen roller thoroughly with 99% pure electronic-grade isopropyl alcohol (IPA) before seating the new printhead. Balance printhead mechanical pressure using the carriage adjustment screws; uneven pressure induces ribbon wrinkling, premature edge wear, and localized overheating of the dot line.
- Handling Factory-Sealed Unit: Never touch the glazed thermal print line with bare hands; skin oils carbonize under operational heat and create localized thermal hot-spots. Clean solely with lint-free swabs saturated in pure IPA prior to first power-up.
- Firmware & Calibration Check: After installation, power on the printer and perform a media calibration sequence via Honeywell PrintSet 5 or the front-panel menu. Confirm that darkness, print speed, and heat settings conform to the specified media grade to prevent premature thermal stress.
SYSTEM INTEROPERABILITY
Compatible Engine Platforms & Procurement Terms
Honeywell PD45 Commercial Industrial (203 DPI)
- Honeywell PD45 Standard Commercial Industrial Printer (203 DPI)
- Honeywell PD45 with Dispenser / Peeler Configuration
- Honeywell PD45 with Heavy-Duty Rotary Cutter
- Honeywell PD45 Ethernet / Wireless Enterprise Configurations
Honeywell PD45S High-Performance Industrial (203 DPI)
- Honeywell PD45S High-Performance Industrial Printer (203 DPI)
- Honeywell PD45S Full Touchscreen Configuration
- Honeywell PD45S In-line Production Line Applicators
- Honeywell PD45S High-Speed Direct Thermal / Thermal Transfer Units
Confirmed Incompatible Hardware Platforms (Strict Verification Notice)
DO NOT DEPLOY IN: Honeywell PD45 / PD45S 300 DPI models (P/N 50178578-001) without full resolution conversion, Honeywell PM43 / PM43c / PM45 industrial units (P/N 710-129S-001 / 50180236-001), legacy PD41 / PD42 / PD43 printers, desktop PC45 / PC43 platforms, or third-party industrial printers from Zebra (ZT231 / ZT411), TSC, or Datamax. Mounting brackets and connector pinout configurations are non-interchangeable.
Terms, Warranty & Customer Protection Policy
1. Pre-Installation Authenticity Guarantee: This item is guaranteed to be 100% genuine OEM, brand new, and factory-sealed from Honeywell Safety and Productivity Solutions. Each unit carries its authentic factory serial number and OEM batch traceability barcode.
2. Limited Operational Warranty (30 Working Days): Due to the operating nature of thermal resistive components, warranty coverage against manufacturing defects is valid for 30 working days from the verified date of delivery. Any warranty claim requires continuous, unedited high-definition video documentation covering package unboxing of the intact seal, pre-installation multi-meter resistance verification, and replacement executed by a qualified industrial maintenance technician.
3. Final Sale & Return Exclusions: Under standard industrial spare parts policy, once the sealed anti-static protective pouch has been opened, mounted into a machine carriage, or subjected to electrical power, this printhead is classified as an active consumable item and is non-returnable and non-refundable. Physical abrasions, scratches on the glazed print array, or element burn-out caused by debris or electrical spikes void all coverage.
