Honeywell Intermec PM23c 300 DPI Industrial Thermal Printhead (OEM P/N: 710-229S-001) – Genuine OEM Replacement

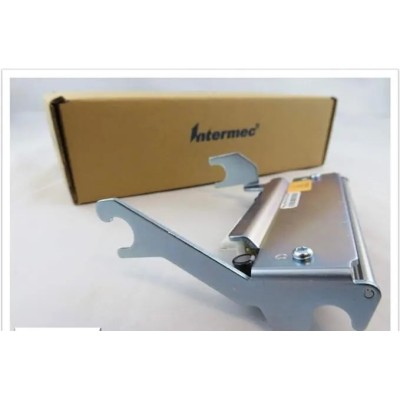

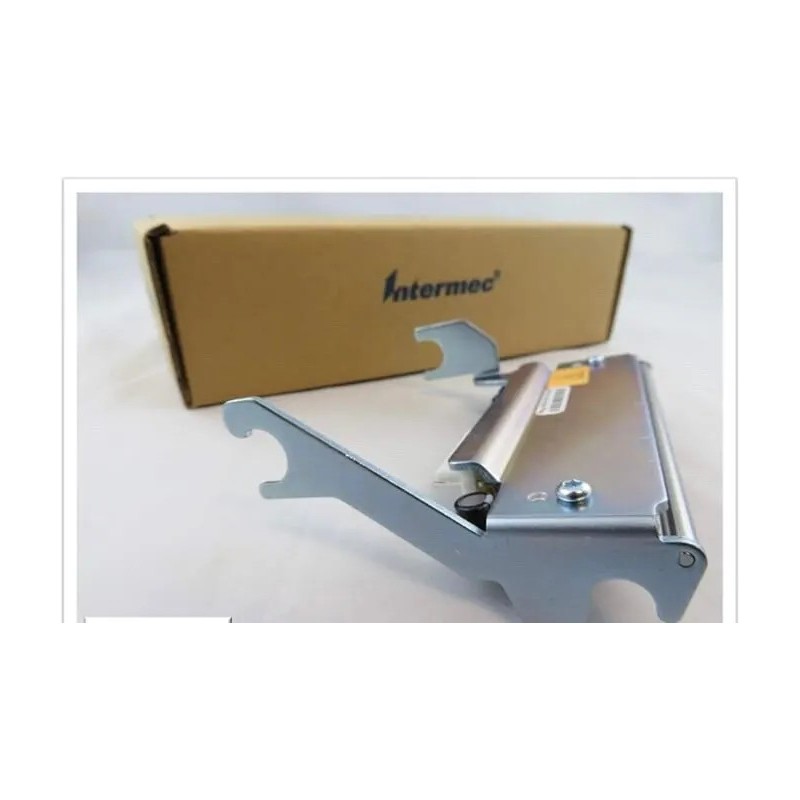

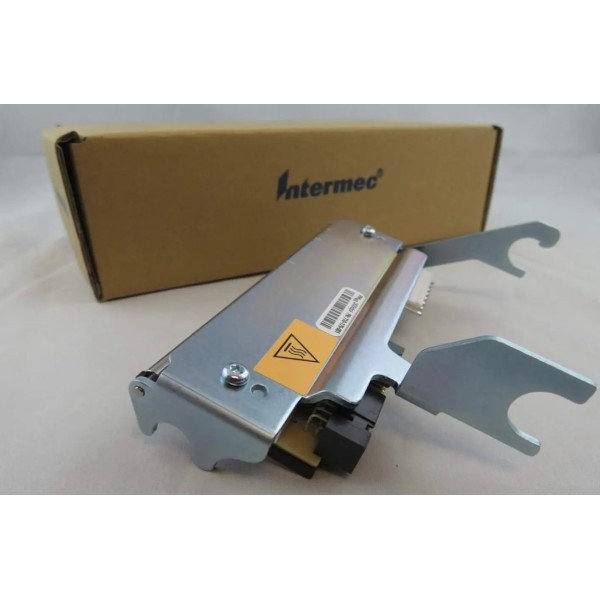

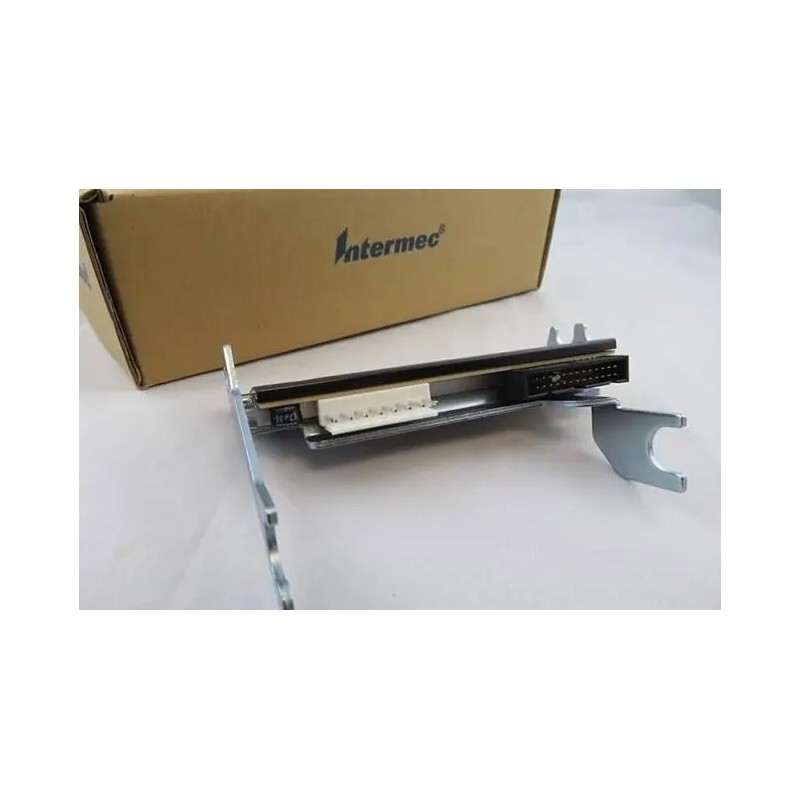

The Genuine Honeywell Intermec PM23c 300 DPI Industrial Thermal Printhead (Honeywell OEM P/N: 710-229S-001) is the authentic factory-original high-resolution precision imaging transducer engineered specifically for Honeywell/Intermec PM23c compact industrial tabletop printers. Purpose-built to sustain demanding multi-shift production cycles within clinical pathology specimen vial tagging, pharmaceutical unit-dose serialization, electronics PCB sub-assembly identification, high-density airline baggage barcodes, and precision narrow-web manufacturing, this 300 DPI replacement assembly delivers razor-sharp typographic definition, crisp line-edge acuity, and certified ANSI/ISO Grade-A scannability across standard linear 1D barcodes and dense 2D DataMatrix symbologies. Fabricated directly to Honeywell OEM industrial engineering tolerances, it ensures uniform thermal transfer balance, physical resilience against continuous media web tension, and extended mechanical service endurance across millions of linear inches.

At the operational core of this component is an advanced high-efficiency thin-film ceramic micro-resistor array delivering an optical dot density of 300 dots per inch (11.8 dots/mm) across an active 2.2-inch (56 mm) swath width, incorporating 672 individually energized thermal heating dots. Built to sustain high-speed industrial printing feed velocities up to 10 inches per second (250 mm/s), each thermal micro-dot exhibits instantaneous rise and recovery thermal hysteresis profiles governed by onboard shift registers and high-speed driver ICs. The active linear burn line is fortified with an advanced diamond-like carbon (DLC) and silicon nitride (Si3N4) hard-passivation glaze, providing superior wear resistance against abrasive thermal transfer ribbons and chemically coated direct thermal paper stocks, while integrated precision substrate thermistors continuously deliver real-time thermal feedback to dynamic pulse control loops to prevent dot blooming.

Manufactured in Japan, every unit is delivered 100% factory-sealed within certified static-shielding barrier packaging to isolate sensitive logic gates and micro-driver circuits from electrostatic discharge (ESD) during logistics transit and facility storage. The assembly features an extruded, precision-milled aluminum heatsink backbone designed to ensure uniform, dead-parallel planar contact against the platen roller, coupled with dedicated tool-less magnetic latching and registration pivot points keyed explicitly for the PM23c print mechanism carriage. Multi-pin gold-plated terminal interfaces deliver secure, low-impedance electrical interconnects for high-speed serial print data transmission and high-current strobe pulses, preventing voltage drops and thermal unevenness across the full burn line.

Identification Notes & Core Distinction

Interchangeability Notice: The Honeywell PM23c features a narrow 2-inch quick-mount carriage mechanism with magnetic retention distinct from 4-inch PM43 platforms. Part 710-229S-001 cannot be installed in PM43, PM43c, or PM42 printers (710-179S-001), nor does it fit legacy EasyCoder PF2i printers or desktop PC23d/PC43d units. Forcing an incompatible model will damage carriage pivot latches and cause electrical pin mismatch.

Technical Precision & Installation Warning

ATTENTION CERTIFIED FIELD ENGINEERS: OEM printhead replacement on Honeywell Intermec PM23c industrial tabletop printers requires strict compliance with electrostatic discharge and mechanical alignment protocols. Careless handling, residual line voltages, or improper magnetic latch seating will cause premature element degradation or catastrophic circuit failure.

• Strict Electrostatic Discharge (ESD) Protection: Always wear a grounded anti-static wrist strap throughout unboxing, mechanical handling, and cable hookup. Micro-resistor driver ICs located on the thin-film substrate are highly susceptible to irreversible gate breakdown from static charges below human sensation thresholds (<100V).
• Power Isolation & Zero Hot-Swapping: Completely power down the printer and disconnect the main AC electrical feed cord prior to servicing. Never disconnect or insert printhead signal cables while the printer is energized. Live-plugging produces transient voltage spikes that instantaneously destroy the printhead logic arrays and compromise the printer's main engine control board.
• Cable & Gold Contact Inspection: Inspect the printhead cable harness for terminal pin oxidation, bending, or debris prior to seating. Ensure connectors are inserted squarely and seated completely into their locking slots. Uneven insertion leads to catastrophic short-circuiting across high-current strobe power traces.
• Zero Abrasive Surface Contact: The micro-heater dot line must never touch screwdrivers, utility knives, rings, or abrasive cleaning materials. Scratches through the protective DLC passivation permanently create dead white voids across printed barcodes. Clean the burn line exclusively using 99.7% electronic-grade Isopropyl Alcohol (IPA) with lint-free polyester swabs.
• Magnetic Mount & Lever Latch Seating: The PM23c features a tool-free magnetic latching printhead bracket. Ensure the alignment dowels seat completely into the magnetic carriage frame without canting. Misaligned seating leads to uneven platen roller contact, ribbon wrinkles, and diagonal print density fade.
• Firmware Configuration & Resistance Calibration: After physical mounting, verify that the printer recognizes the printhead resistance value and resolution via the PM23c touchscreen interface or Honeywell PrintSet configuration utility to ensure optimal pulse firing.

Compatible Printer Models & Engine Platforms
