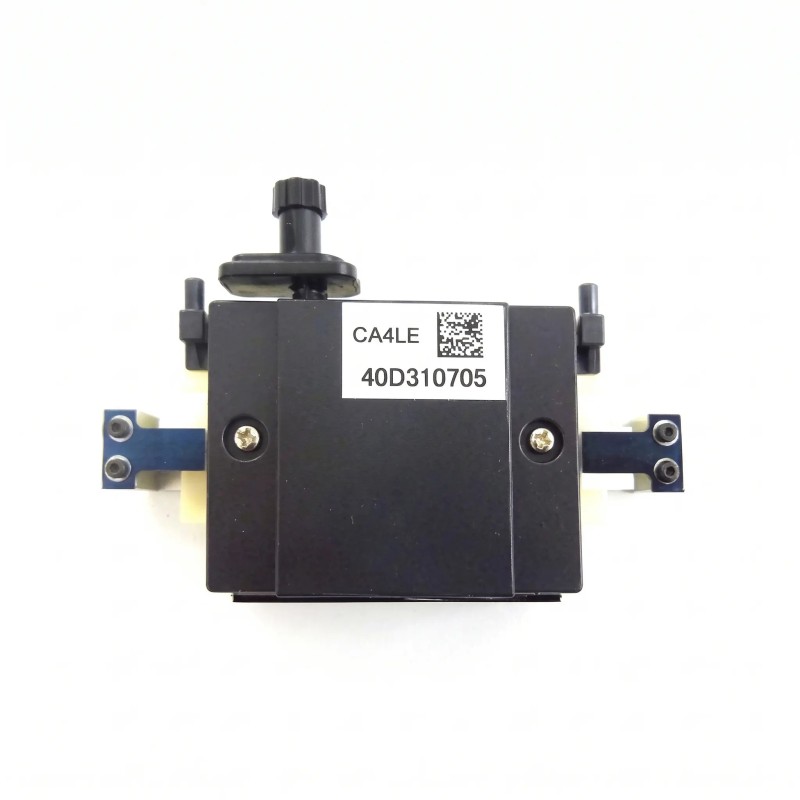

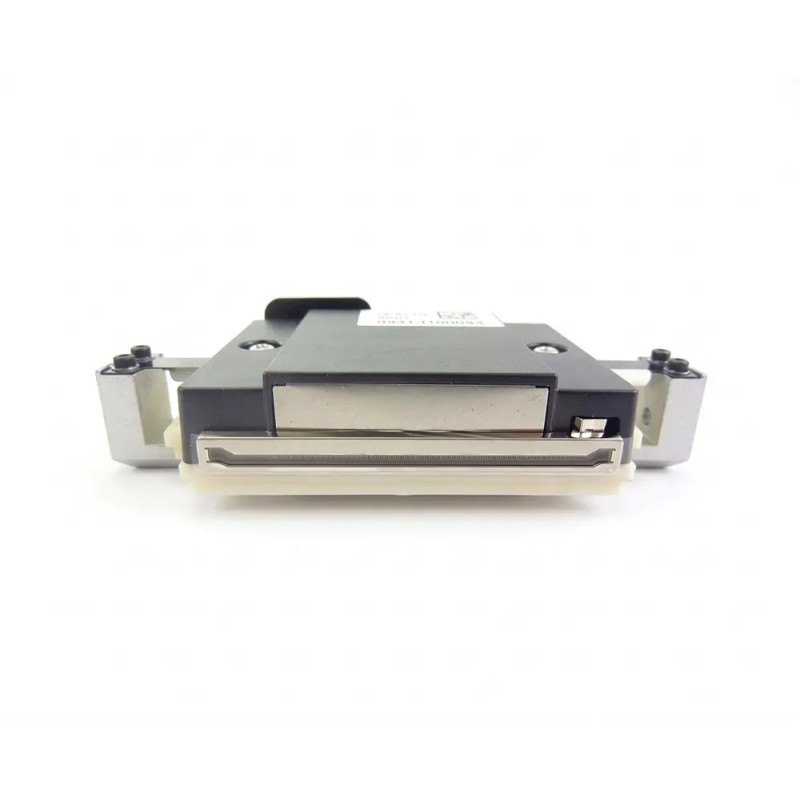

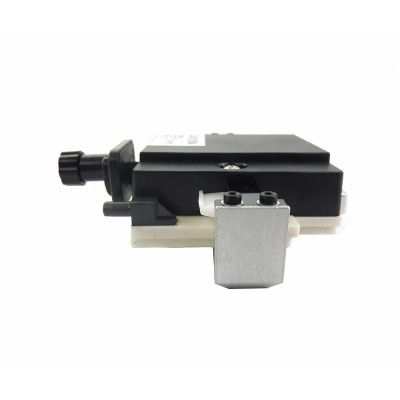

Océ Arizona 300 318 350 360 GT XT Printhead 3W3010108132 / 3010108132
- Write a review
$1,750.00
$857.50
Save 51%
Factory-original Canon Océ 3W3010108132 (3010108132) industrial UV grayscale printhead designed for Océ Arizona 300, 318, 350, and 360 GT/XT flatbed printers.
Genuine OEM Replacement • Precision Fluid Hardware
Océ Arizona Printhead (3W3010108132 / 3010108132) – Genuine OEM Replacement
OEM Part Number: 3W3010108132 / 3010108132 | Core Engine: Toshiba TEC CA4 Multi-Drop Greyscale | Platform: Océ Arizona 300 / 318 / 350 / 360 GT XT & Fujifilm Acuity Advance
Product Description
The Océ Arizona UV Printhead (part number 3W3010108132 / 3010108132) is an original high-performance industrial inkjet printhead designed for Océ Arizona 300, 318, 350, and 360 GT/XT series as well as Fujifilm Acuity Advance platforms. It utilizes advanced multi-drop grayscale micro-piezo shared-wall technology to deliver exceptional image sharpness, smooth color transitions, and maximum durability in demanding industrial UV flatbed printing environments.
This CA4-based printhead assembly integrates 636 active addressable channels arranged across dual rows, delivering a native resolution of 150 NPI per line and an active print swathe width of 53.7 mm. Powered by Océ VariaDot® imaging dynamics, it modulates variable drop sizes continuously from 6 to 42 pL with up to 8 grayscale levels and a standard firing frequency of up to 28.0 kHz. The internal manifold is passivated for comprehensive chemical compatibility with UV-curable pigment inks and OEM flush solutions.
Measuring 85 × 41.2 × 57.6 mm and weighing approximately 145 g, this assembly features an integrated internal heater and precision NTC thermistor to maintain tight viscosity control throughout long, uninterrupted print shifts. It is supplied as a 100% genuine factory-sealed OEM unit ready for direct field service replacement.
Always verify the exact part number on the existing printhead or in the machine service documentation before ordering to ensure correct compatibility.
Engineering Reference Identification Notes & Core Distinction
| Reference | Description |
|---|---|
| 3010108132 / 3W3010108132 (Current) | Genuine OEM replacement printhead for Océ Arizona 300 / 318 / 350 / 360 GT XT series and Fujifilm Acuity Advance (HD2545) |
| 3010105439 (Superseded) | Original factory predecessor code; fully superseded by and backwards-compatible with 3010108132 |
| Toshiba TEC CA4 | Core multi-drop grayscale micro-piezo technology (318 × 2 channels) powering Océ VariaDot® imaging |
Notice: This is a CA4-based assembly specifically configured for the listed Arizona 300/318/350/360 and Acuity models. Do not assume interchangeability with CE2-series heads (e.g., 3W3010122104), CE4-series heads (e.g., 3W3010112660), or later Arizona platform heads without verification of the physical interface, electrical drive, and firmware requirements.
Product Details
Part Information Matrix
| Parameter | Detail |
|---|---|
| Product Name | Océ Arizona UV Printhead Assembly (3W3010108132 / 3010108132) |
| Manufacturer | Toshiba TEC (Canon Production Printing / Océ OEM assembly) |
| Exact Model | CA4 (636-Channel) |
| OEM Part Number | 3W3010108132 / 3010108132 |
| Known Alias | 3010105439, Océ Arizona 350/360 Printhead, Fujifilm FW000108 |
| Ink Type | UV-curable pigment ink (Océ IJC255, IJC256, IJC257, IJC258) and oil-based fluid |
| Product Status | Available as genuine OEM / original replacement |
| Condition | 100% Genuine OEM Factory Sealed |
| Country of Origin | Japan (Toshiba TEC) |
| Industrial Application | UV flatbed and roll-to-roll production on Océ Arizona and Fujifilm Acuity Advance systems |
Technical Specifications
| Parameter | Value |
|---|---|
| Technology | Shear-mode shared-wall micro-piezo grayscale multi-drop |
| Active Nozzles | 636 channels (2 lines × 318 active orifices) |
| Print Swathe Width | 53.7 mm (2.114 inches) |
| Nozzle Pitch | 84.5 μm (interleaved to composite 300 dpi swath) |
| Native Resolution | 150 NPI per line (300 DPI composite resolution) |
| Grayscale Levels | Up to 8 levels (VariaDot® multi-drop pulse architecture) |
| Drop Volume | 6 – 42 pL (continuous modulation window) |
| Firing Frequency | Up to 28.0 kHz (binary mode) / 6.2 kHz (multi-drop grayscale) |
| Ink Compatibility | UV-curable pigment inks and oil-based industrial fluid formulations |
| Dimensions | 85 × 41.2 × 57.6 mm |
| Weight | 145 g (assembly net) |
Field Advisory Technical Precision & Installation Warning
Printhead installation must be performed by a qualified technician following official Océ / Canon or Fujifilm service procedures. Incorrect handling can permanently damage the nozzle plate, electronics, or ink delivery system.
- ESD Protection: Always use a grounded wrist strap and anti-static surface when opening the packaging and handling the printhead. Piezo printheads are highly sensitive to electrostatic discharge.
- Power Isolation: Completely power down and isolate the printer before removing or installing the printhead. Do not hot-swap.
- Cable Recommendation: Inspect and, if necessary, replace the printhead data cables (FFC) when installing a new head to prevent signal latency or short circuits.
- Ink Compatibility: Use only UV-curable pigment inks approved for the specific Arizona or Acuity system. Non-approved fluids can damage the head manifold and void support.
- Handling Factory-Sealed Unit: Do not break the seal until ready for installation. Once the printhead has been exposed to ink or installed, it is considered used and cannot be returned.
- Part Number Verification: Confirm that the original head or machine documentation shows 3010108132 / 3W3010108132 (or superseded 3010105439) before ordering.
Compatible Models & Systems
This genuine part number 3W3010108132 / 3010108132 is confirmed compatible with the following UV flatbed systems:
Océ / Canon Arizona Series:
- Arizona 300 GT
- Arizona 318 GL
- Arizona 350 GT, 350 XT
- Arizona 360 GT, 360 XT
Fujifilm Acuity Advance Series:
- Acuity Advance HD2545
- Acuity Advance HD2545 X2
- Acuity Advance HD2545W (White channel)
Recommendation: Always cross-check the part number printed on the existing printhead or listed in the machine’s service documentation before ordering. Do not assume interchangeability with other CE-series or CA-series heads without verification of the physical interface, electrical drive and firmware.
Terms, Warranty & Customer Protection
Pre-Installation Guarantee: 100% brand-new, factory-original product. Each unit is inspected and sealed before shipment. We guarantee authenticity and factory condition upon arrival.
Store Warranty Policy: 30 working days warranty covering manufacturing defects. Warranty claims require complete unboxing video and professional installation video performed by an experienced technician following standard recommended procedures.
Final Sale Conditions: Once the printhead has been exposed to ink or installed into a printer, it is considered used and cannot be returned or exchanged. Please verify compatibility and installation readiness before opening the sealed packaging.
