Océ Arizona 200 250 GT Printhead 3W3010106120 / 3010106120
- Write a review
$1,650.00
$808.50
Save 51%
Genuine OEM Canon Océ 3W3010106120 (3010106120) piezoelectric industrial UV printhead engineered for first-generation Océ Arizona 200 GT and 250 GT flatbed printers.
OEM Industrial UV Flatbed Component
Original Océ Arizona 200 GT / 250 GT Printhead Assembly
OEM Part Number: 3010106120 / 3W3010106120 | Transducer Engine: Toshiba TEC CA3 Grayscale Piezoelectric Printhead Module with Integrated Heating & Thermistor
Océ Arizona 200/250 GT & Fujifilm Acuity 2504 Architecture Notice

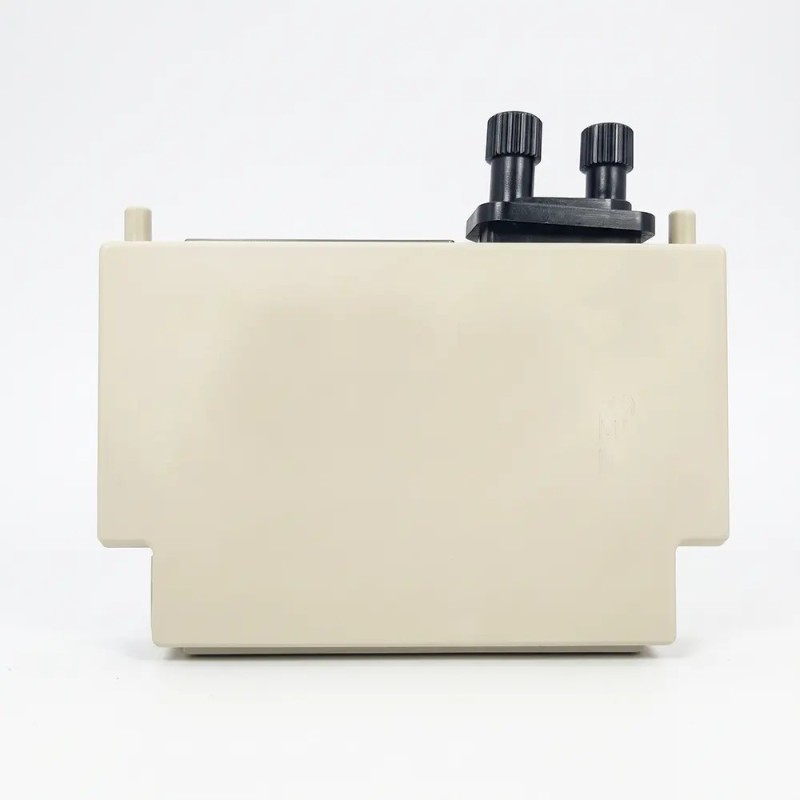

The Océ 3010106120 / 3W3010106120 Printhead Assembly is the authentic factory-original OEM replacement component engineered specifically for first-generation VariaDot UV flatbed presses: the Océ Arizona 200 GT and Arizona 250 GT (as well as its twin platform, the Fujifilm Acuity 2504 / Advance HD2504). Built on the industrial Toshiba TEC CA3 (CA3W) transducer platform, this assembly features an integrated internal heating block and precision thermistor system calibrated to lower the viscosity of Océ IJC255 / IJC256 UV curable inks directly behind the acoustic chambers prior to jetting.
Product Overview
The Original Océ 3010106120 (Toshiba TEC CA3) Printhead Assembly is an industrial drop-on-demand (DoD) piezoelectric module designed for rigid flatbed printing up to 48 mm (1.89 in) media thickness (acrylic, corrugated plastic, composite panels, glass, and wood) as well as continuous roll media on Roll Media Option (RMO) attachments. Operating within the standard 4-channel CMYK carriage configuration of the Arizona 200/250 GT, this unit delivers high-durability commercial graphics with smooth continuous tones.
Featuring 318 active addressable nozzles arranged in a single high-precision line (150 LPI native nozzle pitch, or 300 LPI interleaved dot placement), the CA3 transducer engine delivers native optical output resolutions up to 1440 × 1440 DPI. Pioneering Océ’s proprietary VariaDot imaging technology, the multi-drop grayscale waveform fires variable droplets from a microscopic 6 picoliters up to 42 picoliters across multiple drop levels. This wide dynamic drop range eliminates visual graininess in quarter-tones and highlights while maintaining dense solid fills and high ink economy.
Part Information
| Product Name | Original Océ Arizona 200 GT / 250 GT UV Printhead Assembly |
| OEM Manufacturer | Canon / Océ-Technologies B.V. / Toshiba TEC (Japan) |
| Primary OEM Part Numbers | 3010106120 / 3W3010106120 |
| Fujifilm Cross-Reference | Fujifilm Acuity 2504 / Advance HD2504 Equivalent |
| Core Transducer Architecture | Toshiba TEC CA3 (CA3W) Industrial Piezoelectric Transducer |
| Component Classification | Industrial Drop-on-Demand (DoD) Grayscale UV Curable Printhead |
| Carriage Bay Allocation | Universal CMYK Bay: Mounts in Cyan, Magenta, Yellow, or Black positions |
| Thermal Management | Integrated chassis heating block with onboard thermal feedback sensor |
| Ink Chemistry Pairing | Océ Genuine IJC255 / IJC256 UV Curable Inks & Dedicated UV Flush |
| Country of Origin | Japan (100% Genuine Factory Original Sealed Packaging) |
Technical Specifications
| Actuation Physics | Industrial Shared-Wall Piezoelectric Drop-on-Demand (PZT Actuator System) |
| Active Addressable Nozzles | 318 active channels per head |
| Native Nozzle Pitch / Resolution | 150 LPI native pitch (interleaved output producing up to 1440 × 1440 DPI) |
| Active Print Swath Width | 53.6 mm (2.11 inches) active printing swath |
| Firing Frequency | Up to 6.2 kHz (standard multi-drop grayscale mode) |
| Droplet Size Spectrum (VariaDot) | 6 pl (minimum highlight drop) up to 42 pl (maximum solid density drop) across multiple grayscale levels |
| Operating Ink Viscosity | 8 to 12 mPa·s at elevated jetting operating temperature (~45°C) |
| Faceplate Construction | Chemically passivated stainless steel nozzle plate with protective anti-wetting treatment |
| Fluid Interface Porting | Dedicated inlet/outlet dual fluid manifolds for Arizona vacuum degassing & meniscus control |
| Electrical Interface | High-density multi-pin ribbon cable socket with dedicated heater drive and sensor terminals |
| Net Weight & Dimensions | 85 × 40 × 55 mm; Net weight: ~145 g / Packaged gross weight: ~0.40 kg |
Key Features & Operational Advantages
- True VariaDot Variable Droplet Jetting: Drops ranging from 6 pl to 42 pl render photographic skin tones and razor-sharp 2-point vector micro-text without light inks (LC/LM), cutting ink usage by up to 35%.
- Integrated Heating & Thermal Conditioning: Onboard heating elements and precision thermistors keep heavy UV monomers at their optimal 45°C operating viscosity directly behind the acoustic chambers.
- Heavy-Duty Stainless Steel Faceplate: Engineered to withstand aggressive photo-curable acrylates and routine maintenance wipe cycles without nozzle orifice degradation.
- Direct Drop-In OEM Fitment: Built to exact Océ factory dimensions, restoring original droplet trajectory and carriage height parallelization without bracket modifications.
CRITICAL TECHNICAL & SERVICE ADVISORY
1. Generational Incompatibility (Toshiba CA3 vs. CA4 / CE4): The 3010106120 (Toshiba CA3) is engineered specifically for first-generation Océ Arizona 200 GT / 250 GT platforms. It is NOT interchangeable with Toshiba TEC CA4 (3010107380 / 3010107381) used in Arizona 300 / 350 / 360 / 460 / 480 series, nor with CE4 printheads used in newer Arizona 1200 / 1300 / 2200 series. Drive waveforms, connector pinouts, and voltage tables differ significantly.
2. Service Software Voltage & Waveform Tuning: After physical mounting, the technician must enter the head-specific voltage calibration data via the Océ Service Tool / Arizona Service Interface. Firing the head with incorrect voltage parameters causes drop trajectory deflection, satellite misting, and premature piezo failure.
3. Meniscus Vacuum & Thermal Stabilization: Arizona systems rely on negative pressure vacuum systems to prevent ink dripping. When installing a replacement head, prime the lines thoroughly to purge all micro-bubbles, verify that the head temperature stabilizes around 45°C, and ensure negative meniscus pressure holds steady prior to test printing.
4. Faceplate Maintenance Precautions: Never wipe the metallic nozzle faceplate with dry shop wipes or coarse paper towels. Clean only using approved lint-free swabs moistened with genuine Océ UV flush. Regularly inspect the maintenance station wipers and UV lamp shutters to prevent cured UV ink from accumulating on the nozzle plate due to stray UV scatter.
Compatible Models & Systems
| Platform / Series | Compatible Printer Models | Transducer Configuration |
|---|---|---|
| Océ Arizona 200 Series | Océ Arizona 200 GT | 4 × Toshiba TEC CA3 Heads (CMYK) |
| Océ Arizona 250 Series | Océ Arizona 250 GT | 4 × Toshiba TEC CA3 Heads (CMYK) |
| Fujifilm Acuity 2500 Series | Fujifilm Acuity 2504 / Advance HD2504 | 4 × Toshiba TEC CA3 Heads (CMYK) |
| Océ Arizona 300 / 350 / 360 (Reference) | Arizona 318 GL, 350 GT, 360 GT/XT | Incompatible: Later series uses Toshiba CA4 (3010107380) |
| Océ Arizona 460 / 480 (Reference) | Arizona 460 GT/XT, Arizona 480 GT/XT | Incompatible: 6/8 channel platforms use Toshiba CA4 (3010107381) |
*Model Differentiation Note: Specifically engineered for Océ Arizona 200 GT / 250 GT and Fujifilm Acuity 2504 UV flatbed platforms. Confirm printer serial and carriage station configuration prior to unpacking.
Terms, Warranty & Customer Protection
Condition: 100% Brand New, Genuine OEM Factory-Original Canon / Océ replacement printhead assembly in sealed factory packaging with shipping preservation fluid intact.
Manufacturer Warranty: Covered under standard OEM parts limited warranty against material and manufacturing defects out-of-box prior to ink introduction. No warranty applies once active UV ink or flush fluid has been introduced into the micro-fluidic chambers, or if damage results from head strikes, rigid media crashes, electrostatic discharge, or improper cable seating.
Return Policy: Precision industrial electronic component. Unopened, factory-sealed boxes with intact tamper-evident seals are eligible for standard commercial return. Once the vacuum seal is broken, protective nozzle tape removed, or the head mounted onto a carriage frame, returns cannot be accepted due to fluid priming, static risk, and electrical contamination hazards.
