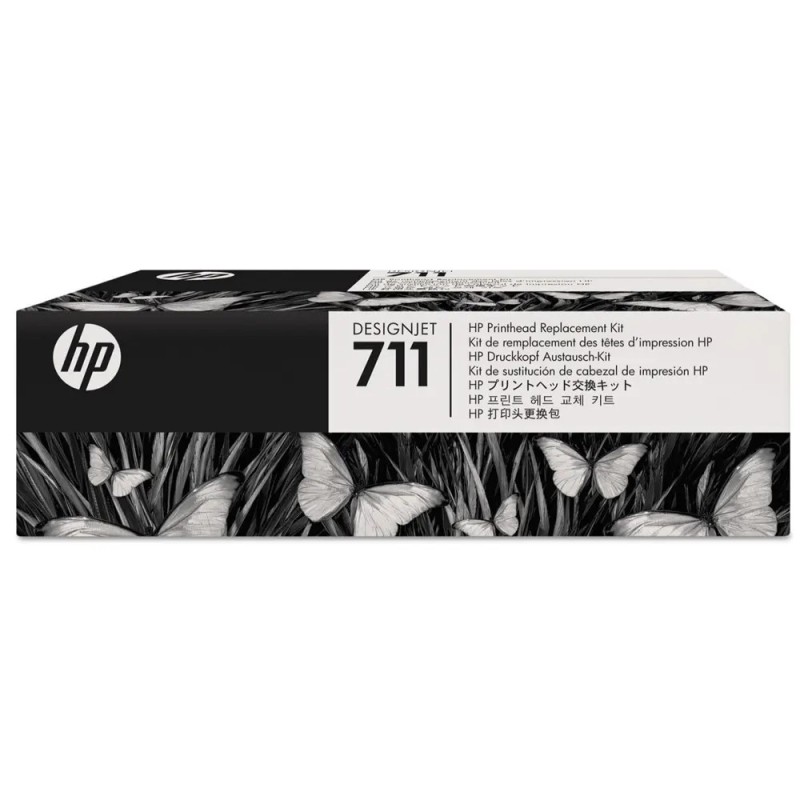

Original HP 711 Printhead Replacement Kit (C1Q10A)
- Write a review
$195.00
$113.10
Save 42%
Factory 4-color integrated thermal inkjet printhead replacement kit complete with introductory ink cartridges for HP DesignJet T100 and T500 series.
OEM Replacement Component
Original HP 711 DesignJet Printhead Replacement Kit (C1Q10A)
OEM Part Number: C1Q10A (HP No. 711) | 4-Color Integrated Thermal Inkjet (TIJ 4.0) Printhead Assembly with Starter Cartridge Set
Product Overview
The Original HP 711 DesignJet Printhead Replacement Kit (C1Q10A) is an authentic original equipment manufacturer 4-color integrated thermal inkjet (TIJ) printhead assembly engineered specifically for HP DesignJet T-series wide-format plotters and technical printers. Designed as an all-in-one unified print engine, the C1Q10A manages all 4 primary process channels—Cyan, Magenta, Yellow, and Black (CMYK)—within a single drop-in carriage housing. This eliminates multi-head mechanical alignment issues and delivers sharp vector line drawings, GIS maps, AEC blueprints, and full-color presentations.
Featuring 4,320 total active nozzles (1,080 nozzles dedicated per color channel across dual interleaved arrays), the HP 711 printhead discharges calibrated 12 picoliter (pL) drops for pigment black ink to achieve crisp line acutance and high optical density, alongside fine 5.5 picoliter (pL) drops for dye color channels to render smooth tonal fills and clean graphic vignettes at resolutions up to 2400 × 1200 optimized DPI. The complete OEM kit includes the integrated 4-color printhead assembly and a full set of genuine introductory HP 711 starter ink cartridges (Black, Cyan, Magenta, Yellow) required to execute initial system priming and fluidic pressurization during installation.
Part Information
| Product Name | Original HP 711 DesignJet Printhead Replacement Kit |
| OEM Manufacturer | HP Inc. (Hewlett-Packard) |
| OEM Part Number | C1Q10A (HP No. 711) |
| Component Classification | Integrated 4-Color Single-Unit Thermal Inkjet (TIJ) Printhead Assembly |
| Channel Allocation | 4 Channels: Black (K), Cyan (C), Magenta (M), Yellow (Y) |
| Ink Chemistry Pairing | Pigment-Based (Black) & Dye-Based (Cyan, Magenta, Yellow) |
| Package Inclusions | 1x HP 711 Printhead, 4x Introductory HP 711 Ink Cartridges (K, C, M, Y), Setup Guide |
Technical Specifications
| Print Technology | HP Thermal Inkjet (TIJ 4.0 / Scalable Printing Technology) |
| Total Number of Nozzles | 4,320 nozzles (1,080 nozzles per color channel across 4 integrated lines) |
| Native Channel Pitch | 1200 nozzles per inch (npi) per individual channel row pair |
| Maximum Output Resolution | Up to 2400 × 1200 optimized DPI |
| Calibrated Drop Volume | 12 pL (Pigment Black); 5.5 pL (Dye Cyan, Magenta, Yellow) |
| Minimum Line Width | 0.02 mm (0.0008 inches) ISO/IEC 19752 technical addressability |
| Line Accuracy Rating | ±0.1% of specified vector vector path length |
| Smart Chip Integration | Onboard cryptographic EEPROM for dynamic voltage tracking, firing cycle logging, and calibration |
| Operating Temperature Range | 5°C to 35°C (41°F to 95°F) |
| Storage Temperature Range | -40°C to 60°C (-40°F to 140°F) in factory-sealed state |
| Operating Humidity Range | 10% to 90% RH non-condensing |
| Package Dimensions & Weight | 149 × 298 × 93 mm; approx. 0.45 kg (450 g) gross kit weight |
Key Features & Operational Advantages
- Integrated 4-Color Single-Chassis Design: Houses Cyan, Magenta, Yellow, and Black on a unified silicon faceplate, eliminating color-to-color mechanical calibration drift and ensuring registration across CAD drawings and line work.
- Dual Drop-Size Architecture: Discharges bold 12 pL droplets for crisp, smear-resistant pigment black line work alongside delicate 5.5 pL drops for dye colorants, ensuring sharp alphanumeric text and smooth 3D renders.
- High Line Precision (±0.1%): Delivers fine line acutance down to 0.02 mm, providing technical accuracy for architectural drawings, electrical schematics, and mechanical engineering layouts.
- Complete Installation Kit: Packaged with 4 genuine introductory HP 711 ink cartridges, supplying the fluid volumes needed to prime the micro-fluidic chambers during setup without draining your existing cartridges.
CRITICAL TECHNICAL & OPERATIONAL ADVISORY
1. Mandatory Starter Cartridge Usage: Always install the four included introductory HP 711 ink cartridges during the initial printhead replacement routine. The plotter's internal initialization algorithm requires specific fluid parameters and microchip handshakes to fill and pressurize the empty internal chambers. Using partially depleted existing cartridges can cause air ingestion and setup failure.
2. Carriage Latch Sequencing: Lower the printhead straight into the carriage carriage slot without tilting. Ensure the carriage locking latch is rotated fully down until it clicks solidly into place before inserting ink cartridges into the printhead basket. Never force the latch down over a misaligned head, as this will bend the rear electrical pins.
3. Electrical Contact Pad Care: Never touch the gold contact fingers or the lower nozzle orifice faceplate with bare hands. Finger oils and static discharge can corrupt smart chip communication or cause open circuit errors. If contaminated, clean the pads gently using a lint-free cloth moistened with deionized or distilled water.
4. Automatic Calibration & Media Loading: Once the initialization sequence finishes, the plotter automatically prints and reads a calibration pattern to align all four color channels. Ensure white bond or coated paper (minimum 24-inch roll or sheet) is loaded so the optical sensor can scan the test pattern without error.
Compatible Models & Systems
| Printer Series | Ink Configuration | Supported Plotter Models |
|---|---|---|
| HP DesignJet T120 Series | 4-Color (K-Pigment, CMY-Dye) | DesignJet T120 24-in ePrinter (CQ891A / CQ891B / CQ891C) |
| HP DesignJet T125 / T130 | 4-Color (K-Pigment, CMY-Dye) | DesignJet T125 24-in (5ZY57A) & DesignJet T130 24-in (5ZY58A) |
| HP DesignJet T520 Series | 4-Color (K-Pigment, CMY-Dye) | DesignJet T520 24-in (CQ890A/B/C) & T520 36-in (CQ893A/B/C) |
| HP DesignJet T525 / T530 | 4-Color (K-Pigment, CMY-Dye) | DesignJet T525 24-in/36-in & DesignJet T530 24-in/36-in (5ZY60A/5ZY62A) |
*Model Differentiation Note: The HP 711 printhead (C1Q10A) is an integrated 4-color assembly. It is physically and electrically incompatible with dual-color modular printhead architectures such as the HP 70 series (C9404A–C9410A) or HP 72 series (C9380A–C9384A), as well as newer HP 712 / HP 713 DesignJet engines. Verify your printer chassis model matches the HP 711 specification before opening the box.
Terms, Warranty & Customer Protection
Condition: 100% Brand New, Genuine OEM Factory-Original HP Replacement Kit sealed in official commercial packaging with factory preservation fluid intact.
HP Manufacturer Warranty: Covered under HP's genuine parts limited warranty against materials and workmanship defects until the "Warranty Ends" date printed on the exterior box, or until the factory-rated ink throughput threshold is reached, whichever comes first.
Return Policy: Precision electronic component kit. Unopened, factory-sealed kits are eligible for return under standard commercial terms. Once the inner foil packaging is broken, the orange protective shipping cap removed, or the starter ink cartridges punctured and seated into the printhead basket, returns cannot be accepted due to fluidic priming, activation of the internal smart chip, and fluid contamination risks.
