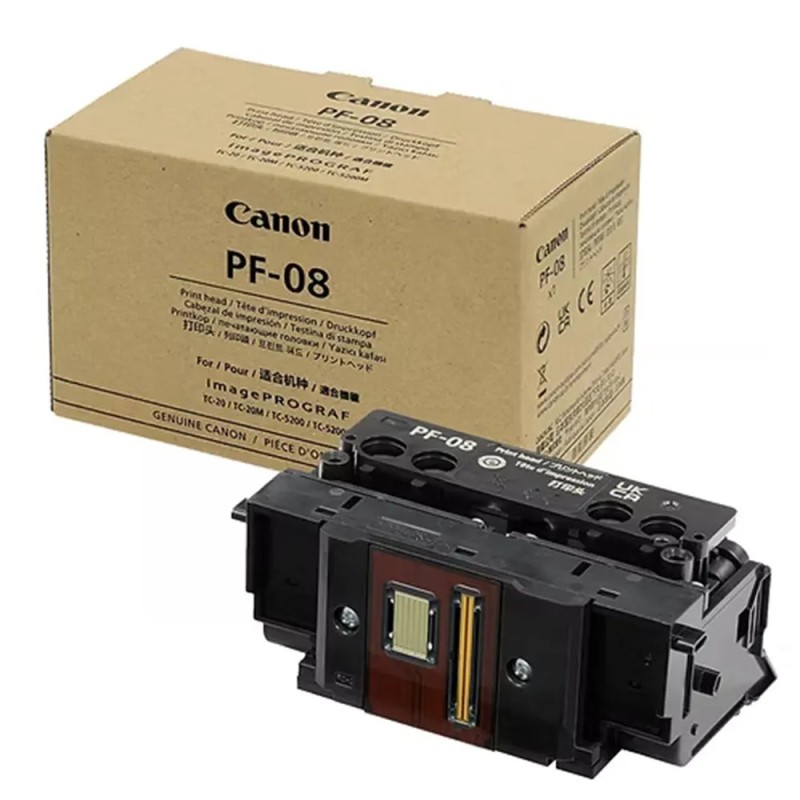

Original Canon PF-08 Printhead
- Write a review
$255.00
$147.90
Save 42%
Compact 4-color integrated FINE thermal inkjet printhead module designed for Canon imagePROGRAF TC-20 and TC-20M desktop large-format printers.
OEM Replacement Component
Original Canon PF-08 Printhead (5706C001AA)
OEM Part Number: 5706C001AA / 5706C001 (PF-08) | 4-Color Integrated Desktop Large-Format FINE Thermal Bubble Jet Printhead
Engineering Generation & Continuous Ink-Tank Architecture Notice
The Canon PF-08 Printhead (OEM SKU 5706C001AA) represents Canon’s compact 4-color integrated FINE thermal architecture designed specifically for the imagePROGRAF TC Series (including TC-20, TC-20M, TC-21, TC-21M, and TC-5200). Unlike traditional 6-channel technical heads (PF-06/PF-07) or 12-channel graphic units (PF-10), the PF-08 features an integrated 4-chip silicon die (4,352 nozzles) calibrated for refillable, high-yield PFI-050 all-pigment bottled ink systems without cartridge bladders.
Product Overview
The Original Canon PF-08 Printhead (5706C001AA) is an authentic original equipment manufacturer integrated thermal Bubble Jet drop-on-demand (DoD) replacement printhead engineered for space-saving 24-inch desktop wide-format plotters and technical multifunction systems. Manufactured using Canon’s semiconductor-grade FINE (Full-photolithography Inkjet Nozzle Engineering) process, the monolithic silicon die is optimized to achieve high line accuracy (±0.1% or less) and deep color saturation across architectural plans, technical CAD drawings, GIS maps, educational displays, and office presentations.
Housing 4,352 active addressable nozzles across four dedicated color channels (1,280 nozzles for Black and 1,024 nozzles each for Cyan, Magenta, and Yellow), the printhead ejects calibrated micro-droplets at native output resolutions up to 2400 × 1200 optimized DPI. The module incorporates optimized nozzle orifice profiling designed to reduce ink mist and satellite spatter during fast carriage traversal. Reinforced with high-durability electro-thermal passivation layers to resist wear from abrasive pigment particles, the PF-08 works in direct synchronization with the printer’s onboard thermal sensors and EEPROM rank calibration to deliver sharp vector line work down to 0.02 mm and clean vector typography on plain bond and coated rolls.
Part Information
| Product Name | Original Canon PF-08 Printhead |
| OEM Manufacturer | Canon Inc. |
| OEM Part Number | 5706C001AA / 5706C001 (PF-08) |
| International Barcode (EAN) | 4549292201390 |
| Component Classification | Integrated 4-Color Desktop Large-Format FINE Thermal Bubble Jet Scanning Printhead |
| Channel Architecture | 4 Integrated Fluid Lines (Black, Cyan, Magenta, Yellow) |
| Ink Chemistry Pairing | Canon PFI-050 All-Pigment 4-Color Bottled Ink System (70ml Refill Bottles) |
| Maintenance Cartridge Pairing | Canon MC-32 Maintenance Tank (5697C001AA) |
| Country of Origin | Japan (Genuine Canon Factory Sealed Packaging) |
Technical Specifications
| Print Technology | Canon FINE (Full-photolithography Inkjet Nozzle Engineering) Bubble Jet |
| Total Active Addressable Nozzles | 4,352 nozzles total (4 chips per printhead assembly) |
| Nozzle Channel Distribution | Black (BK): 1,280 nozzles | Cyan (C), Magenta (M), Yellow (Y): 1,024 nozzles each |
| Native Array Pitch / Density | 1200 nozzles per inch (npi) × 2 lines |
| Maximum Output Resolution | Up to 2400 × 1200 optimized DPI |
| Line Placement Accuracy | ±0.1% or less (user adjustments and matched media required) |
| Nozzle Orifice Profiling | Precision-sculpted orifice walls to minimize ink misting and aerodynamic deflection |
| Heater Armor & Cavitation Shielding | Tantalum hard-coat passivation protecting micro-heaters from abrasive pigment wear |
| Smart Memory & Sensor Feedback | Onboard EEPROM tracking head rank resistance, thermal drive pulse tables, and dot counts |
| Operating Temperature Range | 15°C to 30°C (59°F to 86°F) |
| Storage Temperature Range | 5°C to 35°C (41°F to 95°F) in factory-sealed state |
| Operating Humidity Range | 10% to 80% RH non-condensing |
| Physical Dimensions & Weight | Approx. 95 × 75 × 50 mm; Net weight: ~0.08 kg / Packaged: ~0.16 kg |
Key Features & Operational Advantages
- Integrated 4-Color Desktop FINE Array: Houses 4,352 nozzles (1,280 Black / 1,024 CMY each) across a single monolithic silicon die, balancing high-speed CAD monochrome throughput with full-color presentation rendering in a compact desktop form factor.
- PFI-050 All-Pigment Compatibility: Electro-thermal micro-resistors feature protective tantalum coatings specifically designed to resist cavitation and thermal kogation caused by high-solids aqueous pigment inks.
- Low-Mist Nozzle Orifice Geometry: Optimized orifice bores reduce satellite ink droplet scatter, ensuring clean, legible 4-point CAD text and sharp vector line boundaries down to 0.02 mm without fuzzy edges.
- Continuous Bulk-Tank Fluid Delivery: Designed to interface with the continuous ink feed system of the TC series, maintaining meniscus pressure stability from 70ml refillable ink reservoirs without requiring disposable ink cartridge bodies.
CRITICAL TECHNICAL & OPERATIONAL ADVISORY
1. Platform Incompatibility with PF-06, PF-07, and PF-10: The PF-08 printhead is engineered exclusively for the 4-color imagePROGRAF TC desktop platform (TC-20 / TC-20M / TC-21 / TC-5200). It is physically, electrically, and fluidically incompatible with 6-color technical plotters using the PF-06 (TM/TX/TA series), fluorescent poster plotters using the PF-07 (GP-200/300), and 12-channel fine art plotters using the PF-10 (PRO series). Do not attempt to force mismatched printheads into carriage locks.
2. Continuous Ink Tank Priming & Fluidic Needles: The TC series utilizes bulk ink tanks refilled from PFI-050 bottles. When mounting a replacement PF-08, ensure the carriage locking levers are pressed down firmly until both latch clicks engage. An improper latch seal will cause air ingestion at the ink inlet towers, leading to nozzle starvation across color channels.
3. Electrical Contact Array Protection: Avoid touching the gold contacts on the rear of the printhead housing or the silicon nozzle orifice plate. Electrostatic discharge (ESD) or body oils will cause heater driver failures. If cleaning is needed, wipe gently using an approved cleanroom swab dampened with deionized water.
4. Automated Priming & Calibration: Following installation and carriage latch closure, allow the printer to finish its automated ink priming cycle. Load opaque plain paper or coated media so the optical carriage sensor can calibrate inter-channel drop alignment.
Compatible Models & Systems
| Printer Platform | Ink Chemistry | Supported Plotters |
|---|---|---|
| Canon imagePROGRAF TC-20 | PFI-050 All-Pigment (BK/C/M/Y) | 24-in Desktop Compact Large-Format CAD/AEC Printer (5815C003AA) |
| Canon imagePROGRAF TC-20M | PFI-050 All-Pigment (BK/C/M/Y) | 24-in Desktop Large-Format MFP with Integrated A4 Flatbed Scanner (5816C003AA) |
| Canon imagePROGRAF TC-21 / TC-21M | PFI-050 All-Pigment (BK/C/M/Y) | 24-in Updated Desktop CAD Printer and MFP Models |
| Canon imagePROGRAF TC-5200 / TC-5200M | PFI-050 All-Pigment (BK/C/M/Y) | Regional Asian/Global Market Designation for TC-20 / TC-20M Platforms |
*Model Differentiation Note: The PF-08 is dedicated to the compact 4-color imagePROGRAF TC-series plotters listed above. It cannot be used in 5-color TM/TX models (which require PF-06) or PRO-series printers (which require PF-10). Check the model tag on the printer's rear serial plate before unsealing factory packaging.
Terms, Warranty & Customer Protection
Condition: 100% Brand New, Genuine OEM Factory-Original Canon Replacement Printhead sealed in official protective blister packaging with preservation fluid intact.
Canon Manufacturer Warranty: Covered under Canon's standard parts limited warranty against materials and workmanship defects until the expiration date printed on the exterior carton, or until the factory-rated ink throughput threshold is reached, whichever occurs first.
Return Policy: Precision electronic consumable component. Unopened, factory-sealed boxes are eligible for standard commercial return. Once the protective blister seal is opened, the orange protective shipping cap removed, or the head seated into the carriage and charged with ink, returns cannot be accepted due to smart chip activation, fluid priming, and cross-contamination risks.
