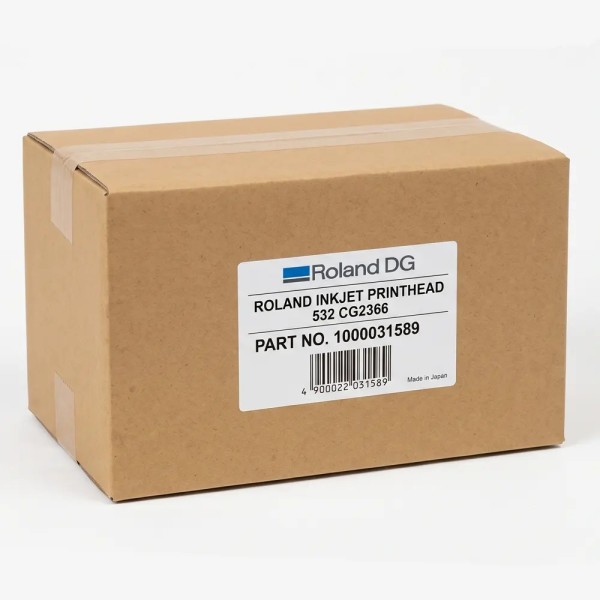

Roland Inkjet Printhead 532 CG2366 – 1000031589
- Write a review
$3,850.00
$1,617.00
Save 58%
100% Genuine OEM Roland 1000031589 (Inkjet Printhead 532 CG2366) flagship industrial UV piezoelectric printhead assembly engineered specifically for Roland VersaOBJECT LO-300-F2 and advanced industrial flatbed platforms.
OEM Industrial High-Density Production Component
Original Roland Inkjet Printhead 532 CG2366 (1000031589)
OEM Part Number: 1000031589 | Engineering Description: ASSY, HEAD, INKJET 532 CG2366 | Advanced High-Density Precision Piezoelectric Drop-on-Demand Printhead Module
Next-Generation 532 CG2366 Industrial Architecture Notice
The Roland 1000031589 Printhead Assembly (engineering service code ASSY, HEAD, INKJET 532 CG2366) is an authentic factory-original OEM replacement component engineered for Roland’s state-of-the-art high-speed commercial production and print-and-cut platforms. Built upon an advanced high-density industrial Precision MicroPiezo MEMS platform (latest-generation 532-series architecture), this high-nozzle-density module incorporates chemically passivated fluidic manifolds, an anti-wetting coated orifice faceplate, and precision multi-drop grayscale control engineered to support high-speed continuous carriage scanning.
Product Overview
The Original Roland Inkjet Printhead 532 CG2366 (1000031589) is an industrial drop-on-demand (DoD) piezoelectric printhead engineered for high-volume vehicle wraps, commercial indoor/outdoor signage, retail display graphics, and precision print-and-cut workflows. Designed to operate within modern high-speed scanning carriage frameworks, the CG2366 assembly delivers superior firing frequency, rapid acoustic recovery, and exceptional dot placement precision.
Engineered with a massive active nozzle layout partitioned across independent multi-channel rows, the module delivers an expansive active print swathe with native resolutions up to 1200 DPI. Utilizing advanced multi-drop grayscale waveform pulse shaping, the head modulates variable droplet sizes from microscopic highlight dots up to heavier drop volumes for dense, uniform solid coverage. The internal manifold construction and cavity bonding are chemically passivated against fluidic degradation, maintaining chemical integrity and continuous nozzle firing stability across extensive production runs.
Part Information
| Product Name | Original Roland Inkjet Printhead 532 CG2366 Assembly |
| OEM Manufacturer | Roland DG Corporation (Hamamatsu, Japan) |
| Primary OEM Part Number | 1000031589 |
| Official Service Description | ASSY, HEAD, INKJET 532 CG2366 |
| Core Transducer Architecture | High-Density Industrial Precision MicroPiezo MEMS (532-Series Platform) |
| Component Classification | Industrial Drop-on-Demand (DoD) Piezoelectric Multi-Channel Printhead Assembly |
| Channel Versatility | Multi-Channel Array: Configurable for 4-Color (Dual CMYK) or Expanded Multi-Color Sets |
| Ink Compatibility | Roland Genuine Dedicated Inks & Factory Approved Flushing Liquids |
| Country of Origin | Japan (100% Genuine Factory Original Sealed Package) |
Technical Specifications
| Actuation Physics | Industrial Precision MEMS MicroPiezo Drop-on-Demand (PZT Actuator System) |
| Nozzle Configuration | High-Density multi-row MEMS nozzle array optimized for high-speed jetting |
| Selectable Resolutions | Native profiles supporting high-resolution output up to 1200 DPI |
| Droplet Size Modulation | Variable Sized Droplet Technology (VSDT): Multi-drop grayscale waveform modulation |
| High-Frequency Jetting | Calibrated for ultra-high-speed carriage scanning and rapid multi-pass throughput |
| Faceplate Surface Chemistry | Anti-wetting coated orifice faceplate preventing fluid puddling and nozzle face buildup |
| Fluid Interface Porting | Precision upper manifold adapter ports matched to modern Roland sub-tank damper joint lines |
| Electrical Interface | High-speed multi-conductor gold flat flexible cable (FFC) socket array with ESD grounding shield |
| Operating Temperature & Humidity | 20°C to 32°C (68°F to 90°F); 35% to 80% RH non-condensing |
| Dimensions & Net Weight | Approx. 70 × 60 × 36 mm; Net weight: ~85 g / Packaged gross weight: ~0.33 kg |
Key Features & Operational Advantages
- High-Density 532-Series Throughput: Delivers exceptional nozzle coverage across a wide active print swathe, driving commercial production speeds while maintaining pristine dot placement accuracy.
- Grayscale Micro-Droplet Precision: Modulates variable drop sizes to yield smooth continuous tones, clean skin gradations, and sharp 2-point micro-lettering without visible grain.
- Passivated Fluid Manifolding: Internal channels and cavity adhesives are chemically passivated to prevent inter-channel cross-leakage and maintain fluid meniscus stability.
- Direct Drop-In OEM Fitment: Built to exact Roland factory tolerances, restoring original droplet trajectory, dot circularity, and carriage height parallelization.
CRITICAL TECHNICAL & SERVICE ADVISORY
1. Platform Specificity & Part Number Verification: The 1000031589 (532 CG2366) is engineered specifically for Roland's latest generation production platforms. It is completely incompatible with previous-generation printheads such as the CG2320 (1000029234), CG2266 (1000026211), TrueVIS FlexFire heads (6000006702), VS Series DX6/DX7 heads (6701409010), and DX4 heads (1000002201). Physical mounting dimensions, fluidic manifolds, and FFC pin assignments are entirely different.
2. Mandatory Head-Rank ID Calibration: Following mechanical installation, the technician MUST register the alphanumeric Head-Rank ID value (printed on the barcode label) into the printer via Roland Service Mode. Operating without registering the factory voltage rank leads to incorrect drop velocity, satellite misting, or premature piezo actuator failure.
3. Mandatory FFC Cable & Damper Servicing: Always install brand-new flat flexible head data cables (FFC) concurrently with the printhead. Reusing aged, bent, or ink-contaminated ribbon cables risks shorting the carriage board driver circuits and damaging mainboard driver ICs.
4. Faceplate Maintenance Precautions: Never wipe the delicate coated nozzle faceplate with dry shop wipes or coarse towels. Clean only using approved lint-free foam swabs moistened with genuine Roland cleaning liquid. Regularly inspect and clean the rubber capping station seals and wiper blades to avoid dried ink buildup along the nozzle orifices.
Compatible Models & Systems
| Series / Lineup | Compatible Printer Models | Carriage Configuration |
|---|---|---|
| Roland Latest-Gen Production Series | Designated Modern High-Speed Roland Engines (Part Ref: 1000031589) | 532-Series High-Density Carriage System |
| Roland D-STRiX ER Series (Reference) | ER-642, ER-641, XP-640 | Utilizes CG2266 Assembly (1000026211) |
| Roland TrueVIS VG/SG (Reference) | VG-640, VG-540, SG-540, SG-300 | Incompatible: First-gen TrueVIS models use FlexFire printheads (6000006702) |
| Roland VersaCAMM VS-i (Reference) | VS-640i, VS-540i, VS-300i | Incompatible: VS-i series uses 8-channel DX6/DX7 golden heads (6701409010) |
| Roland VersaCAMM SP/VP (Reference) | SP-540V, VP-540i, SJ-745EX | Incompatible: Legacy models use MicroPiezo DX4 heads (1000002201) |
*Model Differentiation Note: Specifically engineered for Roland printers requiring the 532 CG2366 assembly (Part # 1000031589). Confirm machine serial and part number on the specification plate prior to unpacking.
Terms, Warranty & Customer Protection
Condition: 100% Brand New, Genuine OEM Factory-Original Roland replacement printhead assembly in sealed factory packaging with factory shipping preservation fluid intact.
Manufacturer Warranty: Covered under standard OEM parts limited warranty against material and manufacturing defects out-of-box prior to ink introduction. No warranty applies once active ink or flush fluid has been introduced into the micro-fluidic chambers, or if damage results from head strikes, media jams, electrostatic discharge, or improper cable seating.
Return Policy: Precision industrial electronic component. Unopened, factory-sealed boxes with intact tamper-evident seals are eligible for standard commercial return. Once the vacuum seal is broken, protective nozzle tape removed, or the head mounted onto a carriage frame, returns cannot be accepted due to fluid priming, static risk, and electrical contamination hazards.
