HP Scitex FB500/FB700 sFRM Industrial Printhead (L1Q41-67065)
- Write a review
$1,950.00
$955.50
Save 51%
Factory-calibrated sFRM piezoelectric printhead module with integrated heater and manifold for HP Scitex FB500, FB550, FB700, and FB750 UV printers.
OEM Replacement Component

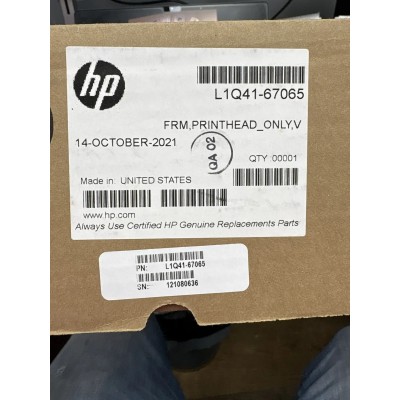

Original HP Scitex FB500 / FB700 sFRM Printhead (L1Q41-67065)
OEM Part Number: L1Q41-67065 (Supersedes CQ114-67019) | D33 Stacked PZT Piezoelectric Industrial UV Printhead
Industrial Architecture & Sub-Tank Notice
The HP Scitex FB500 / FB700 sFRM Printhead (OEM Part Number L1Q41-67065, which directly supersedes CQ114-67019) is built on the robust Ricoh / Hitachi GEN3-E3 (MH1603 / MH1803 / MH1903) full-metallic piezoelectric platform. Note on Scope of Delivery: SKU L1Q41-67065 designates the "sFRM Printhead Only". It does not include the companion intermediate sub-ink tank (CH104-67001), which must be transferred from the existing carriage assembly or serviced separately.
Product Overview
The Original HP Scitex FB500 / FB700 sFRM Industrial Printhead (L1Q41-67065) is an authentic OEM piezoelectric drop-on-demand (DoD) printhead engineered specifically for mid-volume industrial UV-curable flatbed and roll-fed hybrid production systems, including the HP Scitex FB500, FB550, FB700, and FB750 Printers. Engineered with an all-metallic chassis combining stainless steel, palladium, and specialized epoxy bonding, this printhead provides heavy-duty chemical resistance against aggressive photoinitiators, reactive UV monomers, and harsh flushing solvents used in 24/7 sign and display environments.
Housing 192 independent active nozzles arranged at a native channel pitch of 0.3387 mm (supporting output resolutions up to 360 dpi native, and up to 1200 × 600 optimized DPI via carriage pass interleaving), the head utilizes high-durability D33 stacked PZT piezo actuators rated for up to 100 billion actuations per channel. The module is capable of firing calibrated nominal droplets of 30 picoliters (pL) or 45 picoliters (pL) at drive frequencies up to 30 kHz. Built with an integrated internal heating block and thermistor, it regulates fluid viscosity up to 80°C to ensure stable jetting on rigid foam PVC, acrylics, fluted polypropylene, aluminum composite panels, and banner vinyl.
Part Information
| Product Name | Original HP Scitex FB500 / FB700 sFRM Printhead |
| OEM Manufacturer | HP Inc. / HP Scitex (Ricoh / Hitachi OEM Base) |
| OEM Part Number | L1Q41-67065 |
| Superseded Part Number | CQ114-67019 (Direct 1:1 OEM Replacement) |
| Underlying Engine Architecture | Ricoh / Hitachi GEN3-E3 (MH1603 / MH1803 / MH1903 / 338690-001) |
| Component Scope | sFRM Printhead Only (Excludes sub-ink tank CH104-67001) |
| Slot Versatility & Allocation | Universal single-channel head; installs in any color position (C, M, Y, K, LC, LM, or White) |
| Ink Chemistry Pairing | HP FB250 / HP FB251 Scitex UV-Curable Inks |
| Country of Origin | Japan (Genuine Factory Original Sealed Package) |
Technical Specifications
| Actuator Technology | D33 Stacked PZT Piezoelectric Drop-on-Demand (DoD) |
| Total Active Addressable Nozzles | 192 precision nozzles across 192 independent channels |
| Nozzle Spacing / Pitch | 0.3387 mm channel pitch |
| Native Printhead Resolution | Up to 360 dpi native physical array resolution |
| Maximum Output Resolution | Up to 1200 × 600 optimized DPI (multi-pass scanning) |
| Calibrated Base Drop Volume | Selectable 30 pL or 45 pL (operational pulse range: 12–50 pL) |
| Maximum Jetting Frequency | Up to 30 kHz drive frequency |
| Integrated Thermal Conditioning | Internal heating element and thermistor sensor supporting operations up to 80°C |
| Wetted Construction Materials | Stainless Steel (SST), Palladium (Pd), and chemical-resistant Epoxy Adhesive |
| Nozzle Plate Surface | Non-coated high-precision stainless steel |
| Rated Service Life | 100 billion actuations per nozzle |
| Physical Dimensions & Weight | 7.8 × 120 × 35 mm (bare unit); Packaged weight: approx. 1.25 lbs (~0.57 kg) |
Key Features & Operational Advantages
- Robust Full-Metallic Construction: Built with stainless steel and palladium fluid pathways that resist degradation from aggressive UV monomers and solvent washes, ensuring a rated operational life of 100 billion firings per nozzle.
- Selectable 30 / 45 pL Droplet Modes: Enables print operations to balance high-speed coverage with sharp edge acuity, firing 30 pL micro-droplets for fine vector text and 45 pL droplets for dense, saturated solid fills on porous corrugated media.
- High-Temperature Internal Thermal Regulation: Integrated heating circuit and thermistor heat the fluid up to 80°C directly inside the manifold, thinning high-viscosity UV-curable inks for stable, high-frequency jetting up to 30 kHz.
- Universal Single-SKU Architecture: Functions across any color position in 6-color (CMYKcm) and white-configured carriages, minimizing spare parts holding costs and operational inventory complexity.
CRITICAL TECHNICAL & OPERATIONAL ADVISORY
1. Sub-Tank CH104-67001 Re-Use Requirement: SKU L1Q41-67065 is supplied as the bare printhead assembly only. The intermediate sub-ink reservoir tank (CH104-67001) that originally accompanied early sFRM units is discontinued as a bundle item. Inspect, flush, and transfer the existing sub-tank assembly, or procure a functional sub-tank before scheduling replacement downtime.
2. High-Voltage Piezo Drive & FFC Ribbon Caution: Always power down the printer, turn off the main service breaker, and allow the carriage capacitor banks to fully discharge before unplugging or inserting the flexible ribbon cables. Connecting FFC cables at an angle or under live power will bridge high-voltage lines, instantly destroying the head drive electronics (HDC board) and piezo crystals.
3. Mechanical Slant & Printhead Calibration: Because the GEN3-E3 uses mechanical mounting pins in the sFRM carriage plate, technicians must perform physical slant adjustment with an alignment jig, followed by internal service menu calibration (electronic bi-directional and inter-head delay timings) to prevent vertical banding.
4. Solvent Flush Before UV Ink Introduction: Never introduce UV-curable ink directly into a printhead containing storage preservation fluid. Use approved HP Scitex flushing solvent to thoroughly purge shipping fluid from the chambers before charging with HP FB250/FB251 inks, avoiding fluid cross-reaction and nozzle clogging.
Compatible Models & Systems
| Printer Platform | Ink Chemistry | Chassis Classification |
|---|---|---|
| HP Scitex FB500 | HP FB250 / FB251 UV | 1.62-m (64-in) Industrial Flatbed / Roll Hybrid Production Printer (CQ114A) |
| HP Scitex FB550 | HP FB250 / FB251 UV | 1.62-m (64-in) Production UV Hybrid Printer (L1Q41A) |
| HP Scitex FB700 | HP FB250 / FB251 UV | 2.5-m (98.4-in) High-Capacity UV Flatbed / Roll Hybrid Printer (CQ115A) |
| HP Scitex FB750 | HP FB250 / FB251 UV | 2.5-m (98.4-in) Advanced Industrial Flatbed / Roll Hybrid System (L1Q42A) |
| HP Scitex FB950 | HP Scitex UV Inks | Legacy ColorSpan / Scitex Hybrid Platform (Ricoh GEN3-E3 configuration) |
| OEM Companion Systems | Industrial UV Chemistries | Fujifilm Uvistar series, Matan Barak series, DYSS Apollo UV-RF2200 |
*Model Differentiation Note: The L1Q41-67065 (GEN3-E3) head is engineered exclusively for HP Scitex FB500/FB550/FB700/FB750/FB950 platforms. It is completely incompatible with Seiko SPT510-based printers, Spectra Nova-based grand-format presses (XP series using CW903-62866), and High Dynamic Range presses (FB10000/11000/15000 using CW145-07310). Verify printer part numbers prior to unsealing.
Terms, Warranty & Customer Protection

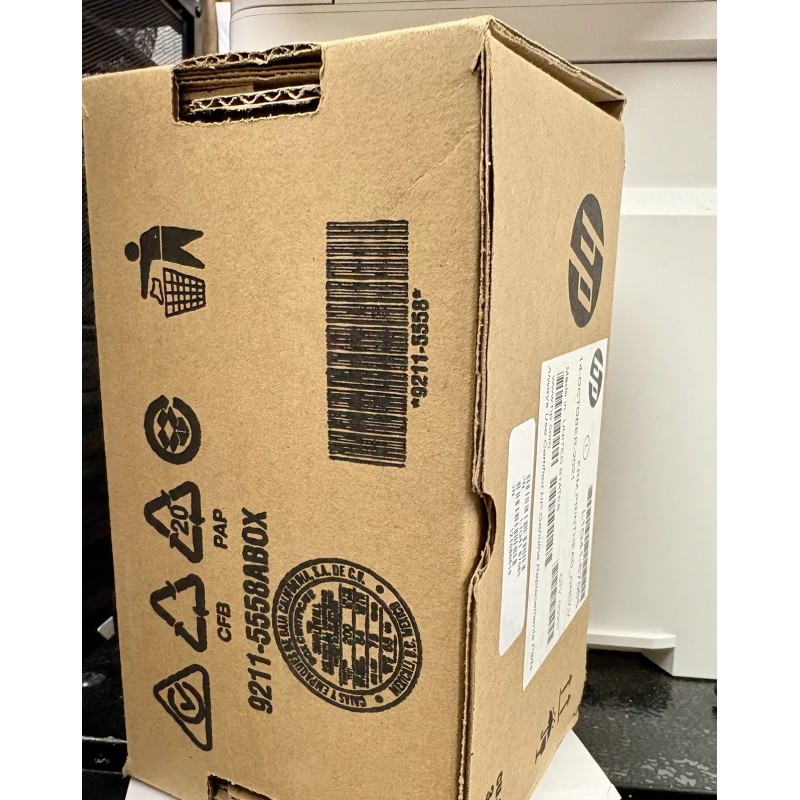

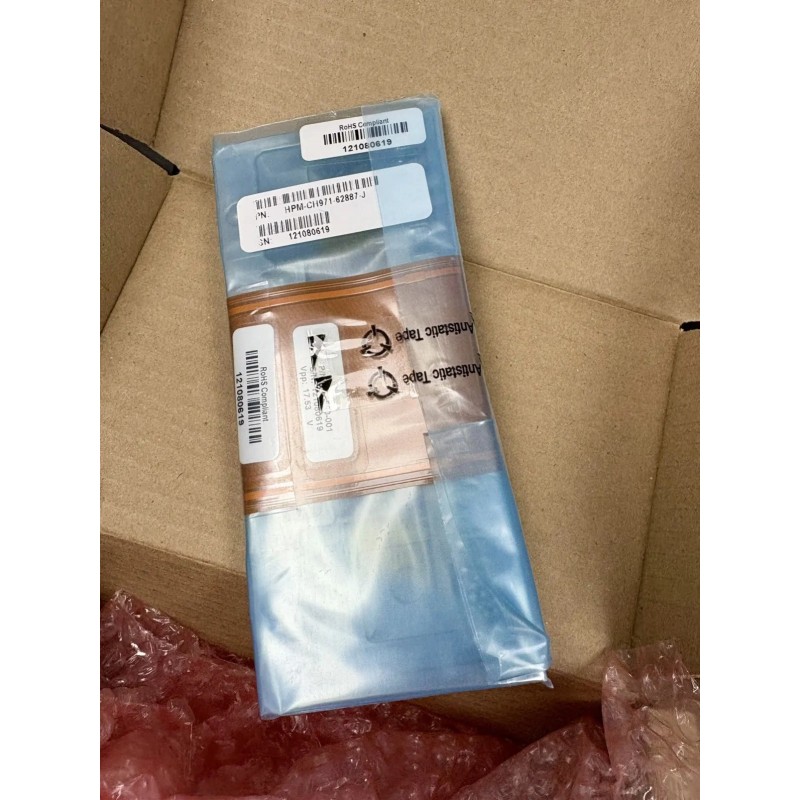

Condition: 100% Brand New, Genuine OEM Factory-Original HP Scitex Industrial Replacement Printhead in sealed electrostatic protective packaging with factory storage fluid intact.
Manufacturer Warranty: Precision industrial piezoelectric consumable component. Covered under manufacturer warranty against materials and factory assembly defects prior to ink charging. No warranty applies once UV-curable ink or flush has been introduced into the fluid channels, or if failure results from head crashes, mechanical strikes, or incorrect drive voltage configurations.
Return Policy: Precision electronic component. Unopened, factory-sealed boxes are eligible for standard commercial return. Once the anti-static packaging seal is broken or the printhead installed, returns cannot be accepted due to fluid cross-contamination and driver board voltage risks.
