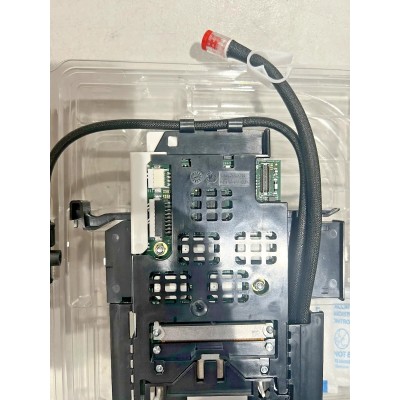

Original Canon Colorado 1640 UVgel 415 Printhead
- Write a review
$3,850.00
$1,617.00
Save 58%
Factory-original piezoelectric drop-on-demand printhead engineered for Canon UVgel 415 ink chemistry with integrated PAINT acoustic diagnostics.
OEM Industrial Production Component
Original Canon Colorado 1640 UVgel 415 Printhead (PN 1070052482)
OEM Part Number: 1070052482 (UVgel 415) | Industrial Drop-on-Demand Piezoelectric Module with PAINT Acoustic Diagnostics
Industrial UVgel 415 Architecture & Service Classification
The Canon UVgel 415 Printhead (OEM Part Number 1070052482) is the dedicated factory-original industrial piezoelectric line module engineered for the 64-inch Canon Colorado 1640 (and early Colorado 1650 production runs). Utilizing high-frequency PZT crystal actuators integrated with PAINT (Piezo Acoustic Integrated Nozzle Technology), this module liquefies thixotropic UVgel 356 / 460 ink inside internally heated fluidic manifolds and ejects uniform droplets that pin instantly on ambient media surfaces without thermal evaporation.
Product Overview
The Original Canon Colorado 1640 UVgel 415 Printhead (PN 1070052482) is an authentic OEM high-frequency drop-on-demand (DoD) piezoelectric replacement printhead engineered for 24/7 roll-to-roll graphic production. Installed in an interleaved dual-printhead-per-color array (8 printheads total across Cyan, Magenta, Yellow, and Black channels), the UVgel 415 assembly powers the Colorado 1640’s maximum engine throughput of 159 m²/hr (1,710 ft²/hr) for outdoor banners and billboard displays, while achieving photographic resolution up to 1800 DPI at high-density indoor fine art modes.
The UVgel 415 architecture features onboard micro-heaters that continuously maintain phase-change UVgel ink at an optimal jetting temperature of ~65°C. As droplets leave the nozzle orifice plate and land on unheated media platens, they immediately gel upon contact, locking dot gain to zero and preventing ink bleed before encountering the low-temperature UV LED pinning and curing arrays. Integrated acoustic sensing circuitry continuously monitors acoustic resonance inside each nozzle chamber during printing swaths, detecting microscopic air bubbles or clogs and executing autonomous real-time waveform adjustments or adjacent nozzle compensation without stopping the media feed.
Part Information
| Product Name | Original Canon Colorado 1640 UVgel 415 Printhead |
| OEM Manufacturer | Canon Production Printing B.V. (Venlo, Netherlands) / Canon Inc. |
| OEM Part Number | 1070052482 |
| Printhead Model Designation | Canon UVgel 415 Module |
| Component Classification | Industrial High-Speed Piezoelectric Drop-on-Demand (PZT DoD) Scanning Printhead |
| Acoustic Diagnostics Engine | Canon PAINT© (Piezo Acoustic Integrated Nozzle Technology) |
| Color Configuration | Universal single-color module; mounts 2 units per channel (C, M, Y, K) |
| Ink Formulation Pairing | Canon UVgel 356 Ink Series & UVgel 460 Ink Series |
| Country of Origin | Netherlands / Japan (Genuine Factory Original Sealed Package) |
Technical Specifications
| Actuator Physics | High-Density Industrial Lead Zirconate Titanate (PZT) Piezo Transducers |
| Carriage Allocation | 2 printheads per color channel (8 printheads total in Colorado 1640 CMYK carriage) |
| Maximum Optical Output Resolution | Up to 1800 × 600 DPI / 1800 × 1200 DPI selectable production modes |
| Linear Print Productivity | Up to 159 m²/hr (Billboard Draft), 114 m²/hr (Outdoor), 57 m²/hr (Indoor Production), 40 m²/hr (High Quality) |
| Internal Fluid Temperature Range | Integrated internal heating blocks regulating jetting viscosity at ~60°C to 70°C |
| Droplet Ejection Volume | Calibrated variable grayscale micro-droplet ejection (nominal ~10 pL) |
| Acoustic Feedback Sampling Rate | Sub-millisecond piezoelectric pulse sensing checking each nozzle prior to swath entry |
| Curing Compatibility | Low-temperature UV LED pinning arrays + independent post-cure UV LED assembly |
| Maintenance & Purge Integration | Direct interface with automated maintenance station, vacuum wiper cassettes, and waste sub-tank |
| Operating Environment Range | 18°C to 30°C (Recommended: 20°C–27°C / 68°F–81°F); 20% to 80% RH non-condensing |
| Physical Weight & Form Factor | Industrial steel-chassis block; Net weight: ~0.42 kg / Packaged weight: ~0.75 kg |
Key Features & Operational Advantages
- PAINT Autonomous Acoustic Diagnostics: Actuator crystals emit acoustic measurement waves into the fluid channel between carriage passes; micro-reflections identify air ingestion or viscosity blockages, instantly triggering dynamic compensation across companion nozzles without print interruption.
- Phase-Change Pinning Control: Jetted hot from the printhead, ink solidifies into a gel layer immediately on unheated media surfaces, completely arresting drop migration and dot gain to preserve sharp vector typography down to 3-point fonts.
- Dual-Head Staggered Architecture: Two UVgel 415 modules per color line double the effective firing frequency and swath width, sustaining sustained 159 m²/hr printing across banner vinyl, polyester fabrics, and self-adhesive media.
- Ultra-Thin Protective Ink Film: Delivers high-density color saturation with up to 40% less ink laydown compared to solvent and eco-solvent technologies, yielding flexible, non-cracking prints for soft signage and vehicle graphics.
CRITICAL TECHNICAL & OPERATIONAL ADVISORY
1. Differentiation from UVgel 425 Modules (Colorado M-Series / 1630): Part Number 1070052482 (UVgel 415) is engineered specifically for the Colorado 1640 and early 1650 models. It is electrically and firmware incompatible with newer Colorado M-Series (M3/M5) and Colorado 1630 presses that utilize the UVgel 425 module (PN 1070129581). Verify the part number in the service diagnostics interface before replacing heads.
2. Certified Field Service Calibration Protocol: Installation of a UVgel 415 printhead must be conducted by certified Canon service personnel. After mechanical locking into the carriage datum reference, the press must execute an automated thermal cycle, fluid de-aeration, negative-pressure vacuum setting, and automated camera-assisted angular registration adjustments.
3. Strict Ambient UV Shielding: The UVgel 415 nozzle plate and internal manifold retain photosensitive gel. Never expose the unsealed head faceplate to natural sunlight or unshielded plant room fluorescent tubes. Direct UV exposure will induce photopolymerization inside the micro-nozzles, permanently bricking the assembly.
4. Heated Meniscus System Integrity: Never attempt to disconnect fluid couplings or electrical ribbons while the carriage thermal block is energized. The internal heater manifold operates under closed-loop temperature control; allow the system to execute its programmed cooldown routine before servicing fluid lines.
Compatible Models & Systems
| Press Model | Compatible Ink Series | Carriage Configuration |
|---|---|---|
| Canon Colorado 1640 | Canon UVgel 356 CMYK | Primary Fitment: 8 × UVgel 415 modules (2 heads per color: C, M, Y, K) |
| Canon Colorado 1650 (Early Run) | Canon UVgel 460 CMYK | 8 × UVgel 415 modules operating with FLXfinish LED cure control |
| Colorado M-Series / 1630 (Reference) | Canon UVgel 425 CMYK+W | Incompatible: Requires UVgel 425 Printhead (PN 1070129581) |
*Model Differentiation Note: Ensure the press serial registry specifies PN 1070052482 before completing replacement. Using UVgel 425 modules on legacy 1640 system boards will cause electronic communication and waveform mismatches.
Terms, Warranty & Customer Protection
Condition: 100% Brand New, Genuine OEM Factory-Original Canon Production Printing replacement component packaged in factory-sealed, light-blocking, electrostatic-shielded packaging.
Manufacturer Warranty: Covered under Canon Production Printing's limited industrial parts warranty against defects in materials and manufacturing prior to ink introduction. Full warranty terms require formal installation verification records logged by a certified Canon field service engineer.
Return Policy: Precision industrial electronic component. Unopened, factory-sealed boxes with intact tamper-evident seals are eligible for standard return. Once the vacuum-sealed barrier is breached or the printhead is docked into the heated carriage manifold, returns cannot be accepted due to fluid cross-contamination and electronic activation risks.
