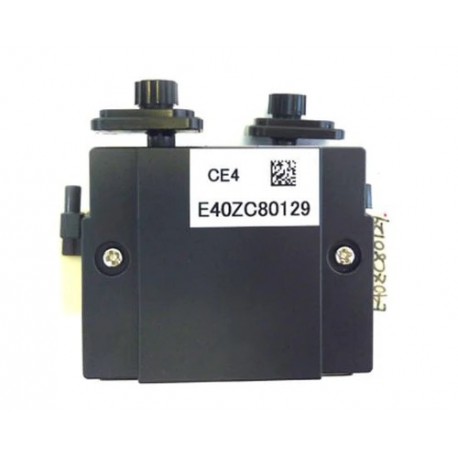

Mimaki original CE4 Head Assy UJF MK-II - Printhead for Mimaki UJF3042 MKII Printer M018821 / M008386

This Printhead Assy is suitable for the Mimaki UJV / JFX / UJF-706 Printers. This is the original Mimaki part (number M018821 replacing M008386 & KX-CE308644CS-CE4). This part does not include the metallic bracket that can be easily re-used from the previous head. We recommend to change the head cables when installing a new printhead.
The following items are expressly excluded from warranty coverage:

    defects related, in any way, to the use of non-original inks
    clogged, missing or deviated nozzles
    defects related to misuse, abuse, accident, neglect, lack of use, or improper storage when not in use for extended periods
    defects related to failure to perform periodic maintenance as specified in the user documentation; operation for unintended purposes
    defects related to improper loading of media
    all other defects, failures or damage not considered manufacturing defects
    defects related to third-party applications, software, parts, components, or peripheral devices, including any bulk ink system.
    defects that are merely cosmetic in nature.

Product Specifications

    Technology: Multi-drop grayscale micro-piezo
    Grayscale levels: 16
    Active nozzles: 318
    Print swathe width: 53.6 mm
    Nozzle pitch: 169 μm
    Native resolution: 150 dpi
    Printhead weight: 148 g
    Dimensions: 85 x 70 x 23 mm
    Drop volume: 6 - 90 pl
    Typical firing frequency: 2.8 - 28 kHz
    Ink Compatibility: oil-based pigment ink and UV curable pigment ink
    This printhead carries a manufacturer warranty.
    Country of origin : Japan

Printer compatibility
Mimaki JFX-1615
Mimaki JFX-1615Plus
Mimaki JFX-1631
Mimaki JFX-1631Plus
Mimaki UJF-706
Mimaki UJV-160
Mimaki UJF-3042MkII
Mimaki UJF-6042MkII
