Genuine Mimaki Ujf-7151 Plus Print head Mimaki M017429/MP-M025074 Mimaki Jfx200 Printhead

Description

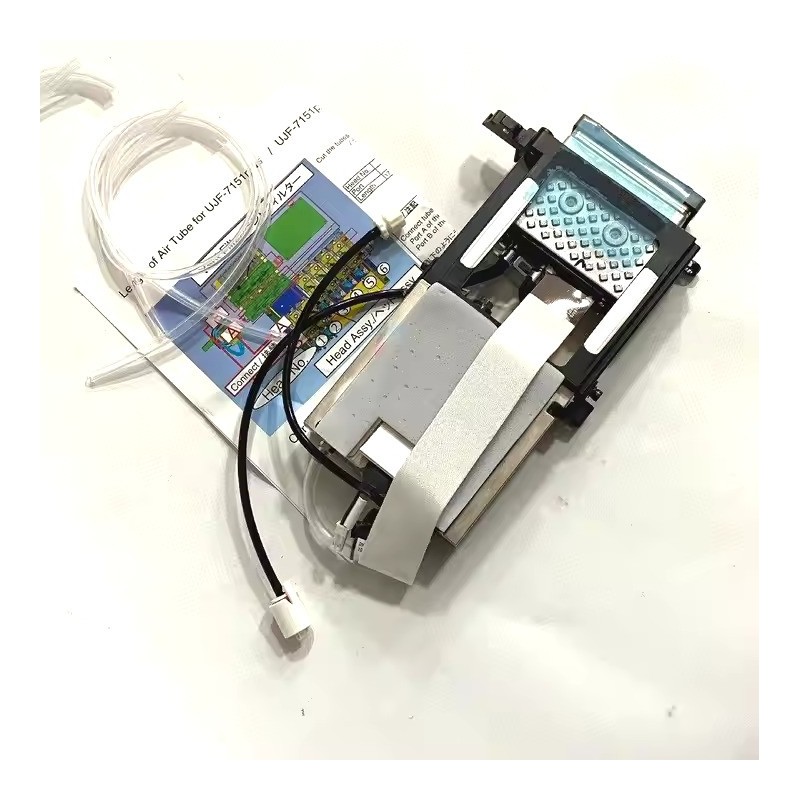

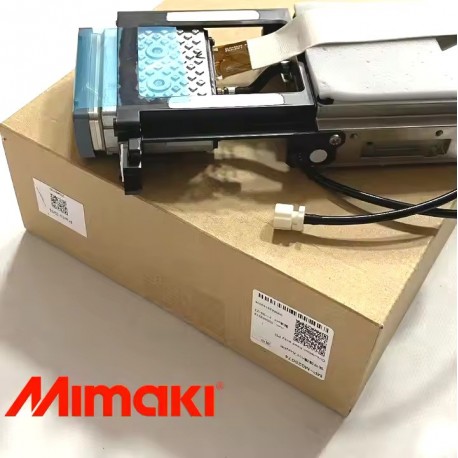

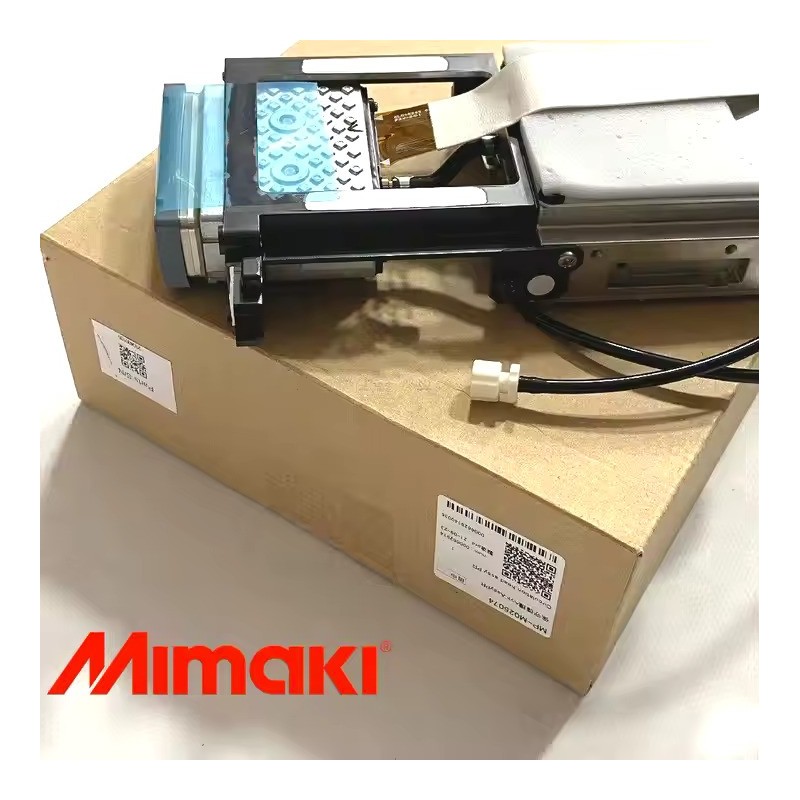

This head assembly is suitable for Mimaki UJF-7151 Plus printers. This is the original Mimaki part (number M017429 replaced by MP-M025074). This head assembly includes brackets, tubes, damper and subtank.

Specifications

    Print Method: On-Demand piezo technology
    Ink Re-circulation Structure: Ink re-circulation through all channels
    Print Width: 53.7mm
    Nozzles: 636
    Nozzle Resolution: 300npi
    Number of Lows: 2
    Nozzle Spacing (Row to row distance): 4.64mm
    Grayscale Level: 4 levels/0,5,6,7drops
    Drop Volume: 57~80pL
    Frequency: 4.8kHz/7drops
    Power Supply Voltage for Driving the Head: 14~31V
    Power Supply Voltage for Driving Circuit: 5V, 39V
    Ink Type: UV-curing
    Size, Weight: 94.1mm(W)×26mm(D)×79mm(H), 161g

Printer compatibility
Mimaki UJF-7151 Plus
